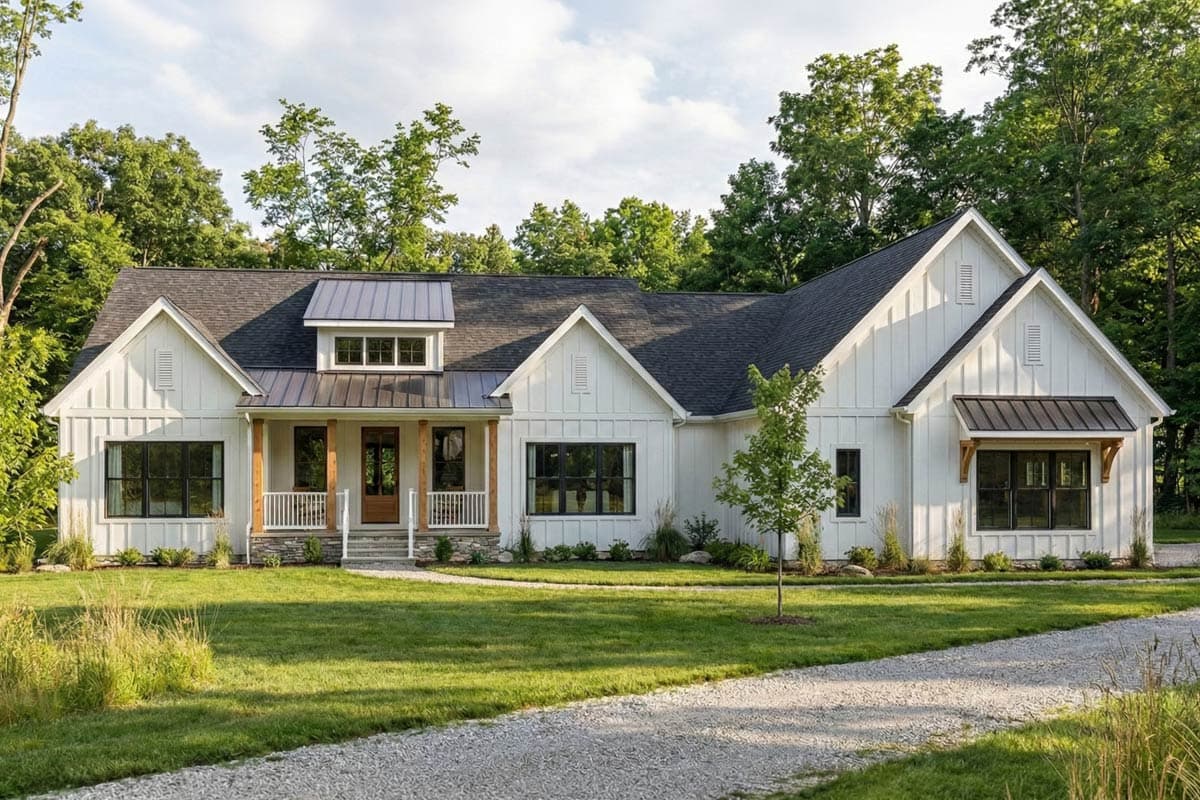

Plan 623537DJ

Transitional Farmhouse House Plan with Split Bedrooms

Heated S.F.
2,678
Beds
3
Baths
2.5
Stories
1
Cars
2
Tour

Floor Plan

Plan 623537DJ

Main Level
Main Level
Optional Lower Level Layout ($ Paid Option)
Optional Lower Level Layout ($ Paid Option)

Plan 623537DJ

M-F 9am-5pm EST |

1-203-761-8500

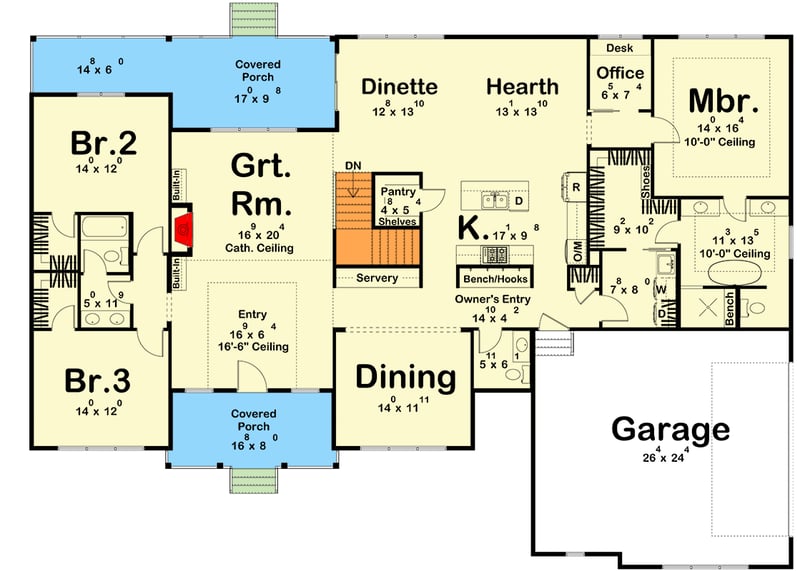

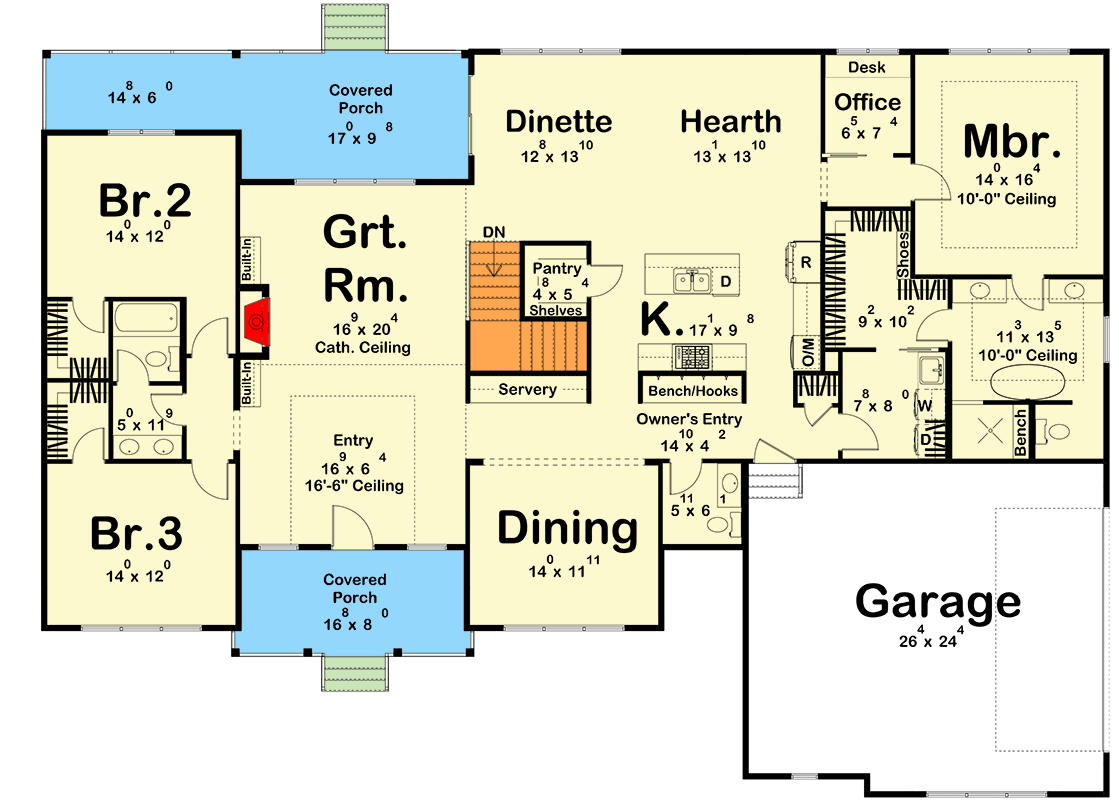

Main Level

Plan 623537DJ: Transitional Farmhouse House Plan with Split Bedrooms - Floor Plan - Main Level - Farmhouse, Transitional

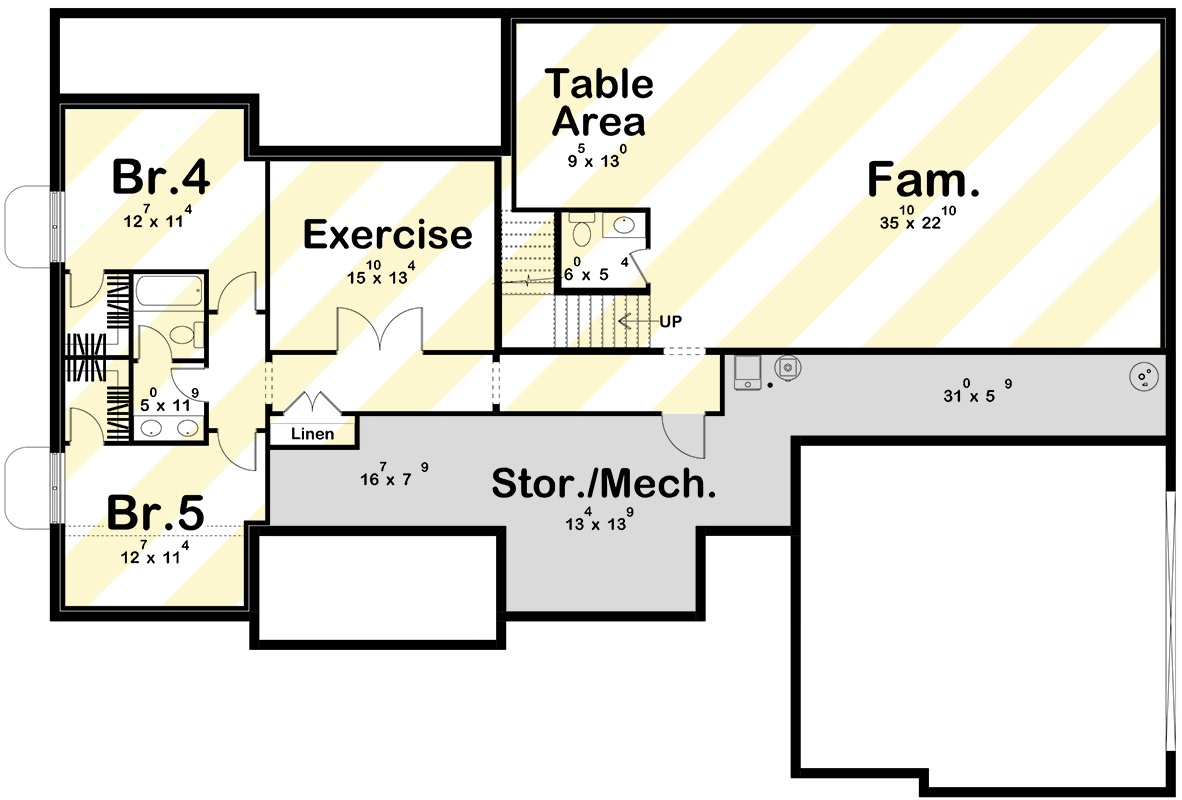

Optional Lower Level Layout ($ Paid Option)

Plan 623537DJ: Transitional Farmhouse House Plan with Split Bedrooms - Floor Plan - Optional Lower Level Layout ($ Paid Option) - Farmhouse, Transitional

Plan Details

  • This 2,678 sq. ft. transitional farmhouse features 3 bedrooms, 2.5 bathrooms, and a 652 sq. ft. side-entry garage for 2 cars.

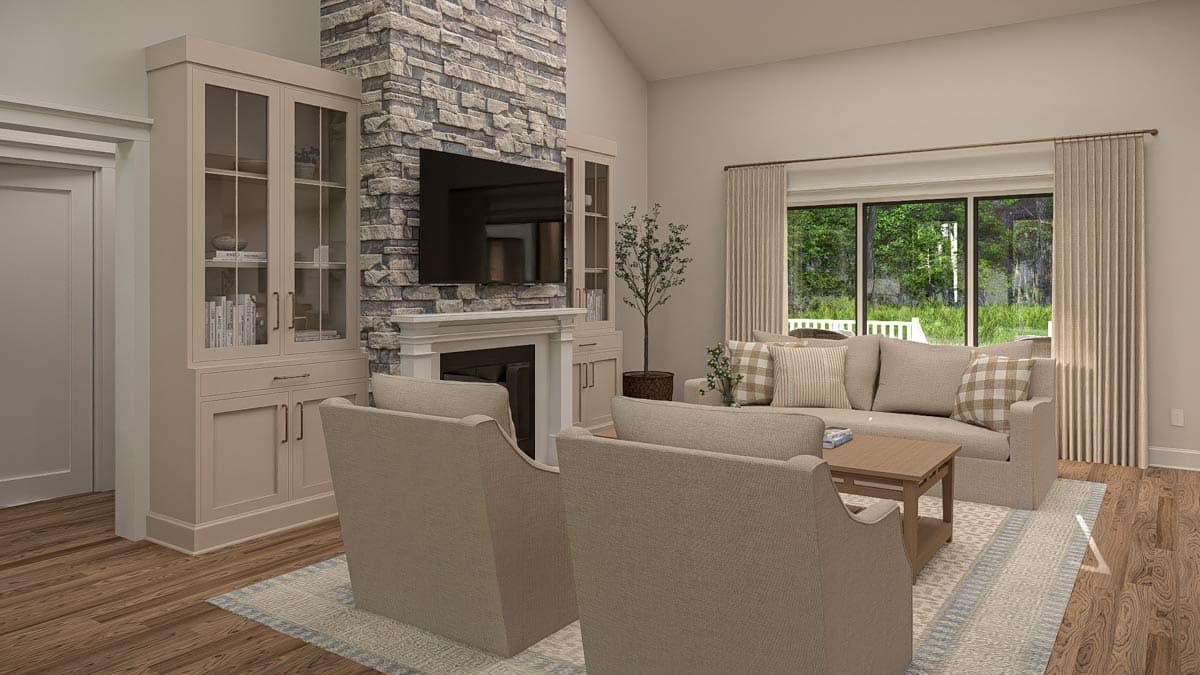

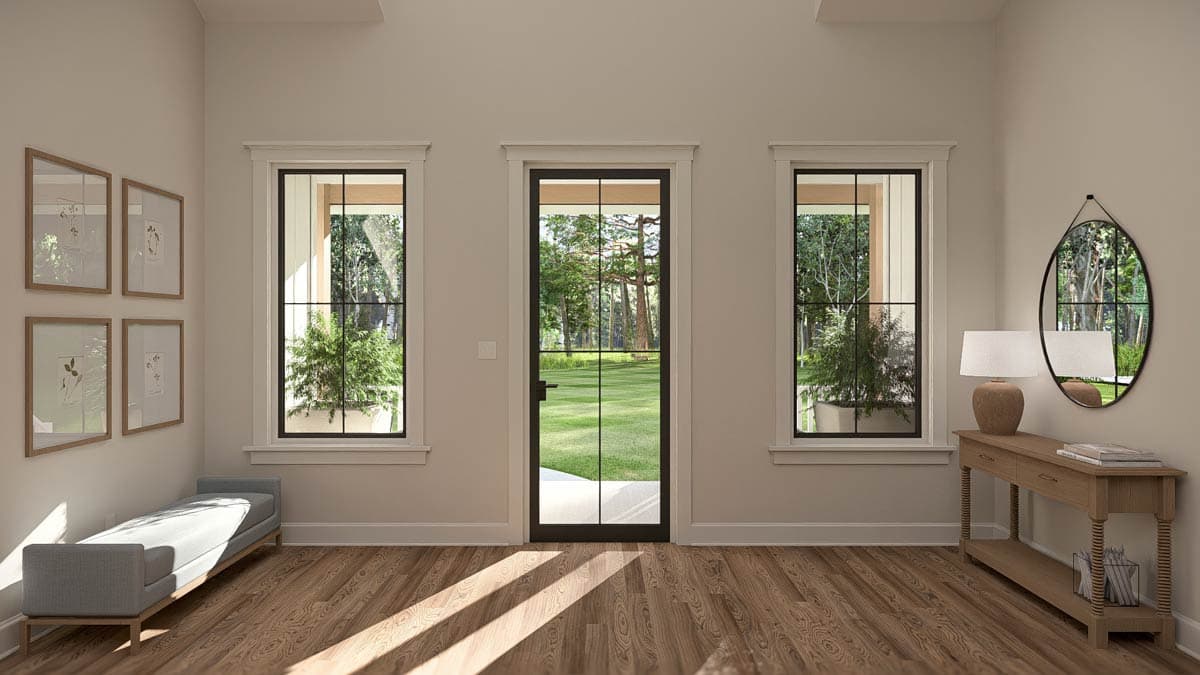

  • Enter through a welcoming 16'6" ceiling entry into a spacious great room with a cathedral ceiling that flows seamlessly into the kitchen and dining areas.
  • The main level offers a formal dining room, breakfast nook, and a cozy hearth area alongside an efficient kitchen with a servery and pantry.

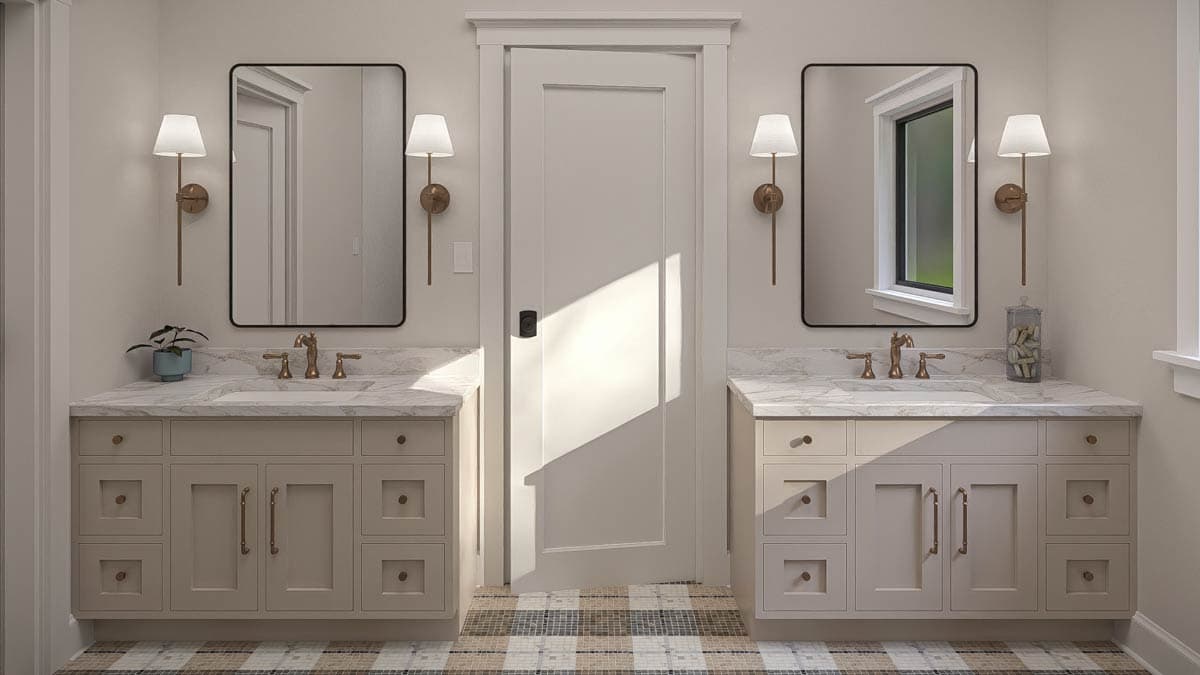

  • The master suite on the first floor includes direct laundry access, along with his-and-hers walk-in closets and a luxurious en-suite bathroom.
  • Unique spaces include a home office, mudroom, and an option for a finished lower level with a game/rec room, exercise area, and additional bedrooms.

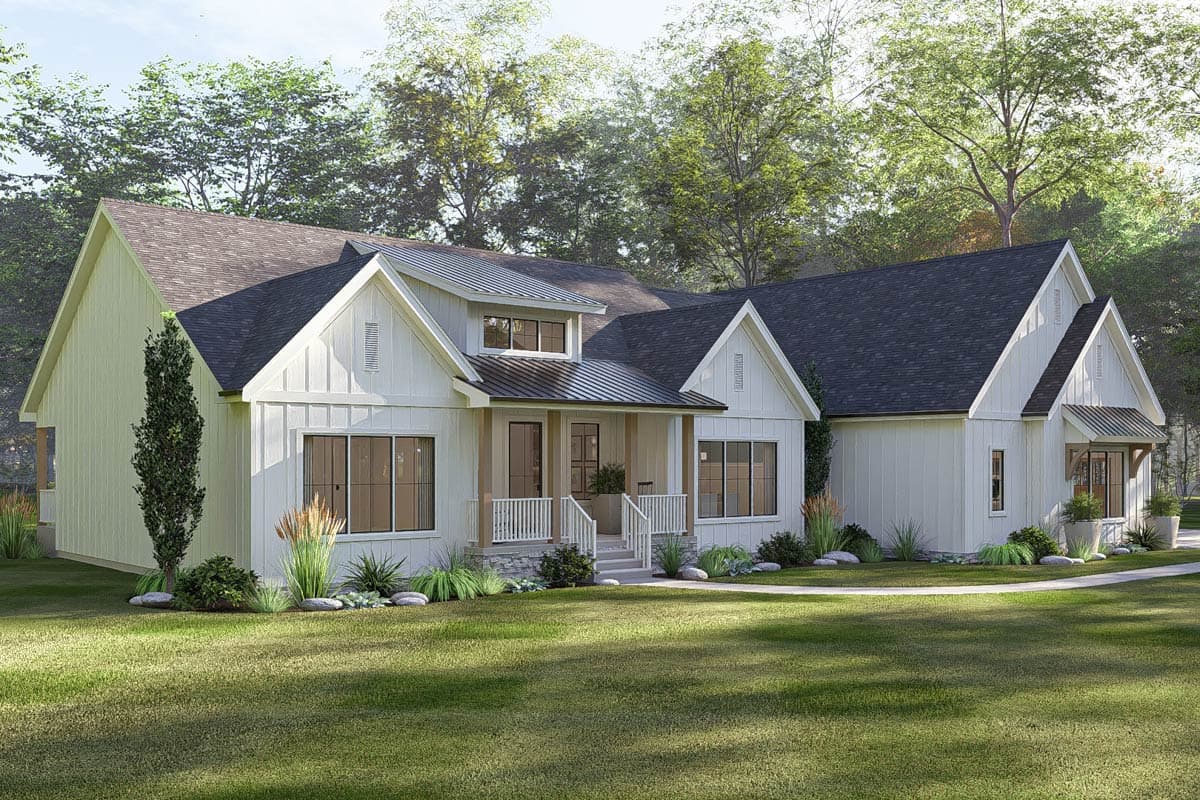

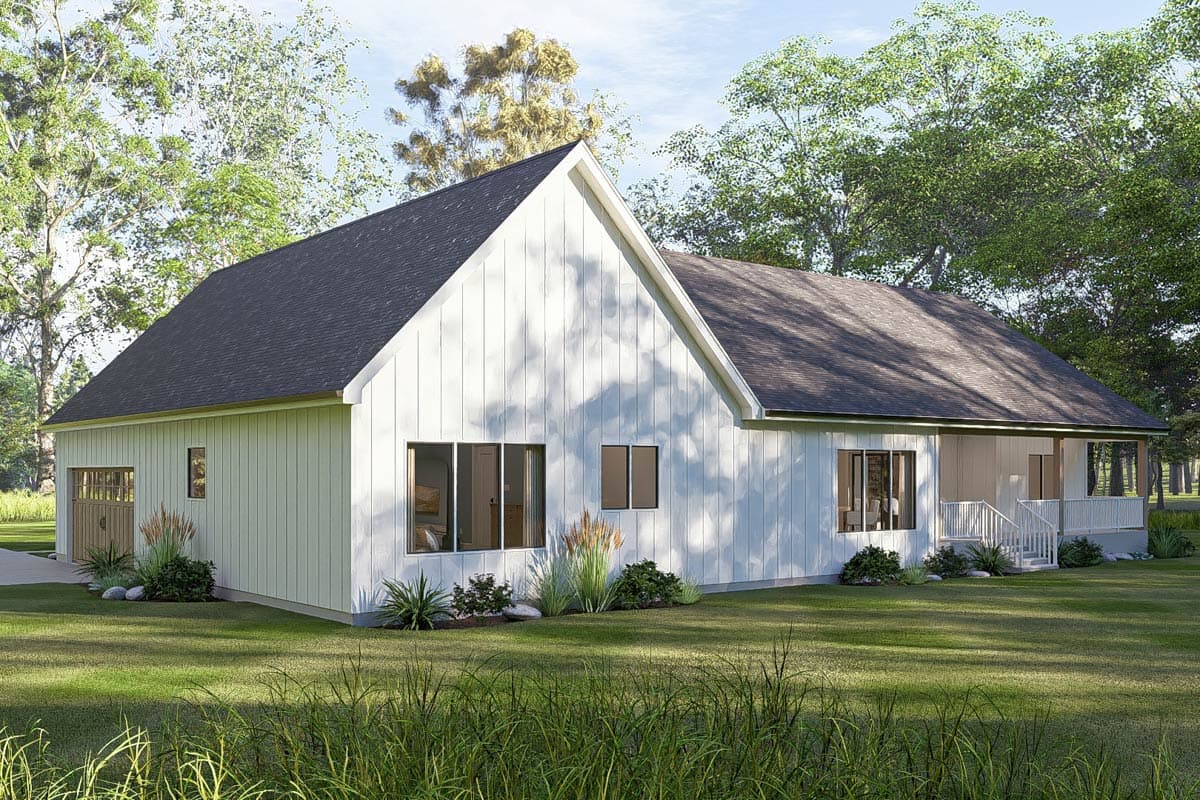

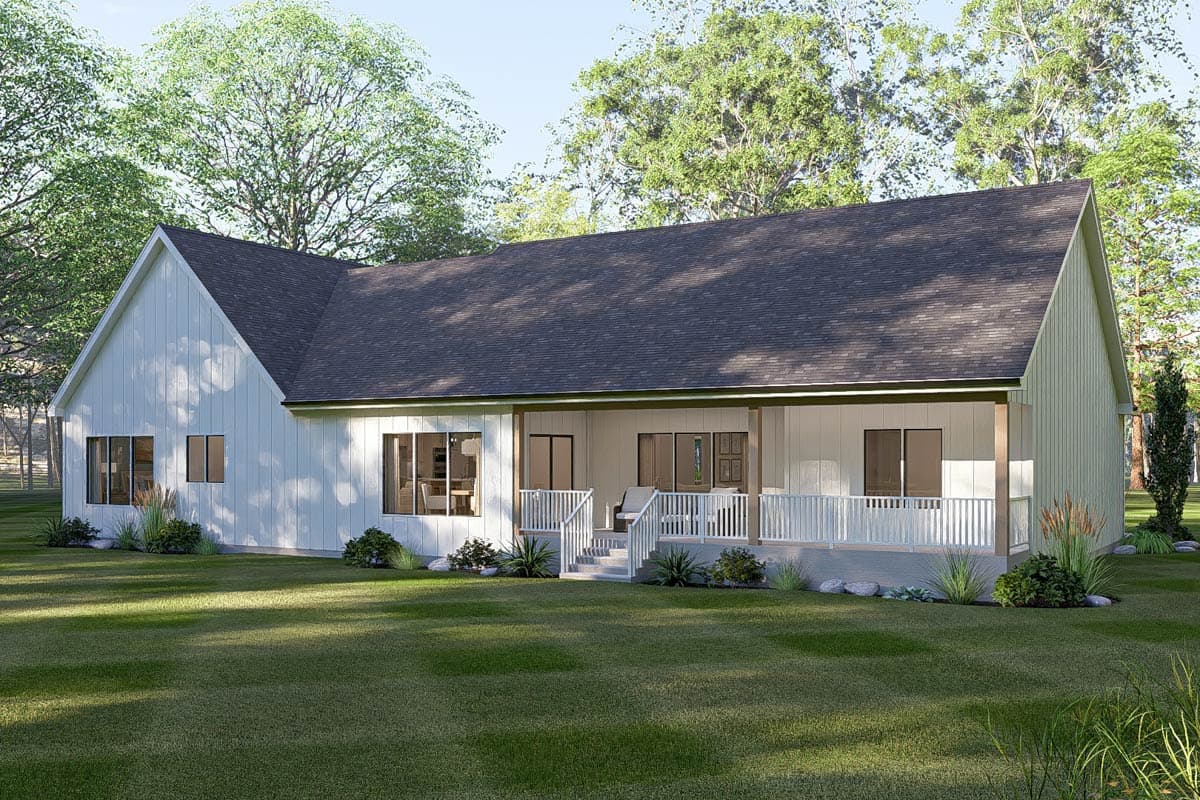

  • Outdoor living is enhanced by covered front and rear porches, ideal for relaxing and enjoying the view.

What's Included

  • Cover Sheet: Shows the front elevation and typical notes and requirements.
  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement
  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
  • Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
  • Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
  • Roof Plan
  • Typical Wall Section
  • Typical Stair Section (if applicable)
  • Cabinets Elevations (if applicable)
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

2,678 sq. ft.

1st Floor

2,678 sq. ft.

Optional Lower Level

1,926 sq. ft.

Porch, Combined

389 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

79' 0"

Depth

55' 4"

Max Ridge Height

23' 8"

Garage

Type

Attached

Area

652 sq. ft.

Count

2 Cars

Entry Location

Side

Ceiling Heights

Lower Level

9'

First Floor

9'

Roof Details

Primary Pitch

8 on 12

Secondary Pitch

12 on 12

Framing Type

Truss

Architectural Style

Farmhouse

Transitional

Special Features

Bedrooms - Split

Breakfast Nook

Formal Dining

Game/Rec Room

Home Office

Keeping Room

Laundry Access from Master Suite

Laundry - Main Level

Master Suite - 1st Floor

Mudroom
