Transitional Farmhouse Plan with 3-Car Side-Load Garage

Plan 510221WDY

  • 2,957

    Heated s.f.

  • 4

    Beds

  • 3.5

    Baths

  • 1

    Stories

  • 3

    Cars

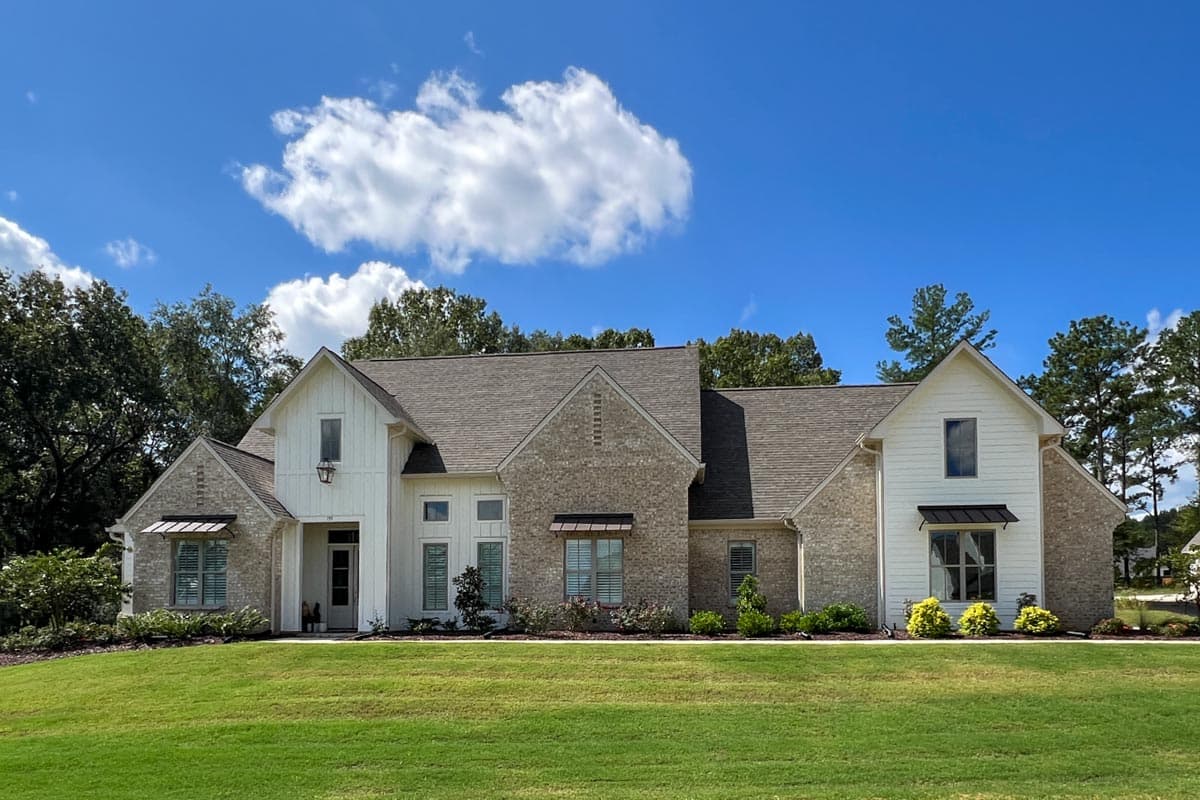

  • This beautiful transitional farmhouse plan offers 10' high ceilings and has a side-loading 3-car garage.
  • With its open concept design, there's an easy flow from room to room with a view of the large rear covered porch from all the main living areas.
  • Bedrooms 3 and 4 have the own private foyer entry while bedroom 2 has a secluded location off by itself.
  • The gorgeous master suite enjoys a luxurious bathroom almost as big as the bedroom with a big soaking tub taking center stage.
  • The master walk-in closet is enormous and has two separate entrances.
  • The large rear porch has an outdoor kitchen and extends your enjoyment to the outdoors.
  • Related Plan: Get an alternate version with house plan 510011WDY.

This house plan set consists of the following elements:


  • Cover Sheet
  • Dimensioned Floor Plans w/ Notes & Details (if more than single level, dimensioned floor plan sheets are included for each level)
  • Exterior Elevations w/ Details
  • Building Section and Roof Plan w/ Trim Details
  • Additional Building Notes and Details
  • Electrical Layout
  • Foundation Plan
  • Foundation Details and Notes

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

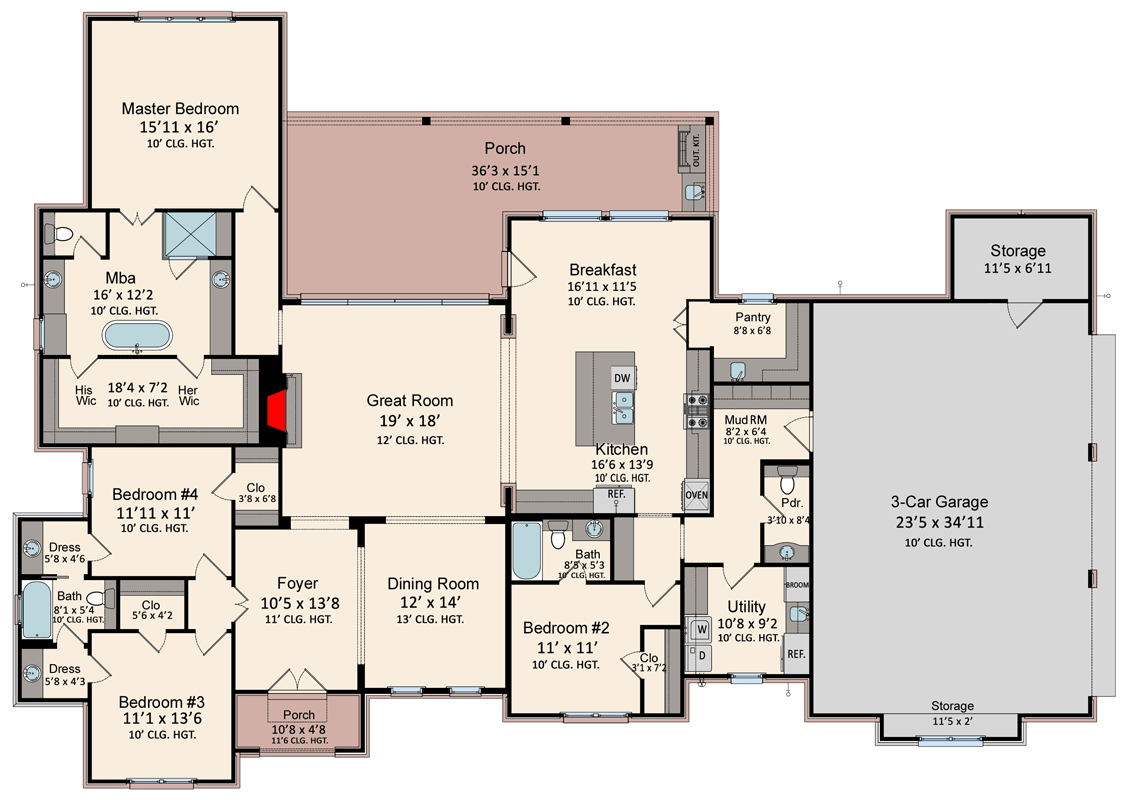

Transitional Farmhouse Plan with 3-Car Side-Load Garage - 510221WDY floor plan - Main Level

Transitional Farmhouse Plan with 3-Car Side-Load Garage

  • 2,957

    Heated s.f.

  • 4

    Beds

  • 3.5

    Baths

  • 1

    Floors

  • 3

    Car garage

Floor Plan

  • Main Level

Plan Details

Square Footage Breakdown

  • Total: 2,957 sq. ft.
  • 1st Floor: 2,957 sq. ft.

Dimensions

  • Width: 92' 2"
  • Depth: 66' 0"
  • Max ridge height: 31' 9"

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 953 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Foundation Type

    • Standard Foundations: Slab
    • Optional Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 10' 0"

Roof

  • Primary Pitch: 12 on 12
  • Framing Type: Stick
