Transitional Farmhouse Plan with 4 to 5 Bedrooms

Plan 510011WDY

  • 2,896

    Heated s.f.

  • 4-5

    Beds

  • 3.5 - 4.5

    Baths

  • 1-2

    Stories

  • 3

    Cars

  • This beautiful transitional farmhouse plan offers 10' high ceilings and the option of a fifth bedroom.

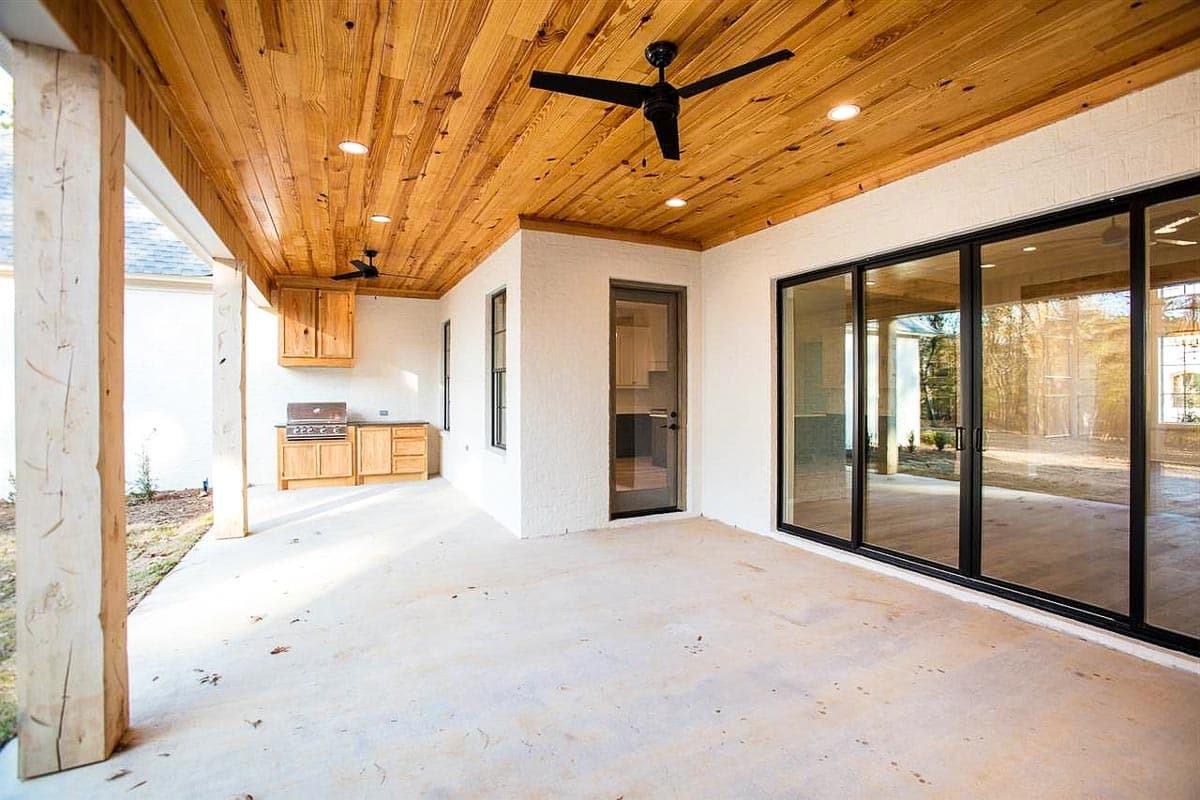

  • With its open concept design, there's an easy flow from room to room with a view of the large rear covered porch from all the main living areas.
  • Bedrooms 3 and 4 have the own private foyer entry while bedroom 2 has a secluded location off by itself.

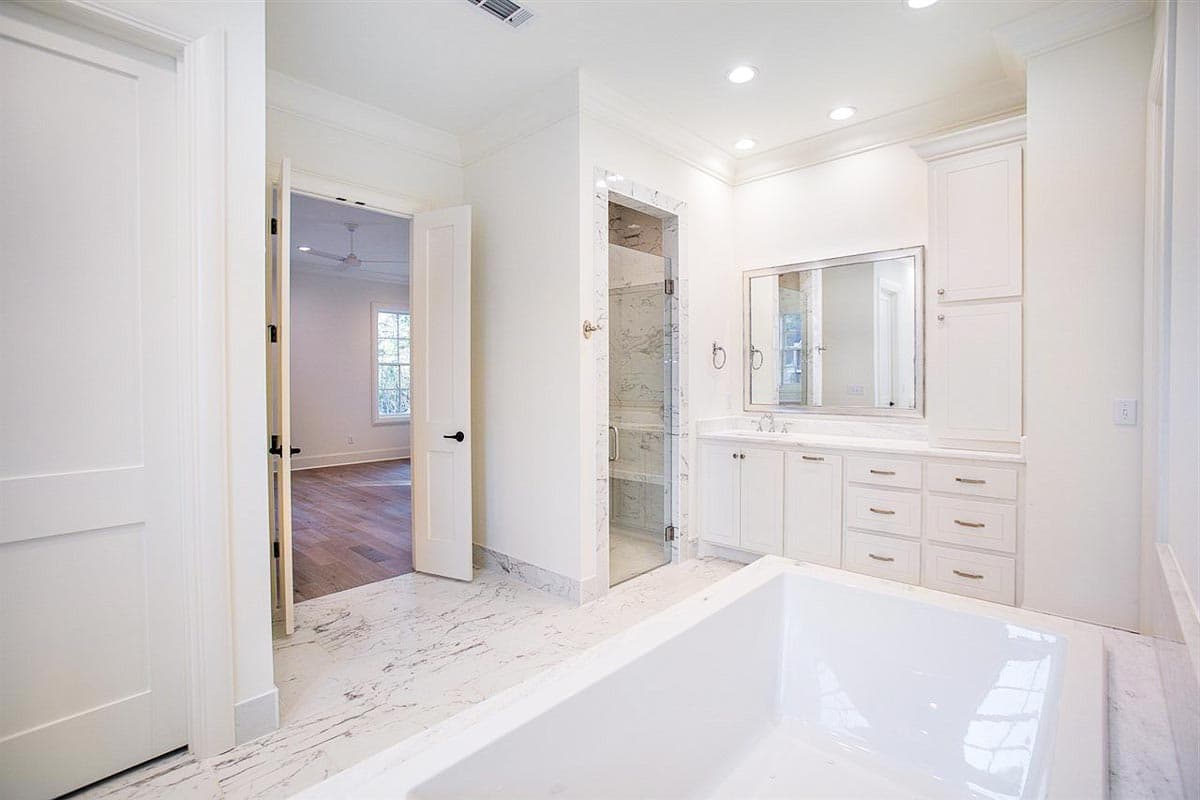

  • The gorgeous master suite enjoys a luxurious bathroom almost as big as the bedroom with a big soaking tub taking center stage.
  • The master walk-in closet is enormous and has two separate entrances.
  • Finish the bonus room up on the second floor to add 342 square feet of living space for a fifth bedroom and bathroom.
  • Related Plan: Get an alternate version with house plan 510221WDY.

This plan set consists of 11 pages as follows:

Cover sheet
Floor plan with notes
Second floor plan and electrical plan; garage section; stair and siding details

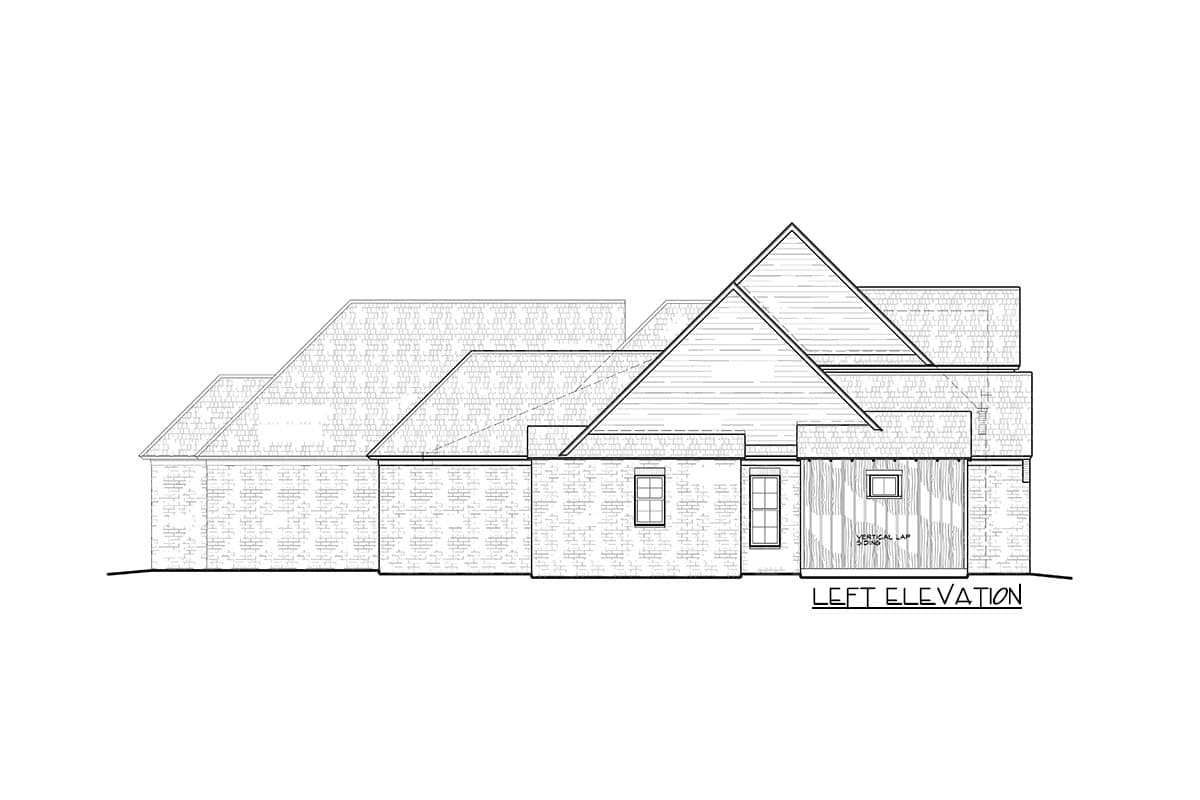

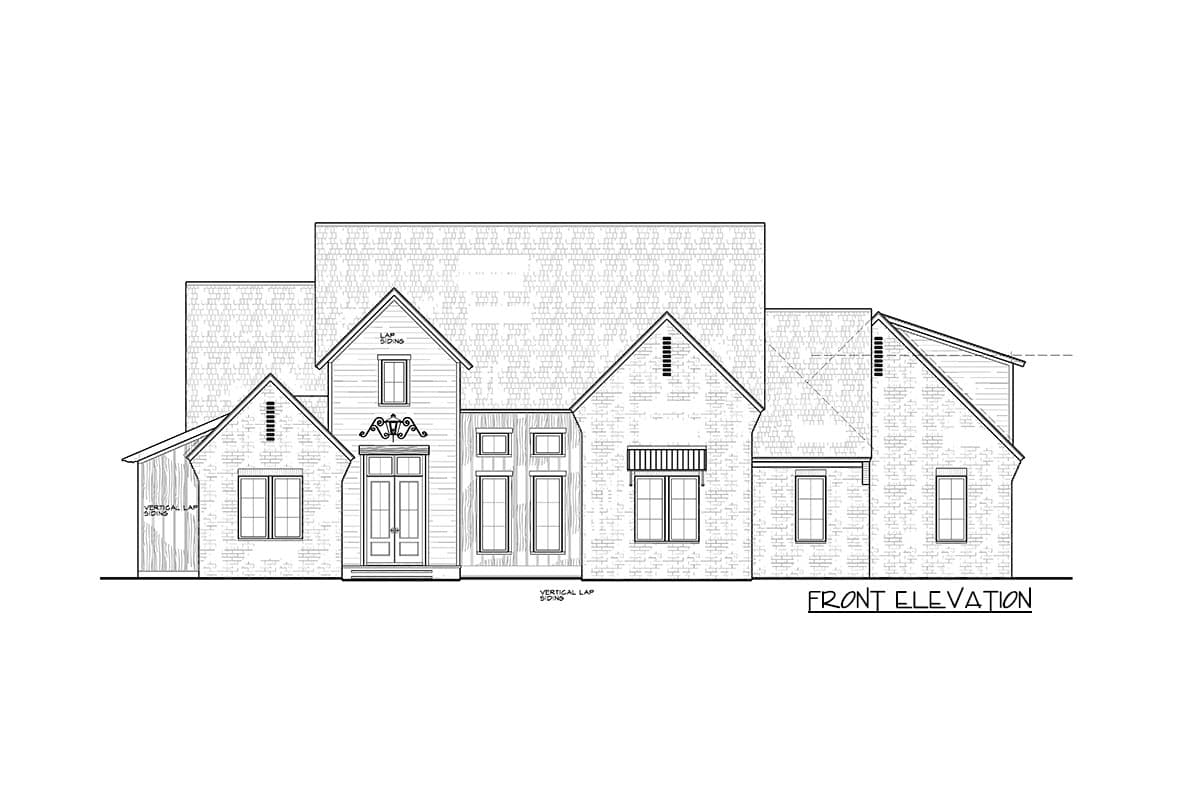

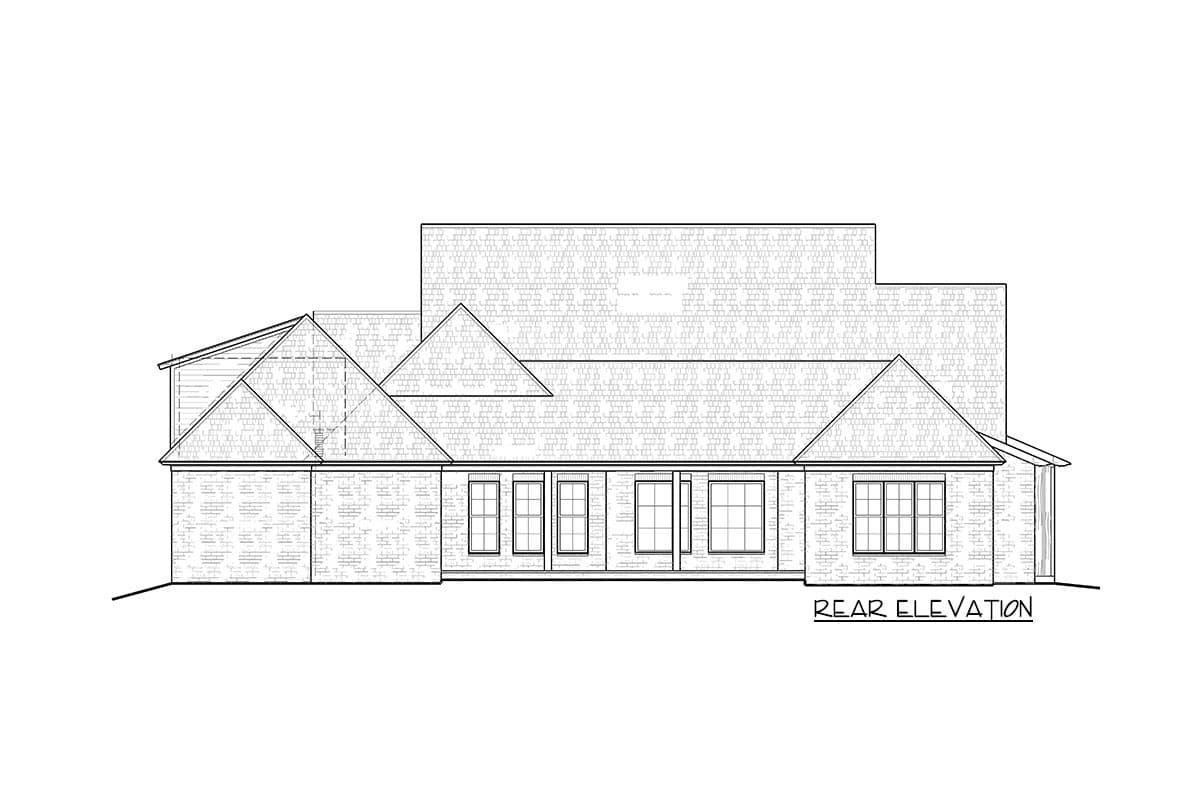

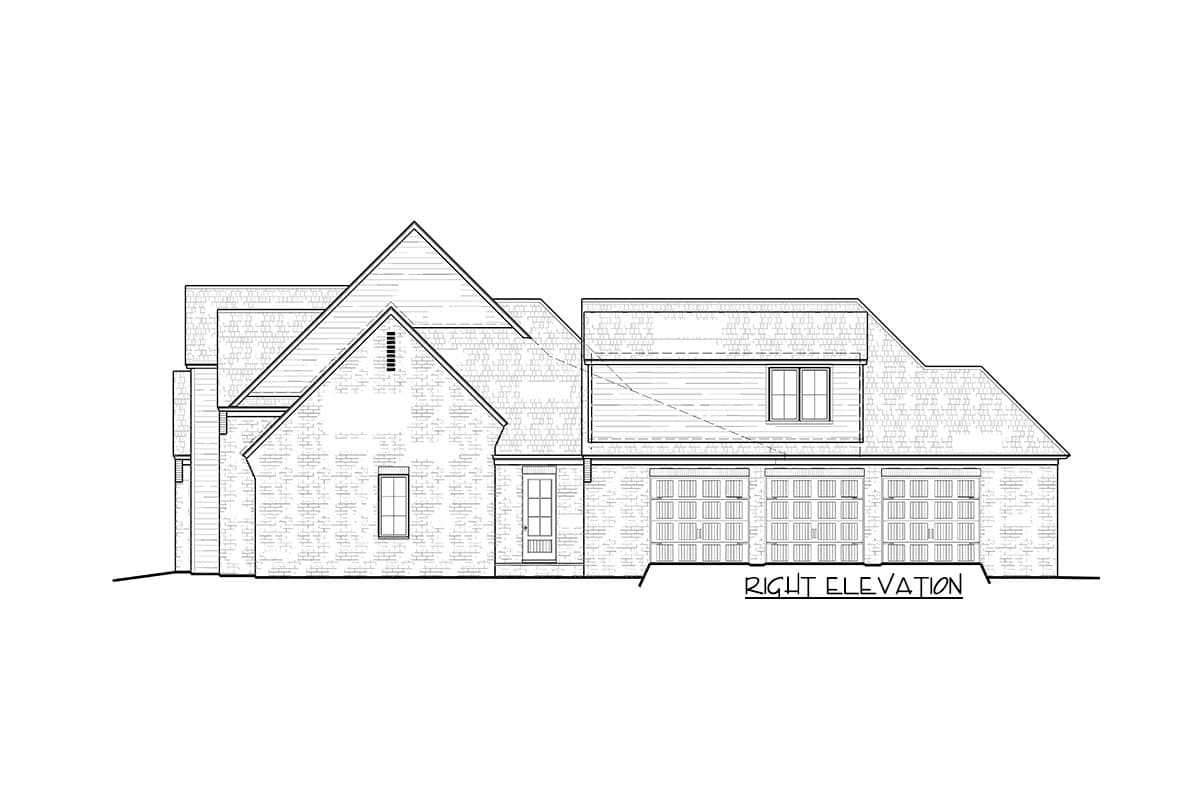

Front and left elevations
Rear and right elevations
Roof plan, building section, general details
General details (4 pages)
Slab foundation
Foundation details

These items are NOT included:

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

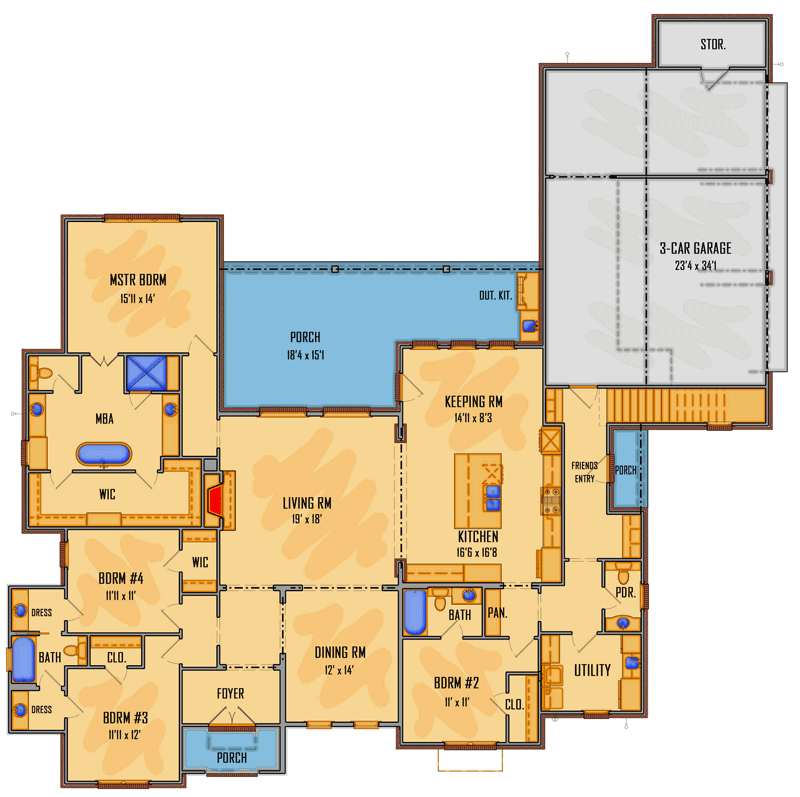

Transitional Farmhouse Plan with 4 to 5 Bedrooms - 510011WDY floor plan - Main Level

Bonus Room

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

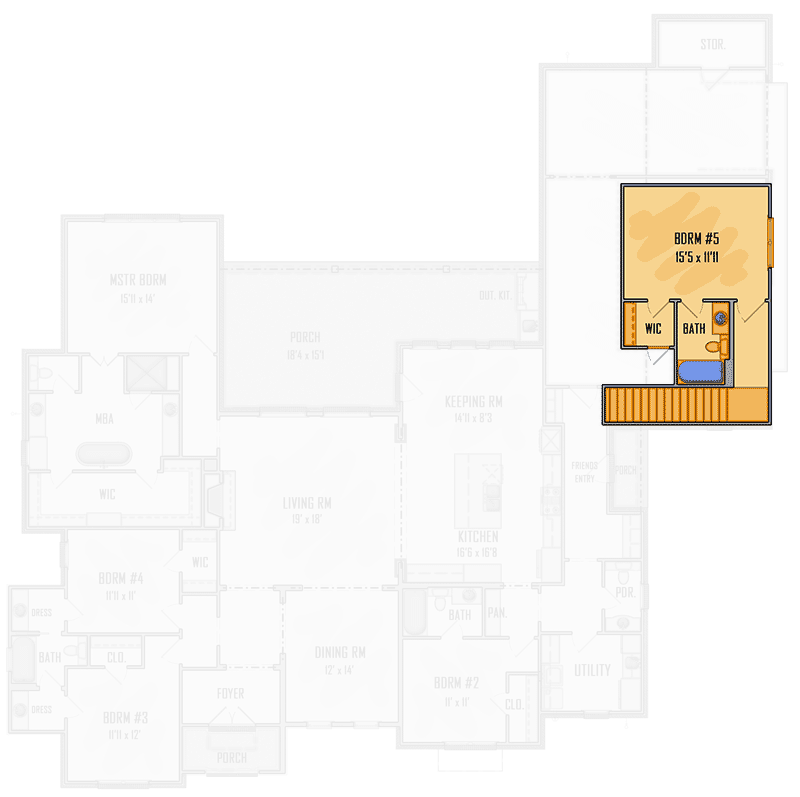

Transitional Farmhouse Plan with 4 to 5 Bedrooms - 510011WDY floor plan - Bonus Room
