Plan 65631BS Transitional Florida House Plan for Outdoor Enthusiasts

Transitional Florida House Plan for Outdoor Enthusiasts

Plan 65631BS

  • 3,219

    Heated s.f.

  • 3

    Beds

  • 3.5

    Baths

  • 1

    Stories

  • 3

    Cars

  • The heart of this transitional, Florida house plan is oriented to take advantage of the rear outdoor living space through oversized glass-paneled doors.
  • The gourmet kitchen hosts many luxury amenities, including a large island with seating for five, walk-in pantry, and 6-burner range.
  • Set apart from the secondary bedrooms, discover the master suite with dual walk-in closets and a 5-fixture bathroom with a generously-sized shower. The neighboring study rests behind french doors.
  • Two additional bedroom suites are located behind the 3-car garage, each with a walk-in closet and full bath.
  • A powder bath near the garage entrance is helpful when trying to leave in a hurry, and the laundry room can easily accommodate towels from a crowded pool party.

Plans include the following:

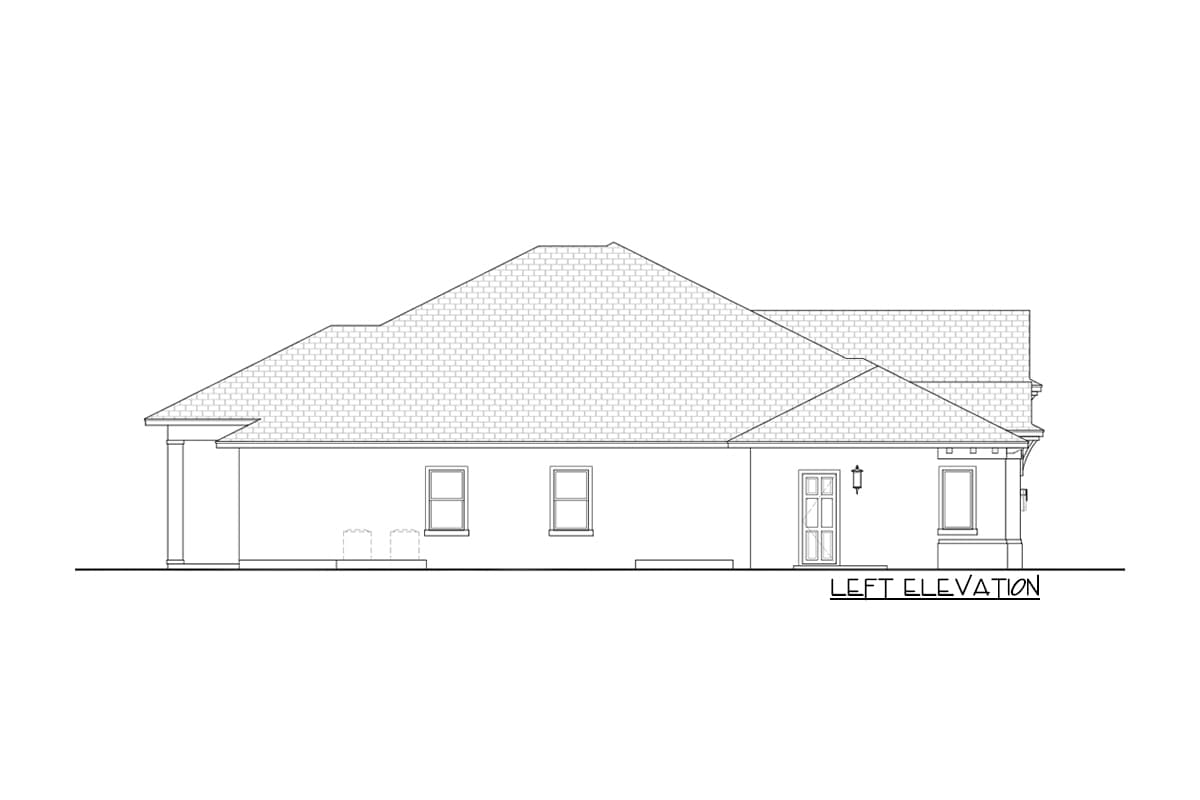

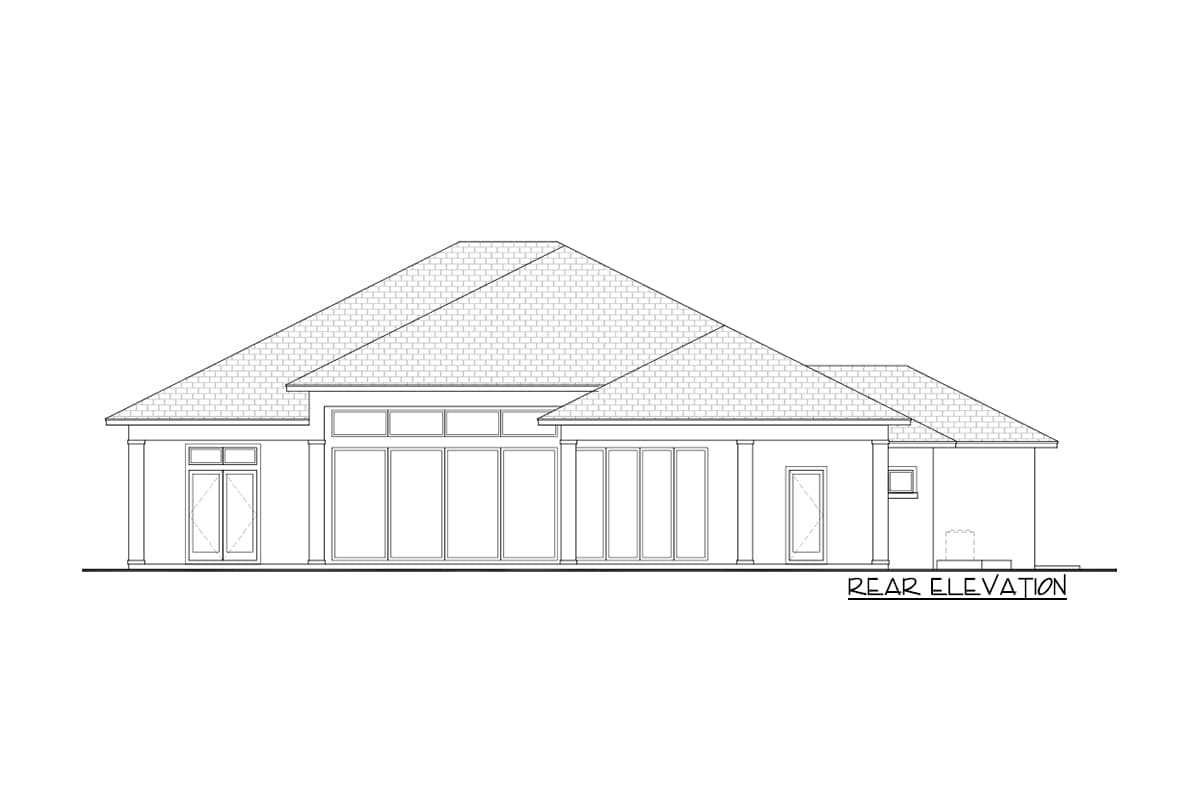

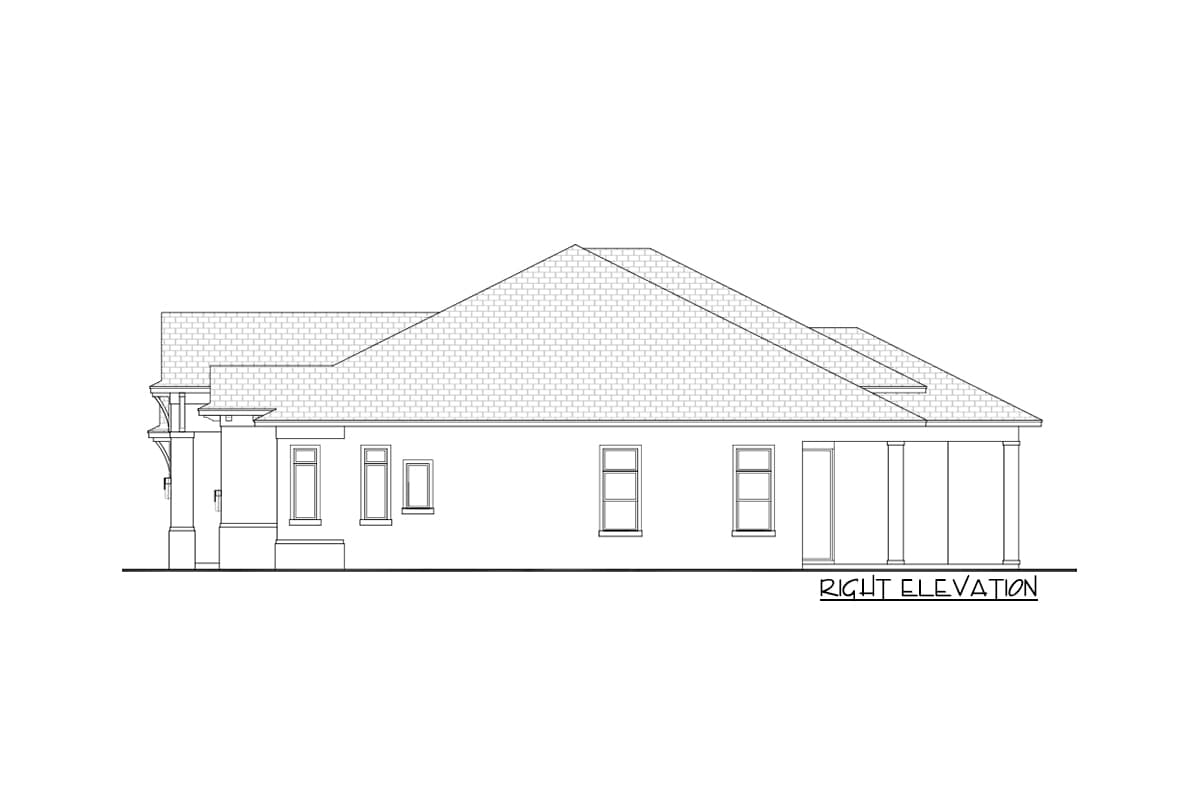

Elevations:

Drawn at 1/8″ to 1/4″ = 1’0″ Scale and Includes:

  • Material Labels
  • Floor-To-Floor Heights
  • Roof Slope Indicators

Floor Plans:
Drawn at 1/8″ to 1/4″ = 1’0″ Scale and Includes:

  • Door and Window Sizes
  • Completely Dimensioned Floor Plan
  • Room Labels and Interior Room Sizes

Electrical Layouts:

  • Building Section Markers
  • All Electrical Outlets, Fixtures and Switching

Foundation or Slab Plan:
Drawn at 1/8″ to 1/4″ = 1’0″ Scale

Roof Design Plan:
Drawn to 1/8″ to 1/4″ = 1’0″ Scale and Includes:

  • All Beam and Header Heights and Locations
  • All Hips, Gables, Ridges and Valley
  • Building Section Markers

Building Sections:
Drawn to 1/8″ to 1/4″ = 1’0″ Scale and Includes:

  • Floor-To-Floor Heights
  • Non-Typical Plate Heights Indicated

Typical Wall Sections:
Drawn at 1/8″ to 1/2″ = 1’0″ Scale and Includes:

  • All Labels Indicating Wall Construction
  • Foundation Wall Thickness
  • Insulation Type and Thickness

Miscellaneous Notes and Details:

  • Miscellaneous General Notes
  • Stairway Details (if applicable)
IMPORTANT NOTE:  Structural drawings, as well as heating and plumbing details, will not be included in your plan sets due to a variety of factors which include local codes, installation methods, personal preference, etc.  Your building professional (contractor/builder/supplier) can, without difficulty, supply these details and specifications on your behalf.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

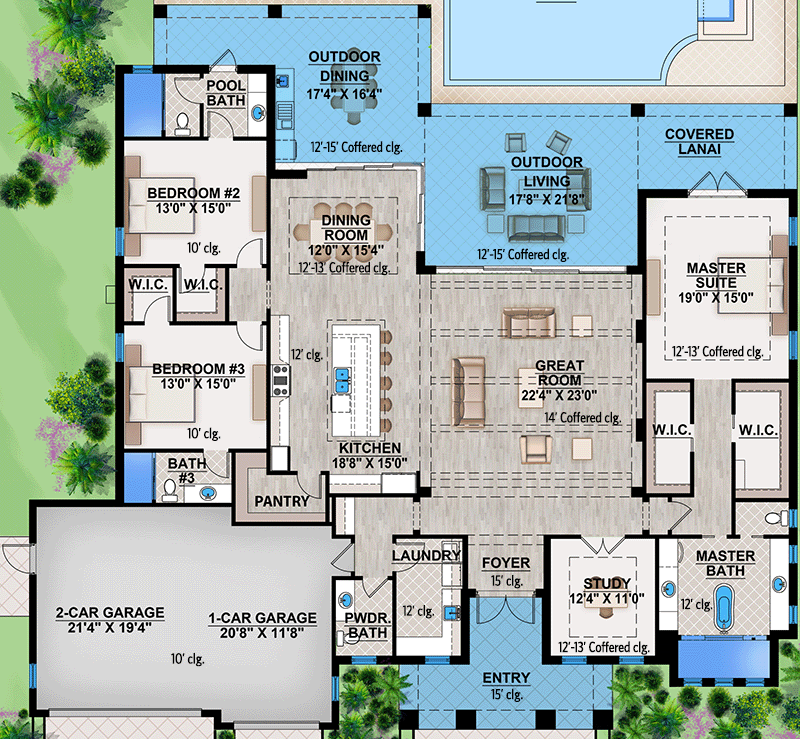

Transitional Florida House Plan for Outdoor Enthusiasts  - 65631BS floor plan - Main Level

Plan details

Transitional Florida House Plan for Outdoor Enthusiasts

  • 3,219

    Heated s.f.

  • 3

    Beds

  • 4

    Baths

  • 1

    Floors

  • 3

    Car garage

Buy This Plan
  • CAD - Single-Build $2,900
  • PDF - Single-Build $2,900
  • CAD - Unlimited Build $4,350
  • PDF - Unlimited Build $4,350
  • View all purchase option online

About This Plan

  • The heart of this transitional, Florida house plan is oriented to take advantage of the rear outdoor living space through oversized glass-paneled doors.
  • The gourmet kitchen hosts many luxury amenities, including a large island with seating for five, walk-in pantry, and 6-burner range.
  • Set apart from the secondary bedrooms, discover the master suite with dual walk-in closets and a 5-fixture bathroom with a generously-sized shower. The neighboring study rests behind french doors.
  • Two additional bedroom suites are located behind the 3-car garage, each with a walk-in closet and full bath.
  • A powder bath near the garage entrance is helpful when trying to leave in a hurry, and the laundry room can easily accommodate towels from a crowded pool party.

Floor Plans

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 3,219 sq. ft.
  • 1st Floor: 3,219 sq. ft.
  • Lanai: 888 sq. ft.
  • Entry: 206 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 3
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): Block

Dimensions

  • Width: 80' 4"
  • Depth: 75' 10"

Garage

  • Type: Attached
  • Area: 711 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Roof

  • Primary Pitch: 6 on 12
  • Framing Type: Truss
