Plan 666199RAF

Transitional Home Plan with Second Floor Master Suite - 1644 Sq Ft

Heated S.F.
1,644
Beds
3
Baths
2.5
Stories
2

Floor Plan

Plan 666199RAF

Main Level
Main Level
2nd Floor
2nd Floor

Plan 666199RAF

M-F 9am-5pm EST |

1-203-761-8500

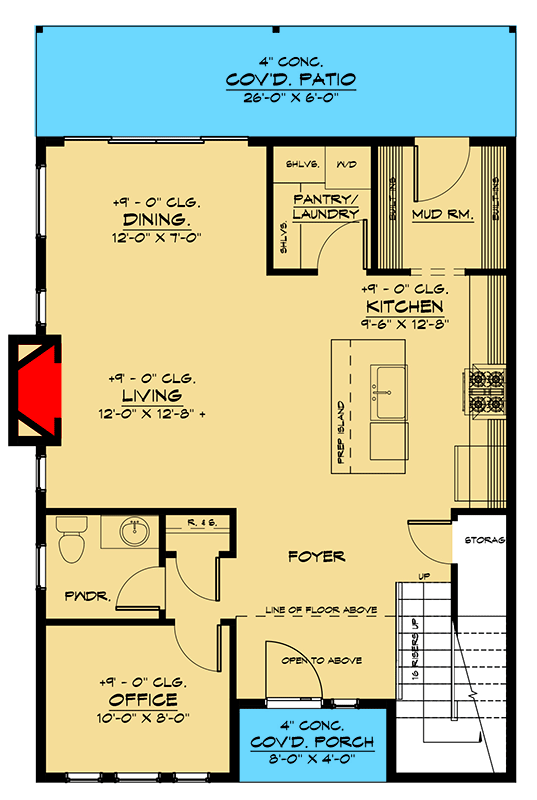

Main Level

Plan 666199RAF: Transitional Home Plan with Second Floor Master Suite - 1644 Sq Ft - Floor Plan - Main Level - New American, Transitional

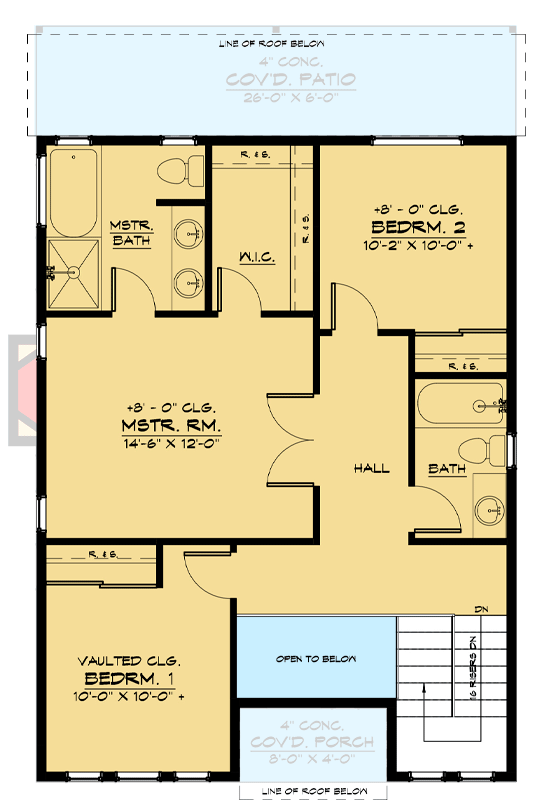

2nd Floor

Plan 666199RAF: Transitional Home Plan with Second Floor Master Suite - 1644 Sq Ft - Floor Plan - 2nd Floor - New American, Transitional

Plan Details

  • This 1,644 sq. ft. New American Transitional house plan offers 3 bedrooms, 2.5 bathrooms, and a striking modern exterior featuring a dynamic blend of vertical board-and-batten and horizontal siding.
  • Step inside from the inviting front porch to discover a thoughtfully designed layout, where the entry foyer opens directly into the main living areas, promoting seamless flow. A dedicated home office on the main level provides a quiet, productive space for remote work or creative pursuits.
  • The heart of the home features an open-concept living and dining area, perfect for daily life and casual gatherings. The gourmet kitchen is enhanced by a practical butler's walk-in pantry, offering abundant storage and prep space for culinary adventures.
  • All three bedrooms are strategically clustered upstairs for ultimate privacy and convenience, including the luxurious master suite. The master bedroom provides a serene retreat, while secondary bedrooms offer comfortable accommodations for family or guests.
  • Beyond the main living spaces, a functional mudroom is strategically placed, essential for keeping the home organized and tidy, especially after outdoor activities.
  • Enjoy the outdoors on both the welcoming 32 sq. ft. front porch, perfect for morning coffee, and the spacious 156 sq. ft. rear porch, offering a private oasis for relaxation or al fresco dining under the stars.

What's Included

  • Cover Sheet with plan info
  • General Notes - Note: codes will not include local state adopted amendments
  • Fully dimensions and detailed floor plans
  • Elevations
  • Building Cross Section
  • Roof Plan
  • Details
  • Window Schedule
  • Original Structural plan FOR REFERENCE ONLY
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp  - handled locally when required
  • Site plans - handled locally - handled locally when required
  • Mechanical Drawings - handled locally when required
  • Plumbing Drawings  - handled locally when required
  • Electrical Drawings  - handled locally when required
  • Energy Calculations  - handled locally when required
  • Foundation and Framing plans  - handled locally when required
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

1,644 sq. ft.

1st Floor

870 sq. ft.

2nd Floor

774 sq. ft.

Porch, Front

32 sq. ft.

Porch, Rear

156 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

27' 6"

Depth

41' 0"

Max Ridge Height

23' 2"

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

3.5 on 12

Secondary Pitch

9 on 12

Framing Type

Truss

Architectural Style

New American

Transitional

Special Features

Bedrooms - Clustered

Home Office

Laundry - Main Level

Master Suite - Upstairs

Mudroom

Walk-in Pantry

Plan Collections

Home Office

Photo Gallery

Square Footage Breakdown

Total Heated Area

1,644 sq. ft.

1st Floor

870 sq. ft.

2nd Floor

774 sq. ft.

Porch, Front

32 sq. ft.

Porch, Rear

156 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

27' 6"

Depth

41' 0"

Max Ridge Height

23' 2"

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

3.5 on 12

Secondary Pitch

9 on 12

Framing Type

Truss

Architectural Style

New American

Transitional

Special Features

Bedrooms - Clustered

Home Office

Laundry - Main Level

Master Suite - Upstairs

Mudroom

Walk-in Pantry

Plan Collections

Home Office

Photo Gallery
