Transitional House Plan with 4 Beds, a Home Office and 4-Car Garage - 4146 Sq Ft
Heated S.F.
4,146
Beds
4
Baths
4.5
Stories
2
Cars
4
Flyer
What's Included
Floor Plan
PRINT PLANS

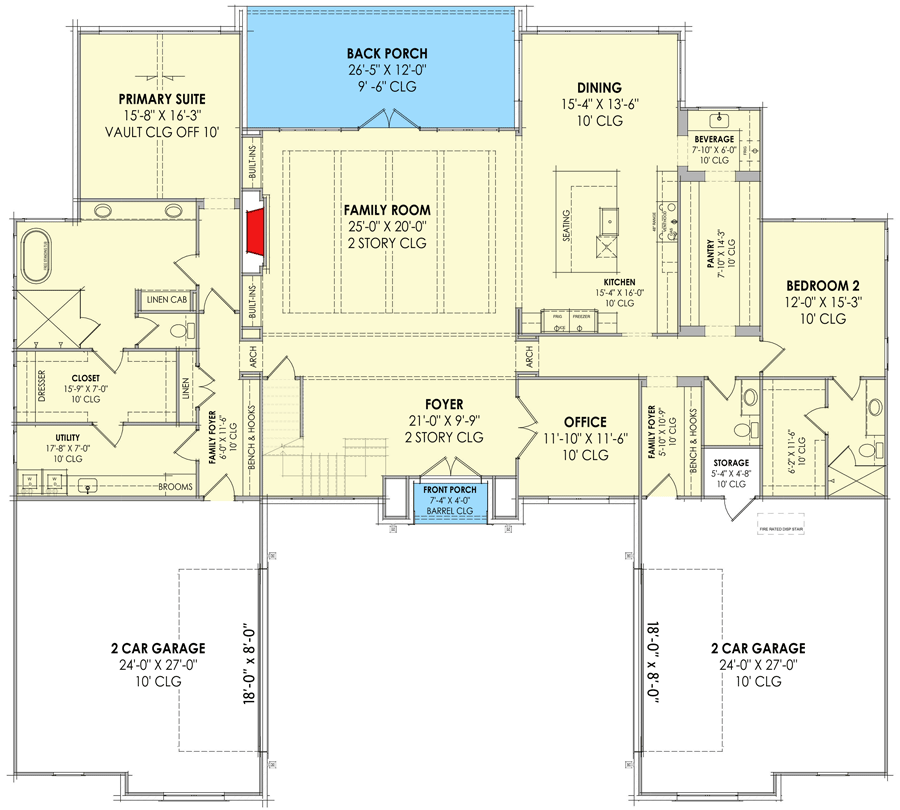

Main Level
Reverse Floor Plan
Transitional House Plan with 4 Beds, a Home Office and 4-Car Garage - 4146 Sq Ft - 818121JSS floor plan - Main Level

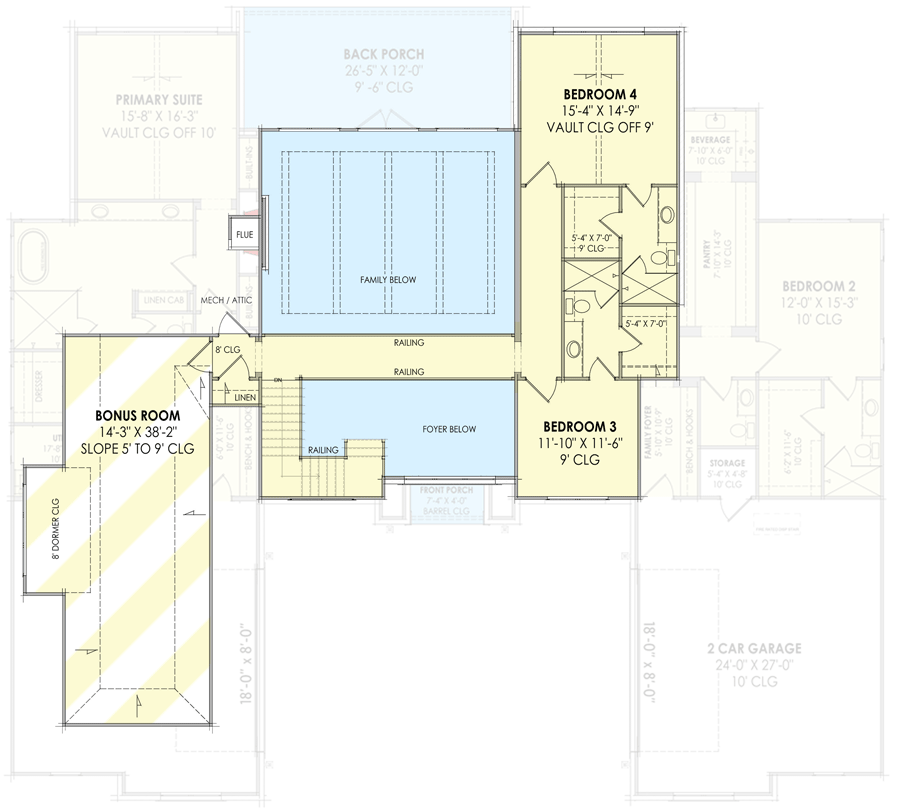

2nd Floor
Reverse Floor Plan
Transitional House Plan with 4 Beds, a Home Office and 4-Car Garage - 4146 Sq Ft - 818121JSS floor plan - 2nd Floor

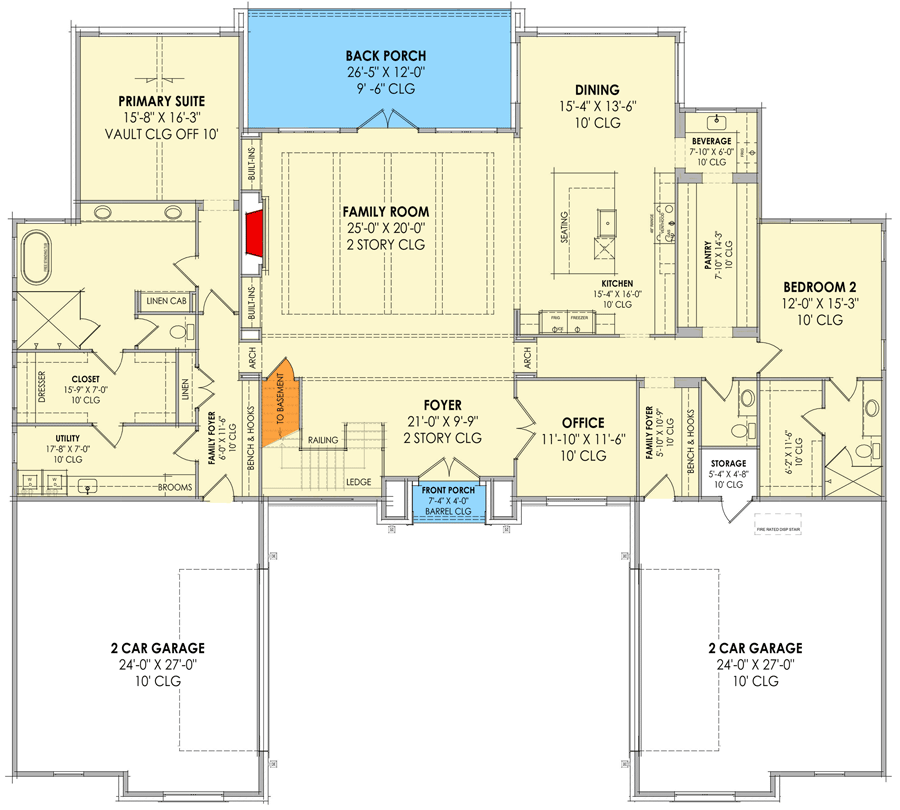

Main Level - Basement Stair Location
Reverse Floor Plan
Transitional House Plan with 4 Beds, a Home Office and 4-Car Garage - 4146 Sq Ft - 818121JSS floor plan - Main Level - Basement Stair Location
Plan Details
  • This Transitional House Plan gives you 4 beds, 4.5 baths and 4,146 square feet of heated living with 626 square feet of expansion space above the 4-car (1,419 square foot) garage.
  • The master suite occupies the entire left side of the home and has direct laundry access from the roomy walk-in closet while Bed 2 is located across the home. The two remaining bedrooms are on the second floor and each has its own bath.
  • This arrangement leaves the main portion of the home open for large gatherings. The family room with its 2-story ceiling, fireplace and views and access to the outdoors is the logical place to entertain.
  • The island in the kitchen has seating on two sides and is open to both the dining area and the family room.
  • Work from home in the home office off the foyer with two-story ceiling.
What's Included
  • Foundation plan
  • Detailed floorplans
  • Roof plan

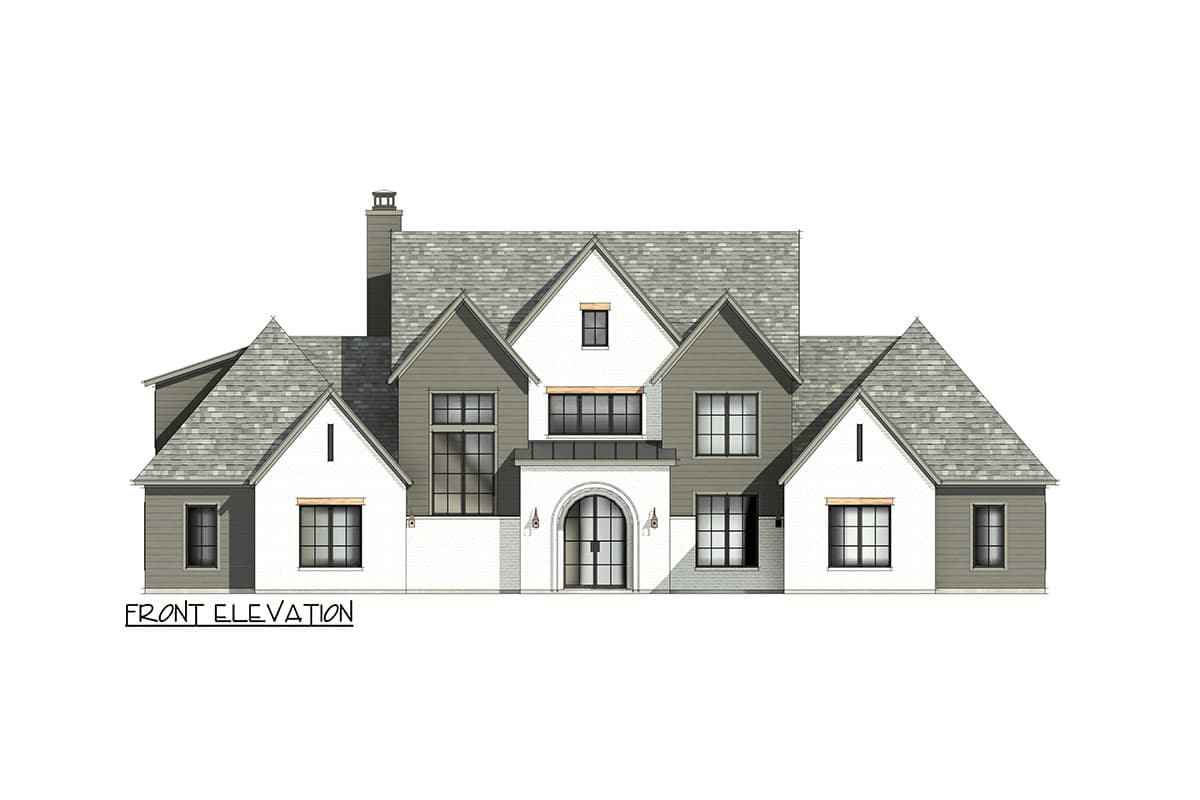

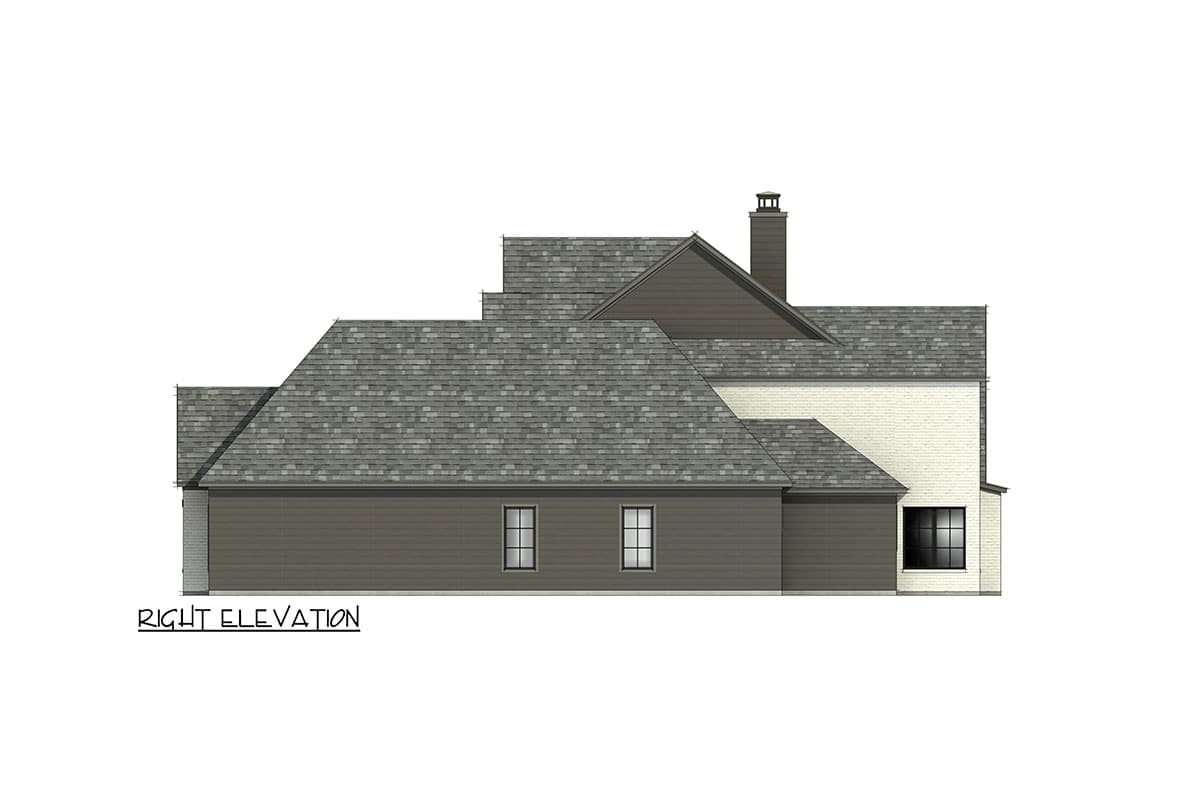

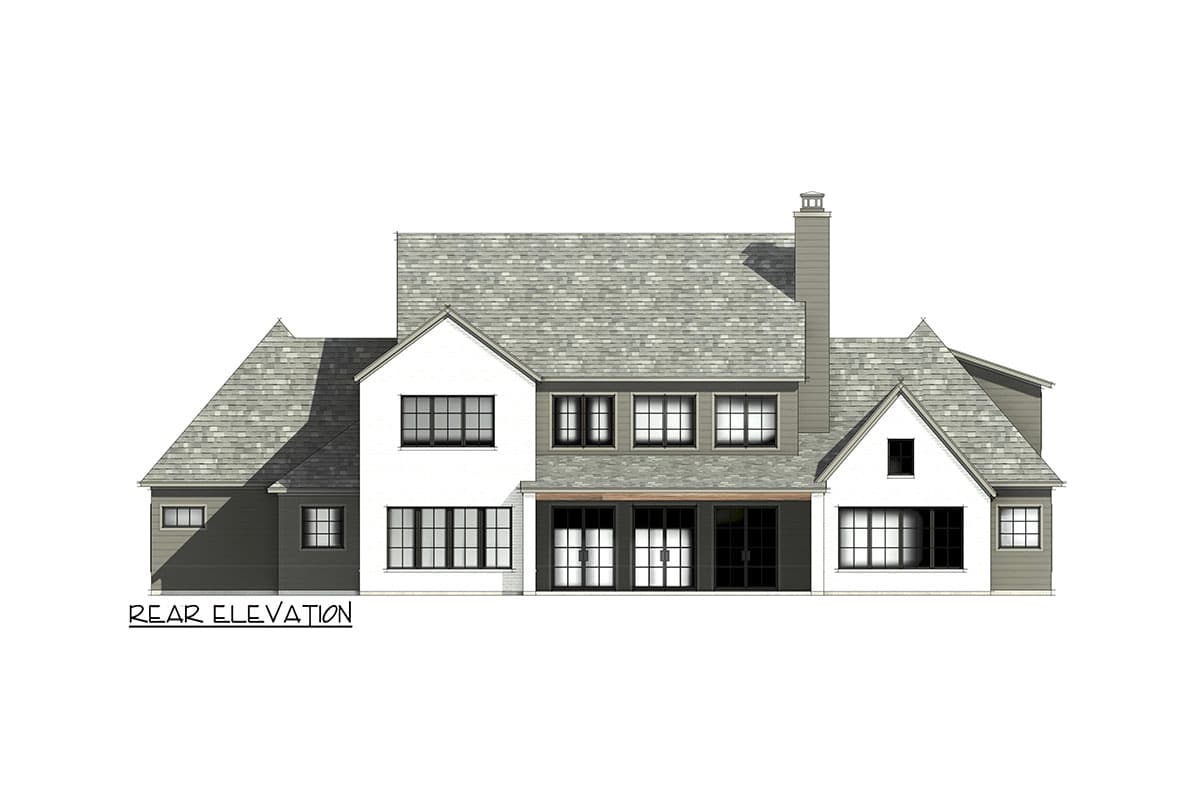

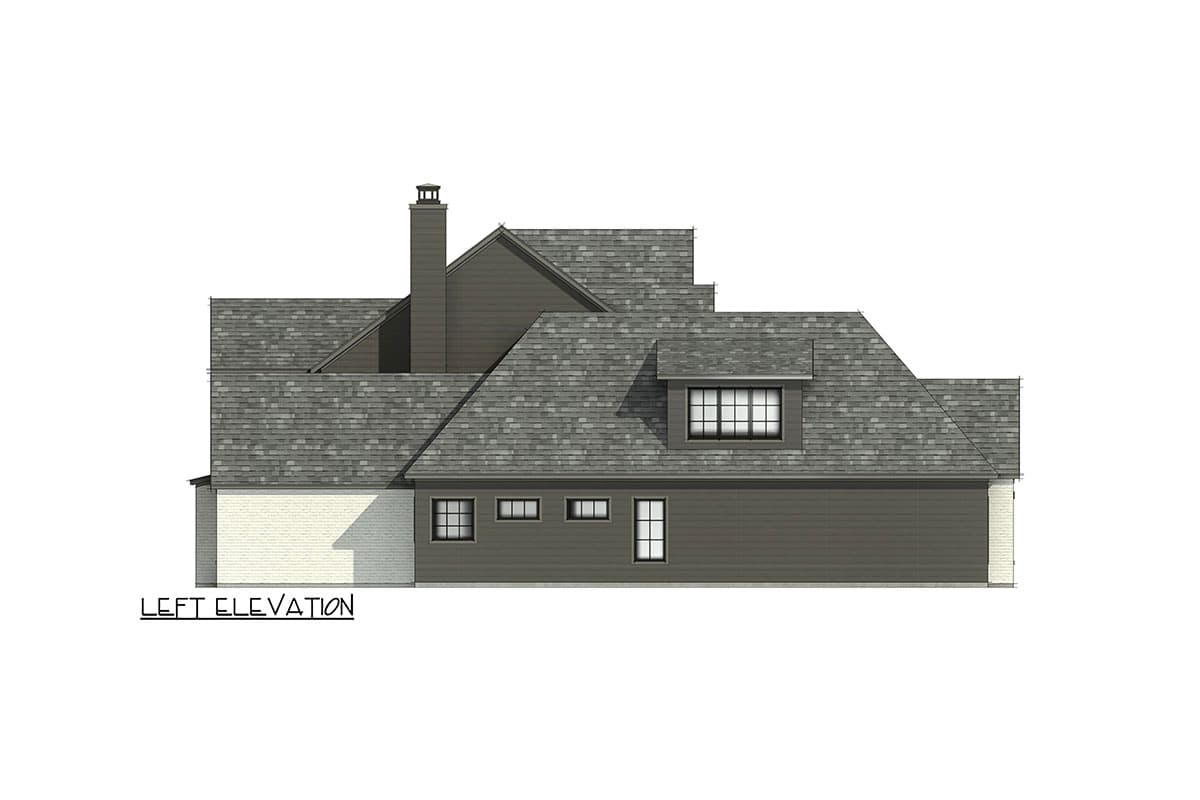

  • Four elevations
  • Electrical schematic
  • Cross section(s)
  • Rafter plan and ceiling joist plans (Beam, joist, and rafters to be sized locally by an engineer or framer)
Sample Plan
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
