Plan 911033JVD

Transitional House Plan with 4 Beds and a 3-Car Garage - 3465 Sq Ft

Heated S.F.
3,465
Beds
4
Baths
3.5
Stories
2
Cars
3

Floor Plan

Plan 911033JVD

Main Level
Main Level
2nd Floor
2nd Floor

Plan 911033JVD

M-F 9am-5pm EST |

1-203-761-8500

Main Level

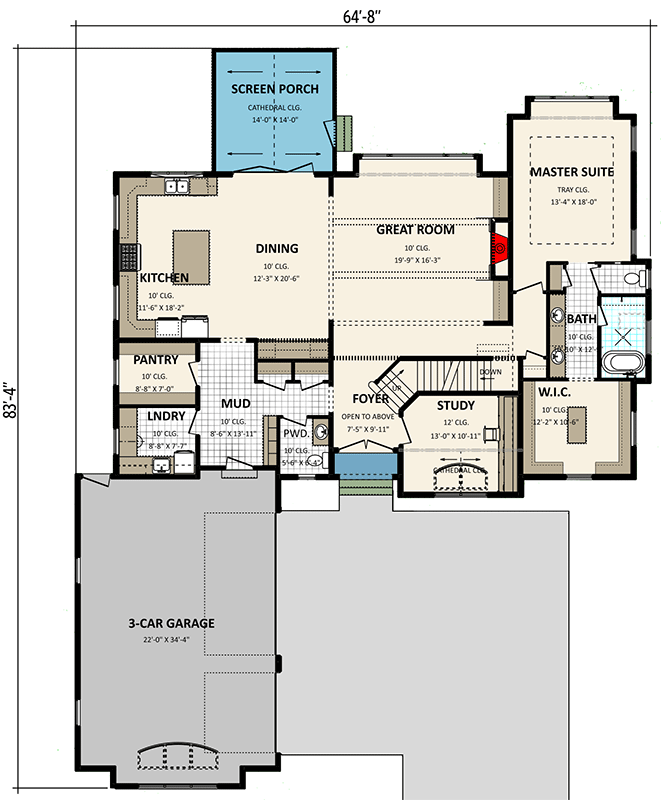

Plan 911033JVD: Transitional House Plan with 4 Beds and a 3-Car Garage - 3465 Sq Ft - Floor Plan - Main Level - New American, Transitional

2nd Floor

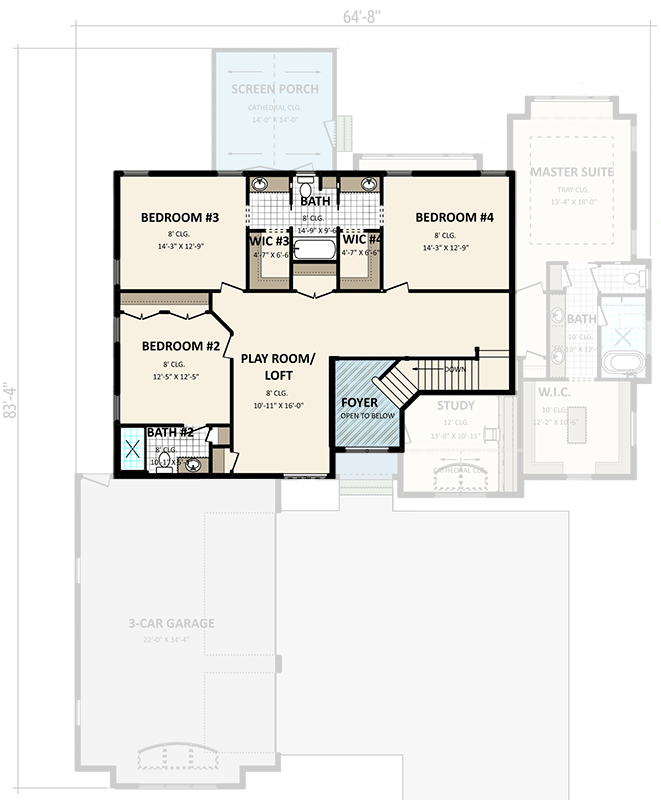

Plan 911033JVD: Transitional House Plan with 4 Beds and a 3-Car Garage - 3465 Sq Ft - Floor Plan - 2nd Floor - New American, Transitional

Plan Details

  • This 4-bed Transitional house plan gives you 3,465 square feet of heated living and a 3-car 796 square foot courtyard-entry garage.
  • Architectural Designs' primary focus is to make the process of finding and buying house plans more convenient for those interested in constructing new homes - single family and multi-family ones - as well as garages, pool houses and even sheds and backyard offices.
  • Our website offers a vast collection of home designs, encompassing various architectural styles, sizes, and features, which can be customized to meet specific needs and preferences.
  • We curate and add to our design portfolio every day as we work with hundreds of residential building designers and architects to bring you the most diverse and best house plans available.
  • We can modify any house plan you see on our site. Learn more about modifications.

What's Included

  • Foundation plan with details
  • Detailed floor plan (includes window sizes, ceiling joist directions, plumbing fixture locations, etc. with electric plan notations)

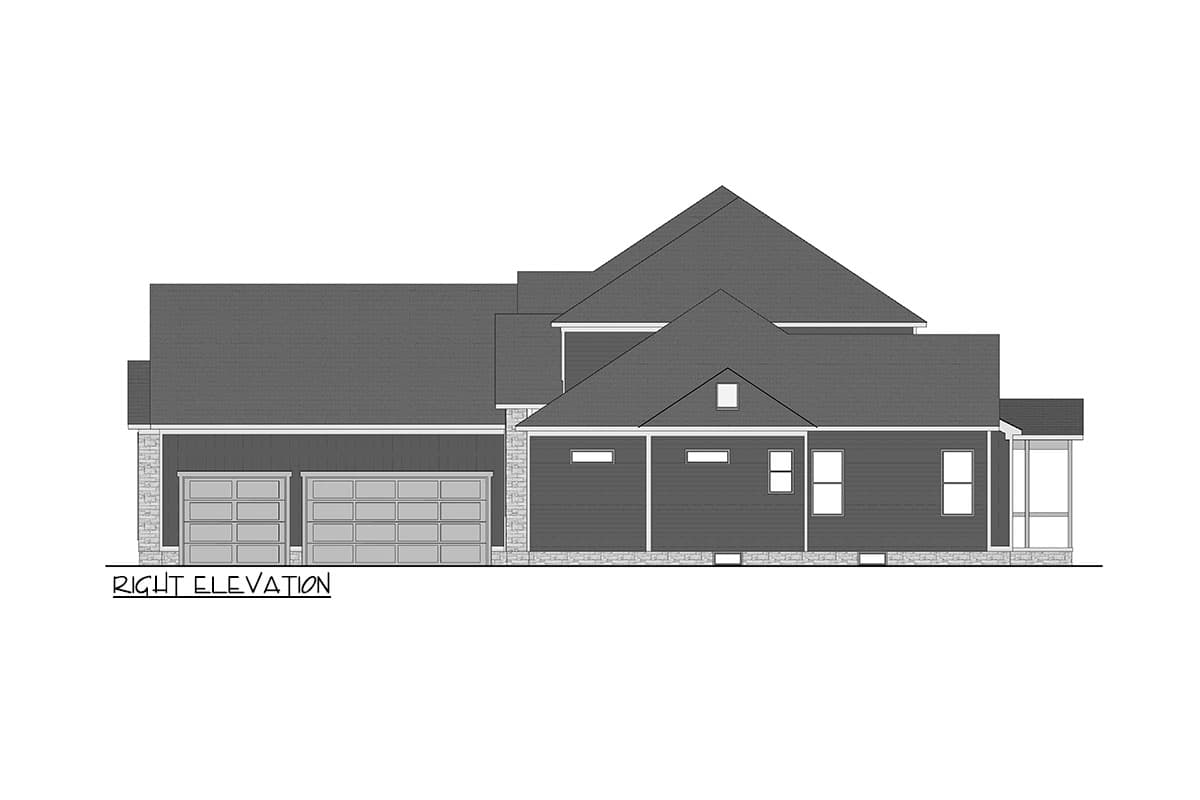

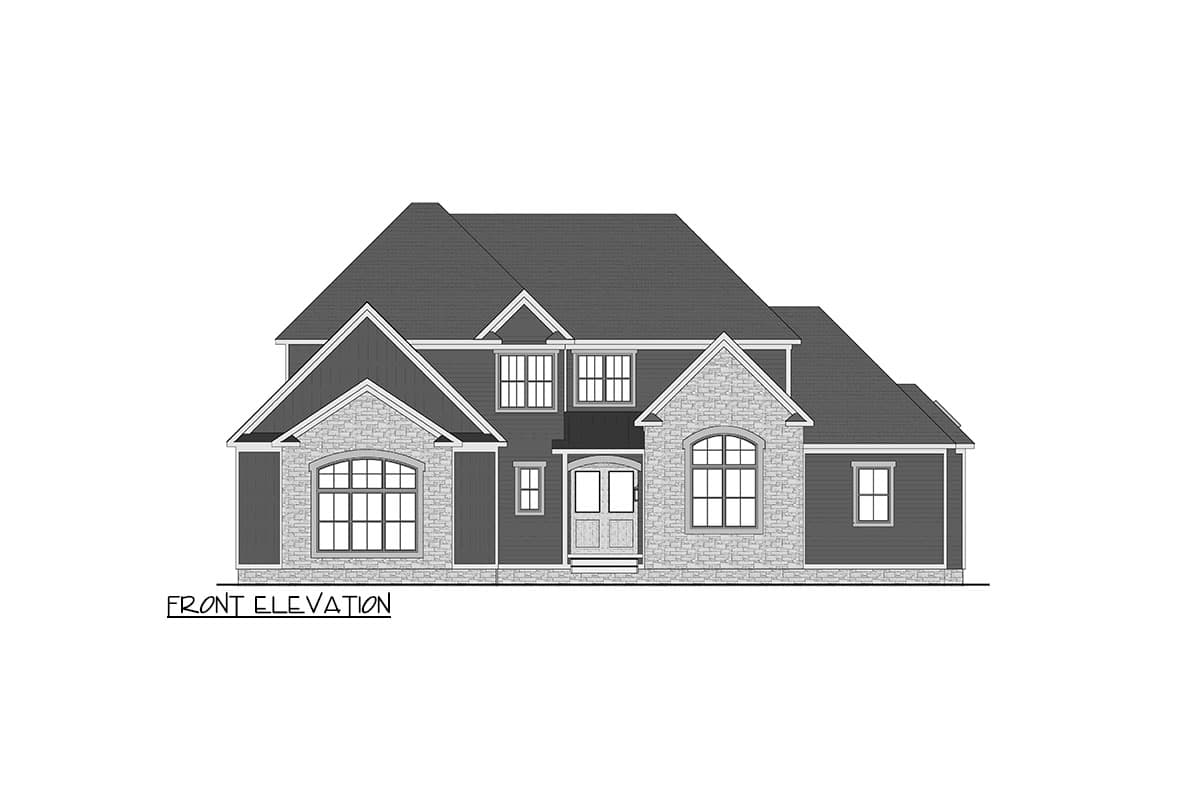

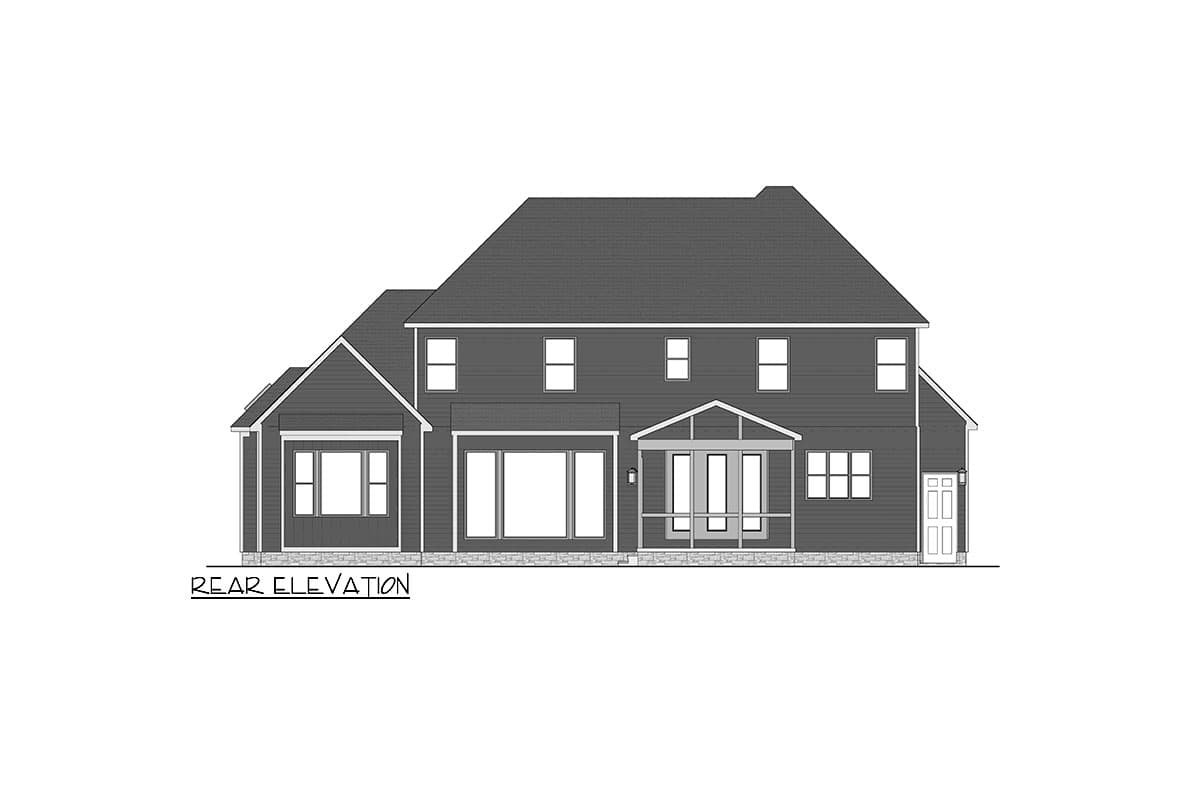

  • Four exterior views (front, rear, right, left)
  • Roof plan (birds eye view of roof)
  • Building section
  • Wall section
  • Span charts and other misc details
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Price Match Guarantee
What's included?

FORMAT & LICENSE

Choose an option

$0

Not sure what to choose?

Pointer link icon

FOUNDATION

Choose an option

+$0

Not sure what to choose?

Pointer link icon

OPTIONS

Choose Additional Options

+$0

Not sure what to choose?

Pointer link icon

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

3,465 sq. ft.

1st Floor

2,187 sq. ft.

2nd Floor

1,278 sq. ft.

Basement Unfinished

2,046 sq. ft.

Porch, Front

22 sq. ft.

Porch, Rear

196 sq. ft.

Porch, Combined

218 sq. ft.

Screened Porch

196 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

64' 8"

Depth

83' 4"

Max Ridge Height

30' 8"

Garage

Type

Attached

Area

796 sq. ft.

Count

3 Cars

Entry Location

Courtyard

Roof Details

Primary Pitch

12 on 12

Secondary Pitch

8 on 12

Framing Type

Truss

Architectural Style

New American

Transitional

Special Features

Den

Home Office

Jack & Jill Bath

Laundry - Main Level

Library/Study

Loft

Master Suite - 1st Floor

Master Suite - Sitting Area

Mudroom

Playroom

Walk-in Pantry

Square Footage Breakdown

Total Heated Area

3,465 sq. ft.

1st Floor

2,187 sq. ft.

2nd Floor

1,278 sq. ft.

Basement Unfinished

2,046 sq. ft.

Porch, Front

22 sq. ft.

Porch, Rear

196 sq. ft.

Porch, Combined

218 sq. ft.

Screened Porch

196 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

64' 8"

Depth

83' 4"

Max Ridge Height

30' 8"

Garage

Type

Attached

Area

796 sq. ft.

Count

3 Cars

Entry Location

Courtyard

Roof Details

Primary Pitch

12 on 12

Secondary Pitch

8 on 12

Framing Type

Truss

Architectural Style

New American

Transitional

Special Features

Den

Home Office

Jack & Jill Bath

Laundry - Main Level

Library/Study

Loft

Master Suite - 1st Floor

Master Suite - Sitting Area

Mudroom

Playroom

Walk-in Pantry
