Transitional House Plan with 4 Beds and Home Office - 2915 Sq Ft

Plan 860077MCD

  • 2,915

    Heated s.f.

  • 4

    Beds

  • 3

    Baths

  • 2

    Stories

  • 2

    Cars

  • This Transitional house plan gives you 4 beds - 2 on each floor - and 2,915 square feet of heated living. The exterior has a touch of clapboard siding, some board and batten siding, and brick, with large windows and and arched covered entry combining to give this wonderful curb appeal.
  • Extend your living to the outdoors on the covered porch in back with a fireplace and an outdoor kitchen.
  • Work from home in your office in the back-right corner.
  • Entertain guests in your dining room with 16' ceilings and views out front.

This set of working drawings contains the following components
  • Exterior elevations
  • Roof Plan
  • Floor plan(s)
  • Window, door and finish schedules
  • Slab foundation plan
  • Footing details
  • Building section
  • Wall Sections
  • Electrical plan
  • General notes
These items are NOT included:
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

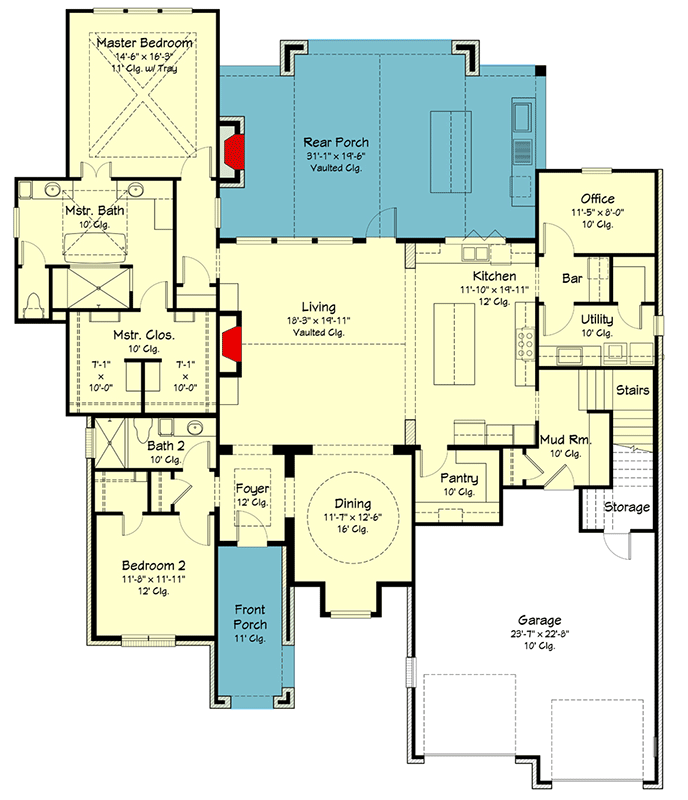

Transitional House Plan with 4 Beds and Home Office - 2915 Sq Ft - 860077MCD floor plan - Main Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

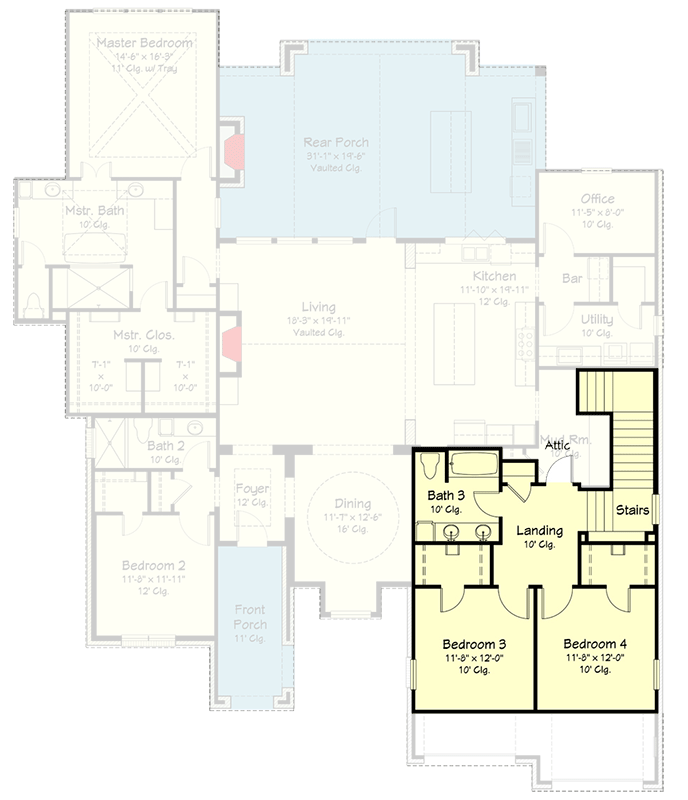

Transitional House Plan with 4 Beds and Home Office - 2915 Sq Ft - 860077MCD floor plan - 2nd Floor

Transitional House Plan with 4 Beds and Home Office - 2915 Sq Ft

  • 2,915

    Heated s.f.

  • 4

    Beds

  • 3

    Baths

  • 2

    Floors

  • 2

    Car garage

Floor Plan

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 2,915 sq. ft.
  • 1st Floor: 2,266 sq. ft.
  • 2nd Floor: 649 sq. ft.

Dimensions

  • Width: 63' 9"
  • Depth: 76' 9"
  • Max ridge height: 36' 0"

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3

Garage

  • Type: Attached
  • Area: 673 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x4

Ceiling Heights

  • Floor / Height: First Floor / 12' 0" Second Floor / 10' 0"

Roof

  • Primary Pitch: 13 on 12
  • Secondary Pitch: 9 on 12
  • Framing Type: Stick
