Plan 623668DJ

Transitional House Plan with Four Bedrooms and Three Car Garage

Heated S.F.
4,258
Beds
4
Baths
3.5
Stories
2
Cars
3
Tour

Floor Plan

Plan 623668DJ

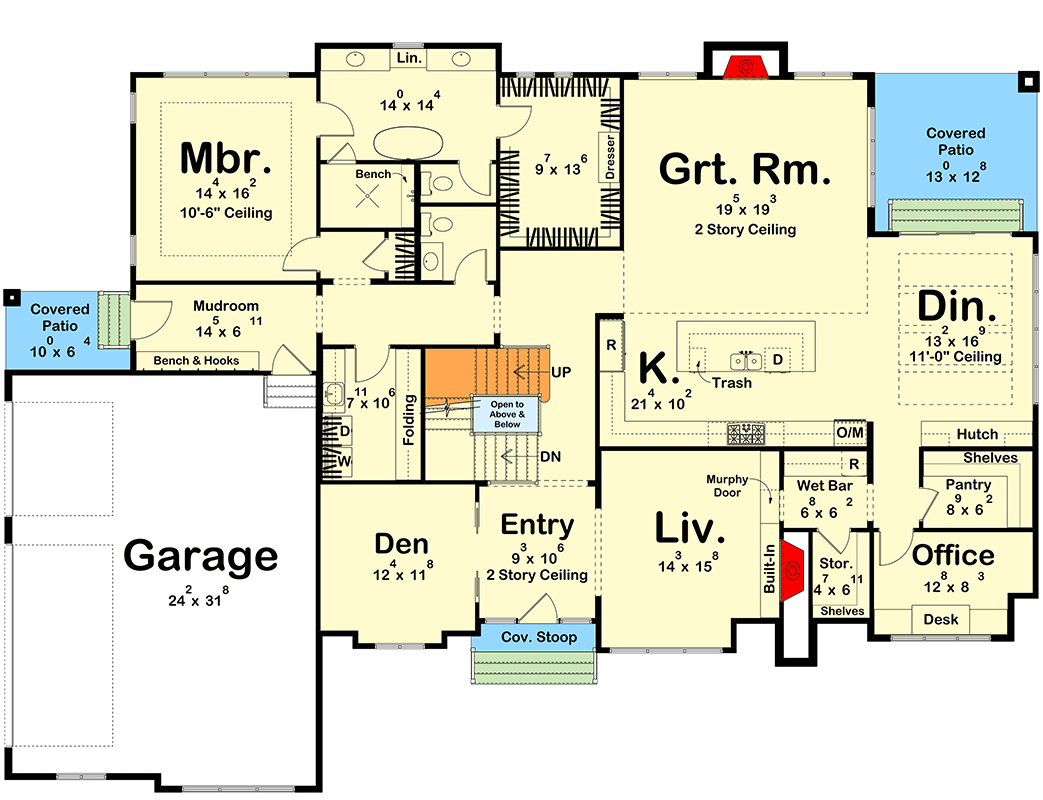

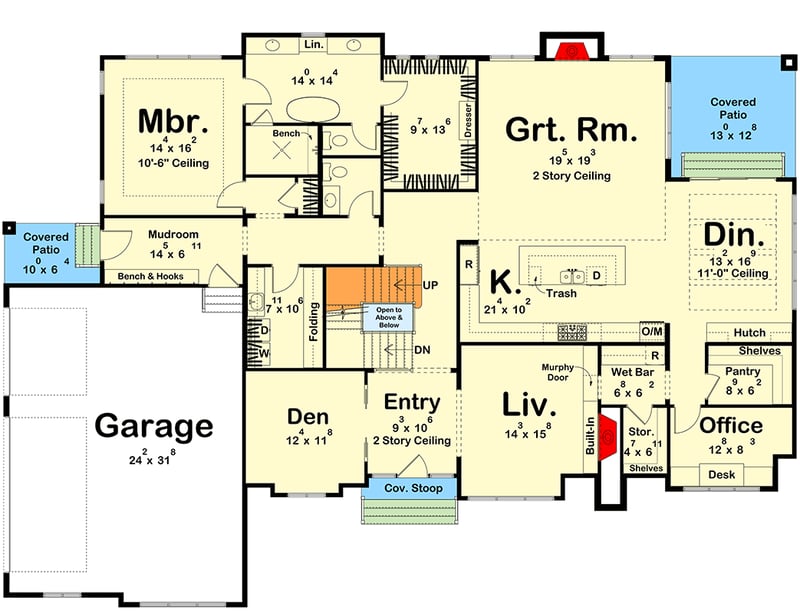

Floor Plan 1

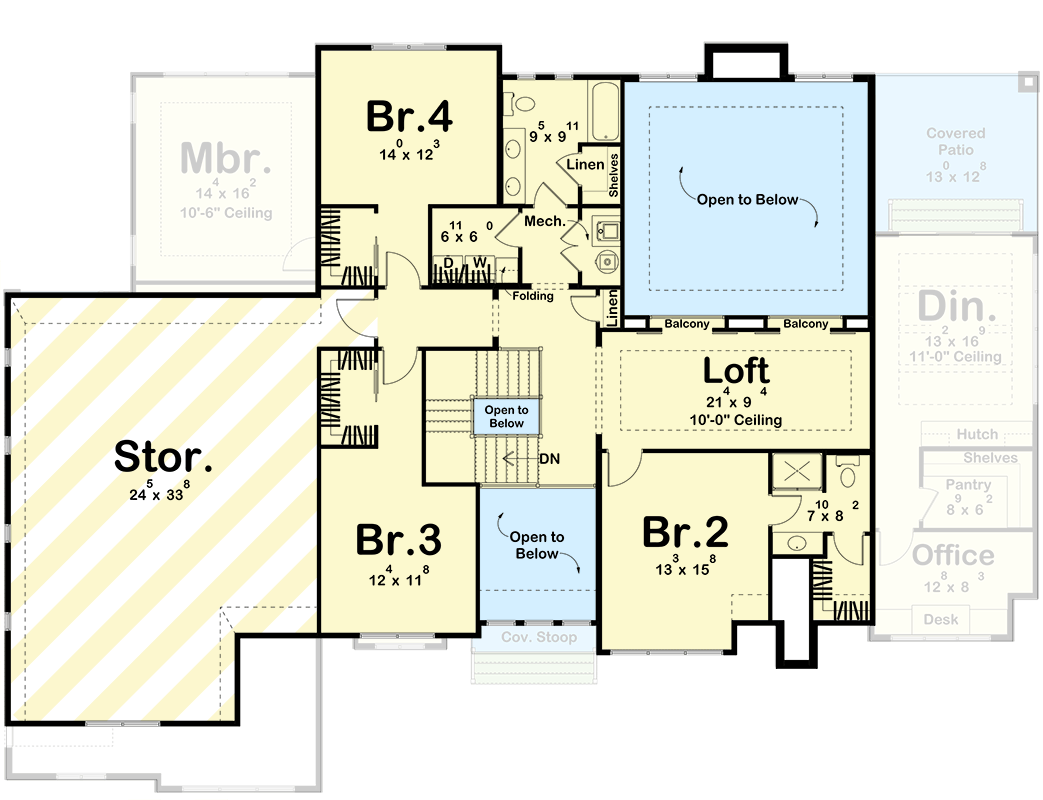

Floor Plan 2
Optional Lower Level Layout ($$$ Paid Option)
Optional Lower Level Layout ($$$ Paid Option)

Plan 623668DJ

M-F 9am-5pm EST |

1-203-761-8500

Plan 623668DJ: Transitional House Plan with Four Bedrooms and Three Car Garage - Floor Plan - - European, Modern, New American, Transitional

Plan 623668DJ: Transitional House Plan with Four Bedrooms and Three Car Garage - Floor Plan - - European, Modern, New American, Transitional

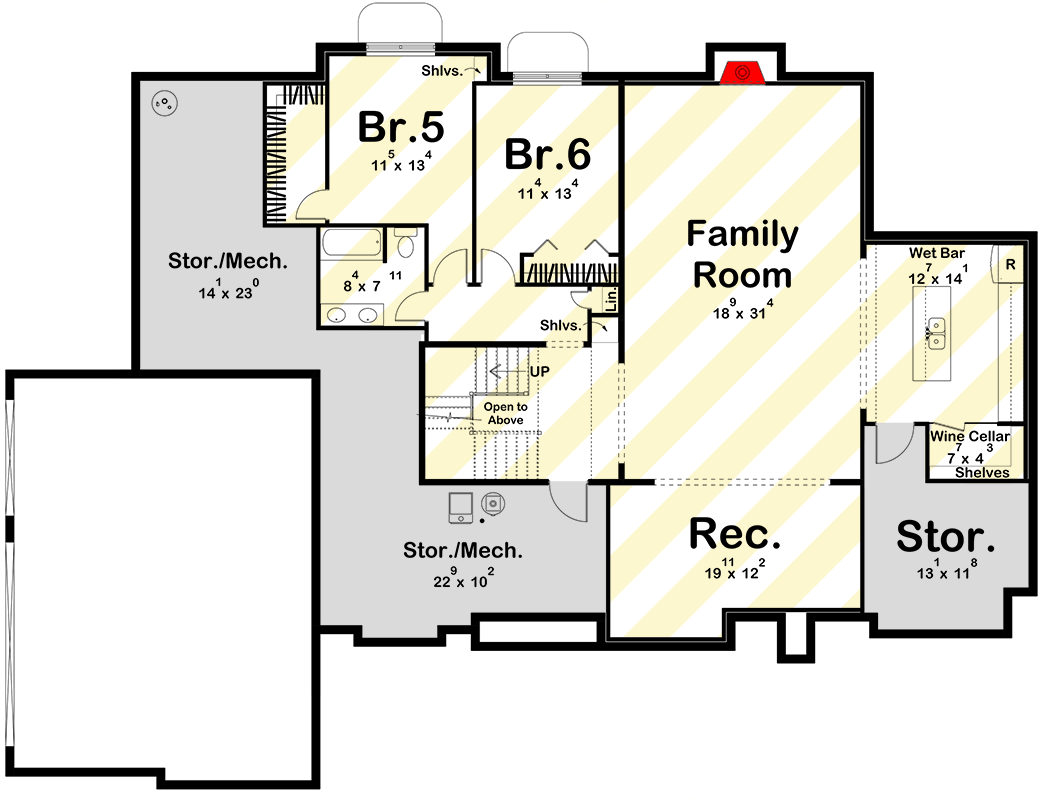

Optional Lower Level Layout ($$$ Paid Option)

Plan 623668DJ: Transitional House Plan with Four Bedrooms and Three Car Garage - Floor Plan - Optional Lower Level Layout ($$$ Paid Option) - European, Modern, New American, Transitional

Plan Details

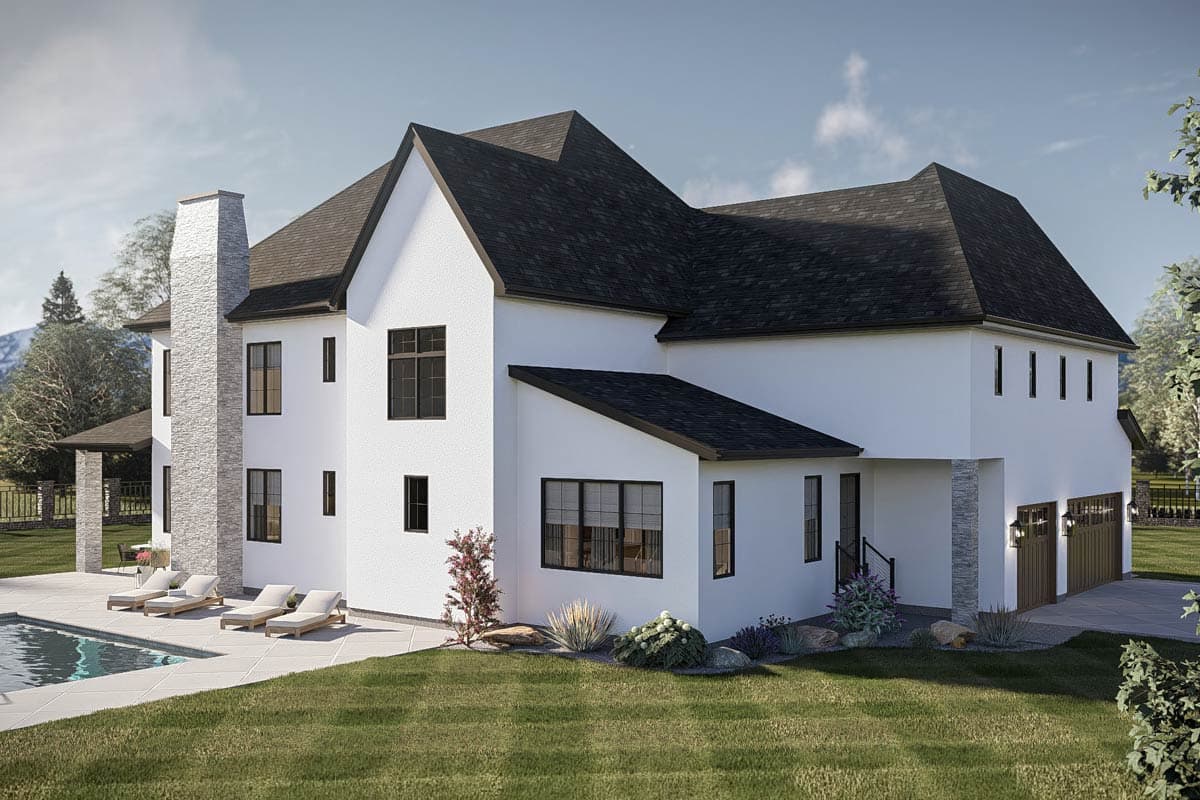

  • This sophisticated European-inspired Transitional home offers 4,258 square feet of living space, four bedrooms, 3.5 baths, and a spacious three-car side-entry garage.

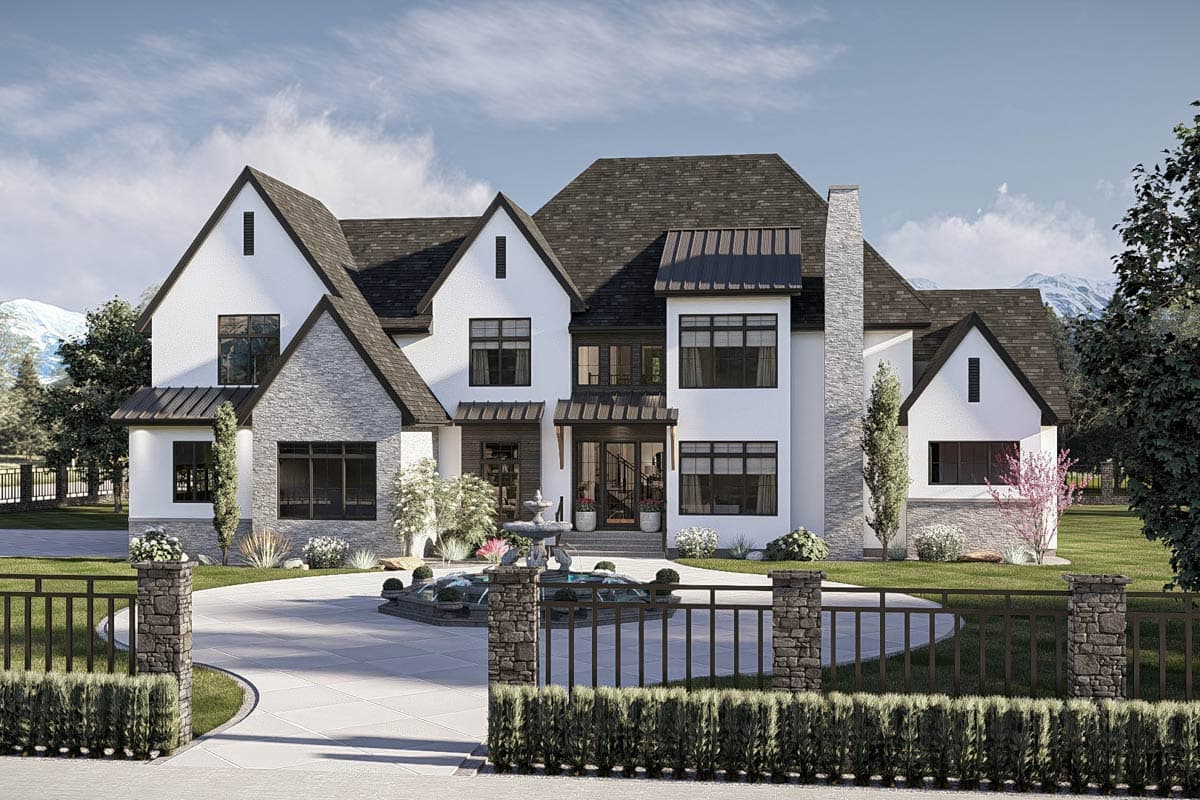

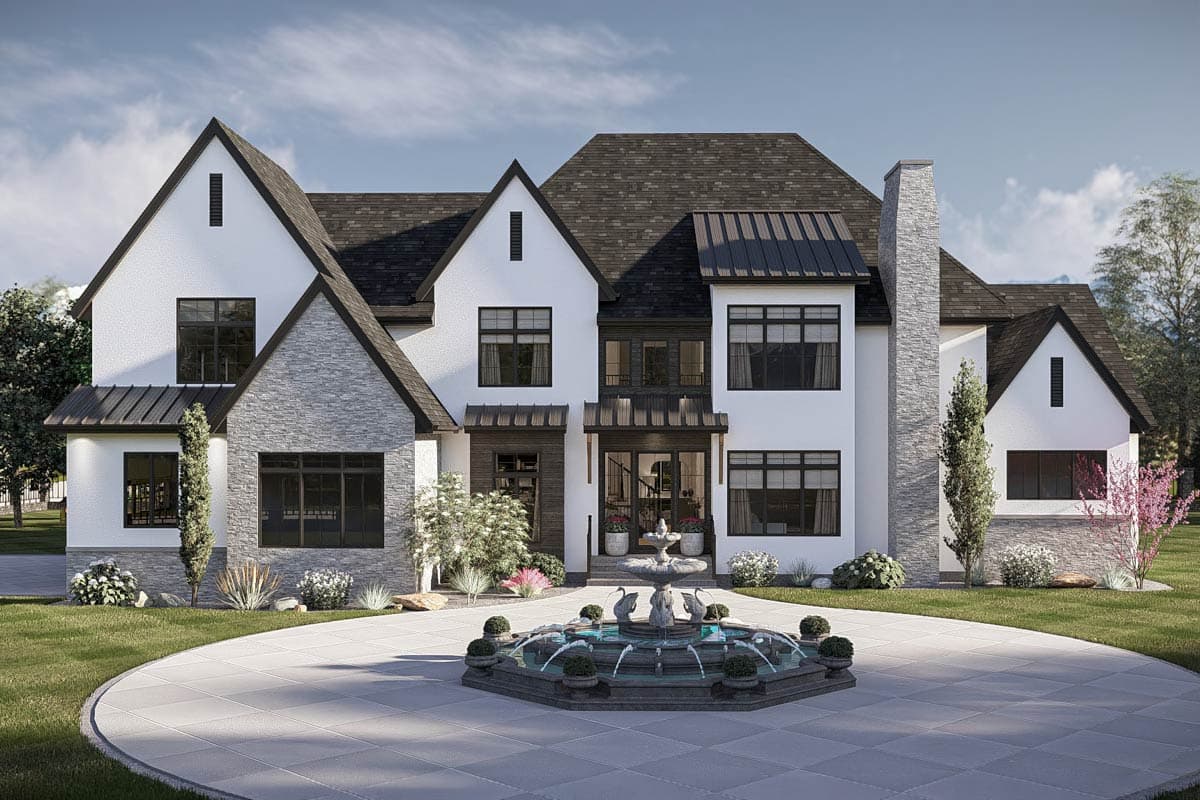

  • The striking exterior features a harmonious blend of crisp white siding, natural stone accents, and dark metal roofing details that evoke a timeless, refined aesthetic.

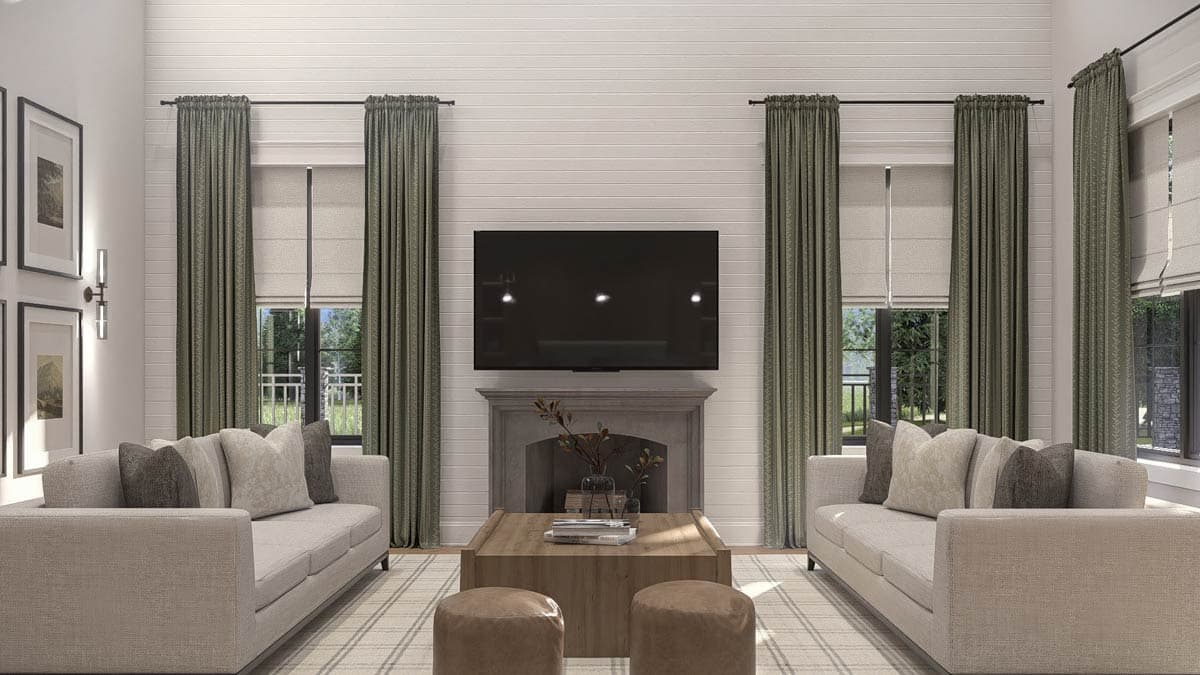

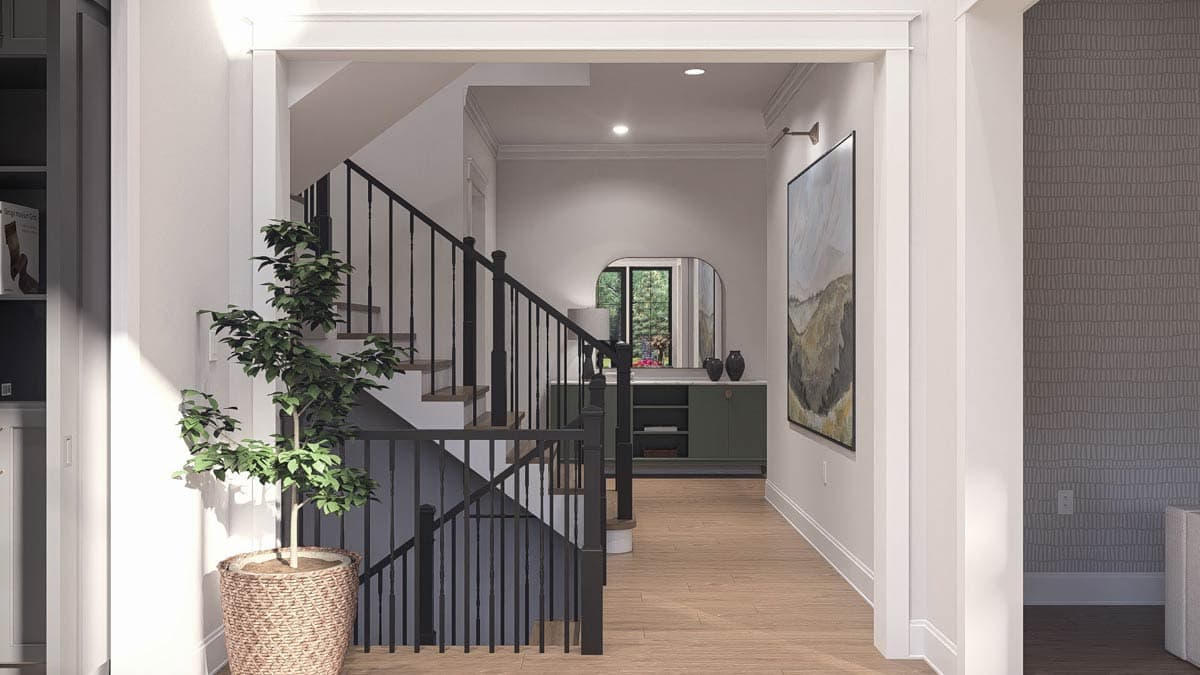

  • Upon entry, the home reveals a thoughtful layout featuring a grand two-story great room that serves as the heart of the residence, anchored by elegant architectural details and abundant natural light.

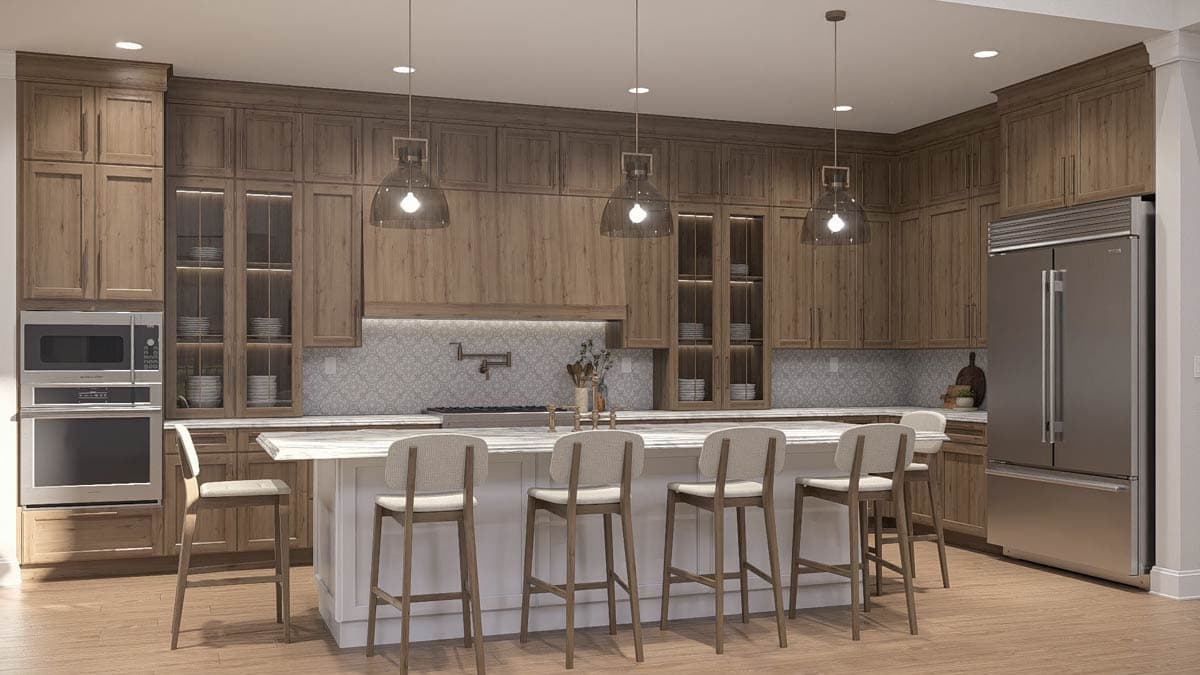

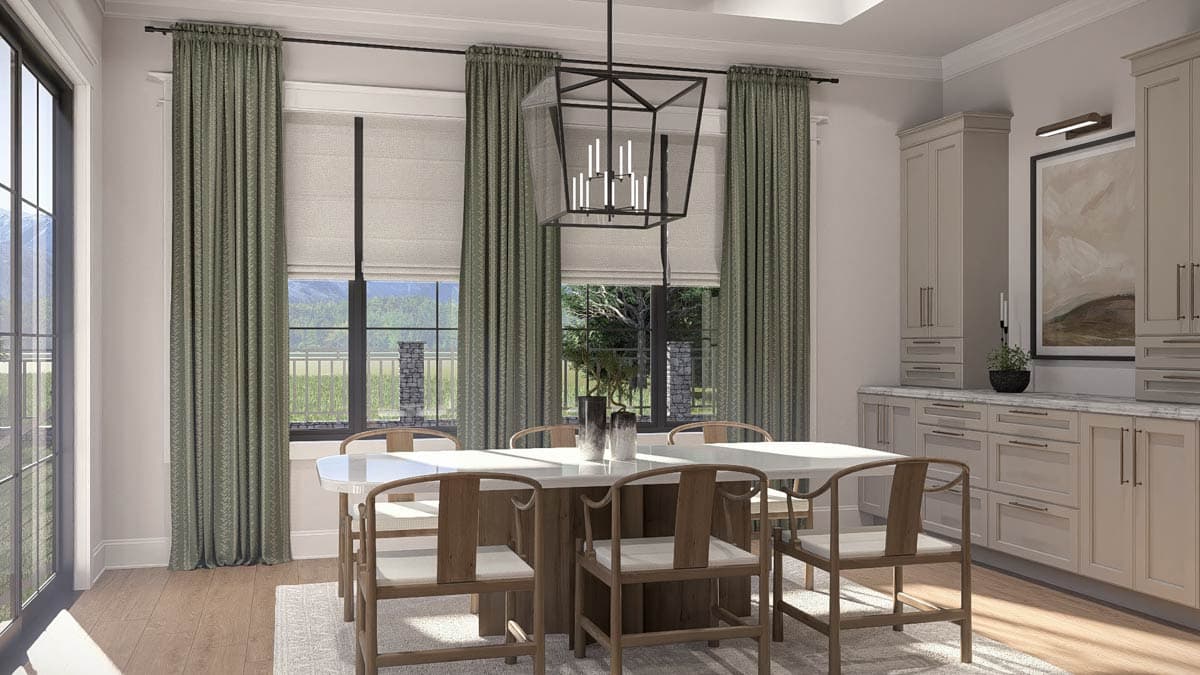

  • The main level is designed for both formal and casual living, incorporating a dedicated den, a formal dining room, and a gourmet kitchen equipped with a substantial walk-in pantry.

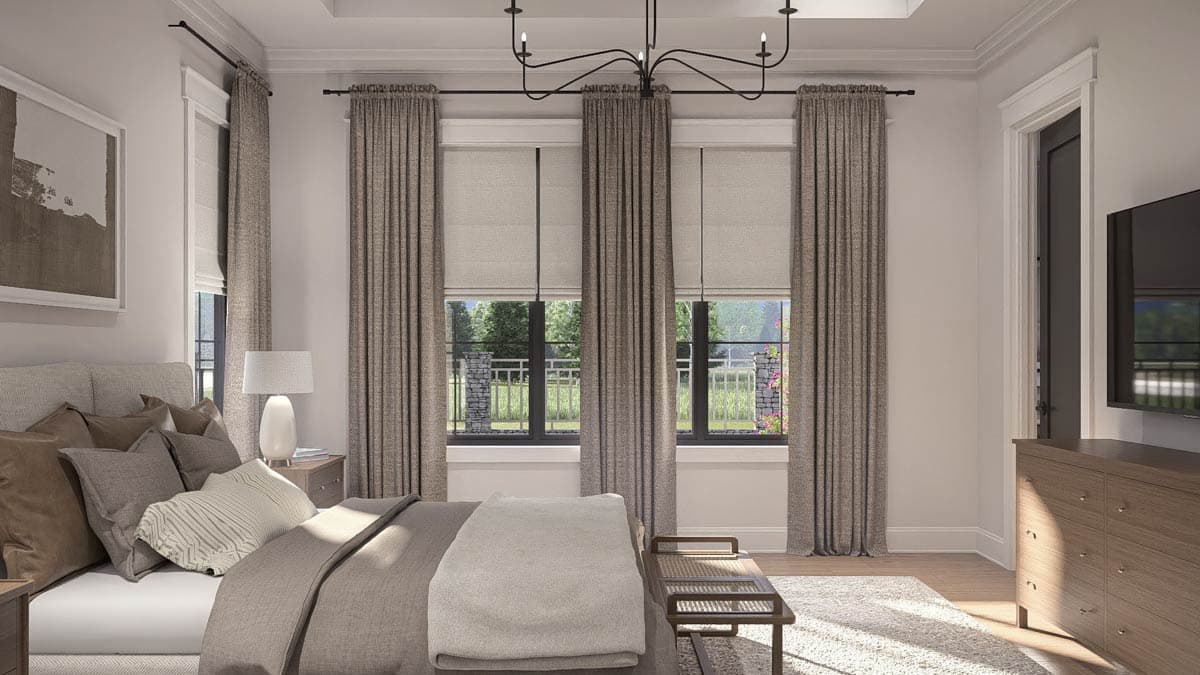

  • The primary bedroom suite is conveniently located on the first floor to provide a private retreat, while three additional bedrooms occupy the second floor alongside an expansive loft area.
  • Versatility defines this plan with an optionally finished 804-square-foot bonus room over the garage and an additional 1,844 square feet available in the optional lower level, which includes a wet bar for entertaining.

What's Included

  • Cover Sheet: Shows the front elevation and typical notes and requirements.
  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement
  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
  • Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
  • Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
  • Roof Plan
  • Typical Wall Section
  • Typical Stair Section (if applicable)
  • Cabinets Elevations (if applicable)
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

4,258 sq. ft.

1st Floor

2,807 sq. ft.

2nd Floor

1,451 sq. ft.

Optional Lower Level

1,844 sq. ft.

Bonus

804 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

82' 0"

Depth

59' 4"

Max Ridge Height

39' 3"

Garage

Type

Standard, Attached

Area

809 sq. ft.

Count

3 Cars

Entry Location

Side

Ceiling Heights

Lower Level

9'

First Floor

10'

Second Floor

9'

Roof Details

Primary Pitch

10 on 12

Secondary Pitch

16 on 12

Framing Type

Truss

Architectural Style

European

Modern

New American

Transitional

Special Features

Den

Formal Dining

Home Office

Laundry - Main Level

Laundry - Upstairs

Loft

Master Suite - 1st Floor

Mudroom

Optionally Finished Bonus Room

Two Story Great Room

Walk-in Pantry

Wet Bar

Plan Collections
