Transitional House Plan with Two Upstairs Layouts

Plan 42695DB

  • 1,872

    Heated s.f.

  • 4-5

    Beds

  • 3

    Baths

  • 2

    Stories

  • 2

    Cars

  • This transitional house plan has a stucco exterior with a shed dormer and a covered entry. It offers you 4 or 5 bedrooms, depending on which upstairs layout (two are provided with plan purchase) you decide to build.
  • The family room is open to the dining area and kitchen, so the cook won't be left out of the conversations. A door on the back wall of the kitchen takes you outside where a patio or deck would make the perfect place for outdoor dining.
  • A convenient washer/dryer pass through mudroom is located right off the garage and there is storage under the stairs.
  • The master bedroom has a walk-in closet and a private bathroom. Two more bedrooms share a bath.
  • At the top of the stairs there is a loft and either one or two bedrooms depending on which version you choose to build.
  • Related Plans: Get an alternate exterior with house plan 42714DB and a finished lower level with house plan 42442DB (2,196 sq. ft.).

This house plan set has the following details:

  • General Notes

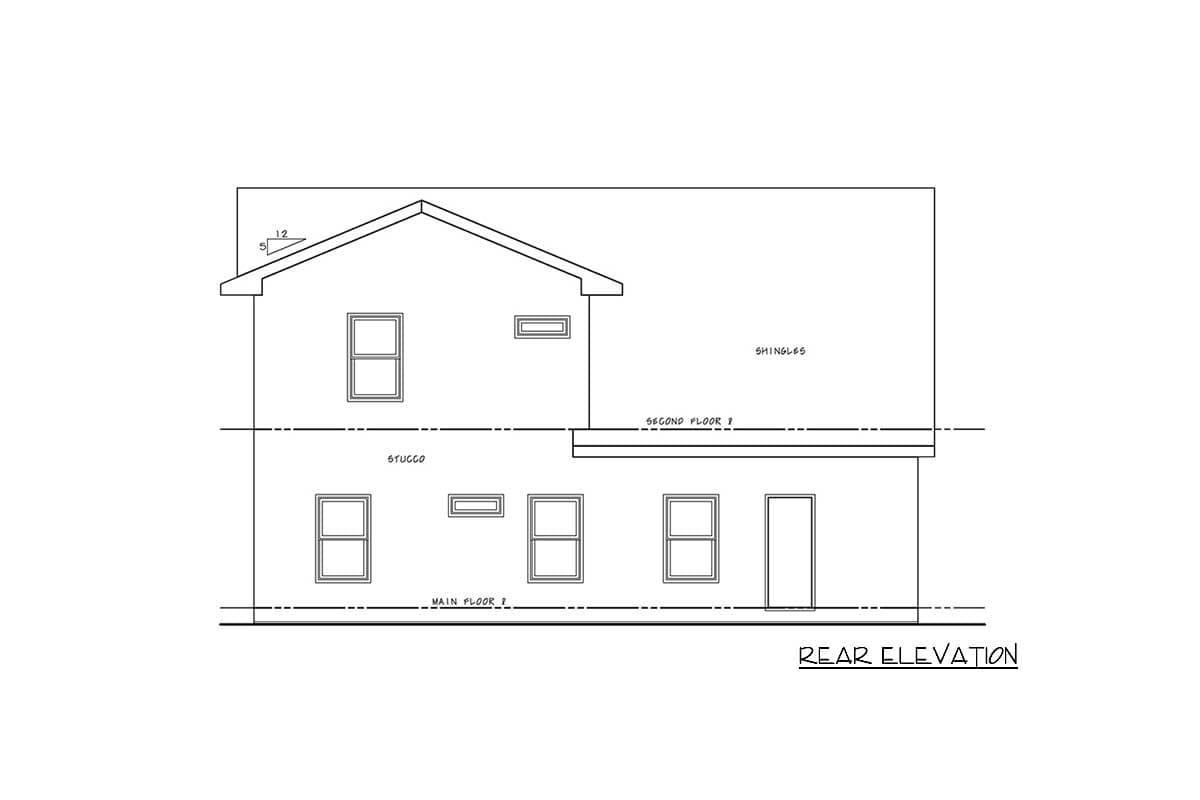

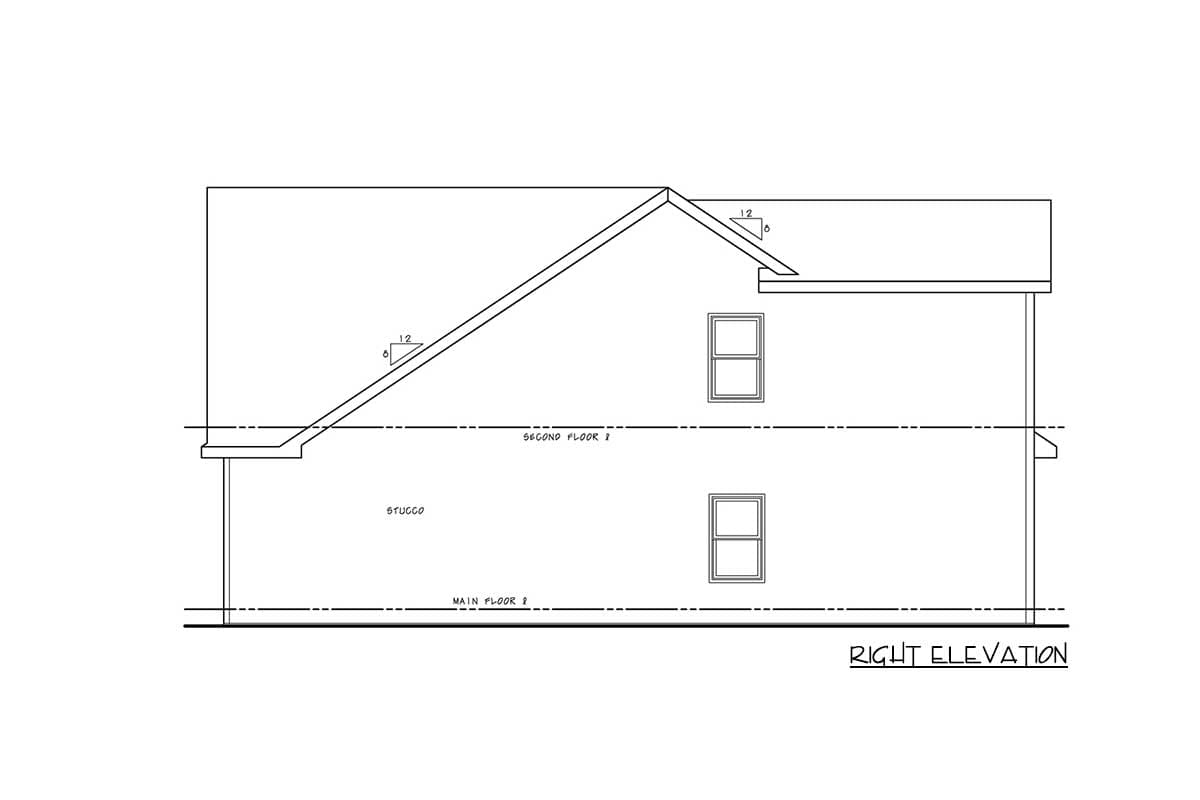

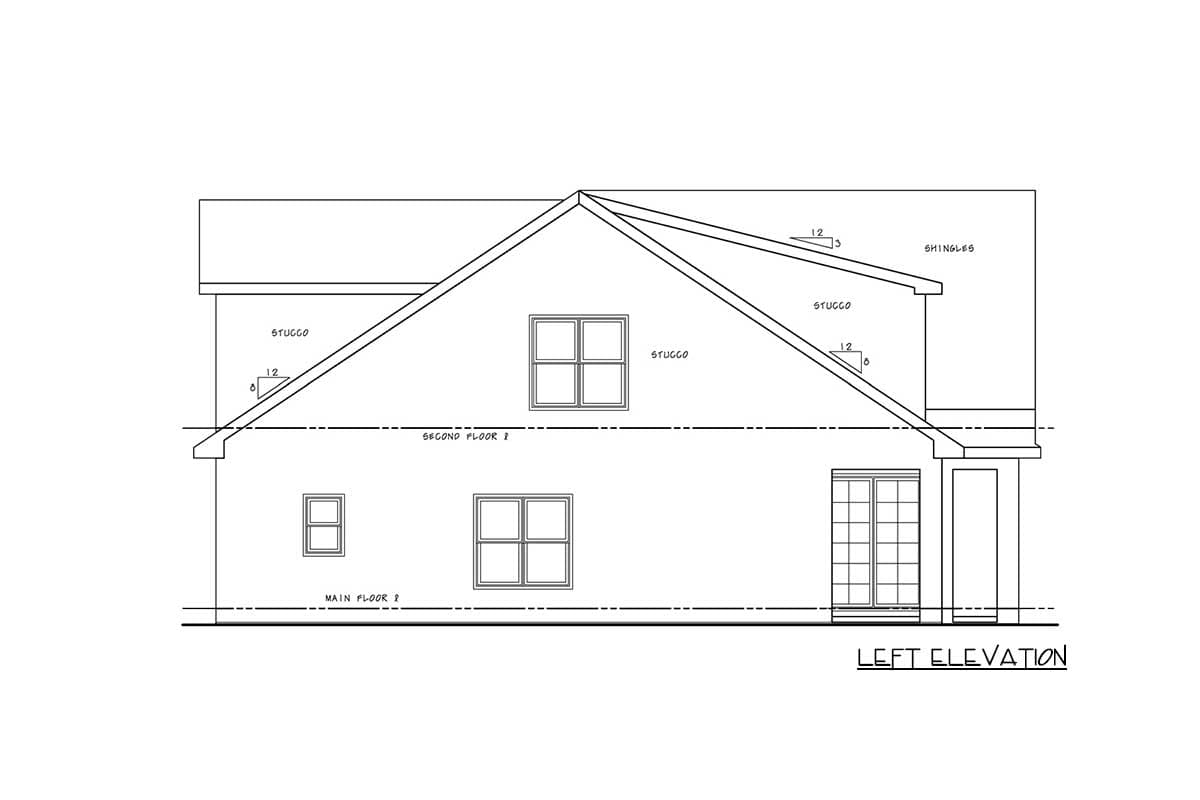

  • Front, Rear, Left, Right Elevations
  • Roof Plan - Birds Eye View
  • Foundation plan, Wall Section, Stair Section
  • Main Level Floor Plan
  • Second Level Floor Plan (if applicable)
  • Electrical Plan (showing fixtures, switches, outlets)
*Some plans include cabinet elevations. Please contact us for more information.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

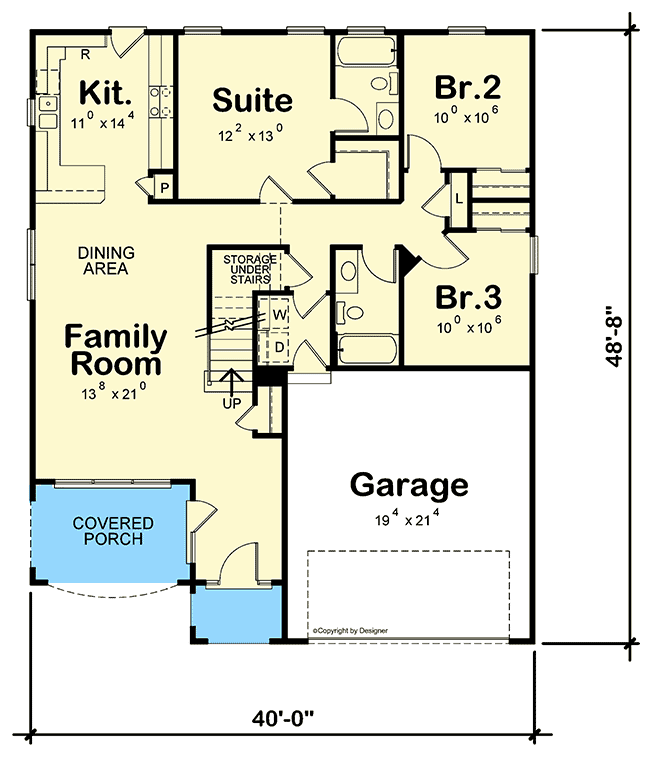

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Transitional House Plan with Two Upstairs Layouts - 42695DB floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Transitional House Plan with Two Upstairs Layouts - 42695DB floor plan - 2nd Floor

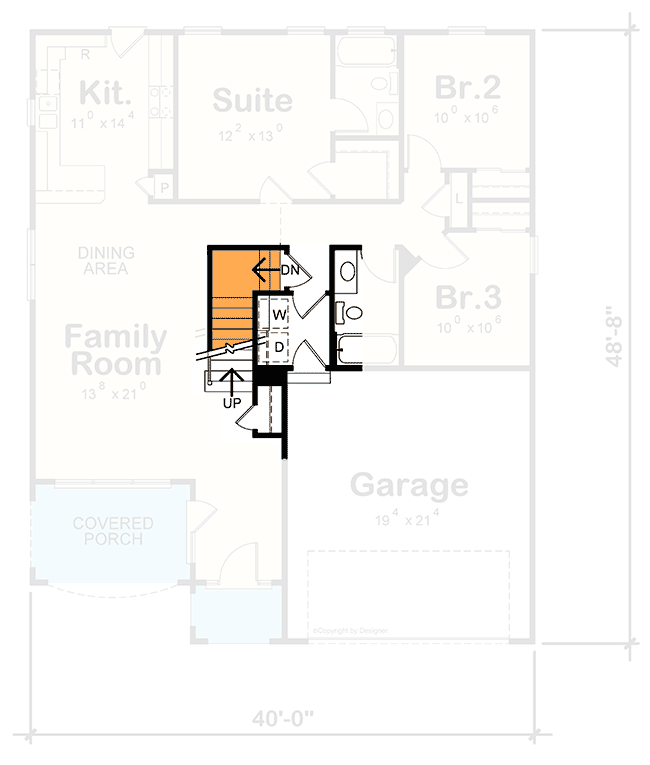

Basement Stairs

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Transitional House Plan with Two Upstairs Layouts - 42695DB floor plan - Basement Stairs

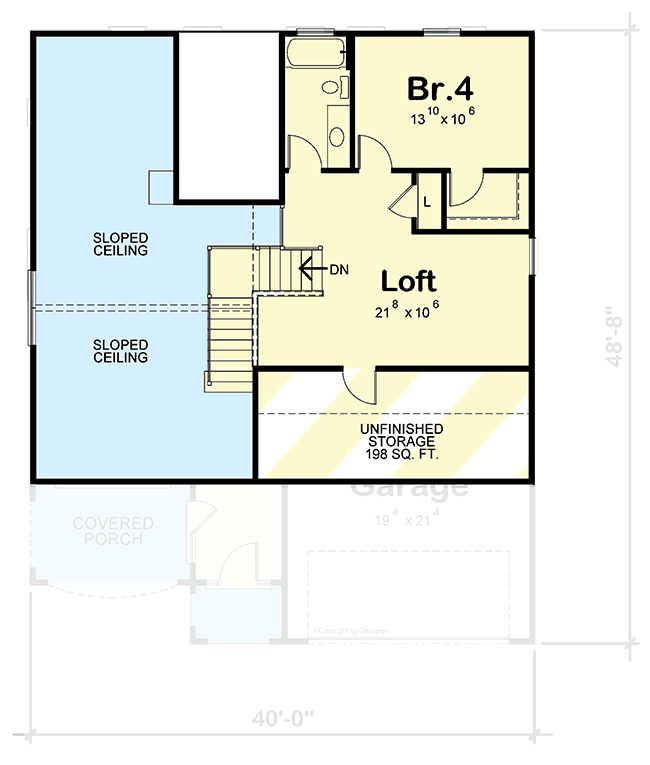

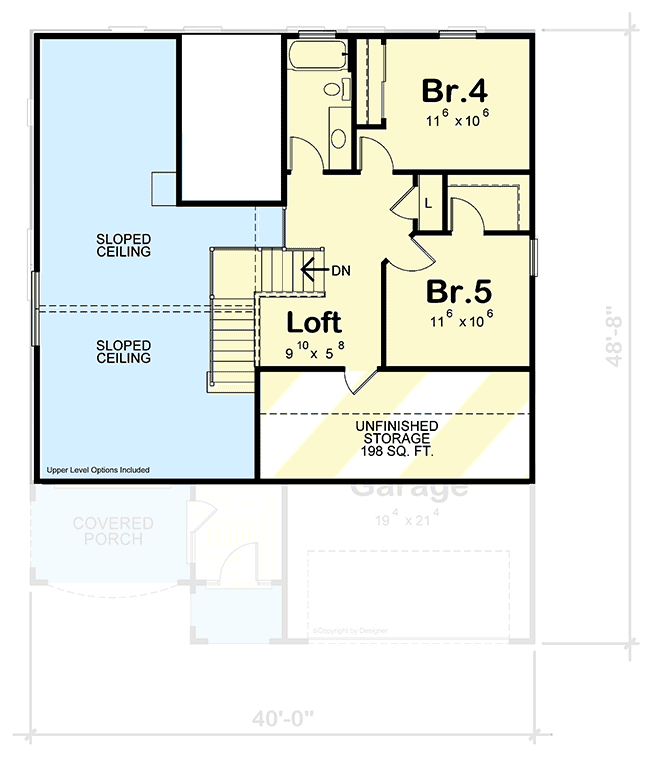

Optional 2nd Floor with Loft (included with plans)

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Transitional House Plan with Two Upstairs Layouts - 42695DB floor plan - Optional 2nd Floor with Loft (included with plans)

Plan details

Square Footage Breakdown

  • Total Heated Area: 1,872 sq. ft.
  • 1st Floor: 1,324 sq. ft.
  • 2nd Floor: 548 sq. ft.

Beds/Baths

  • Bedrooms: 4 or 5
  • Full bathrooms: 3

Foundation Type

  • Standard Foundations: Slab
  • Optional Foundations: Walkout, Crawl, Basement

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 40' 0"
  • Depth: 48' 8"
  • Max ridge height: 26' 4"

Garage

  • Type: Attached
  • Area: 428 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"

Roof Details

  • Primary Pitch: 8 on 12
  • Secondary Pitch: 14 on 12
  • Framing Type: Stick

Architectural Style

Special features

Transitional House Plan with Two Upstairs Layouts

  • 1,872

    Heated s.f.

  • 4-5

    Beds

  • 3

    Baths

  • 2

    Floors

  • 2

    Car garage

Buy This Plan
  • Study Set - Digital $650
  • PDF - Single-Build $1,055
  • PDF - Unlimited Build $1,555
  • CAD + PDF - Single-Build $1,740
  • CAD - Unlimited Build $2,240
  • View all purchase option online

About This Plan

  • This transitional house plan has a stucco exterior with a shed dormer and a covered entry. It offers you 4 or 5 bedrooms, depending on which upstairs layout (two are provided with plan purchase) you decide to build.
  • The family room is open to the dining area and kitchen, so the cook won't be left out of the conversations. A door on the back wall of the kitchen takes you outside where a patio or deck would make the perfect place for outdoor dining.
  • A convenient washer/dryer pass through mudroom is located right off the garage and there is storage under the stairs.
  • The master bedroom has a walk-in closet and a private bathroom. Two more bedrooms share a bath.
  • At the top of the stairs there is a loft and either one or two bedrooms depending on which version you choose to build.
  • Related Plans: Get an alternate exterior with house plan 42714DB and a finished lower level with house plan 42442DB (2,196 sq. ft.).

Floor Plans

  • Main Level

  • 2nd Floor

  • Basement Stairs

  • Optional 2nd Floor with Loft (included with plans)

Plan Details

Square Footage Breakdown

  • Total Heated Area: 1,872 sq. ft.
  • 1st Floor: 1,324 sq. ft.
  • 2nd Floor: 548 sq. ft.

Beds/Baths

  • Bedrooms: 4 or 5
  • Full bathrooms: 3

Foundation Type

    • Standard Foundations: Slab
    • Optional Foundations: Walkout, Crawl, Basement

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 40' 0"
  • Depth: 48' 8"
  • Max ridge height: 26' 4"

Garage

  • Type: Attached
  • Area: 428 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 8 on 12
  • Secondary Pitch: 14 on 12
  • Framing Type: Stick
Plan 42695DB
