Transitional House Plan with Vaulted Loft with Porch Access - 2562 Sq Ft
Heated S.F.
2,562
Beds
4
Baths
2
Stories
2
Cars
3
Flyer
What's Included
Plan Details
  • This 4 bed, 2.5 bath house plan gives you 2,562 square feet of heated living and has vertical wood siding, metal roof accents. An attractive stone trim ties it all together and gives the home plan great curb appeal. Windows fill the front giving you great natural light and views.

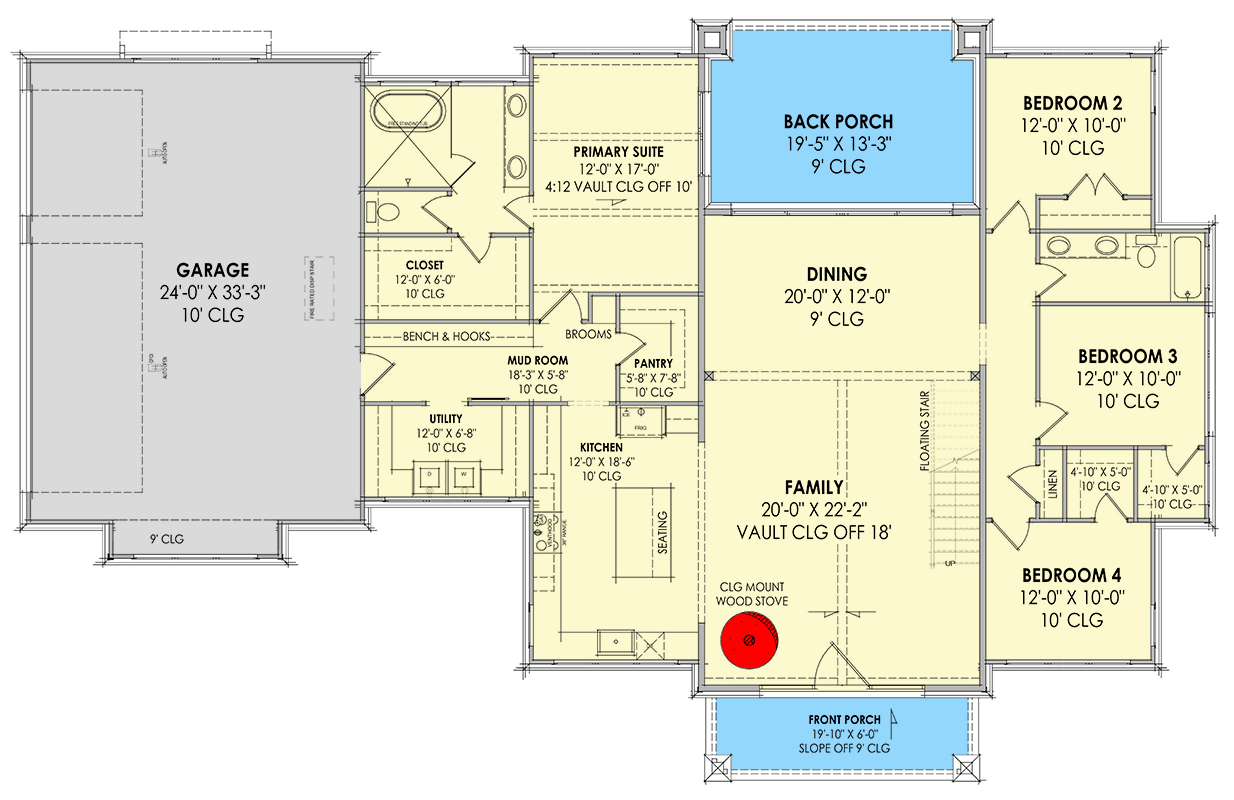

  • The 6'-deep front porch opens to a vaulted family room (18' peak) with the kitchen to the left and the dining room with views across the back porch ahead.

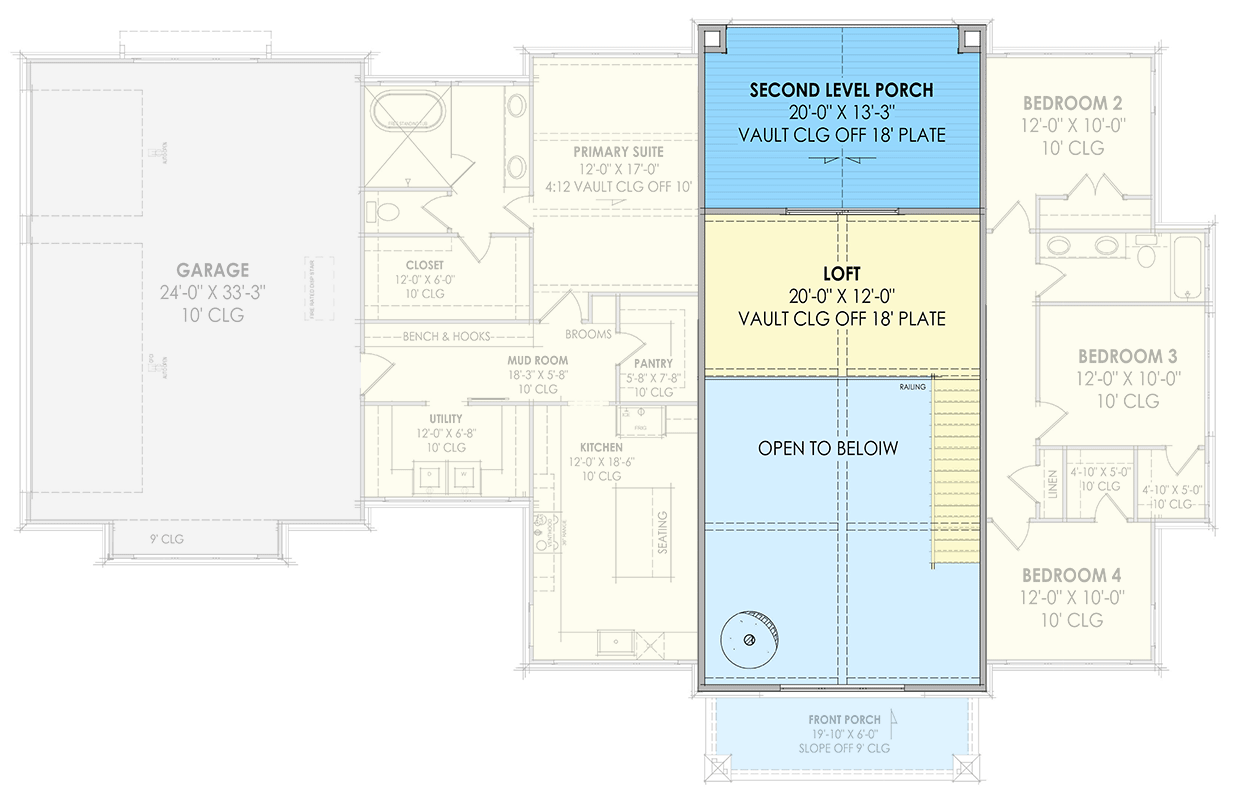

  • Bedrooms are in a split layout maximizing your privacy with 3 guest beds to the right sharing a bath and the master suite with vaulted ceiling to the left with back porch access.
  • Upstairs, a true vaulted loft looks over the family room and has access to a large vaulted porch.
What's Included
  • Foundation plan
  • Detailed floorplans
  • Roof plan
  • Four elevations
  • Electrical schematic
  • Cross section(s)
  • Rafter plan and ceiling joist plans (Beam, joist, and rafters to be sized locally by an engineer or framer)
Sample Plan
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
