Transitional Mediterranean House Plan with Game and Bonus Rooms

Plan 150001HRP

  • 3,642

    Heated s.f.

  • 4

    Beds

  • 4.5

    Baths

  • 1

    Stories

  • 3

    Cars

  • Large windows create a light and airy interior in this Transitional Mediterranean house plan that is exclusive to Architectural Designs.
  • The central living area, with a 20' ceiling, opens into the kitchen and dining room, and easily expands onto the back porch for outdoor living. The gourmet kitchen inspires creativity with plenty of workspace and a large pantry for maximum storage space.
  • The right wing of the home is dedicated to the homeowner with a generous master bedroom and a home office. Both the master closet and the office have access to a safe room.
  • Three bedroom suites share the left side of the design, as well as a game room. A bonus room upstairs provides a flexible space that can evolve as your needs change.
  • An abundance of storage is available throughout the plan, including additional space in the garage and a large laundry room.

Each plan set includes:


  • Cover Sheet: Shows the front elevation and typical notes and requirements.

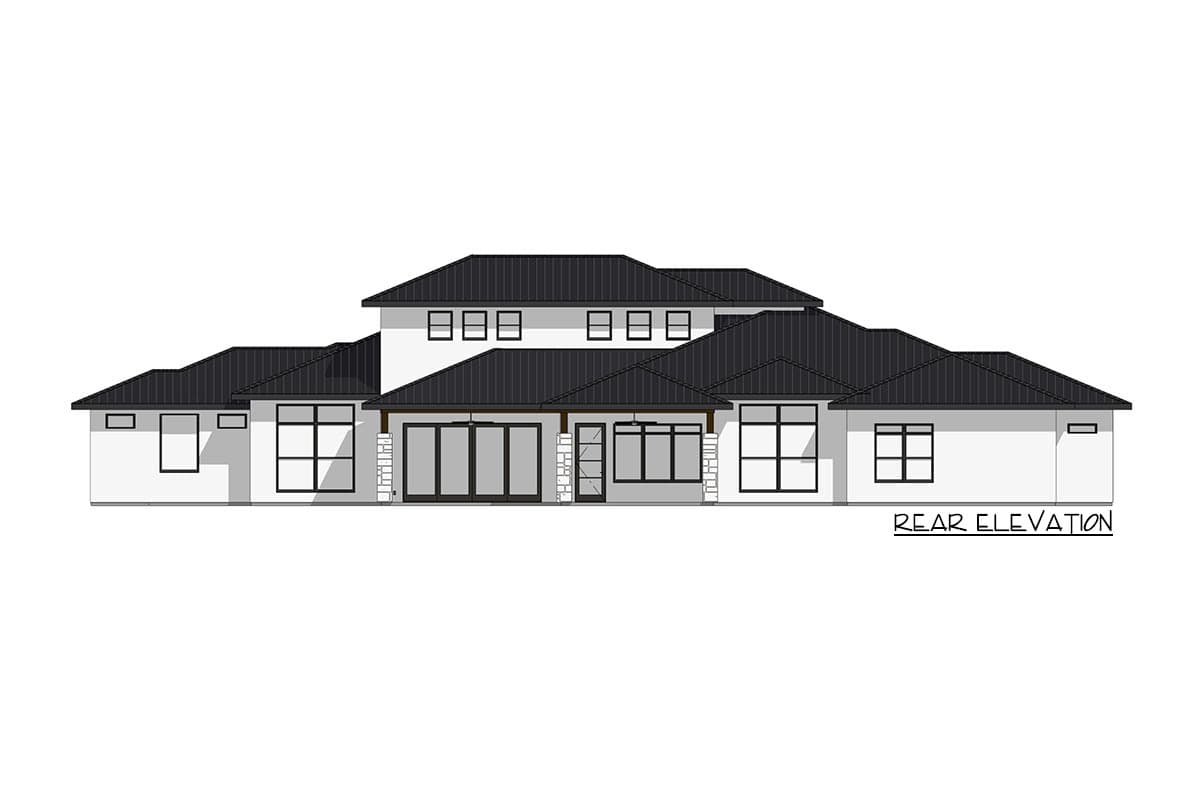

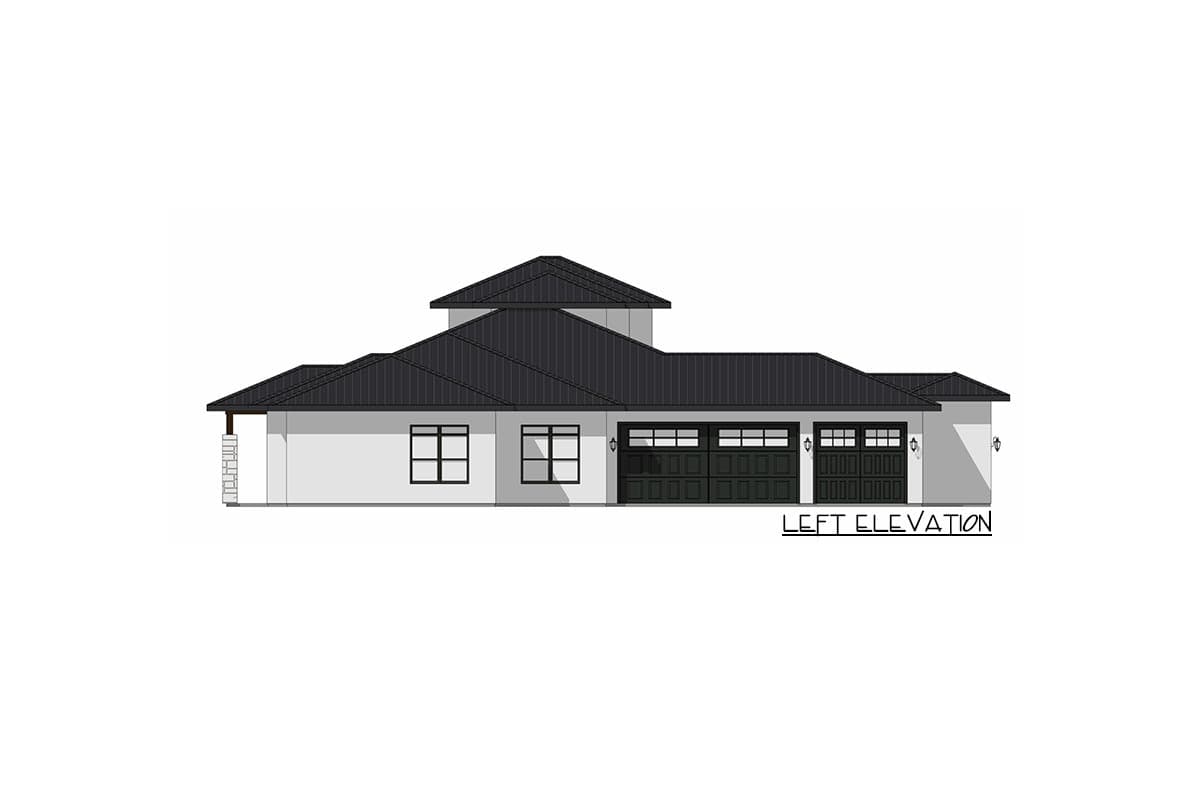

  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement
  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
  • Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
  • Foundation Plans
  • Roof Plan
  • Typical wall section
  • Typical Stair section
  • Cabinets are shown on all plans.

These items are NOT included:
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

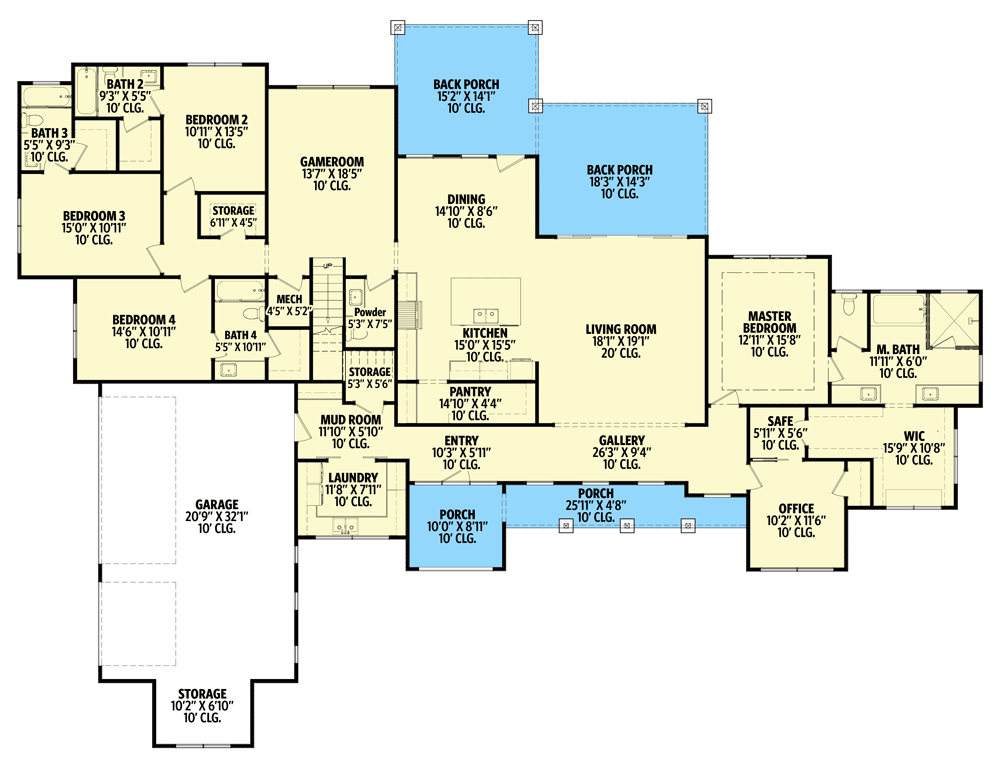

Transitional Mediterranean House Plan with Game and Bonus Rooms - 150001HRP floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

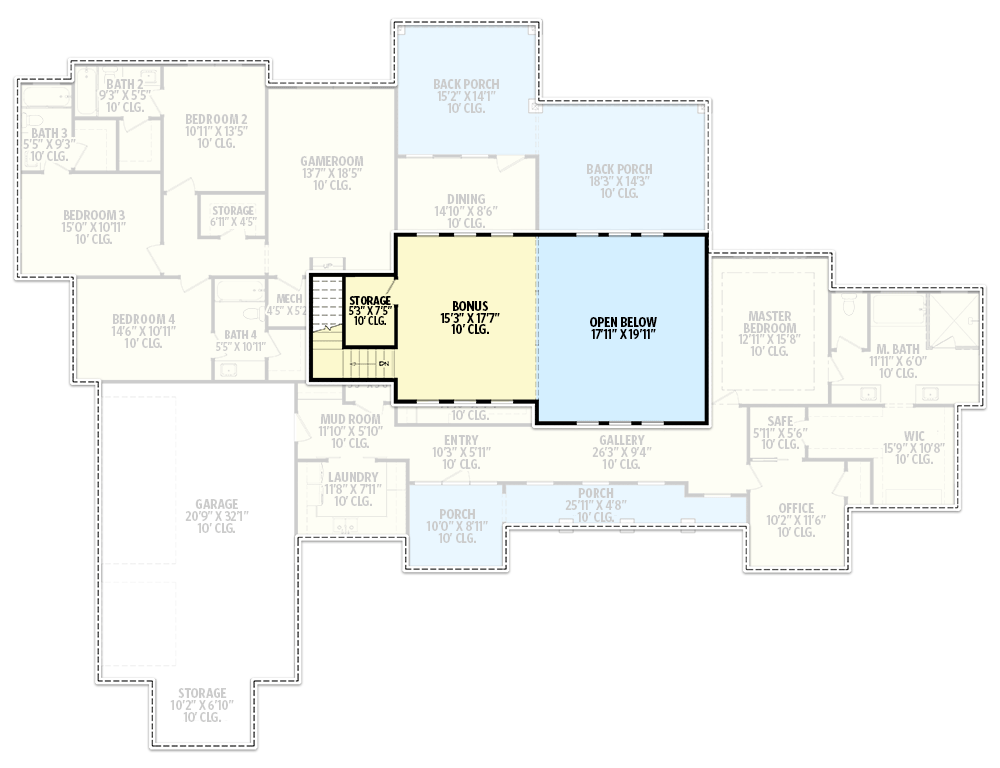

Transitional Mediterranean House Plan with Game and Bonus Rooms - 150001HRP floor plan - 2nd Floor
