Plan 280239JWD

Transitional Modern Farmhouse with Angled Garage and Vaulted Living Room

Heated S.F.
2,244
Beds
3 - 4
Baths
2.5
Stories
1
Cars
2

Floor Plan

Plan 280239JWD

Main Level
Main Level
2nd Floor
2nd Floor

Plan 280239JWD

M-F 9am-5pm EST |

1-203-761-8500

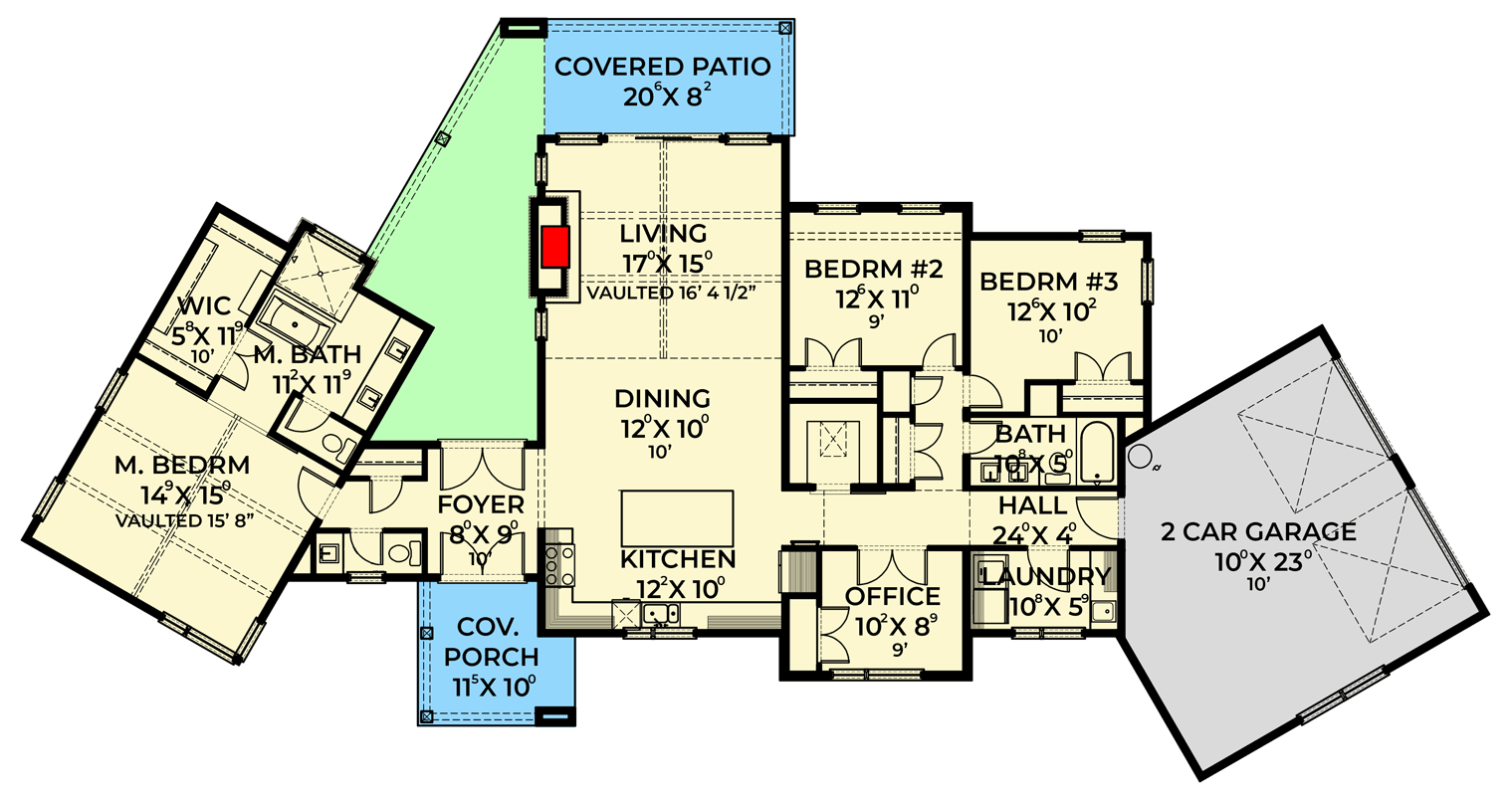

Main Level

Plan 280239JWD: Transitional Modern Farmhouse with Angled Garage and Vaulted Living Room - Floor Plan - Main Level - Modern Farmhouse, Transitional

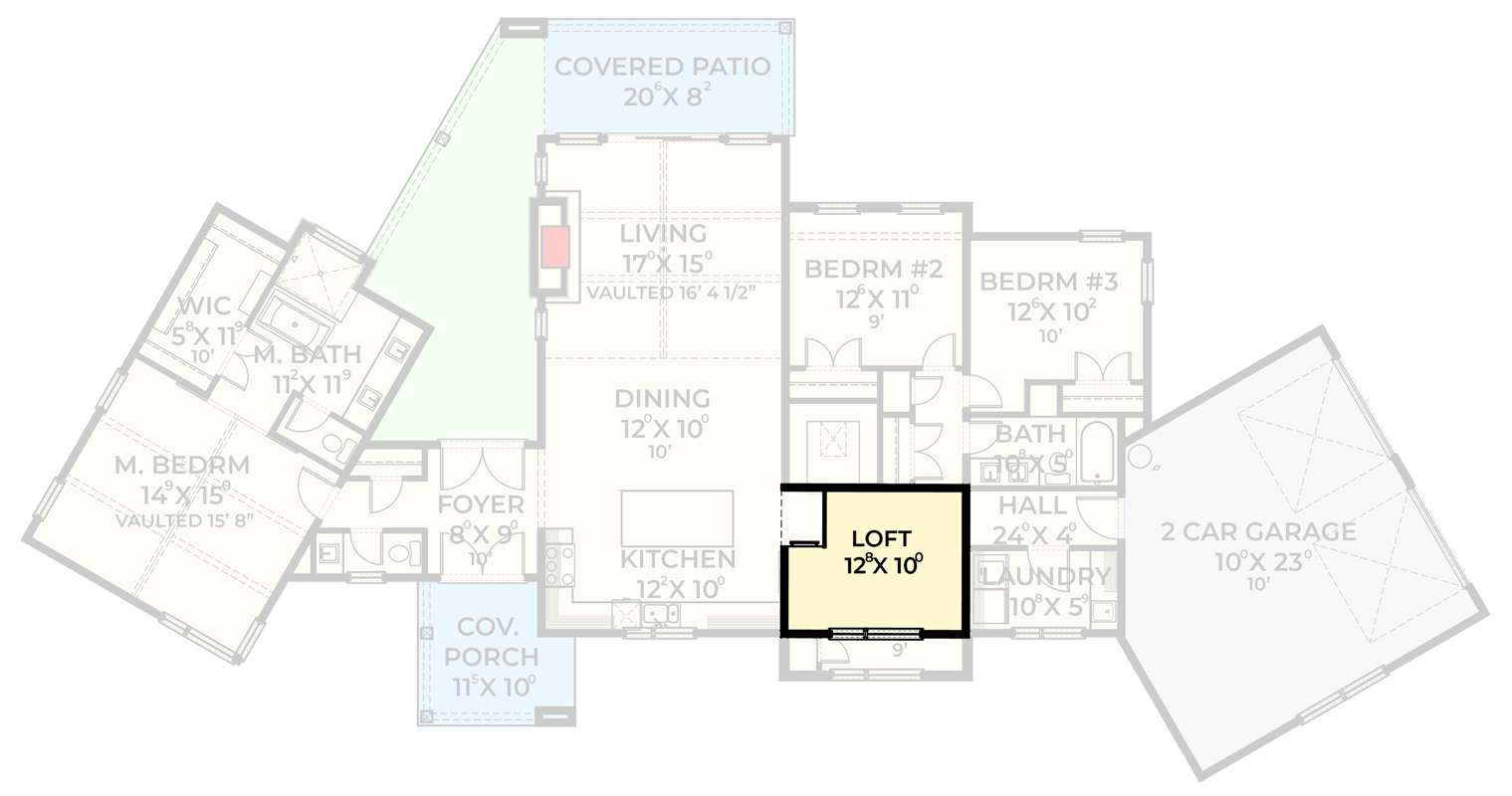

2nd Floor

Plan 280239JWD: Transitional Modern Farmhouse with Angled Garage and Vaulted Living Room - Floor Plan - 2nd Floor - Modern Farmhouse, Transitional

Plan Details

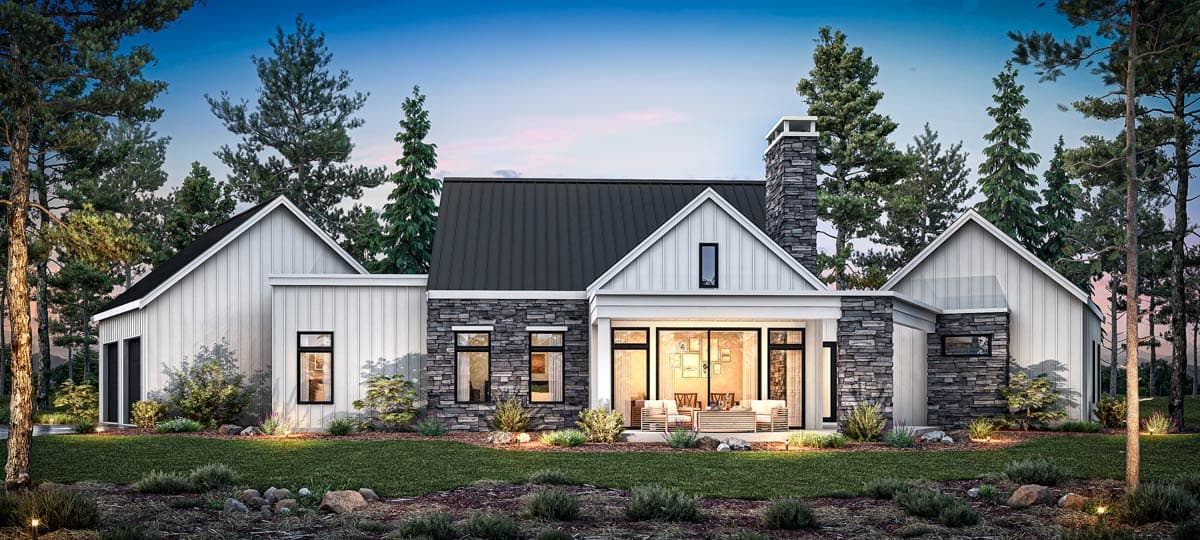

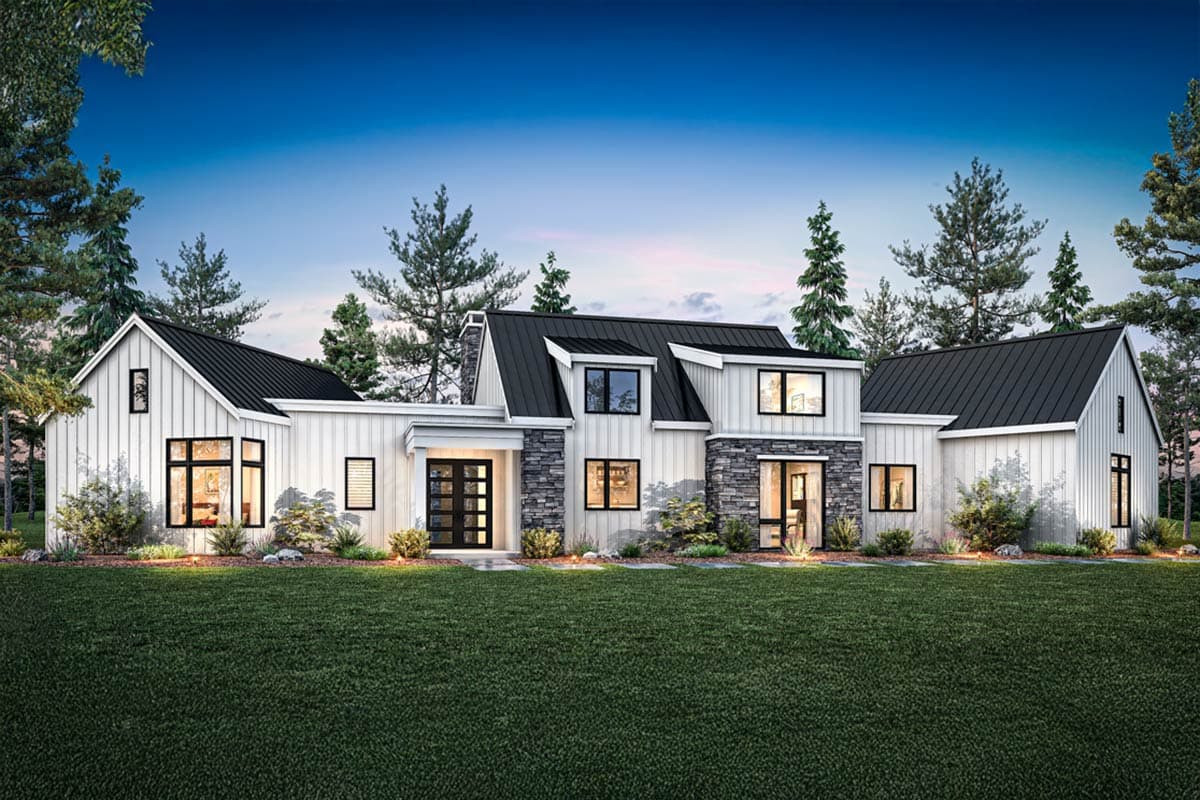

  • This striking 2,244-square-foot modern farmhouse features 3-4 bedrooms, 2 bathrooms, and a spacious 526-square-foot angled 2-car garage. The exterior boasts clean vertical siding, dark-framed windows, and stone accents for a sleek, contemporary take on classic rural charm.
  • Step into a bright, open-concept layout with vaulted ceilings stretching over the great room. The foyer offers immediate access to the rear outdoor area, while the living, dining, and kitchen areas flow seamlessly together, perfect for both everyday indoor or outdoor living and entertaining.
  • The heart of the home centers around a vaulted living room with a fireplace and direct access to the rear covered patio. The kitchen features a central island and is flanked by a cozy dining nook, with laundry and garage access neatly tucked nearby.
  • The private main-level primary suite includes vaulted ceilings, a large walk-in closet, and a dual-vanity bathroom. Across the home, two additional bedrooms share a full bathroom, maintaining privacy with a functional split-bedroom layout.
  • A loft upstairs provides flexible space ideal for a reading nook, play area, or additional lounge.
  • Outdoor living is enhanced by the 400-square-foot covered patio and inviting front porch, offering spaces for morning coffee or evening relaxation.

What's Included

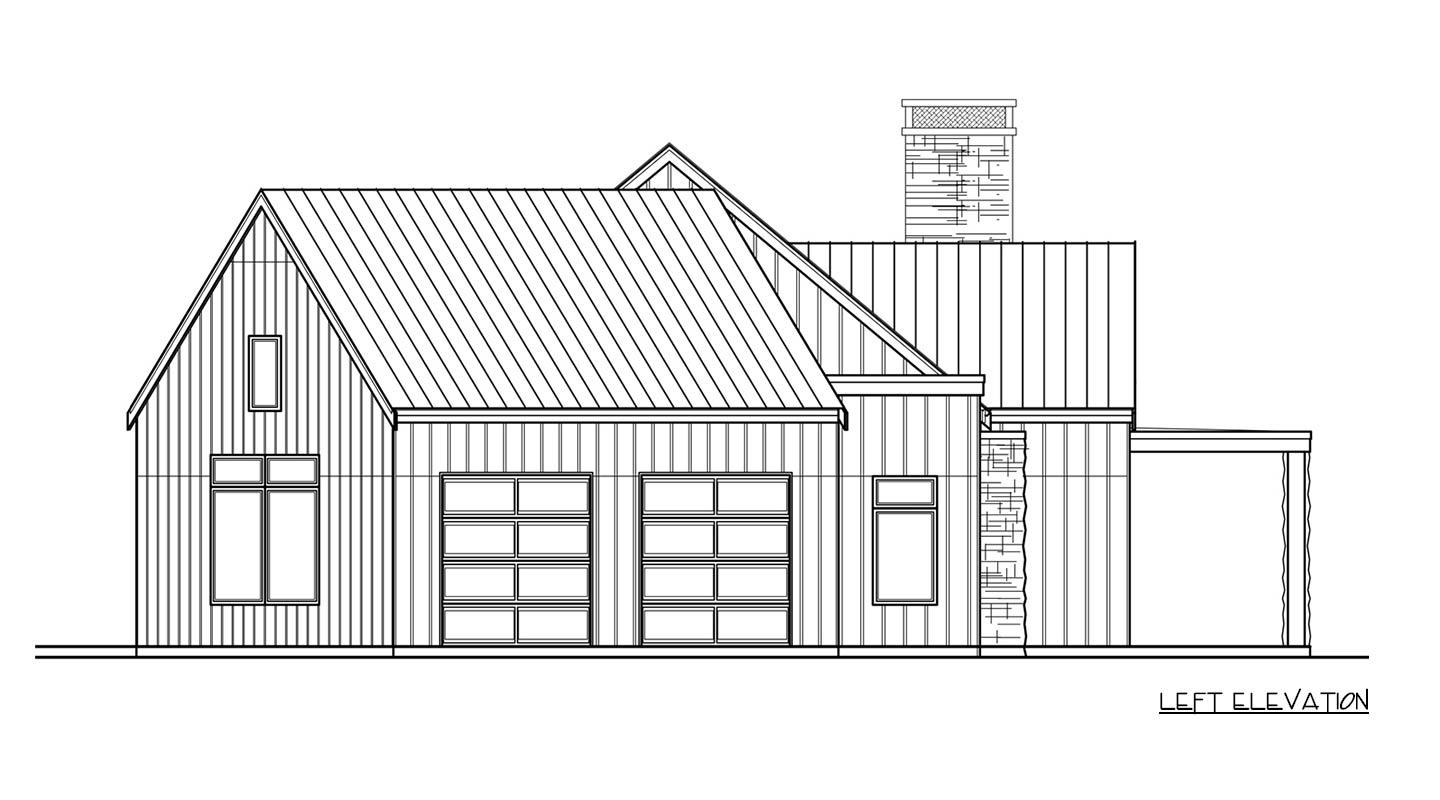

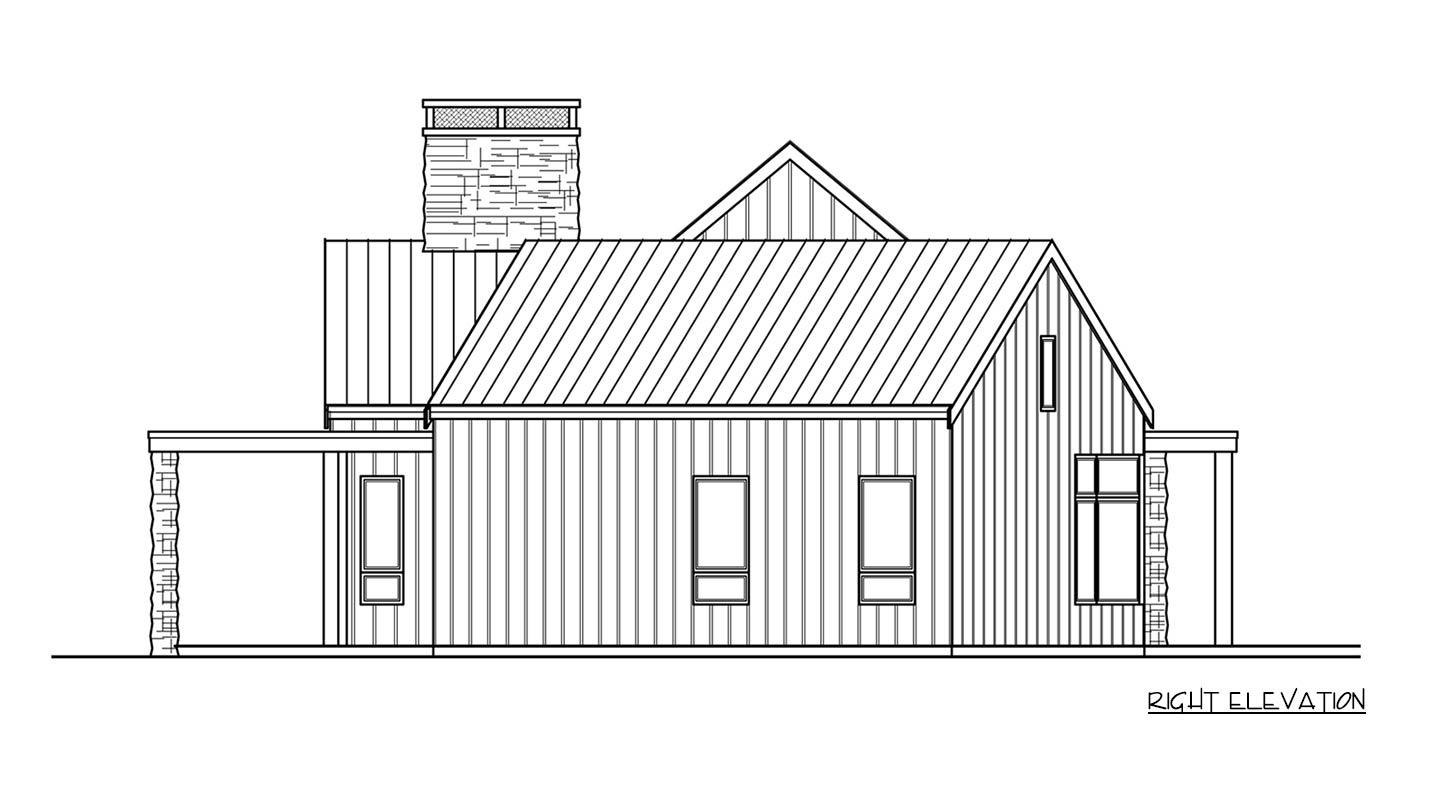

  • Exterior Elevations
  • Main Floor Plan
  • Second level floor plan - if applicable
  • Bonus Floor Plan - if applicable
  • Building Sections
  • Typical Wall Detail
  • Main Floor Framing Plan & Details
  • Bonus Room & Roof Framing Plan
  • Electrical Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

2,244 sq. ft.

1st Floor

2,108 sq. ft.

2nd Floor

136 sq. ft.

Loft

136 sq. ft.

Porch, Front

100 sq. ft.

Covered Patio

400 sq. ft.

Beds/Baths

Bedrooms

3 or 4

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

105' 5"

Depth

54' 10"

Max Ridge Height

23' 11"

Garage

Type

Attached

Area

526 sq. ft.

Count

2 Cars

Entry Location

Side

Roof Details

Primary Pitch

10 on 12

Secondary Pitch

4 on 12

Framing Type

Truss

Architectural Style

Modern Farmhouse

Transitional

Special Features

Angled Garage

Bedrooms - Split

Laundry - Main Level

Loft

Master Suite - 1st Floor

Walk-in Pantry

Square Footage Breakdown

Total Heated Area

2,244 sq. ft.

1st Floor

2,108 sq. ft.

2nd Floor

136 sq. ft.

Loft

136 sq. ft.

Porch, Front

100 sq. ft.

Covered Patio

400 sq. ft.

Beds/Baths

Bedrooms

3 or 4

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

105' 5"

Depth

54' 10"

Max Ridge Height

23' 11"

Garage

Type

Attached

Area

526 sq. ft.

Count

2 Cars

Entry Location

Side

Roof Details

Primary Pitch

10 on 12

Secondary Pitch

4 on 12

Framing Type

Truss

Architectural Style

Modern Farmhouse

Transitional

Special Features

Angled Garage

Bedrooms - Split

Laundry - Main Level

Loft

Master Suite - 1st Floor

Walk-in Pantry
