Transitional Southern Home Plan with Grand Back Porch

Plan 818056JSS

  • 3,036

    Heated s.f.

  • 4

    Beds

  • 3.5

    Baths

  • 1

    Stories

  • 2

    Cars

  • Enjoy the simplicity and comfort of this Transitional Southern home plan that delivers an open, central living space, private primary suite, and vaulted back porch with arched windows allowing natural light to fill the interior.
  • Take a seat at the flush eating bar for quick snacks or conversation and discover the hidden pantry that nearly doubles your storage space.
  • A vaulted ceiling with exposed beams can be found above the family room and primary suite. The primary ensuite features 5 fixtures and a pass-thru closet that leads to the laundry room.
  • Three sizable bedroom suites occupy the right side of the home with two sharing a Jack-and-Jill bathroom.
  • The double garage provides entry from the side and built-in lockers in the mudroom helps organize your personal items and outerwear.

  • Foundation plan
  • Detailed floorplans
  • Roof plan

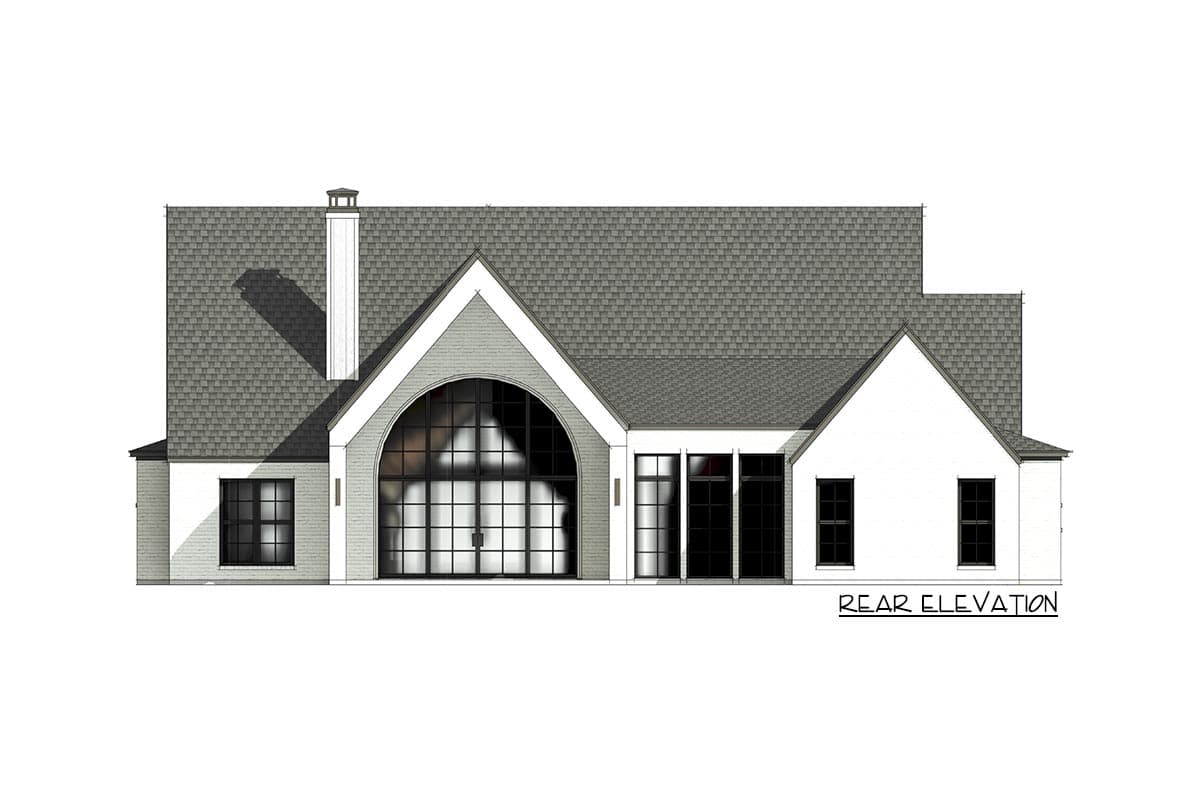

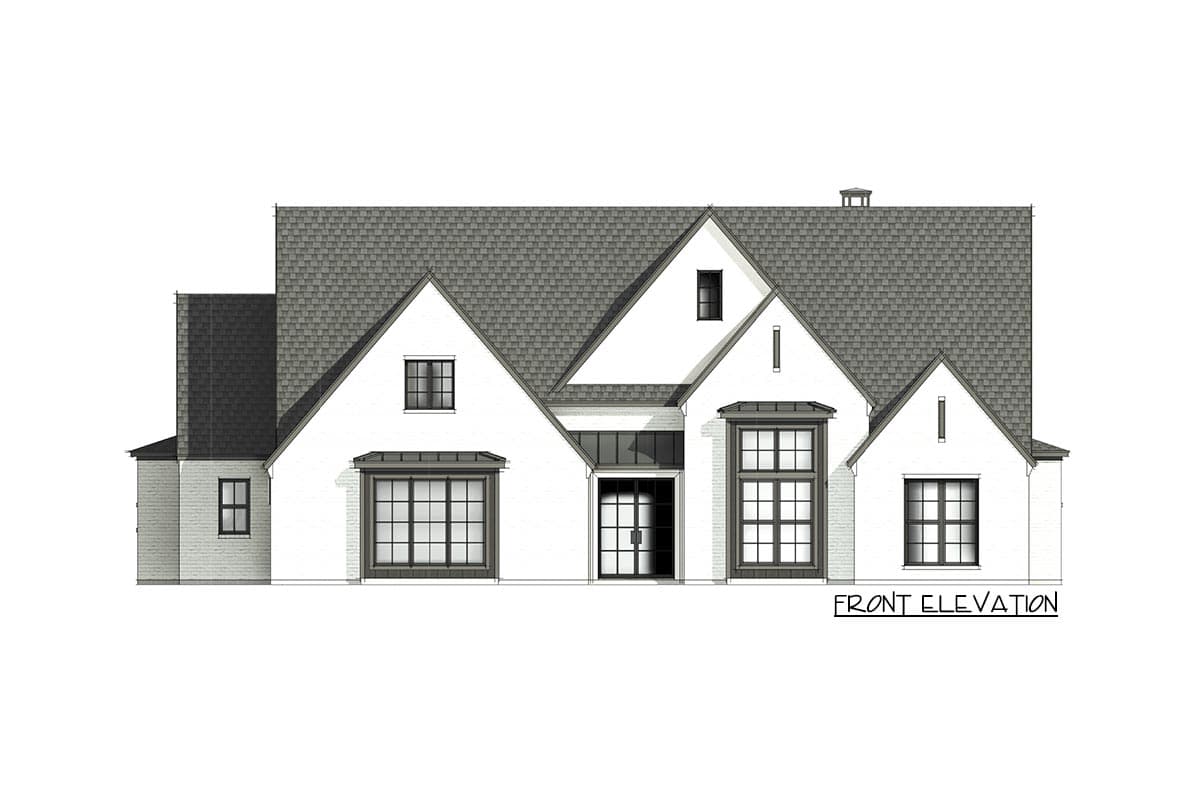

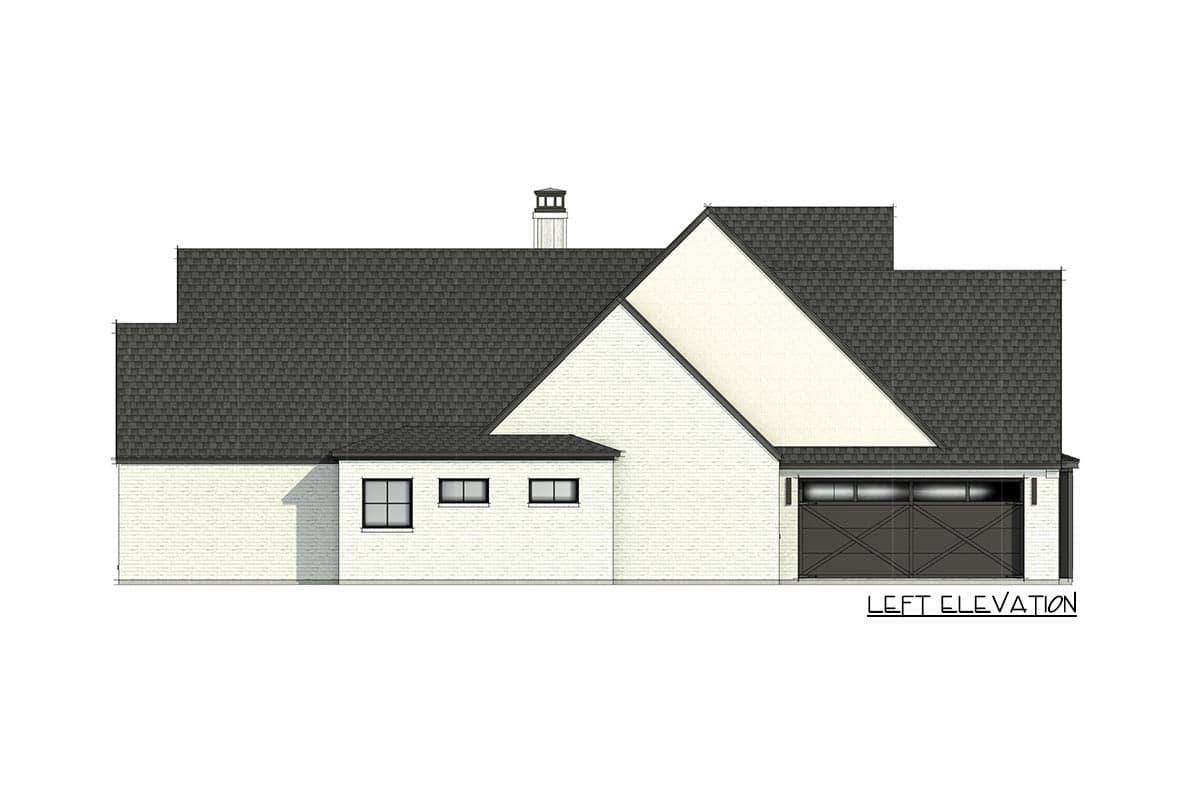

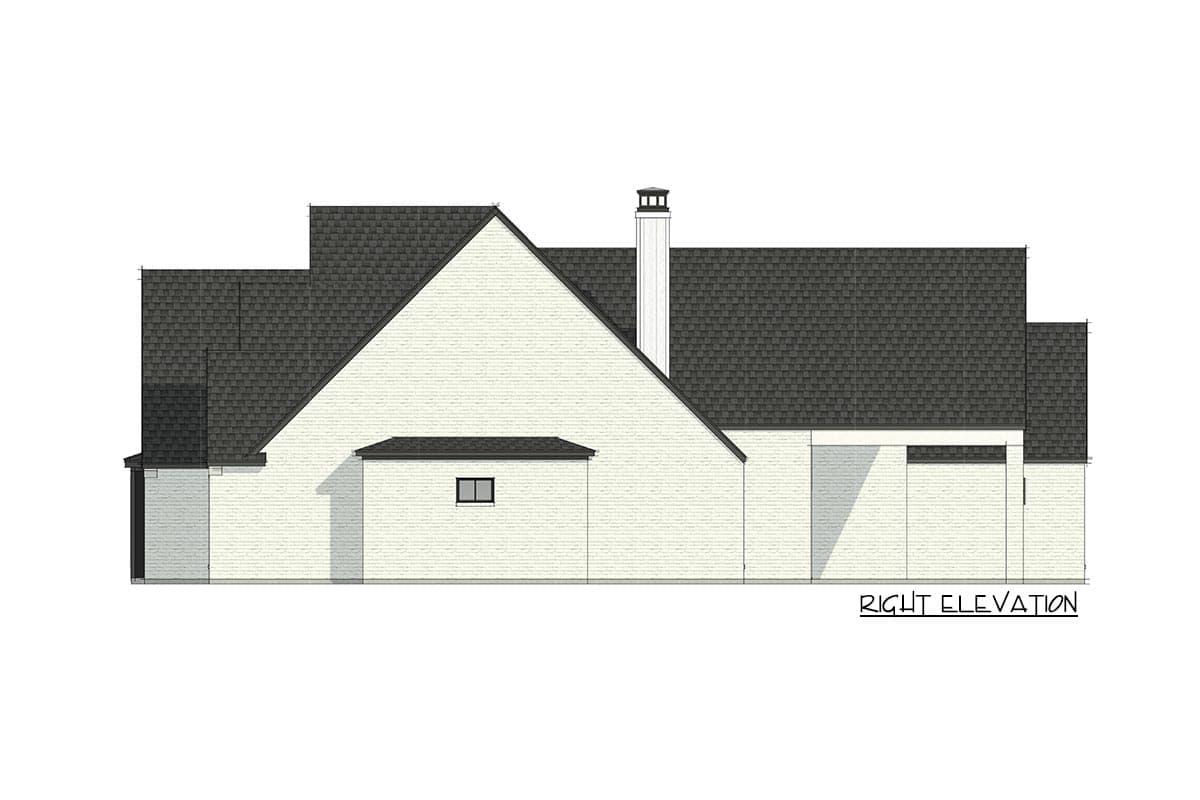

  • Four elevations
  • Electrical schematic
  • Cross section(s)
  • Rafter plan and ceiling joist plans
The following details are NOT included in the plans:
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

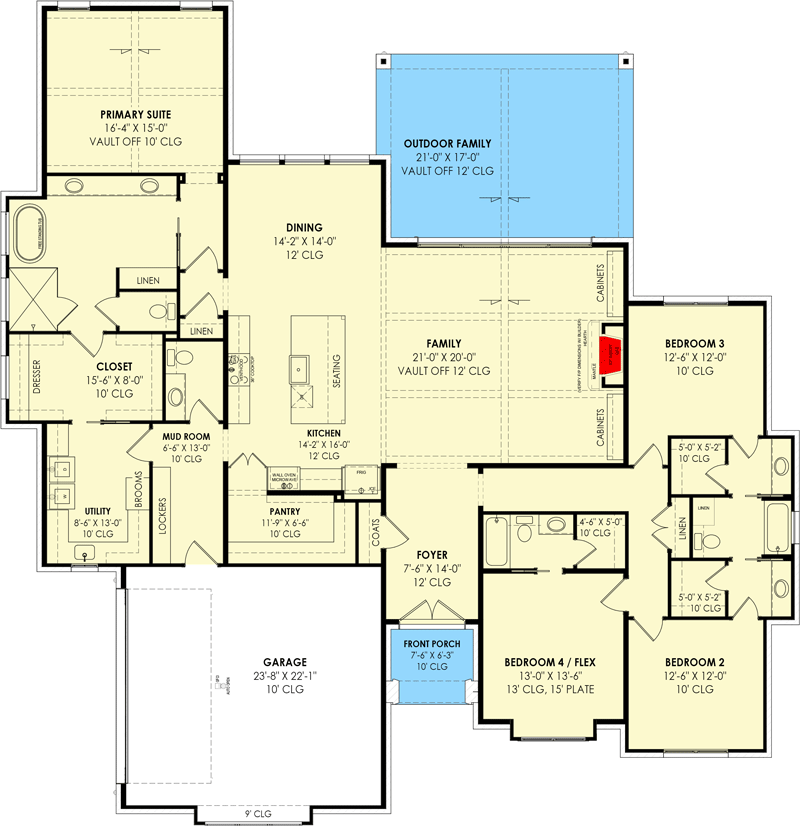

Transitional Southern Home Plan with Grand Back Porch - 818056JSS floor plan - Main Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 3,036 sq. ft.
  • 1st Floor: 3,036 sq. ft.
  • Porch, Combined: 448 sq. ft.
  • Porch, Rear: 395 sq. ft.
  • Porch, Front: 53 sq. ft.
  • Brick Ledge: 130 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Monolithic Slab

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 74' 0"
  • Depth: 76' 4"
  • Max ridge height: 28' 4"

Garage

  • Type: Attached
  • Area: 573 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 10' 0"

Roof Details

  • Primary Pitch: 12 on 12
  • Secondary Pitch: 14 on 12
  • Framing Type: Stick

Architectural Style

Special features

Plan Collections

Transitional Southern Home Plan with Grand Back Porch

  • 3,036

    Heated s.f.

  • 4

    Beds

  • 3.5

    Baths

  • 1

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - Single-Build $1,795
  • PDF - Unlimited Build $2,495
  • CAD Unlimited + PDF $2,795
  • View all purchase option online

About This Plan

  • Enjoy the simplicity and comfort of this Transitional Southern home plan that delivers an open, central living space, private primary suite, and vaulted back porch with arched windows allowing natural light to fill the interior.
  • Take a seat at the flush eating bar for quick snacks or conversation and discover the hidden pantry that nearly doubles your storage space.
  • A vaulted ceiling with exposed beams can be found above the family room and primary suite. The primary ensuite features 5 fixtures and a pass-thru closet that leads to the laundry room.
  • Three sizable bedroom suites occupy the right side of the home with two sharing a Jack-and-Jill bathroom.
  • The double garage provides entry from the side and built-in lockers in the mudroom helps organize your personal items and outerwear.
