Transitional Tudor Home Plan with over 1,900 Square Feet of Living Space

Plan 910081WHD

  • 1,905

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 2

    Stories

  • 2

    Cars

  • Stone surrounds the arched entry of this Transitional Tudor home plan providing a character-rich exterior that sets the scene for what's to come inside.
  • A parlor sits just beyond the threshold, and a coat closet and powder bath are conveniently located nearby. The great room, dining area, and kitchen consume the remainder of the main level, lining the rear elevation, with sliding door access to the back yard.
  • An island in the kitchen features a breakfast bar and the grocery shopper in the home will appreciate the space available in the walk-in pantry.
  • The master suite shares the second level with two family bedrooms, a full bathroom, and laundry room.
  • Finish the lower level to gain a fourth bedroom, bath, and family space; a total of 922 square feet in the basement.

This house plan includes:

  • General notes
  • Detailed floor plans
  • Elevations
  • Roof plan
  • Cross section
  • Electrical plan
  • Window and door schedules
  • Architectural details
  • Structural notes
  • Foundation plan
  • Floor framing
  • Roof framing
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

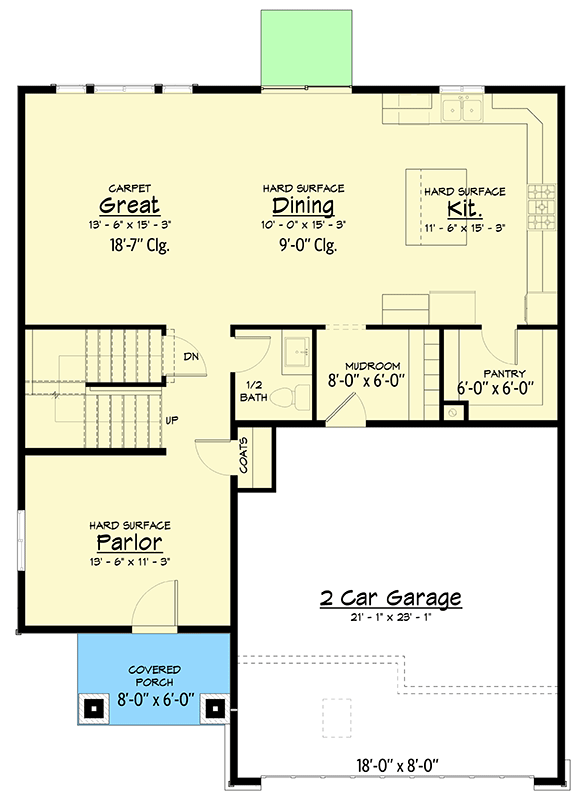

Transitional Tudor Home Plan with over 1,900 Square Feet of Living Space - 910081WHD floor plan - Main Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

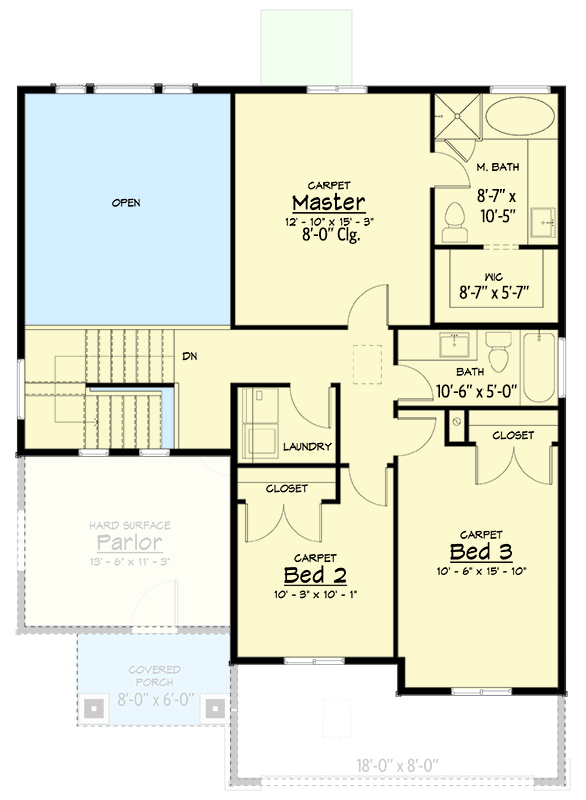

Transitional Tudor Home Plan with over 1,900 Square Feet of Living Space - 910081WHD floor plan - 2nd Floor
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

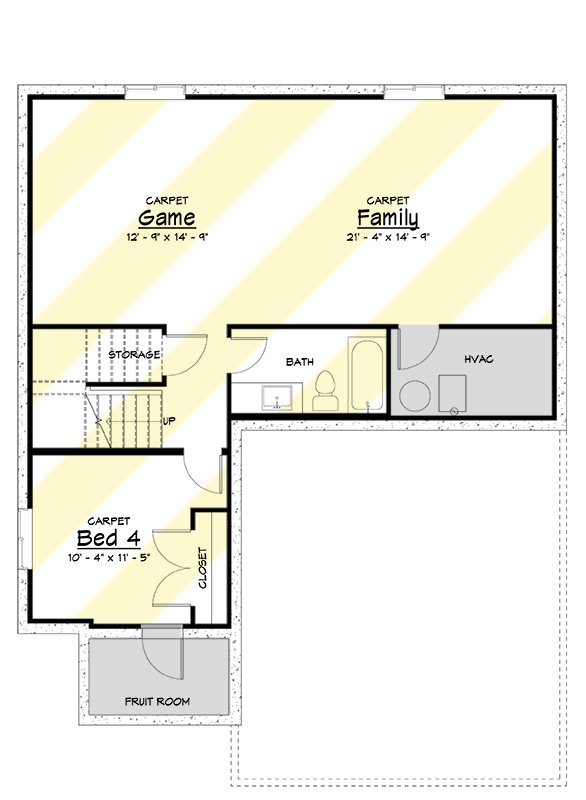

Transitional Tudor Home Plan with over 1,900 Square Feet of Living Space - 910081WHD floor plan - 3rd Floor

Transitional Tudor Home Plan with over 1,900 Square Feet of Living Space

  • 1,905

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 2

    Floors

  • 2

    Car garage

Floor Plan

  • Main Level

  • 2nd Floor

  • 3rd Floor

Plan Details

Square Footage Breakdown

  • Total: 1,905 sq. ft.
  • 1st Floor: 1,015 sq. ft.
  • 2nd Floor: 890 sq. ft.

Dimensions

  • Width: 36' 0"
  • Depth: 46' 0"
  • Max ridge height: 30' 0"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 476 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 6 on 12
  • Framing Type: Stick And Truss
