Transoms and Dramatic Tall Windows

Plan 69560AM

  • 2,830

    HEATED S.F.

  • 3

    BEDS

  • 3

    BATHS

  • 2

    FLOORS

  • 3

    CAR GARAGE

About this Plan

  • Beautiful, tall windows flood this Northwest home with light, front and back.
  • The entry foyer feels huge, thanks to the two-story ceiling.
  • Off to the left, the large living room is vaulted with a big fireplace as the focal point.
  • A tray ceiling tops the formal dining room just off the spacious kitchen.
  • From the cooktop island, you can see the breakfast nook and family room with its bay window.
  • All the bedrooms are up on the second floor, along with a big bonus room that adds 376 square feet of living space to the total living area.
  • A spa tub in the master bathroom is surrounded by windows on three sides.
  • Built-in shelves line the entrance of the walk-in closet.

See What's Included in this Plan...

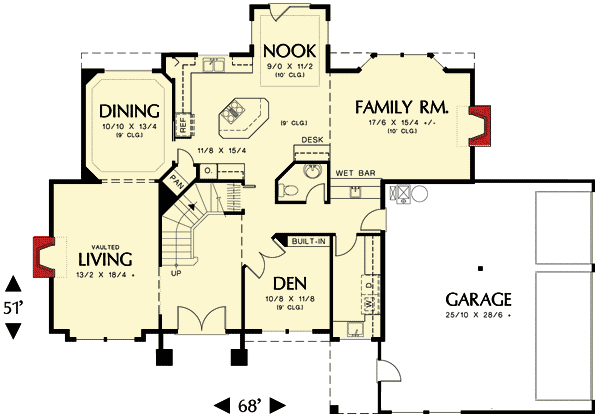

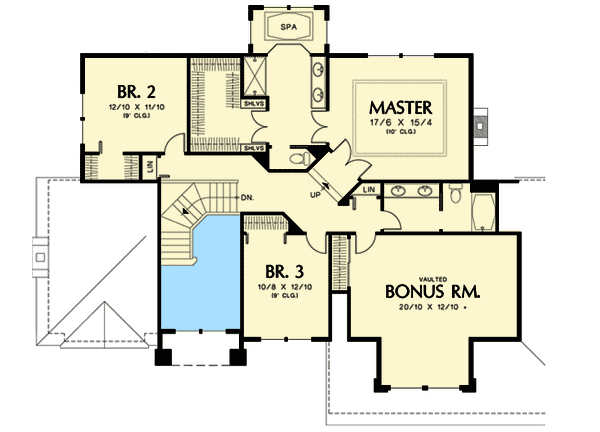

Floor Plan

Plan details

Square Footage Breakdown

  • Total Heated Area: 2,830 sq. ft.
  • 1st Floor: 1,212 sq. ft.
  • 2nd Floor: 1,618 sq. ft.
  • Bonus: 376 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Dimensions

  • Width: 68' 0"
  • Depth: 51' 0"
  • Max ridge height: 29' 8"

Garage

  • Type: Attached
  • Area: 764 sq. ft.
  • Details: 3 Cars
  • Location: Side

Foundation Type

  • Standard Foundations: Crawl
  • Optional Foundations: Basement, Slab

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 9' 0"

Roof

  • Framing Type: Stick
