Plan 66199WE

Triple Arched Foyer

Heated S.F.
3,686
Beds
4
Baths
3.5
Stories
1
Cars
3

Floor Plan

Plan 66199WE

Main Level
Main Level

Plan 66199WE

M-F 9am-5pm EST |

1-203-761-8500

Main Level

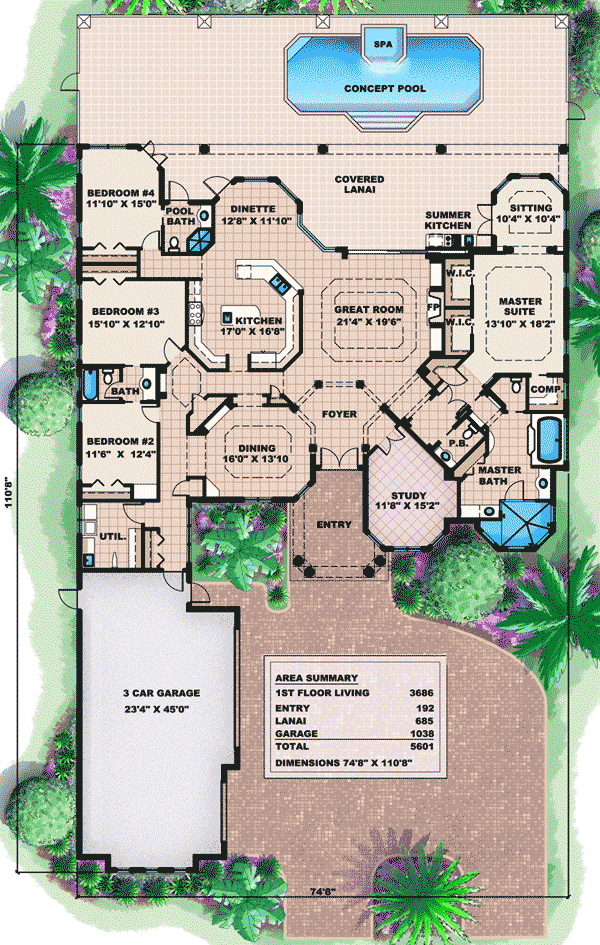

Plan 66199WE: Triple Arched Foyer - Floor Plan - Main Level - Mediterranean

Plan Details

  • The spaciousness of the living area warmly welcomes you into this home. As you walk under the triple arches, you take in views and natural light through great walls of glass that grant you access to the lanai.
  • The split bedrooms each have their own foyer for utmost privacy.
  • The owner's suite is not to be overlooked, with a private retreat built in for computers, hobbies or crafts. Also, you can take that late night swim with the easy access onto the lanai.

What's Included

Elevations - Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:
  • Material Labels
  • Floor-to-Floor Heights
  • Roof Slope Indicators
Floor Plans - Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:
  • Door and Window Sizes
  • Completely Dimensioned Floor Plan
  • Room Labels and Interior Room Sizes
Electrical Layouts
  • Building Section Markers
  • All Electrical Outlets, Fixtures, and Switching
Foundation Plan - Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:
  • Floor and Deck Joist Size and Spacing
  • Electrical Locations (if applicable)

Roof Design Plan - Drawn at 1/8″ to 1/4″ = 1′-0″scale, and Includes:
  • All Beam and Header Heights and Locations
  • All Hips, Gables, Ridges, and Valleys
  • Building Section Markers
Building Sections - Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:
  • Floor Joist Size and Spacing
  • Floor-to-Floor Heights
  • Non-Typical Plate Heights Indicated
Typical Wall Sections - Drawn at 1/8″ to 1/2″ = 1′-0″ Scale, and Includes:
  • All Labels Indicating Wall Construction
  • Foundation Wall Thickness and Reinforcing
  • Insulation Type and Thickness
Miscellaneous Notes and Details
  • Miscellaneous General Notes
  • Stairway details (if applicable)
We do provide a slab plan, however, the structural foundation plan is to be provided by the structural engineer selected by your builder or yourself. This is done because our slab plan cannot anticipate the variations in soil, footings and other conditions per your specific site. We provide the design of the roof as well, however, the truss layouts need to be provided by a truss engineer or your lumber company. Your builder can provide these contacts for you.  Please keep in mind that these are additional expenses outside of the cost of the original plan that you purchase from us.

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

3,686 sq. ft.

1st Floor

3,686 sq. ft.

Entry

192 sq. ft.

Lanai

685 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

Block / CMU (main floor)

Optional Type(s)

2x6

Dimensions

Width

74' 8"

Depth

110' 8"

Max Ridge Height

27' 6"

Garage

Type

Attached

Area

1038 sq. ft.

Count

3 Cars

Entry Location

Courtyard

Ceiling Heights

First Floor

10'

Room

Ceiling Type

Height

Nook

Flat

12' 0''

Master Bedroom

Coffered

11' 0''

Foyer

Flat

17' 8''

Kitchen

Flat

12' 0''

Dining Room

Coffered

14' 0''

All Bedrooms

Flat

10' 0''

Great Room

Coffered

14' 0''

Entry

Flat

17' 8''

Lanai

Flat

12' 0''

Study

Flat

13' 0''

Roof Details

Primary Pitch

6 on 12

Framing Type

Truss

Architectural Style

Mediterranean

Special Features

Bedrooms - Split

Jack & Jill Bath

Laundry - Main Level

Master Suite - 1st Floor

Master Suite - Sitting Area

Square Footage Breakdown

Total Heated Area

3,686 sq. ft.

1st Floor

3,686 sq. ft.

Entry

192 sq. ft.

Lanai

685 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

Block / CMU (main floor)

Optional Type(s)

2x6

Dimensions

Width

74' 8"

Depth

110' 8"

Max Ridge Height

27' 6"

Garage

Type

Attached

Area

1038 sq. ft.

Count

3 Cars

Entry Location

Courtyard

Ceiling Heights

First Floor

10'

Room

Ceiling Type

Height

Nook

Flat

12' 0''

Master Bedroom

Coffered

11' 0''

Foyer

Flat

17' 8''

Kitchen

Flat

12' 0''

Dining Room

Coffered

14' 0''

All Bedrooms

Flat

10' 0''

Great Room

Coffered

14' 0''

Entry

Flat

17' 8''

Lanai

Flat

12' 0''

Study

Flat

13' 0''

Roof Details

Primary Pitch

6 on 12

Framing Type

Truss

Architectural Style

Mediterranean

Special Features

Bedrooms - Split

Jack & Jill Bath

Laundry - Main Level

Master Suite - 1st Floor

Master Suite - Sitting Area
