Plan: 59563ND

Triple Dormered Delight

2,698 4-5 3 2 2
Pageloader

Triple Dormered Delight

Plan 59563ND

  • 2,698

    Heated s.f.

  • 4-5

    Beds

  • 3

    Baths

  • 2

    Stories

  • 2

    Cars

  • Lazy summer afternoon will find you in the rocking chair on the front porch of this triple dormered delight. The chef of the family will discover the usefulness of all the amenities available in the gourmet kitchen with a large walk-in pantry conveniently located for easy access.
  • Your expansive master suite includes 'his and her' walk-in closets and a calming whirlpool bath to ease your worries away.
  • The children will discover clever uses for their charming window seats and will also be able to see what is going on downstairs peaking over the balcony to below.
  • Related Plans: Need room to expand? See house plan 5948ND for a version of this plan with a bonus room over the garage.

Each plan set includes the following:

  • Foundation Plan** (1/4″ or 1/2″ = 1′)
  • Floor Plans (1/4″= 1′)
  • Set of Elevations (1/4″= 1′)
  • Building Sections (1/4″ or 1/2″ = 1′)
  • Kitchen and Bath Elevations (1/2″ = 1′)
  • Miscellaneous Details (3/4″ = 1′)
  • An electrical diagram showing a Birdseye view of rooms with lights, fans to switches

Floor Plan

Plan details



Triple Dormered Delight

  • 2,698

    Heated s.f.

  • 4 - 5

    Beds

  • 3

    Baths

  • 2

    Floors

  • 2

    Car garage

Buy This Plan
  • 1 Set $670
  • 5 Sets $780
  • 8 Sets $945
  • Reproducible Set $1,450
  • PDF - single-use $1,450
  • CAD $2,235
  • View all purchase option online

About This Plan

  • Lazy summer afternoon will find you in the rocking chair on the front porch of this triple dormered delight. The chef of the family will discover the usefulness of all the amenities available in the gourmet kitchen with a large walk-in pantry conveniently located for easy access.
  • Your expansive master suite includes 'his and her' walk-in closets and a calming whirlpool bath to ease your worries away.
  • The children will discover clever uses for their charming window seats and will also be able to see what is going on downstairs peaking over the balcony to below.
  • Related Plans: Need room to expand? See house plan 5948ND for a version of this plan with a bonus room over the garage.

Floor Plans

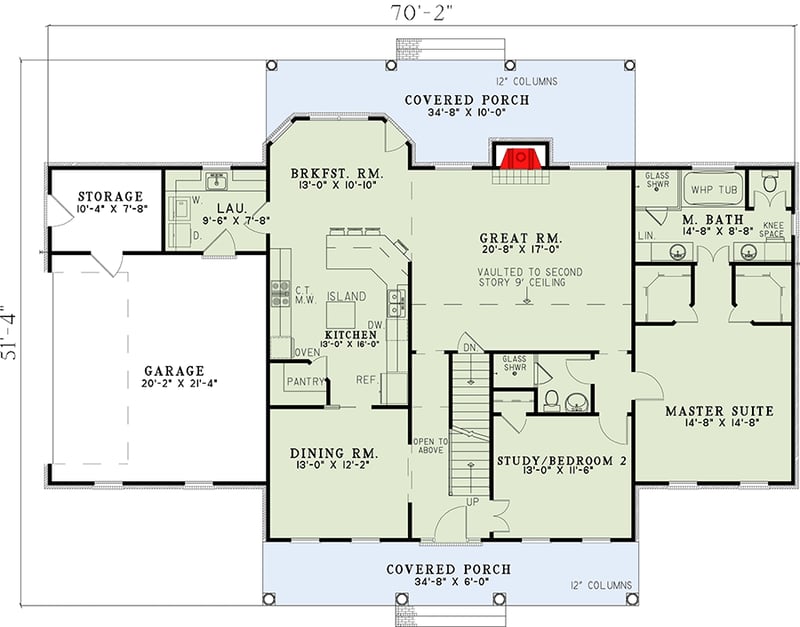

  • Main Level

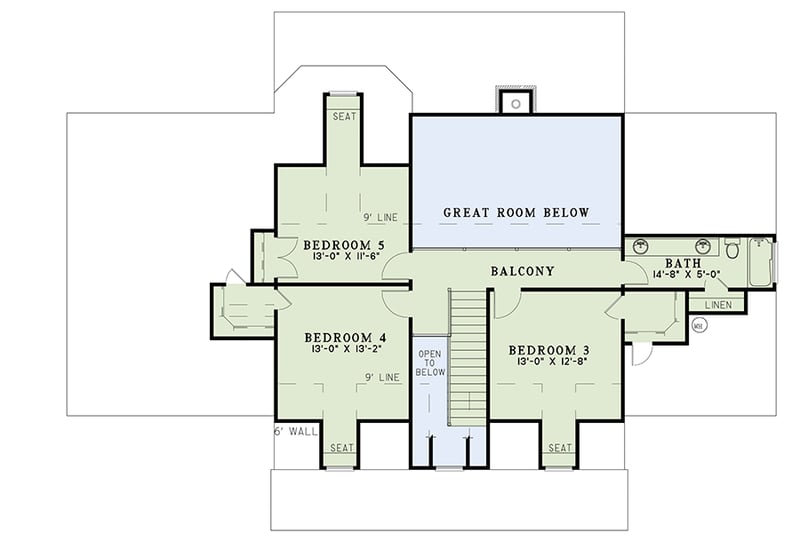

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,698 sq. ft.
  • 1st Floor: 1,813 sq. ft.
  • 2nd Floor: 885 sq. ft.
  • Porch, Rear: 292 sq. ft.
  • Porch, Front: 208 sq. ft.

Beds/Baths

  • Bedrooms: 4 or 5
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Crawl, Slab
    • Optional Foundations: Basement, Walkout

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 70' 2"
  • Depth: 51' 4"

Garage

  • Type: Attached
  • Area: 535 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 10 on 12
  • Secondary Pitch: 4 on 12
  • Framing Type: Stick

Architectural Style

  • Country

Special features

  • 1st Floor Master Suite
  • Butler Walk-in Pantry
  • CAD Available
  • Den-Office-Library-Study
  • Media-Game-Home Theater
  • PDF
