Plan 38027LB

Triplex House Plan with 3 Bedroom Units

Heated S.F.
3,831
Units
3
Width
Depth

Floor Plan

Plan 38027LB

Main Level
Main Level
2nd Floor
2nd Floor

Plan 38027LB

M-F 9am-5pm EST |

1-203-761-8500

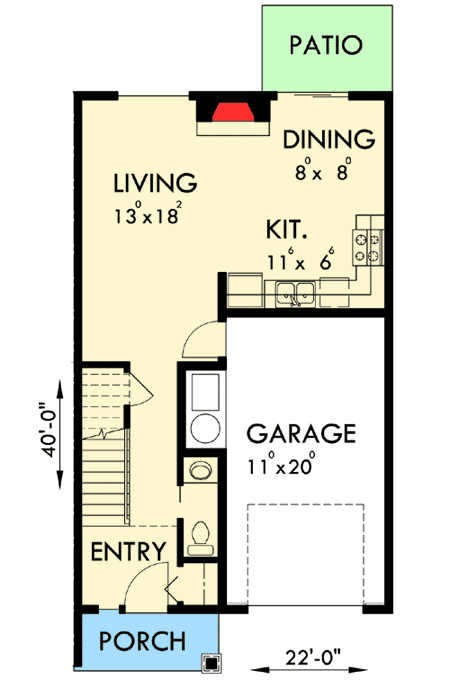

Main Level

Plan 38027LB: Triplex House Plan with 3 Bedroom Units - Floor Plan - Main Level

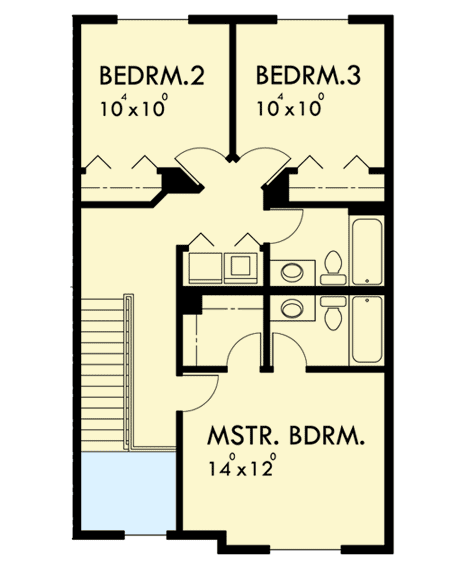

2nd Floor

Plan 38027LB: Triplex House Plan with 3 Bedroom Units - Floor Plan - 2nd Floor

Plan Details

  • This house plan gives you three 22'-wide 3 bed, 2.5 bath units each with a one car garage.
  • Each unit gives you 1,277 square feet of living (556 sq. ft. on the main floor and 721 sq. ft. on the upper floor) and a 236 square foot garage.
  • Laundry and beds are upstairs, leaving the open concept main floor there for entertaining. A sliding door on the back wall of the dining room takes you outside.
Unit A
Heated Area
1,277Sq. Ft.
556 Sq. Ft. 1st
721 Sq. Ft. 2nd
Beds
3Beds
Baths
2Full Baths
1Half Bath
Cars
Attached
220 Sq. Ft.
Dimensions
22'width
40'depth
25' 3"height
Unfinished Areas
220 Sq. Ft. Garage
Unit B
Heated Area
1,277Sq. Ft.
556 Sq. Ft. 1st
721 Sq. Ft. 2nd
Beds
3Beds
Baths
2Full Baths
1Half Bath
Cars
Attached
220 Sq. Ft.
Dimensions
22'width
40'depth
25' 3"height
Unfinished Areas
220 Sq. Ft. Garage
Unit C
Heated Area
1,277Sq. Ft.
556 Sq. Ft. 1st
721 Sq. Ft. 2nd
Beds
3Beds
Baths
2Full Baths
1Half Bath
Cars
Drive Under
220 Sq. Ft.
Dimensions
22'width
40'depth
25' 3"height
Unfinished Areas
220 Sq. Ft. Garage

What's Included

  • Elevations (All 4 Sides: Front, Left, Rear, Right)
  • Dimensioned Foundation Plan
  • Dimensioned Floor Plan(s)
  • Upper Level Framing Plan & Notes (if applicable)
  • Building Sections
  • Roof Framing Plan/Truss Layout
  • Typical Notes & Details

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Price Match Guarantee
What's included?

FORMAT & LICENSE

Choose an option

$0

Not sure what to choose?

Pointer link icon

FOUNDATION

Choose an option

+$0

Not sure what to choose?

Pointer link icon

OPTIONS

Choose Additional Options

+$0

Not sure what to choose?

Pointer link icon

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

3,831 sq. ft.

1st Floor

1,668 sq. ft.

2nd Floor

2,163 sq. ft.

Beds/Baths

Bedrooms

9

Full bathrooms

6

Half bathrooms

3

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

66' 0"

Depth

40' 0"

Max Ridge Height

25' 3"

Garage

Type

Attached

Area

660 sq. ft.

Count

3 Cars

Entry Location

Front

Special Features

Master Suite - Upstairs

Square Footage Breakdown

Total Heated Area

3,831 sq. ft.

1st Floor

1,668 sq. ft.

2nd Floor

2,163 sq. ft.

Beds/Baths

Bedrooms

9

Full bathrooms

6

Half bathrooms

3

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

66' 0"

Depth

40' 0"

Max Ridge Height

25' 3"

Garage

Type

Attached

Area

660 sq. ft.

Count

3 Cars

Entry Location

Front

Special Features

Master Suite - Upstairs
