Plan 55171BR

Triplex House Plan with Asymmetrical Middle Unit

Heated S.F.
4,636
Units
3
Width
Depth

Floor Plan

Plan 55171BR

Main Level
Main Level
2nd Floor
2nd Floor

Plan 55171BR

M-F 9am-5pm EST |

1-203-761-8500

Main Level

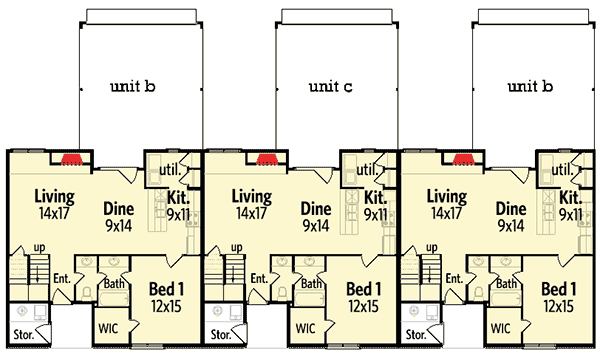

Plan 55171BR: Triplex House Plan with Asymmetrical Middle Unit - Floor Plan - Main Level

2nd Floor

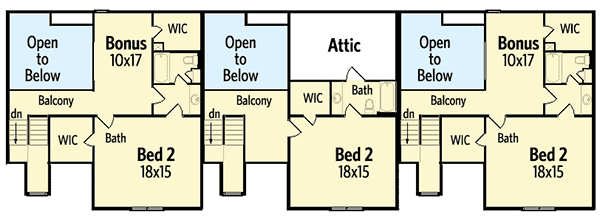

Plan 55171BR: Triplex House Plan with Asymmetrical Middle Unit - Floor Plan - 2nd Floor

Plan Details

  • Use this triplex housoe plan to build an entire apartment complex at a fraction of the usual architectural cost. Or just build a unit for three families.
  • The end units each give 1,617 square feet of living (901 sq. ft. on main, 716 sq. ft. upper level. The smaller middle unit has 1,402 square feet of living (901 sq. ft. on main, 501 sq. ft. uper level).
  • This triplex is beautiful, functional and affordable. Each unit includes a double carport, fireplace, 2 bed rooms, 2 bath rooms, a powder room, utility room complete with pantry and closet, a fully appointed kitchen, open ceilings in the living room, giant walk-in closets and an overlooking balcony on the upper level.
  • Easy to build, the exterior is low maintenance with its brick and stucco finish which keeps operating cost low too.
Unit C
Heated Area
1,617Sq. Ft.
901 Sq. Ft. 1st
716 Sq. Ft. 2nd
Beds
2Beds
Baths
2Full Baths
Cars
Carport
Dimensions
32' 1"width
53'depth
24'height
Unit A
Heated Area
1,617Sq. Ft.
901 Sq. Ft. 1st
716 Sq. Ft. 2nd
Beds
2Beds
Baths
2Full Baths
Cars
Carport
Dimensions
32' 1"width
53'depth
24'height
Unit B
Heated Area
1,402Sq. Ft.
901 Sq. Ft. 1st
501 Sq. Ft. 2nd
Beds
2Beds
Baths
2Full Baths
Cars
Carport
Dimensions
32' 1"width
53'depth
24'height

What's Included

  • Cover Sheet  - with general information
  • Foundation Plan drawn to 1/4" scale - if the foundation is a basement or crawlspace, a floor framing plan will be included indicating the floor joist or trusses.
  • Foundation Footing - details
  • Fully Dimensioned Floor Plan which indicates all plumbing fixture locations, cabinet locations, beam locations and sizes, door & window schedules, design load charts and general notes. Also included are tables for all dimensional lumber sizes such as ceiling joist, rafters and floor joists.
  • Elevations - which call out exterior finish materials
  • Building Sections, enlarged drawings of the cornice and wall construction at various area of the exterior
  • Interior Elevations that have built-in cabinets or areas with special wall detail such as a fireplace wall.
  • Roof Plan indicating planes of the roof and a birds eye view of the roof configuration. Electrical plan indication location of all wall outlets, lighting and switch locations along with a schedule of electrical symbols.
  • Construction Details - schedules for the interior finish, exterior finish, electrical schedule
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

4,636 sq. ft.

1st Floor

2,703 sq. ft.

2nd Floor

1,933 sq. ft.

Storage

98 sq. ft.

Beds/Baths

Bedrooms

6

Full bathrooms

6

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

96' 4"

Depth

53' 0"

Max Ridge Height

24' 0"

Garage

Type

Carport

Area

892 sq. ft.

Count

6 Cars

Entry Location

Rear

Ceiling Heights

First Floor

8'

Roof Details

Primary Pitch

10 on 12

Framing Type

Stick

Special Features

Loft

Master Suite - 1st Floor

Square Footage Breakdown

Total Heated Area

4,636 sq. ft.

1st Floor

2,703 sq. ft.

2nd Floor

1,933 sq. ft.

Storage

98 sq. ft.

Beds/Baths

Bedrooms

6

Full bathrooms

6

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

96' 4"

Depth

53' 0"

Max Ridge Height

24' 0"

Garage

Type

Carport

Area

892 sq. ft.

Count

6 Cars

Entry Location

Rear

Ceiling Heights

First Floor

8'

Roof Details

Primary Pitch

10 on 12

Framing Type

Stick

Special Features

Loft

Master Suite - 1st Floor
