Plan 28152J

Triplex House Plan with Matching 3-Bedroom 2 Bath Room 1692 Sq Ft Units

Heated S.F.
5,076
Units
3
Width
Depth

Floor Plan

Plan 28152J

Main Level
Main Level
2nd Floor
2nd Floor

Plan 28152J

M-F 9am-5pm EST |

1-203-761-8500

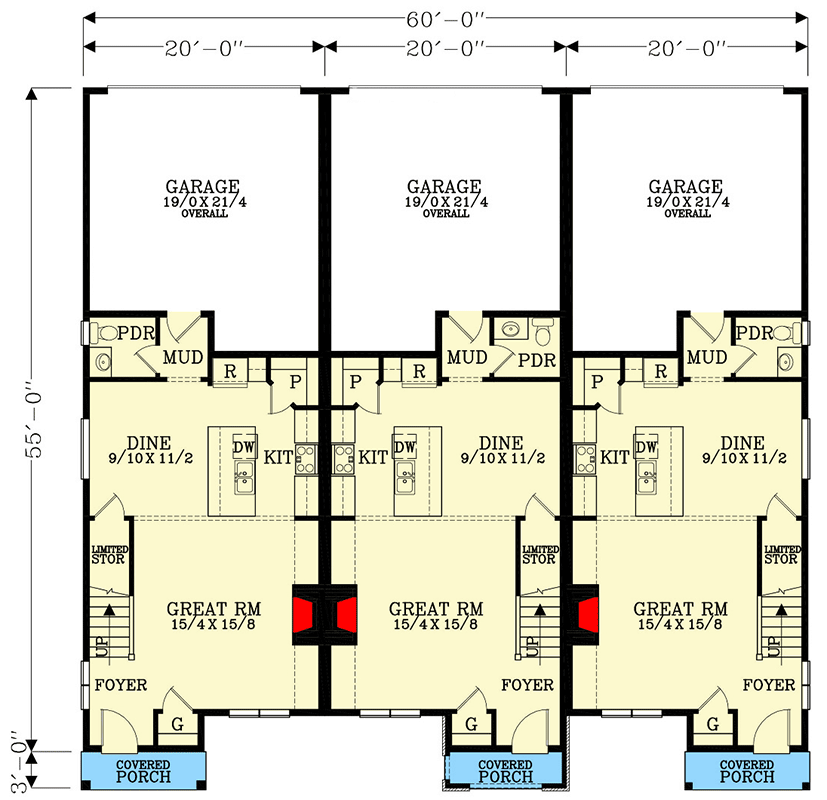

Main Level

Plan 28152J: Triplex House Plan with Matching 3-Bedroom 2 Bath Room 1692 Sq Ft Units - Floor Plan - Main Level - Craftsman, Northwest

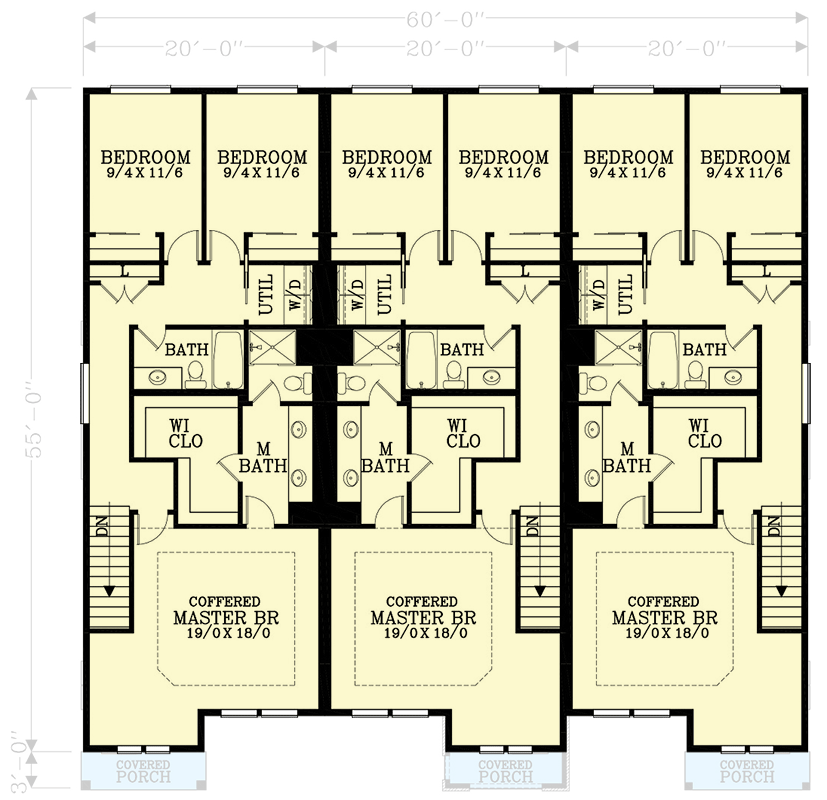

2nd Floor

Plan 28152J: Triplex House Plan with Matching 3-Bedroom 2 Bath Room 1692 Sq Ft Units - Floor Plan - 2nd Floor - Craftsman, Northwest

Plan Details

  • Each unit in this triplex house plan gives you 3 beds, 2.5 baths and 1,692 square feet of heated living (658 sq. ft. on the main floor and 1,034 sq. ft. on the second floor).
  • Bedrooms - and laundry - are all located on the second floor.
  • Architectural Designs' primary focus is to make the process of finding and buying house plans more convenient for those interested in constructing new homes - single family and multi-family ones - as well as garages, pool houses and even sheds and backyard offices.
  • Our website offers a vast collection of home designs, encompassing various architectural styles, sizes, and features, which can be customized to meet specific needs and preferences.
  • We curate and add to our design portfolio every day as we work with hundreds of residential building designers and architects to bring you the most diverse and best house plans available.
  • We can modify any house plan you see on our site. Learn more about modifications.
Unit 1
Heated Area
1,692Sq. Ft.
658 Sq. Ft. 1st
1034 Sq. Ft. 2nd
Beds
3Beds
Baths
2Full Baths
1Half Bath
Cars
Attached
407 Sq. Ft.
Dimensions
20'width
55'depth
29'height
Unfinished Areas
407 Sq. Ft. Garage
30 Sq. Ft. Porch, Front
Unit 2
Heated Area
1,692Sq. Ft.
658 Sq. Ft. 1st
1034 Sq. Ft. 2nd
Beds
3Beds
Baths
2Full Baths
1Half Bath
Cars
Attached
407 Sq. Ft.
Dimensions
20'width
55'depth
29'height
Unfinished Areas
407 Sq. Ft. Garage
30 Sq. Ft. Porch, Front
Unit 3
Heated Area
1,692Sq. Ft.
658 Sq. Ft. 1st
1034 Sq. Ft. 2nd
Beds
3Beds
Baths
2Full Baths
1Half Bath
Cars
Attached
407 Sq. Ft.
Dimensions
20'width
55'depth
29'height
Unfinished Areas
407 Sq. Ft. Garage
30 Sq. Ft. Porch, Front

What's Included

  • Foundation plan with details
  • Detailed floor plan (includes window sizes, ceiling joist directions, plumbing fixture locations, etc.)

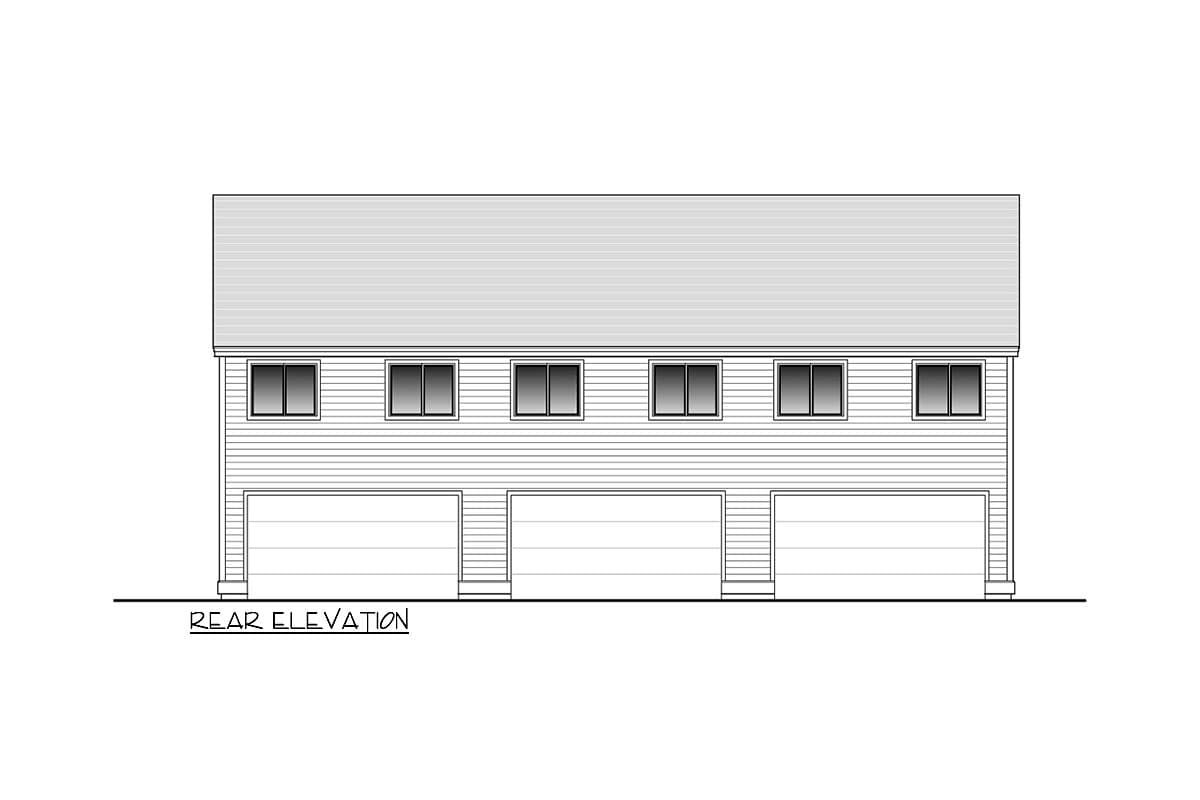

  • Four exterior views (front, rear, right, left)
  • Roof plan (birds eye view of roof)
  • Building section
  • Wall section

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

5,076 sq. ft.

1st Floor

1,974 sq. ft.

2nd Floor

3,102 sq. ft.

Porch, Front

30 sq. ft.

Beds/Baths

Bedrooms

9

Full bathrooms

6

Half bathrooms

3

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

60' 0"

Depth

55' 0"

Max Ridge Height

29' 9"

Garage

Type

Attached

Area

407 sq. ft.

Count

2 Cars

Entry Location

Rear

Ceiling Heights

First Floor

9'

Second Floor

8'

Room

Ceiling Type

Height

Master Bedroom

Coffered

7' 4''

Roof Details

Primary Pitch

12 on 10

Secondary Pitch

12 on 5

Framing Type

Truss

Architectural Style

Craftsman

Northwest

Special Features

Breakfast Nook

Laundry - Upstairs

Master Suite - Upstairs

Mudroom

Square Footage Breakdown

Total Heated Area

5,076 sq. ft.

1st Floor

1,974 sq. ft.

2nd Floor

3,102 sq. ft.

Porch, Front

30 sq. ft.

Beds/Baths

Bedrooms

9

Full bathrooms

6

Half bathrooms

3

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

60' 0"

Depth

55' 0"

Max Ridge Height

29' 9"

Garage

Type

Attached

Area

407 sq. ft.

Count

2 Cars

Entry Location

Rear

Ceiling Heights

First Floor

9'

Second Floor

8'

Room

Ceiling Type

Height

Master Bedroom

Coffered

7' 4''

Roof Details

Primary Pitch

12 on 10

Secondary Pitch

12 on 5

Framing Type

Truss

Architectural Style

Craftsman

Northwest

Special Features

Breakfast Nook

Laundry - Upstairs

Master Suite - Upstairs

Mudroom
