Tudor Detailing

Plan 61258UT

  • 2,730

    Heated s.f.

  • 4-6

    Beds

  • 4 - 5

    Baths

  • 2

    Stories

  • 4

    Cars

  • Designed for a sloping lot, this Traditional home has Tudor detailing and a great, big RV garage.
  • The main living space is in the rear of the home with views that flow from room to room.
  • Work from home in the large home office and enjoy the huge walk-in pantry that is almost 14' deep.
  • Four bedrooms occupy the second floor that has a handy laundry closet.
  • Bonus space over the garage can be finished at your leisure.
  • Even more space can be had on the unfinished lower level with room for two more bedrooms and a big family room.

Each plan set includes the following:


  • General notes
  • Foundation plan
  • Detailed floor plans
  • Floor framing
  • Roof framing
  • Elevations: front, left, rear, right
  • Cross sections
  • Electrical plans
  • General details
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Optional Lower Level

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

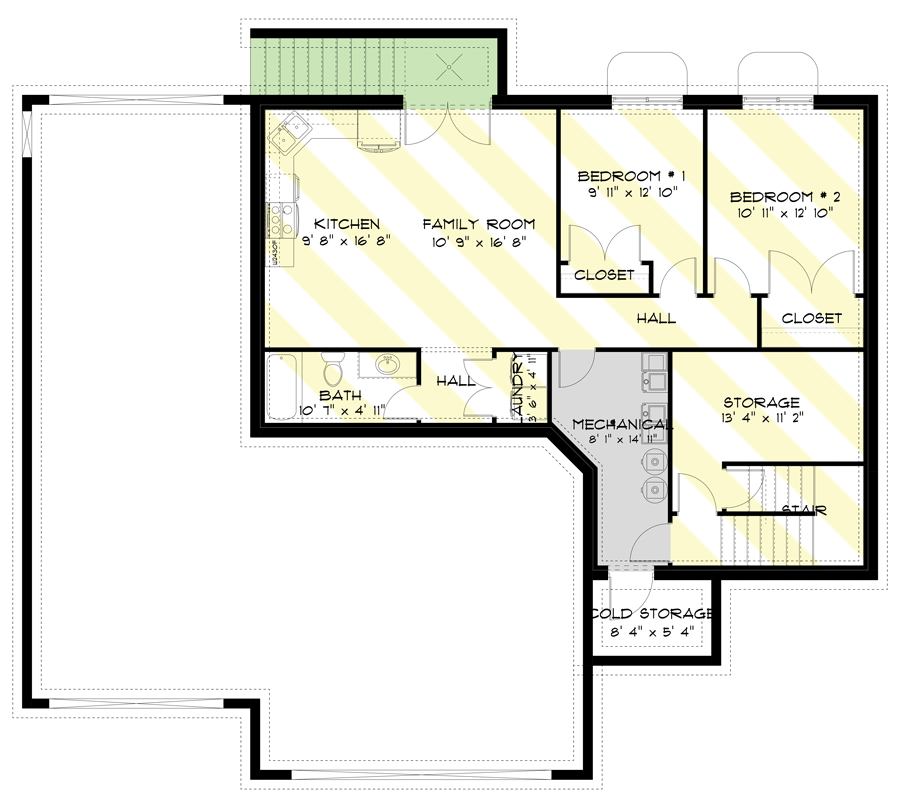

Tudor Detailing - 61258UT floor plan - Optional Lower Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

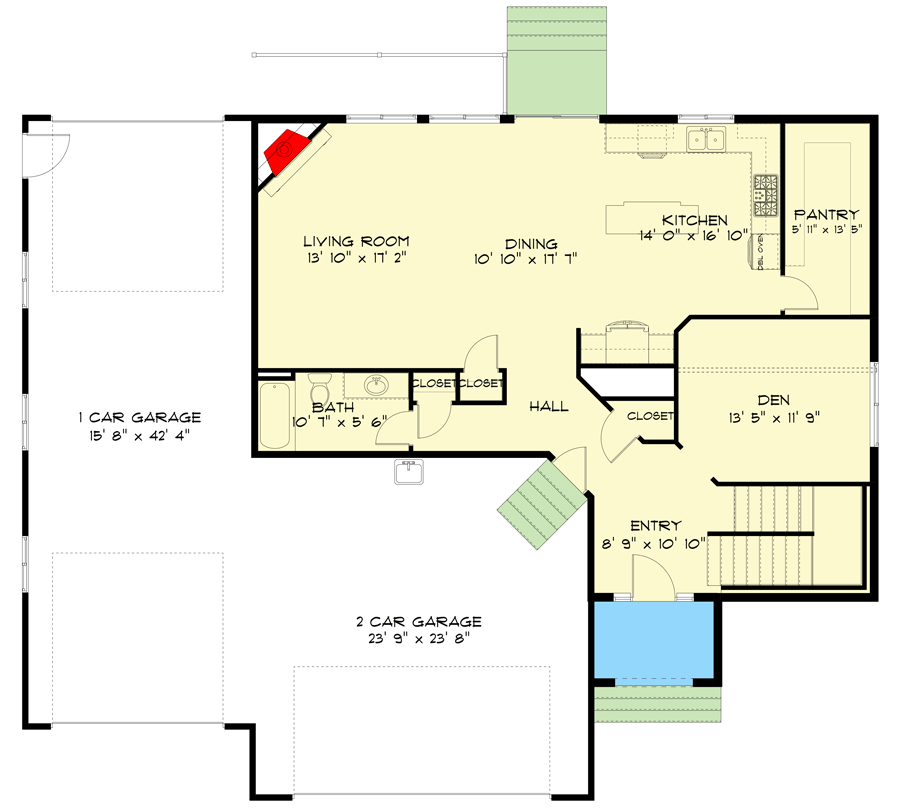

Tudor Detailing - 61258UT floor plan - Main Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

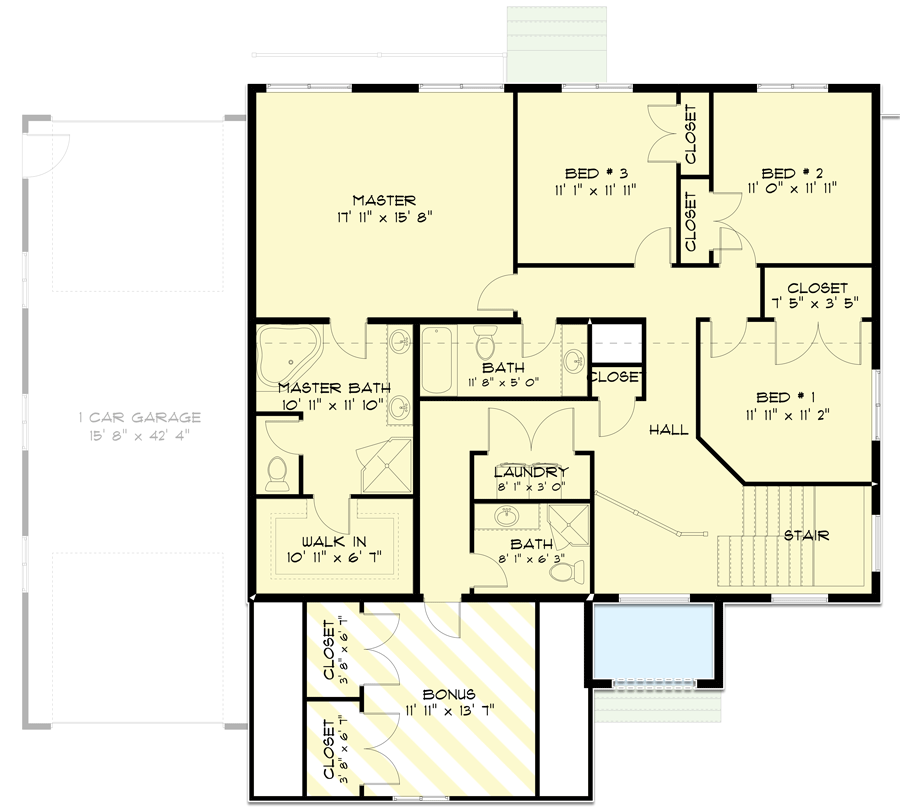

Tudor Detailing - 61258UT floor plan - 2nd Floor

Plan details

Tudor Detailing

  • 2,730

    Heated s.f.

  • 4 - 6

    Beds

  • 4 +

    Baths

  • 2

    Floors

  • 4

    Car garage

Buy This Plan
  • 5 Sets $1,075
  • PDF - Unlimited Build $1,150
  • 5 Sets + PDF $1,350
  • CAD - Unlimited Build $1,995
  • View all purchase option online

About This Plan

  • Designed for a sloping lot, this Traditional home has Tudor detailing and a great, big RV garage.
  • The main living space is in the rear of the home with views that flow from room to room.
  • Work from home in the large home office and enjoy the huge walk-in pantry that is almost 14' deep.
  • Four bedrooms occupy the second floor that has a handy laundry closet.
  • Bonus space over the garage can be finished at your leisure.
  • Even more space can be had on the unfinished lower level with room for two more bedrooms and a big family room.

Floor Plans

  • Optional Lower Level

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,730 sq. ft.
  • 1st Floor: 1,272 sq. ft.
  • 2nd Floor: 1,458 sq. ft.
  • Bonus: 230 sq. ft.
  • Optional Lower Level: 1,263 sq. ft.

Beds/Baths

  • Bedrooms: 4, 5, & 6
  • Full bathrooms: 4 or 5

Foundation Type

    • Standard Foundations: Basement
    • Optional Foundations: Walkout, Slab, Crawl

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 60' 0"
  • Depth: 48' 0"
  • Max ridge height: 36' 7"

Garage

  • Type: Attached
  • Area: 1224 sq. ft.
  • Count: 4 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 8 on 12
  • Framing Type: Truss
