Plan 85056MS
EXCLUSIVE
Tudor Triplex House Plan with Full-Floor Units - 2 Beds Each
Heated S.F.
5,051
Units
3
Width
42'
Depth
64' 10"
Cars
3
What's Included
Plan Details
  • This gorgeous triplex home plan has marvelous Tudor detailing.
  • The lower level unit has 1,561 sq. ft. of living, the main floor unit has 1,305 sq. ft. of living, and the upper unit has 2,185 sq. ft. of living.
  • Related Plan: Get a multi-family Tudor style duplex house plan with 85053MS.
Unit A
1,305 Sq. Ft.
1305 Sq. Ft. 1st Floor
2 Beds
2 Full Baths
1 Vehicle
Attached
42' w 64' 10" d 1' h
Unit B
2,185 Sq. Ft.
2185 Sq. Ft. 2nd Floor
2 Beds
2 Full Baths
1 Vehicle
Attached
42' w 64' 10" d 1' h
Unit C
1,561 Sq. Ft.
1561 Sq. Ft. Lower Level
2 Beds
2 Full Baths
1 Vehicle
Attached
42' w 64' 10" d 1' h
What's Included

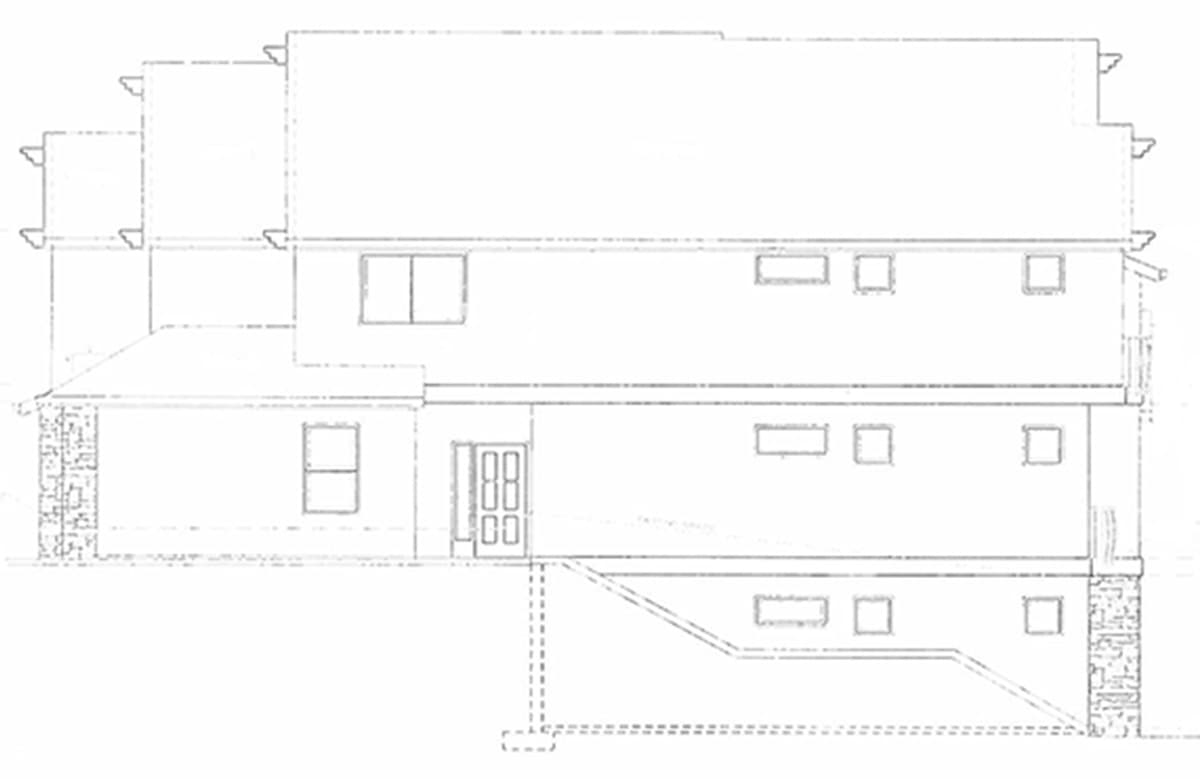

  • Elevations: Front, Right, Rear, Left
  • Fully Dimensioned Floor Plans (window and door sizes called out at openings)
  • Foundation Plan with notes
  • Roof Framing Plan with notes
  • Section Views
  • Electrical Layout
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Tudor Triplex House Plan with Full-Floor Units - 2 Beds Each

  • 5,051

    Heated s.f.

  • 3

    Units

  • 42'

    Width

  • 64' 10"

    Depth

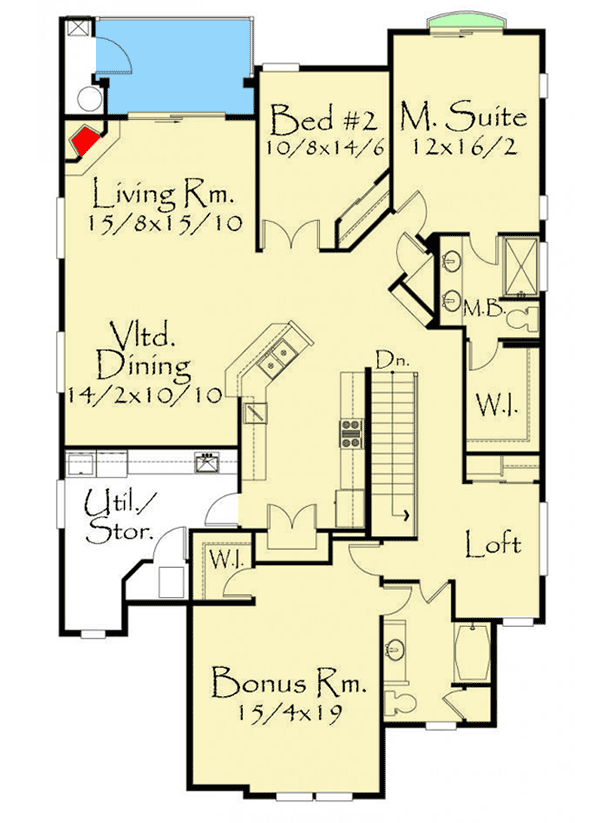

Floor Plan

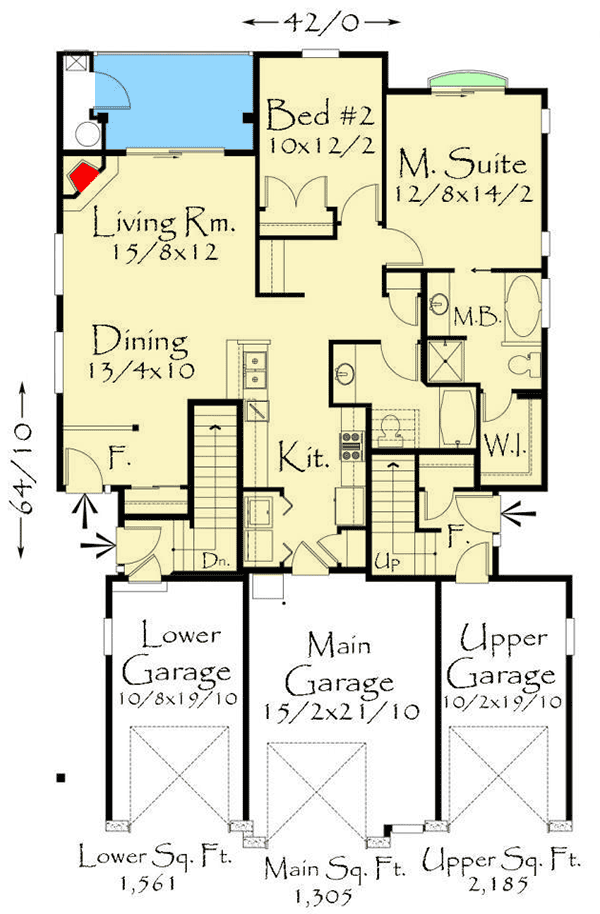

  • Main Level

  • Second Level

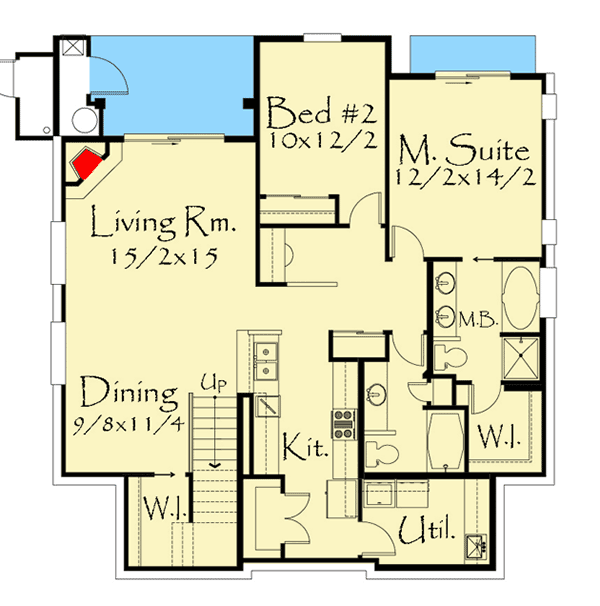

  • Lower Level
