Plan 36213TX Turreted Stair Greets Guests

7,826 5 5.5 2 3
Print
Compare
...

Turreted Stair Greets Guests

Plan 36213TX

  • 7,826

    Heated s.f.

  • 5

    Beds

  • 5.5

    Baths

  • 2

    Stories

  • 3

    Cars

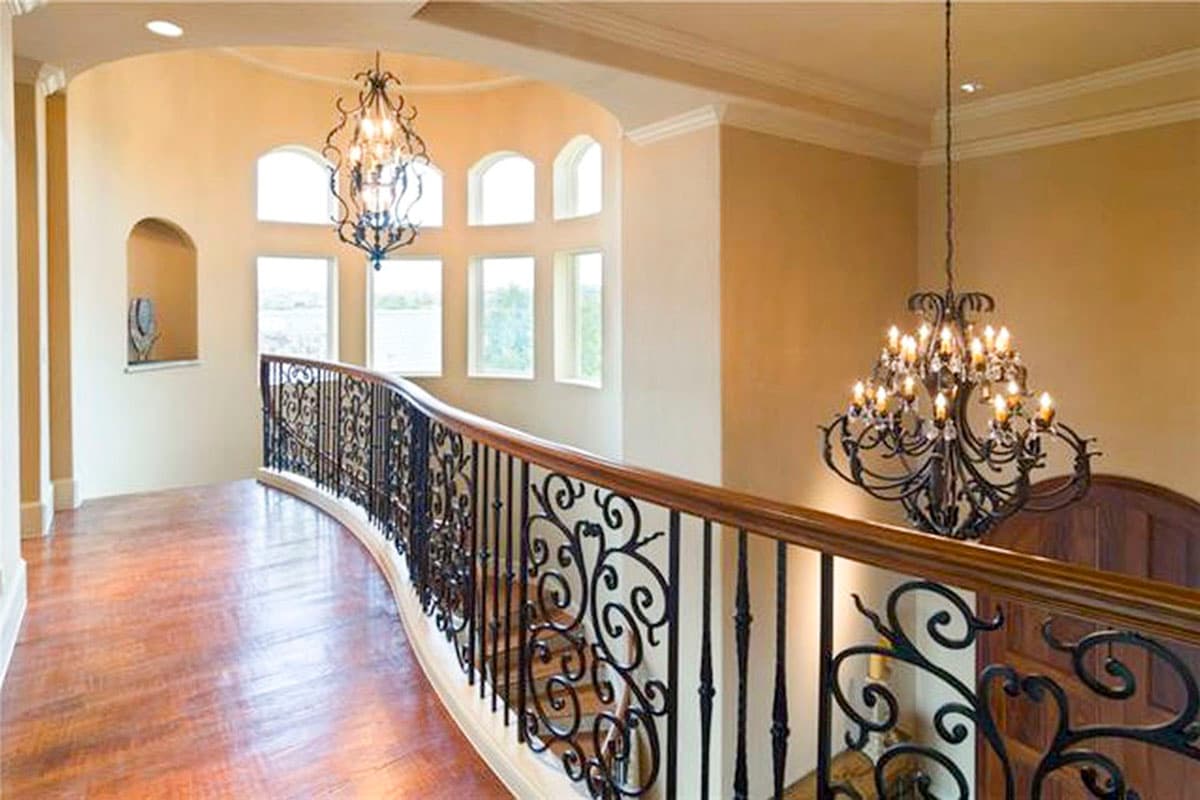

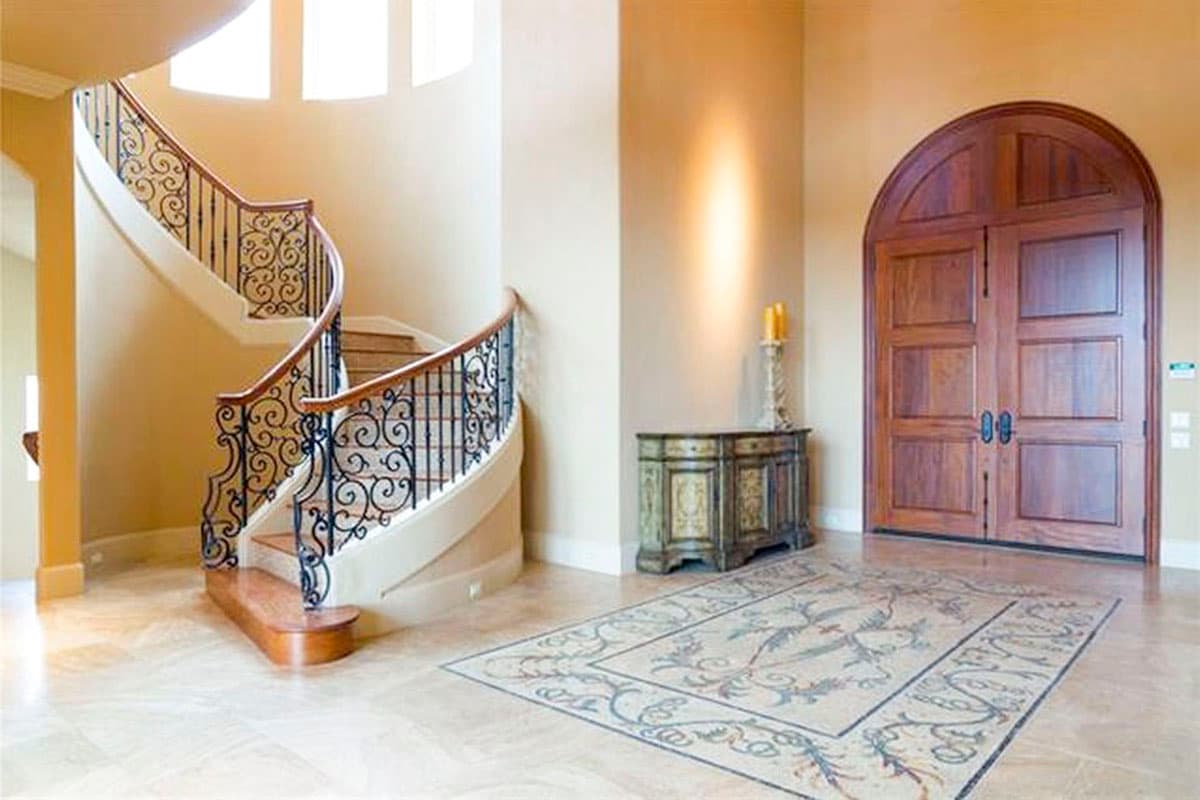

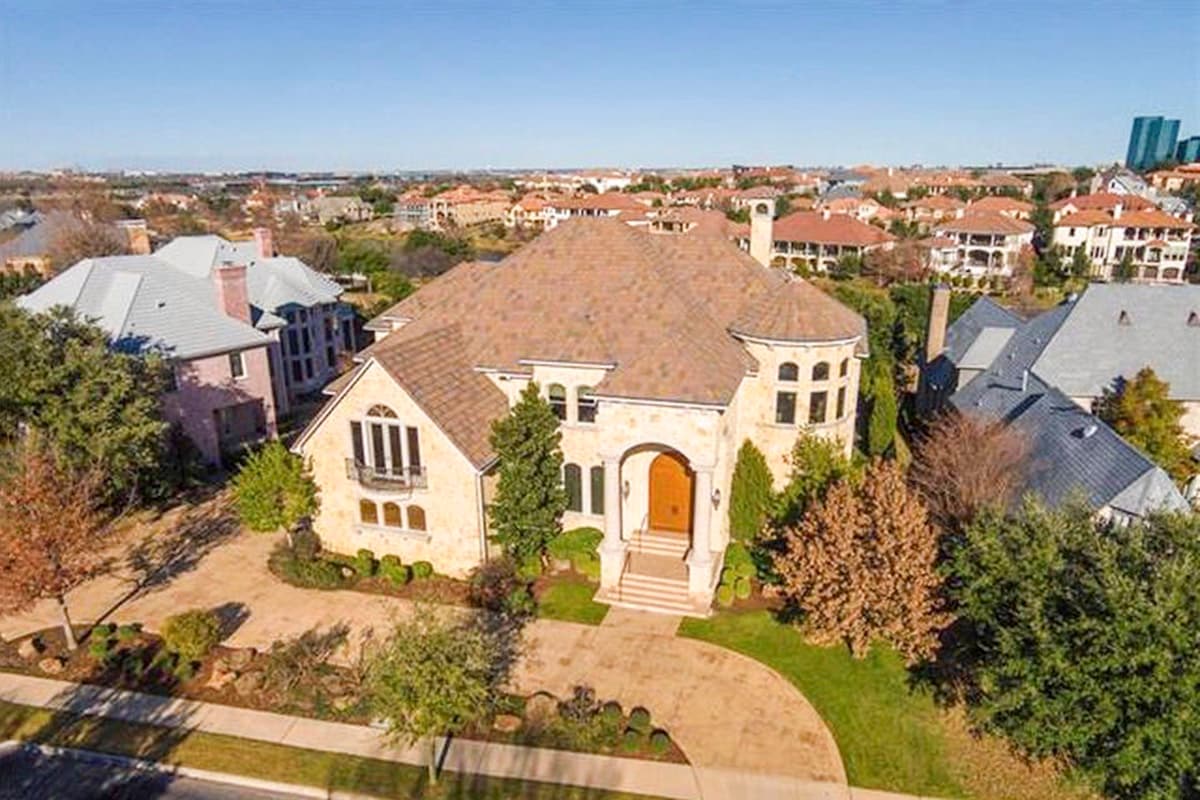

  • This luxury house plan greets guests with the turreted stair in the foyer with 22' ceilings.

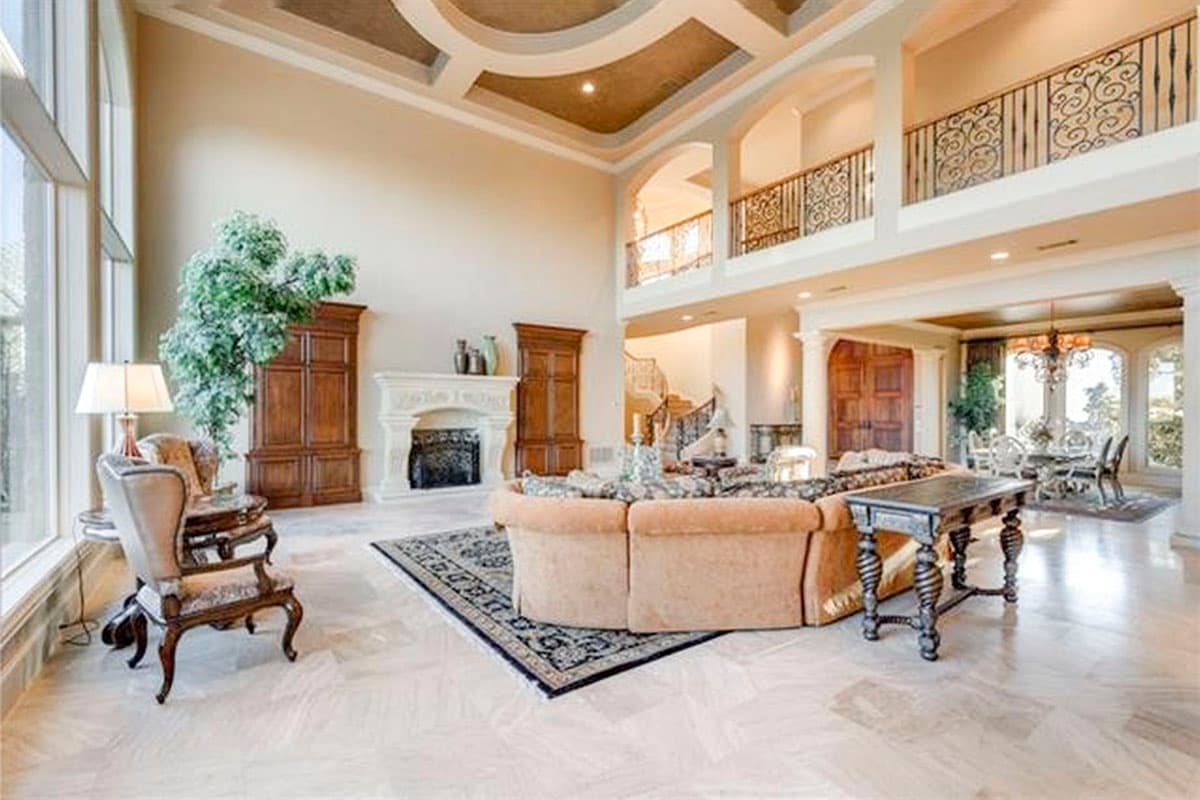

  • The family room also has an elaborate 22' ceiling and is the centerpiece of this home.

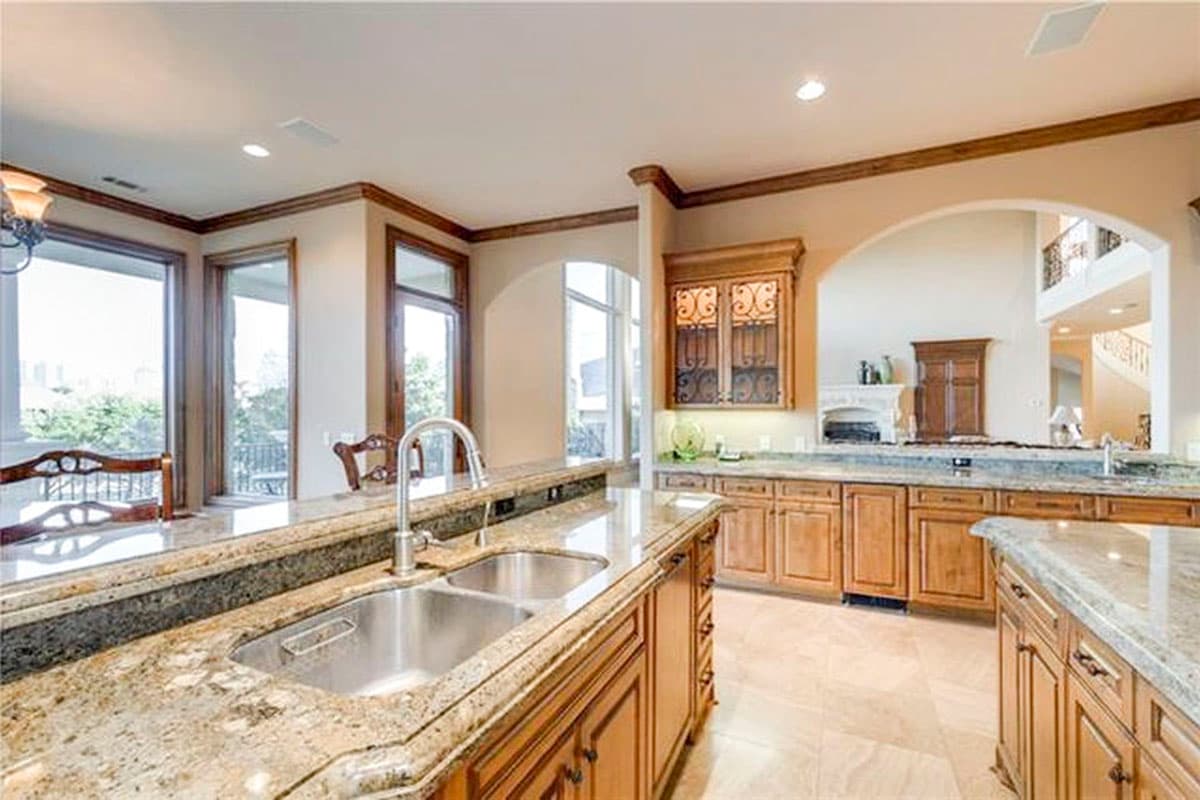

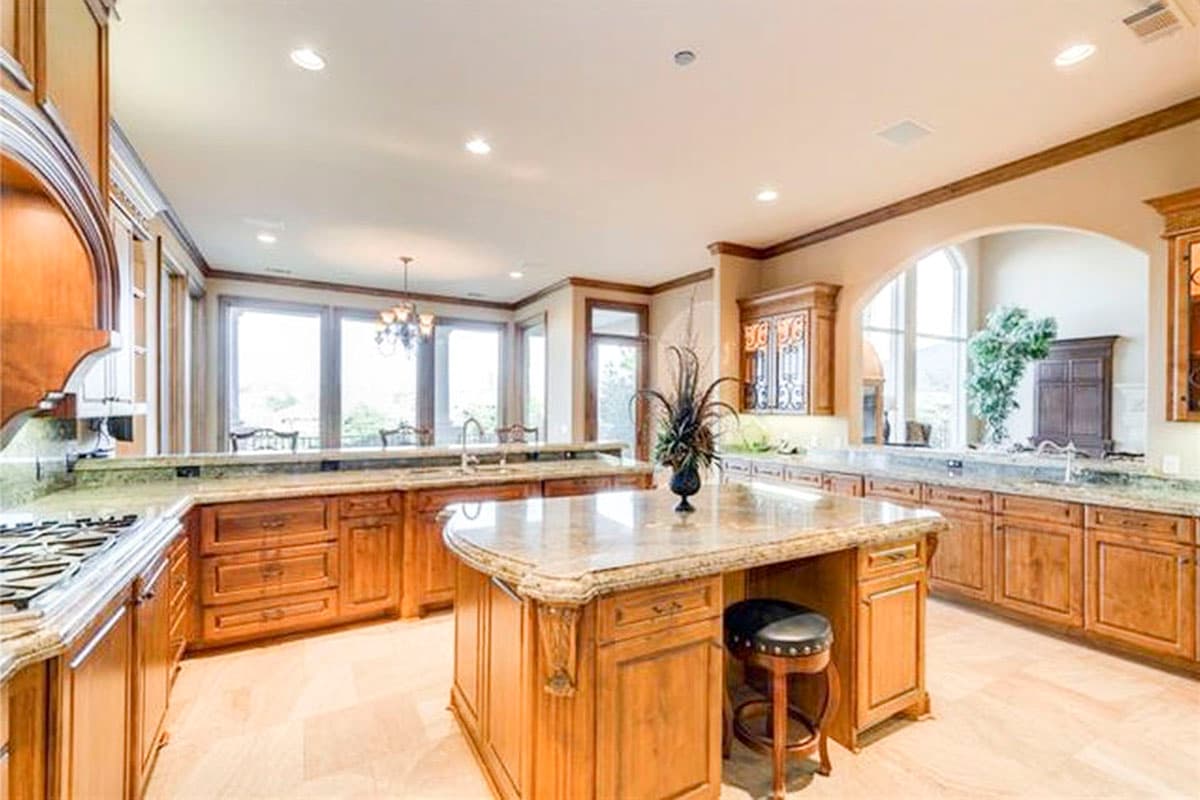

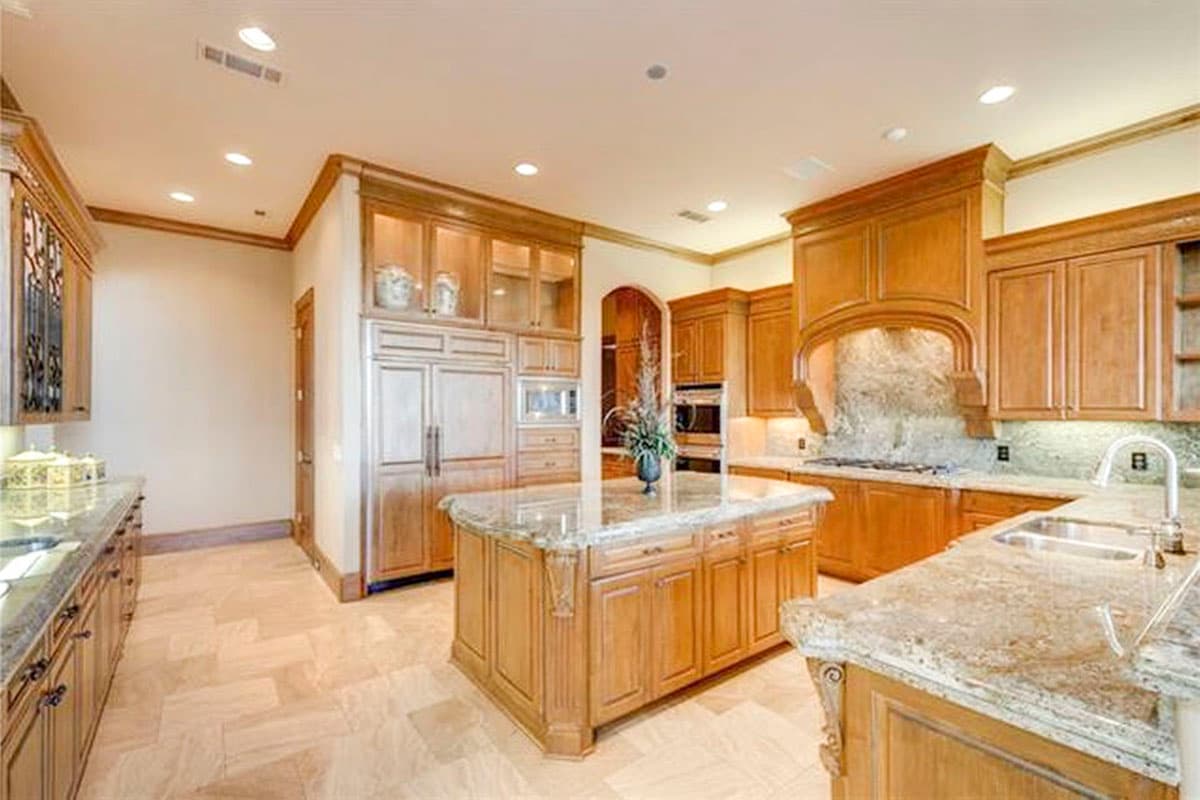

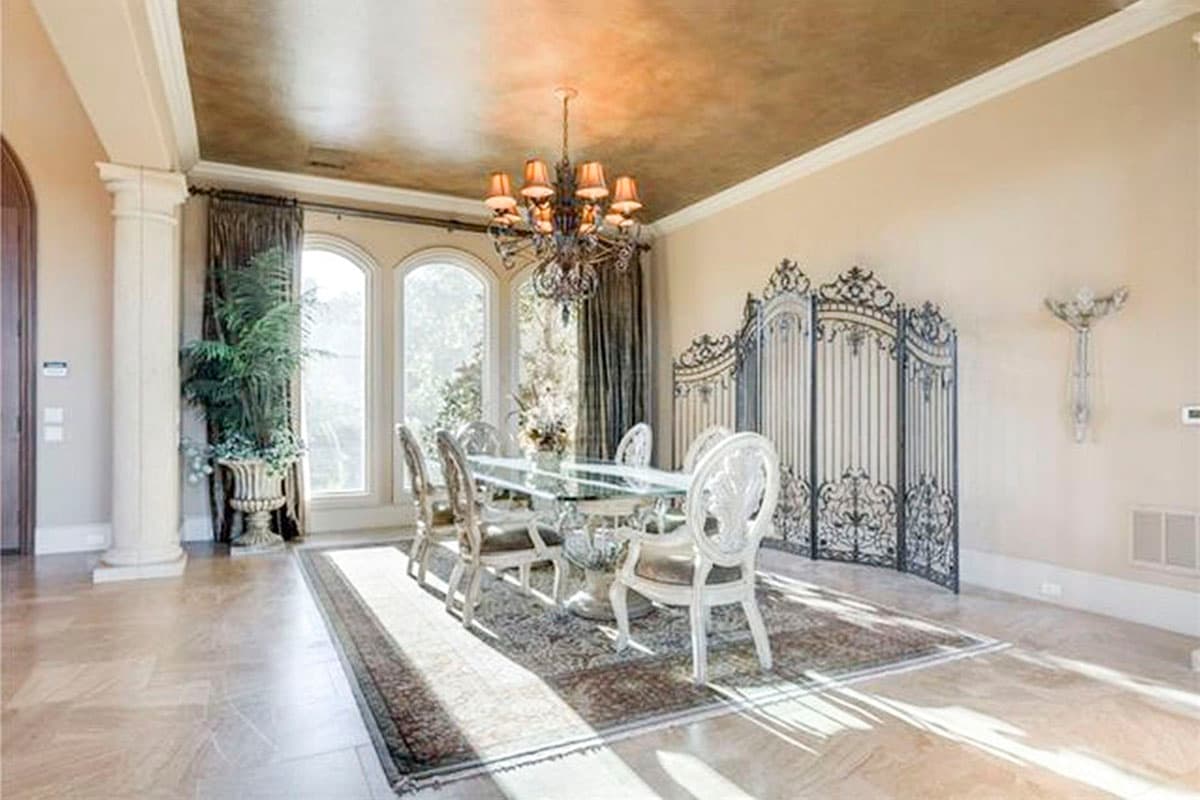

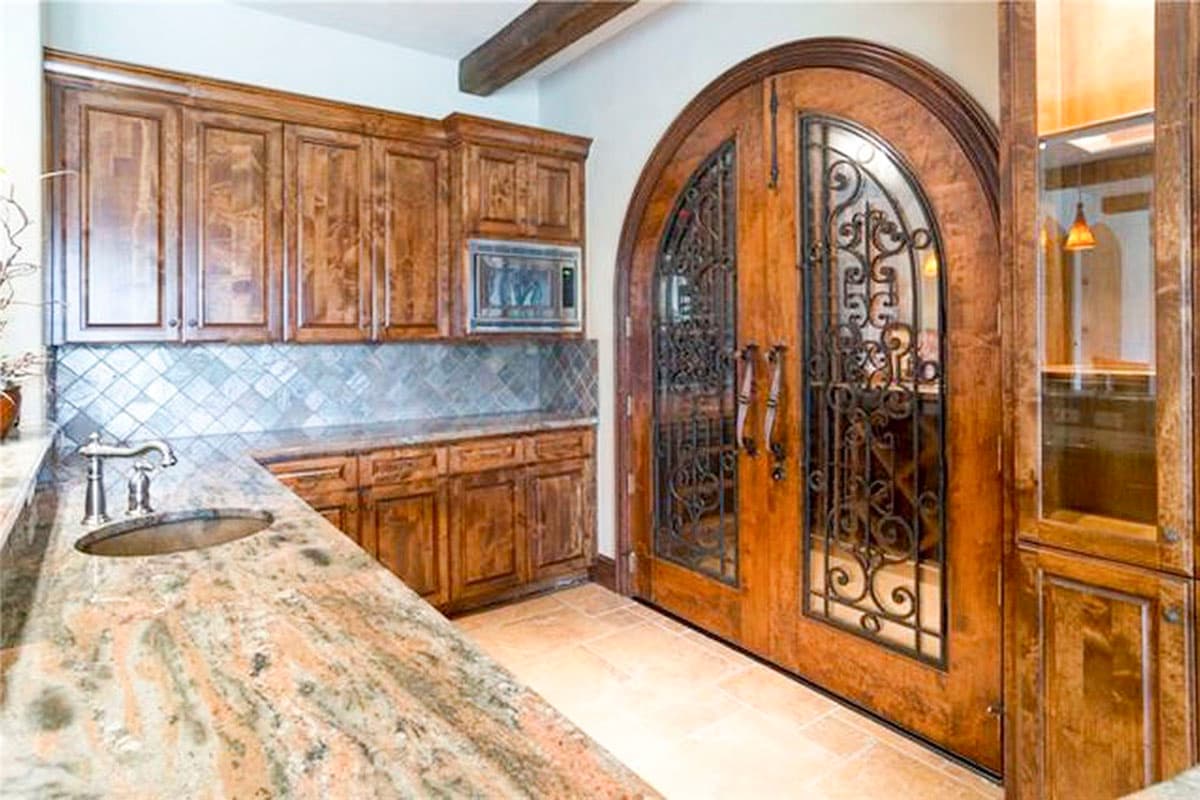

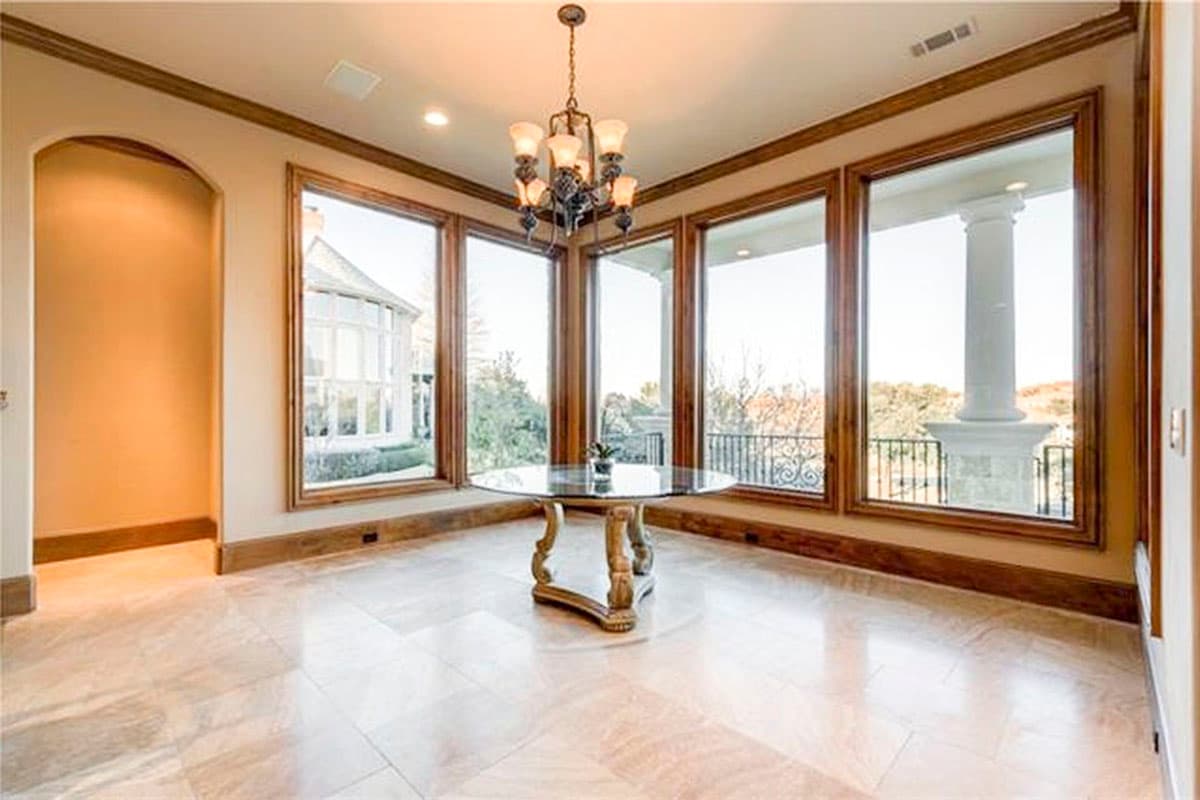

  • The Kitchen has a pass through area and views of the family room. And there is seating at the counter by the breakfast room. A large pantry and butlery servicing the formal dining room are nice touches.

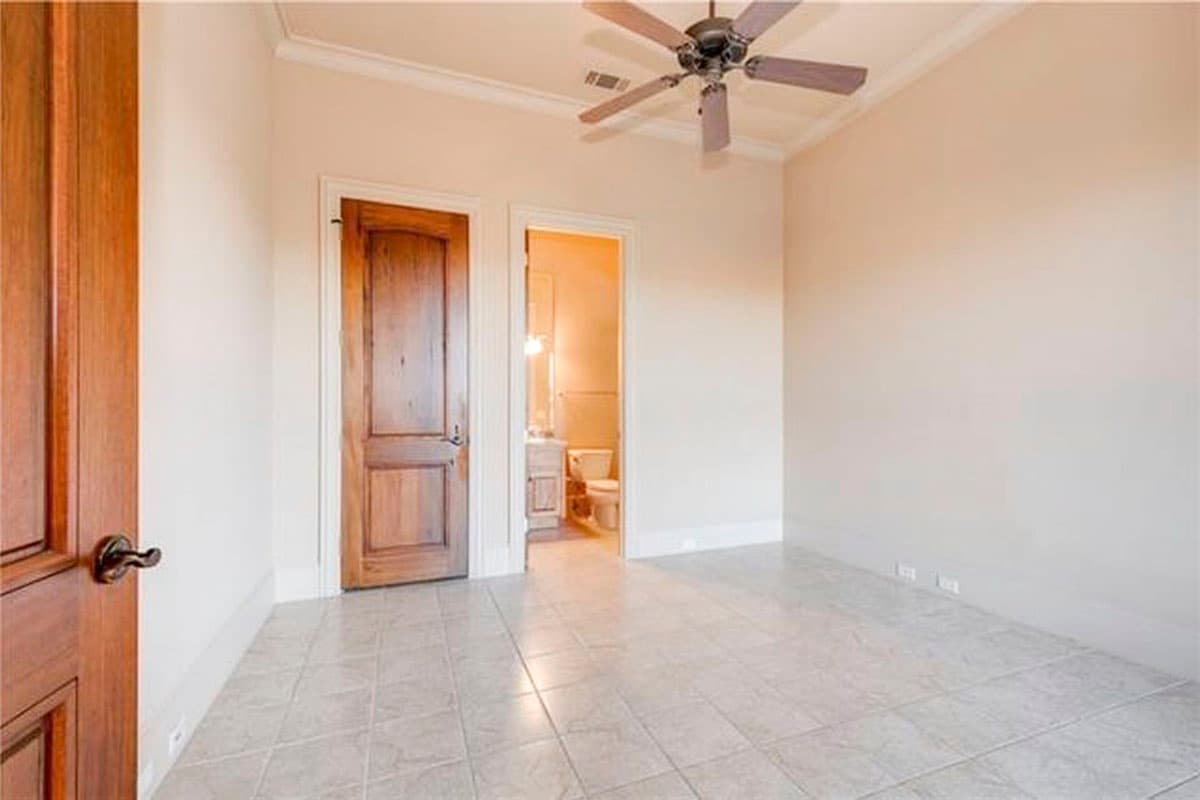

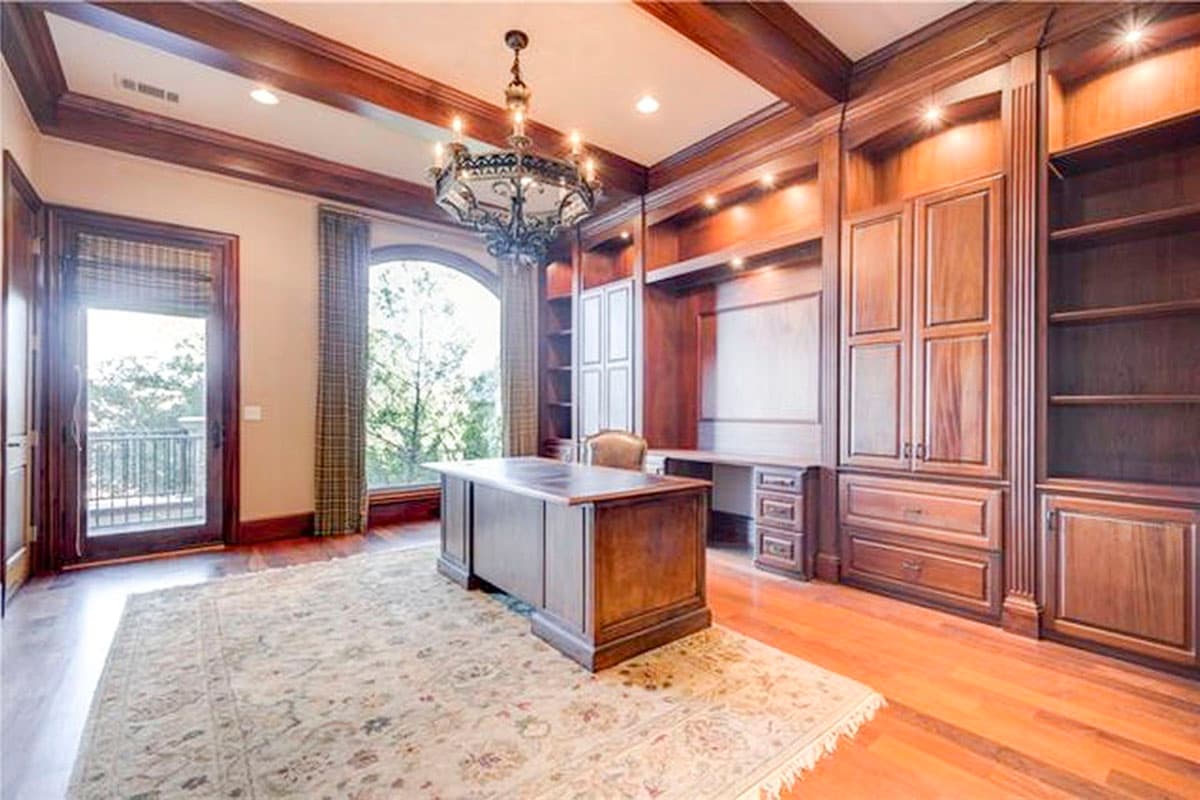

  • A study off to the side makes a great home office. And guests can stay in privacy in bedroom #5.

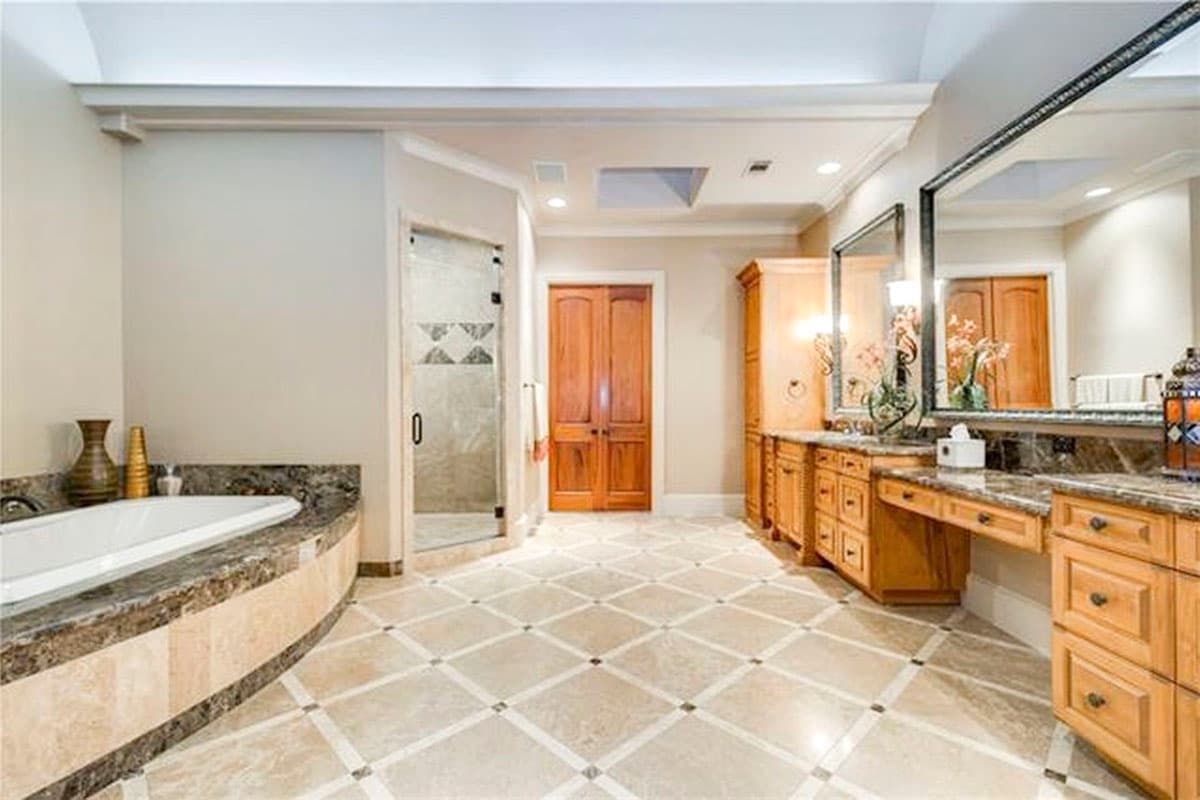

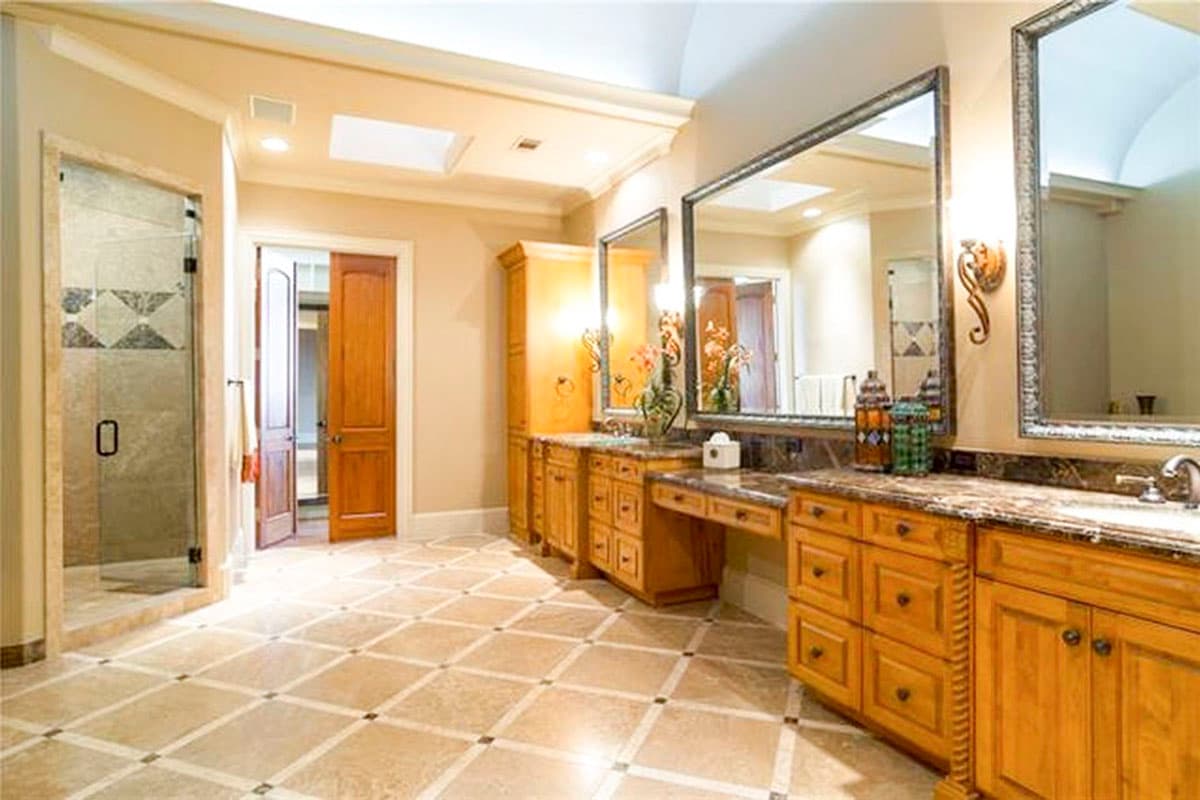

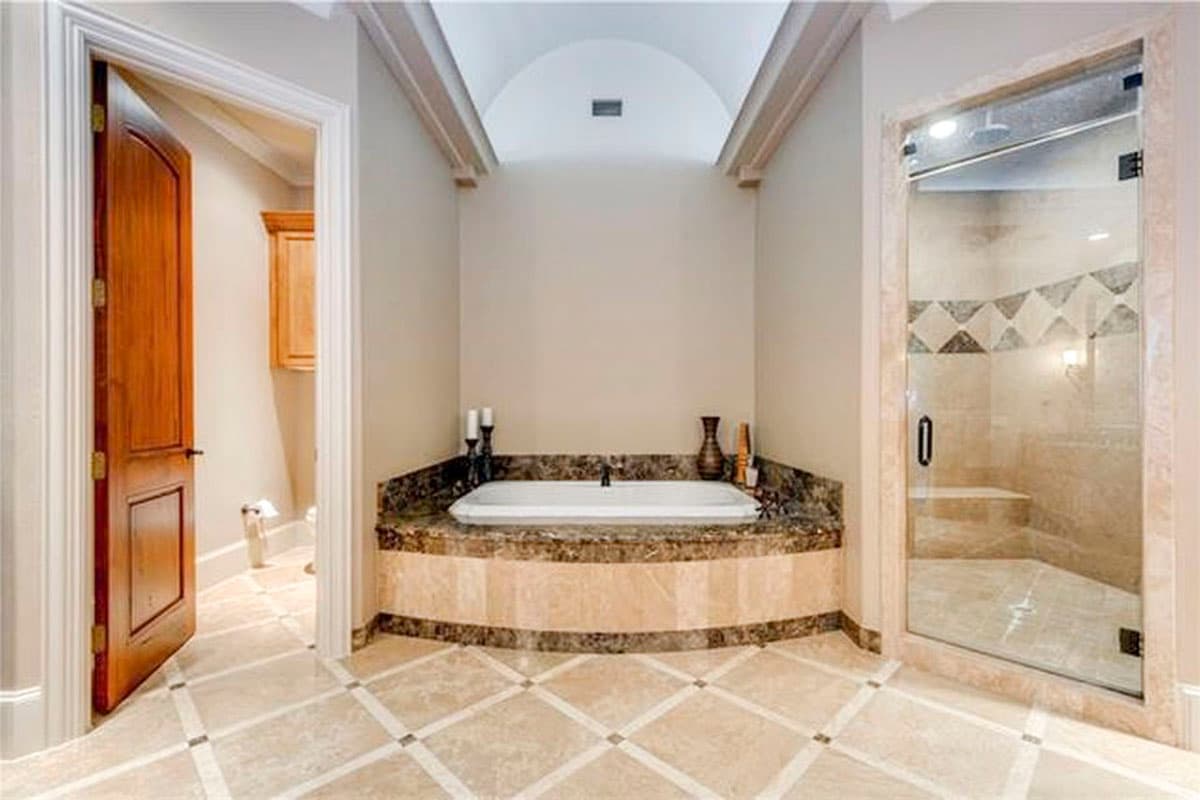

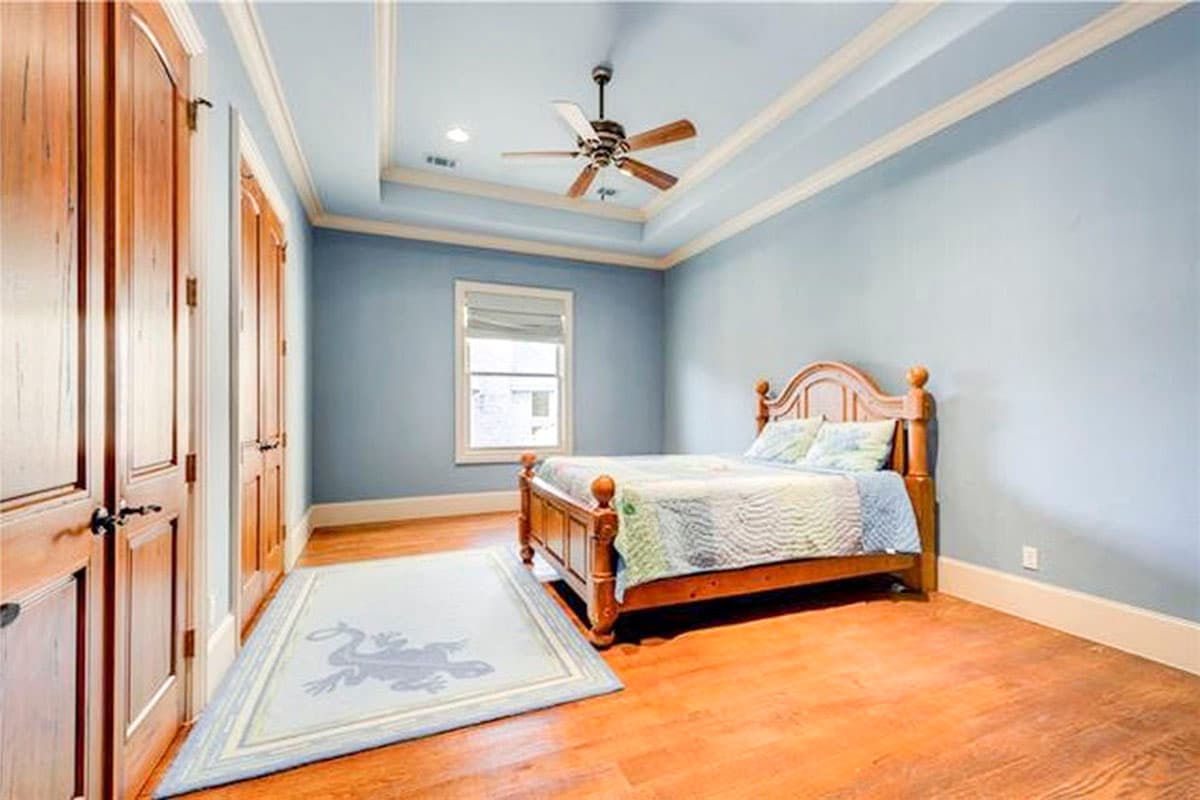

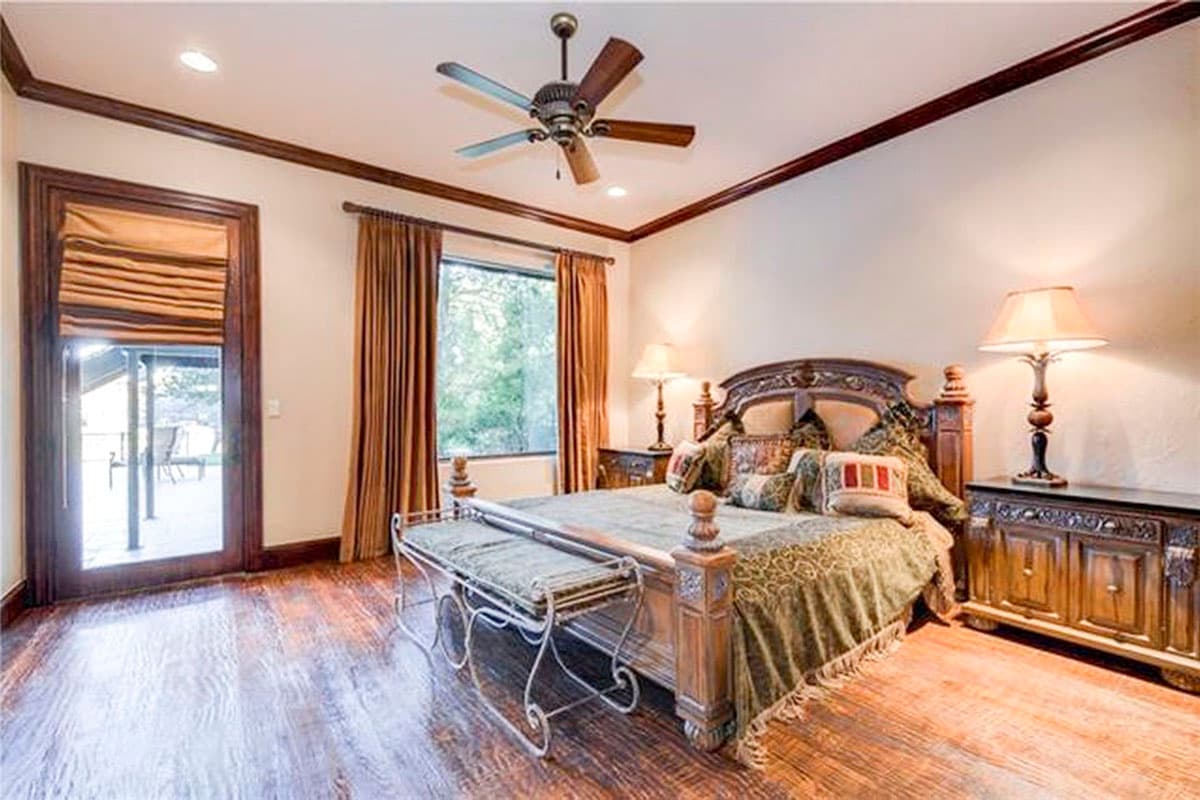

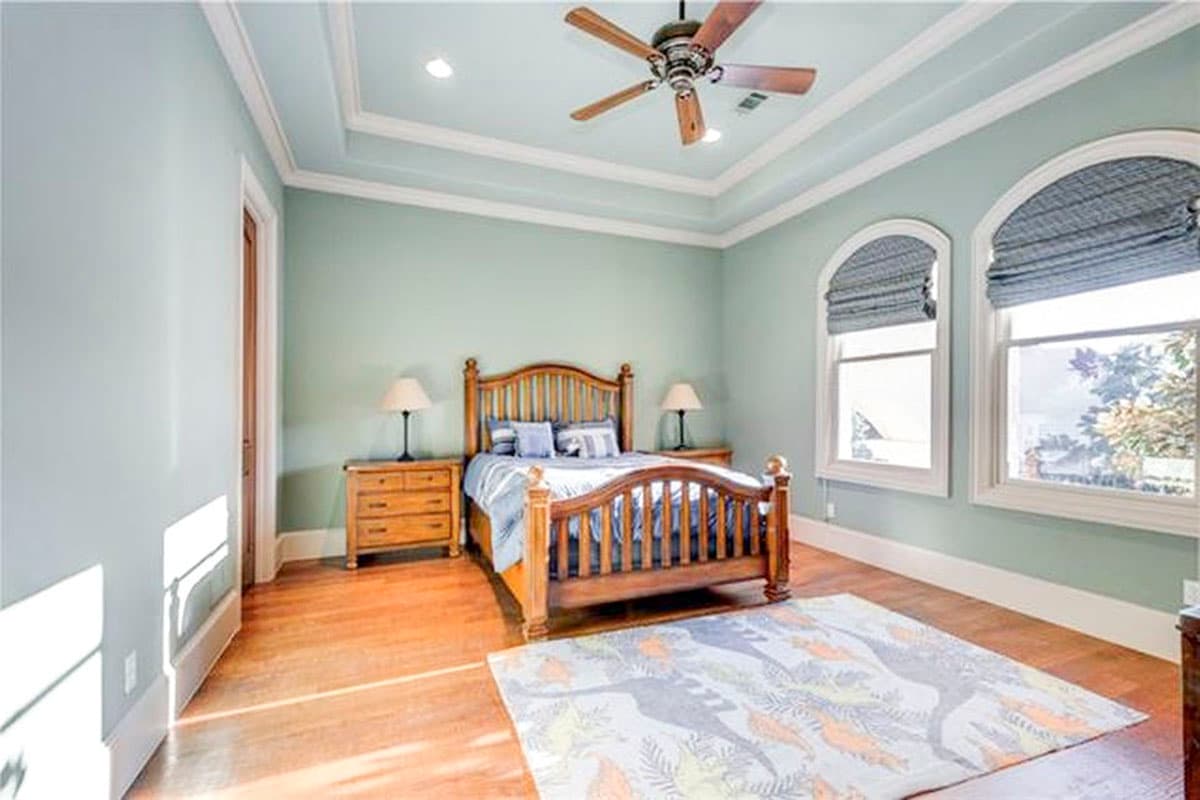

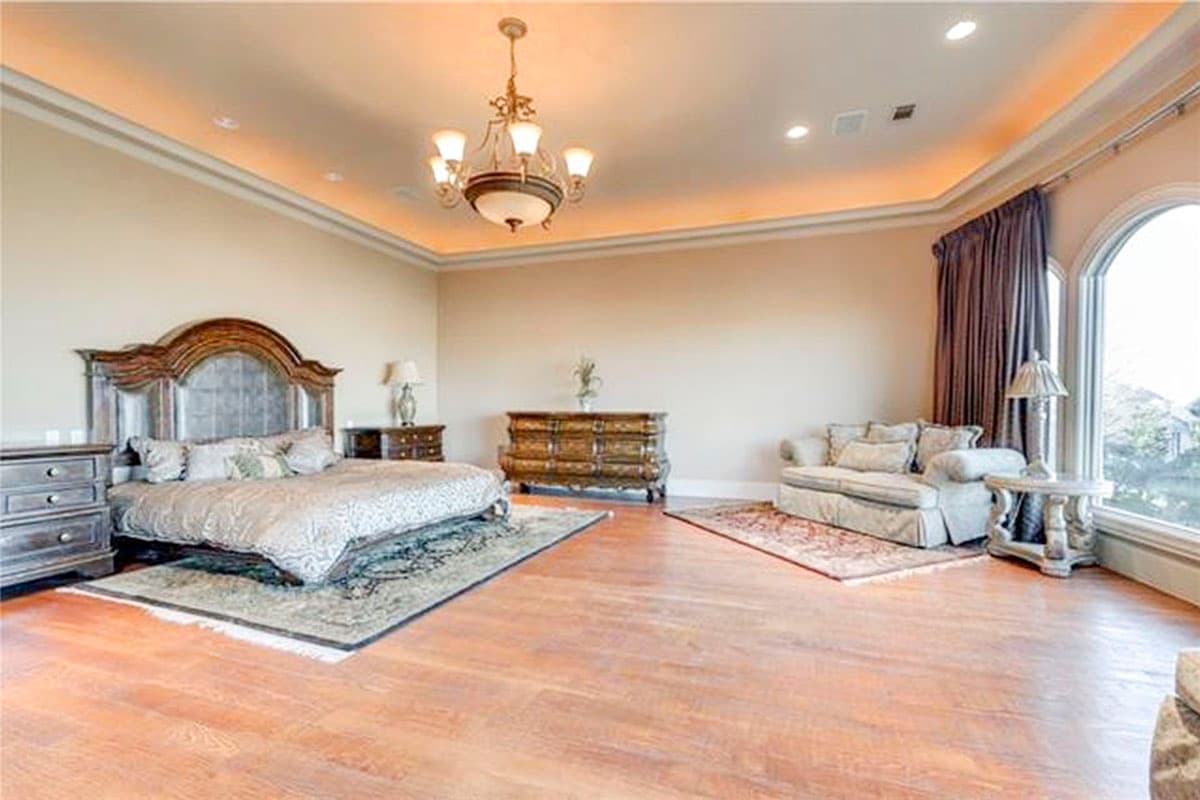

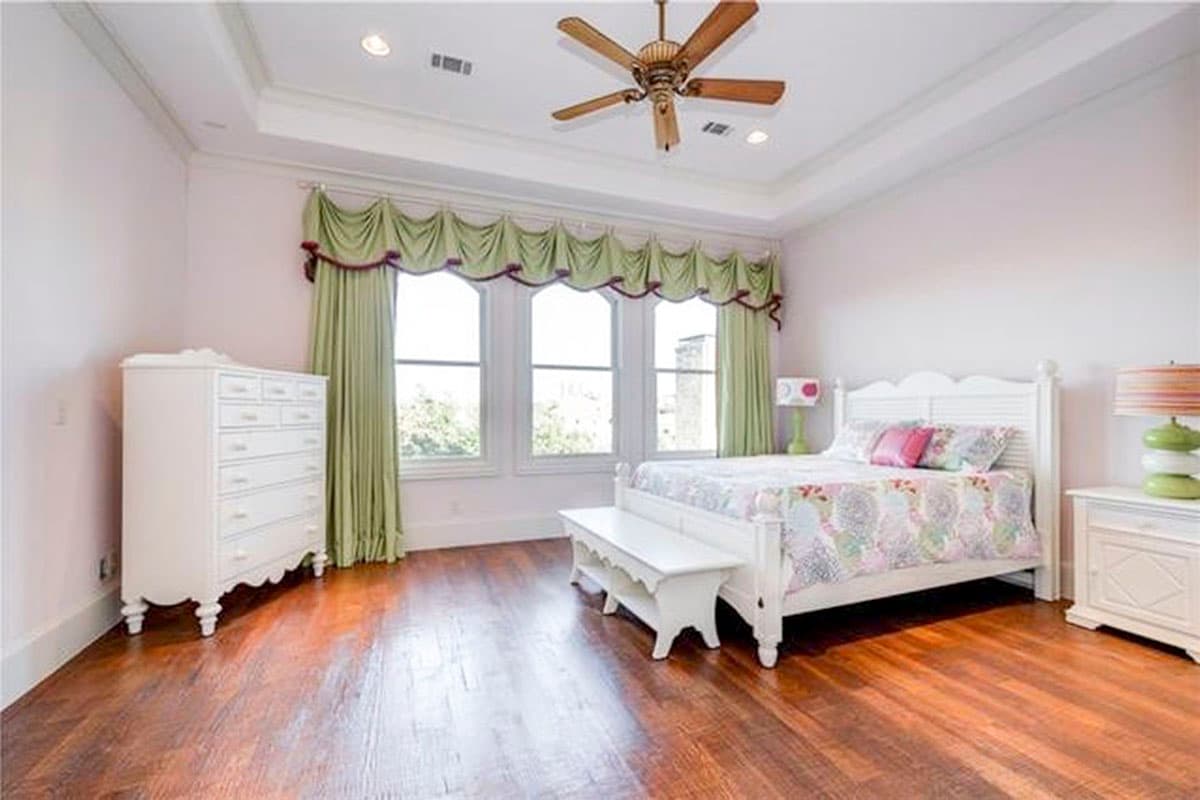

  • The master suite has a Juliet balcony and elaborate ceilings. Look at the massive wardrobe with built-ins. Two bedrooms have their own baths and bonus space can be put to many uses.

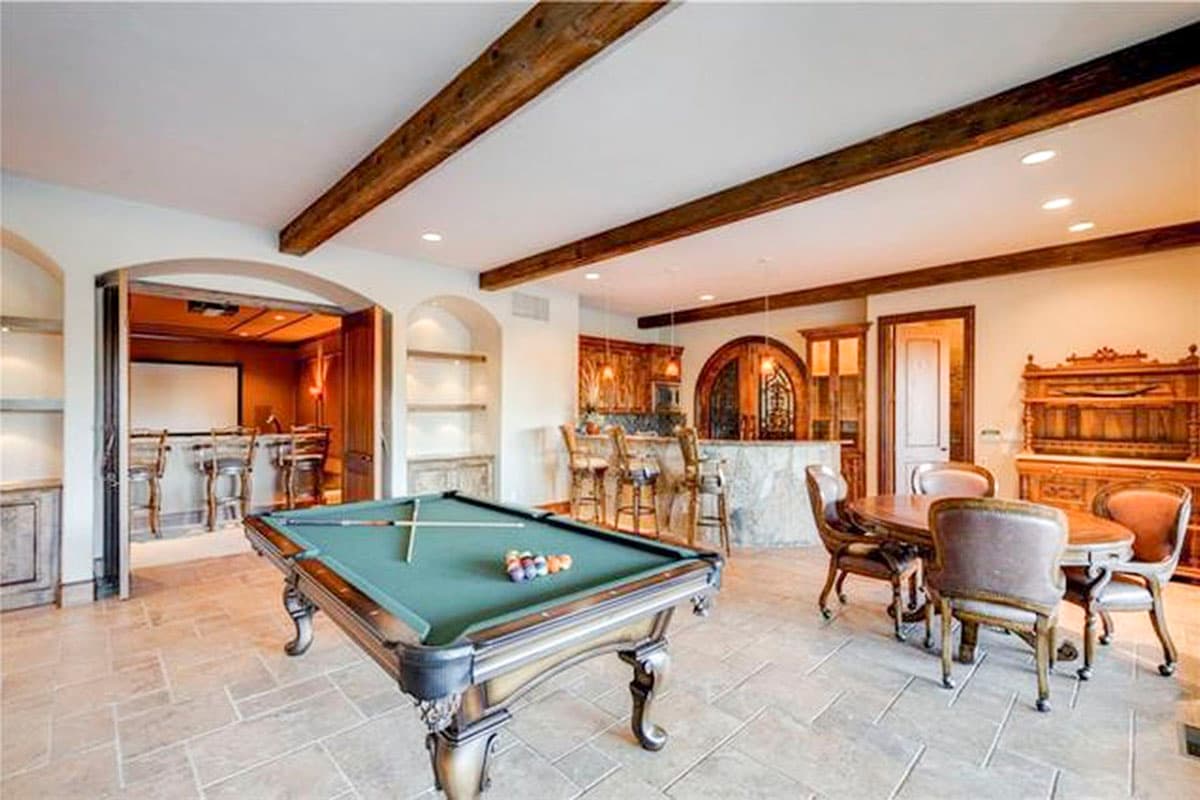

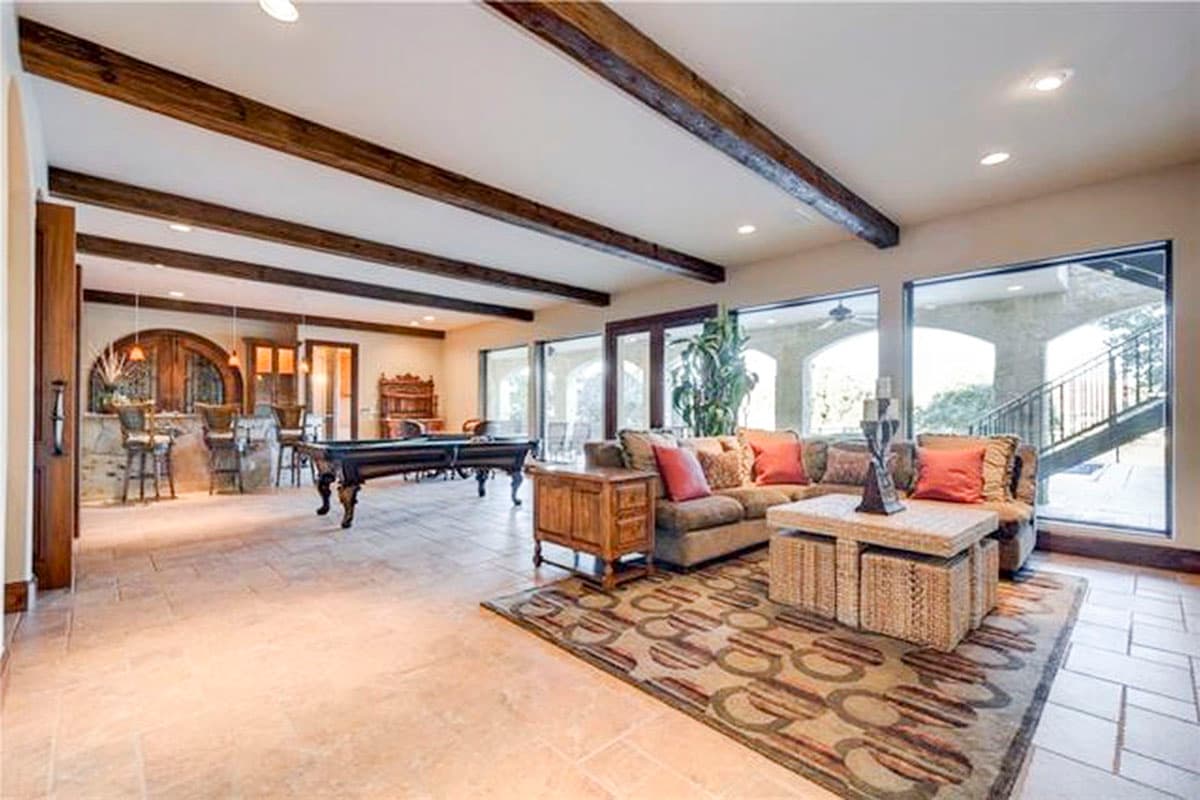

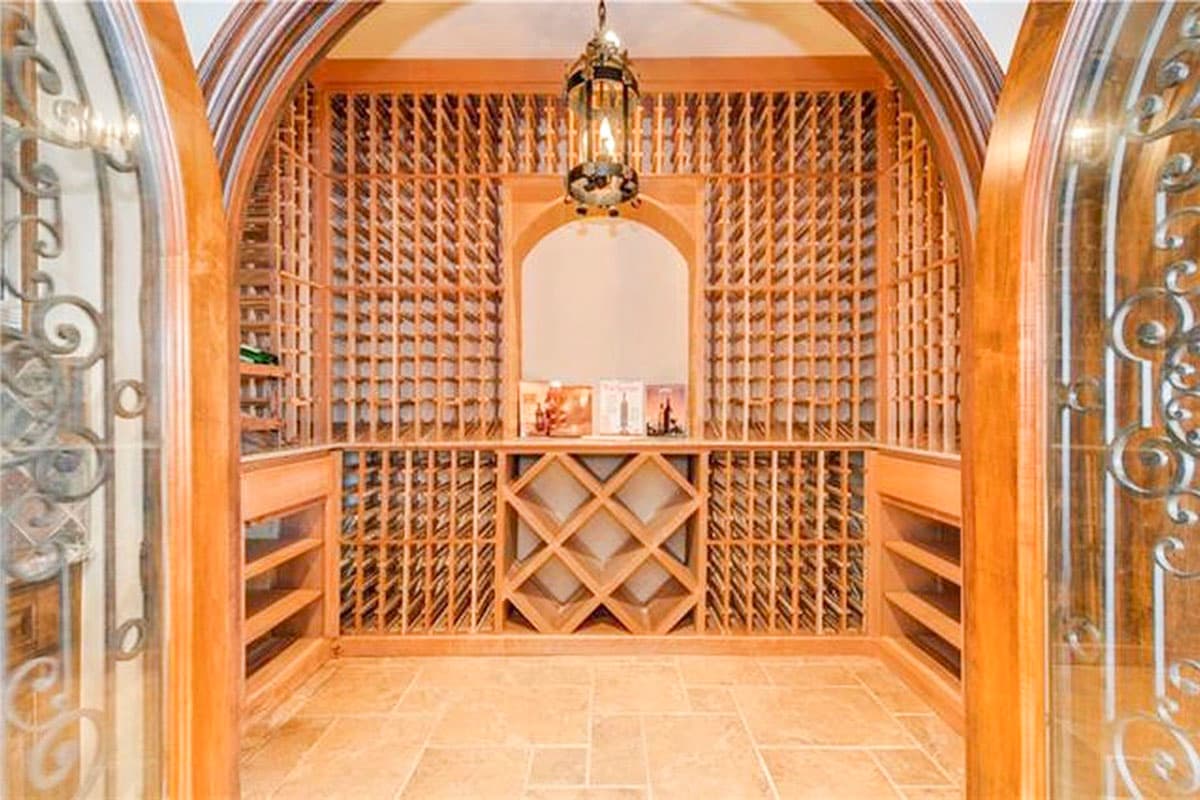

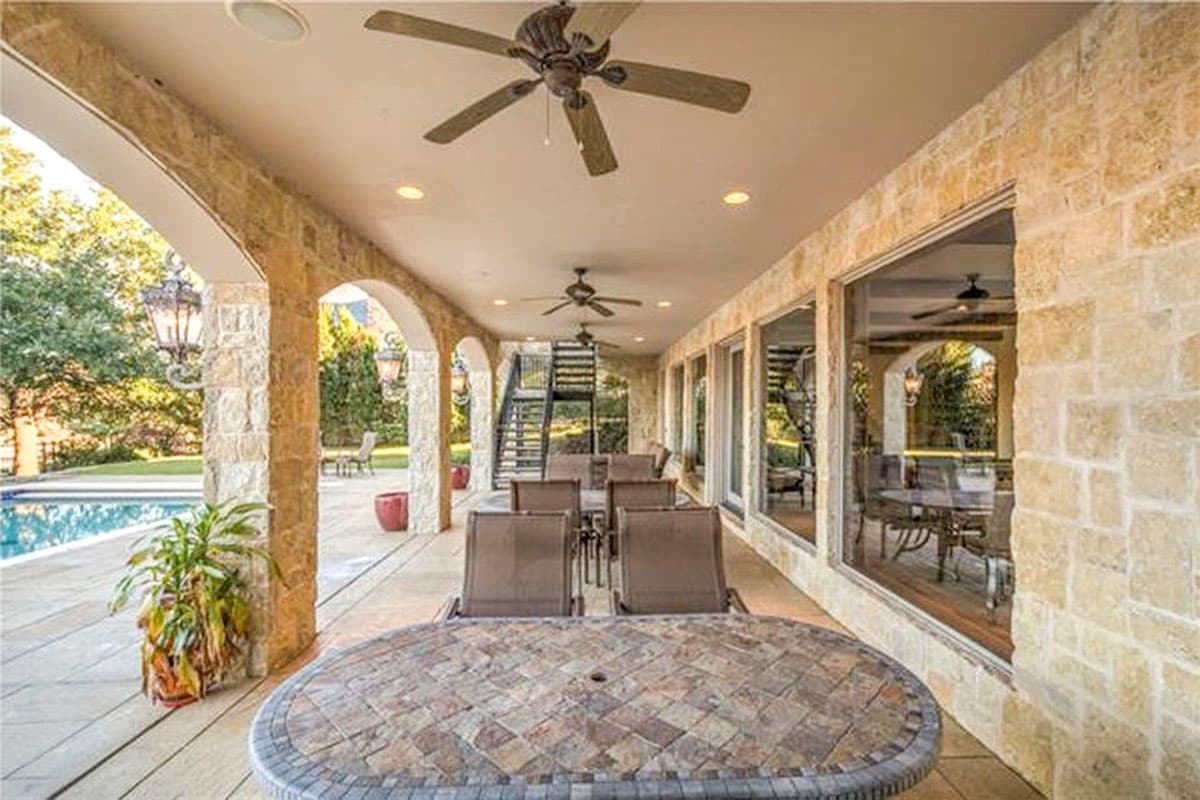

  • The lower level has outdoor access and includes a large game room and wine area.

Plan set includes the following:


1.       Cover sheet

2.       Foundation Plan

3.       First floor fully dimensioned floor plan with notes - All requisite aspects of the floor plan are precise, though the details of flooring material and non-structural aesthetics are left to the discretion of the buyer.

4.       Second floor fully dimensioned floor plan with notes - Exact flooring materials, appliance selection and non-structural aesthetics are left to the discretion of the buyer.

5.       First floor lighting and electrical plan - On this sheet you have a schematic of the lights, electrical plugs, phone locations, and code items such as smoke detectors.

6.       Second floor lighting and electrical plan - On this sheet you have a schematic of the lights, electrical plugs, phone locations, and code items such as smoke detectors.

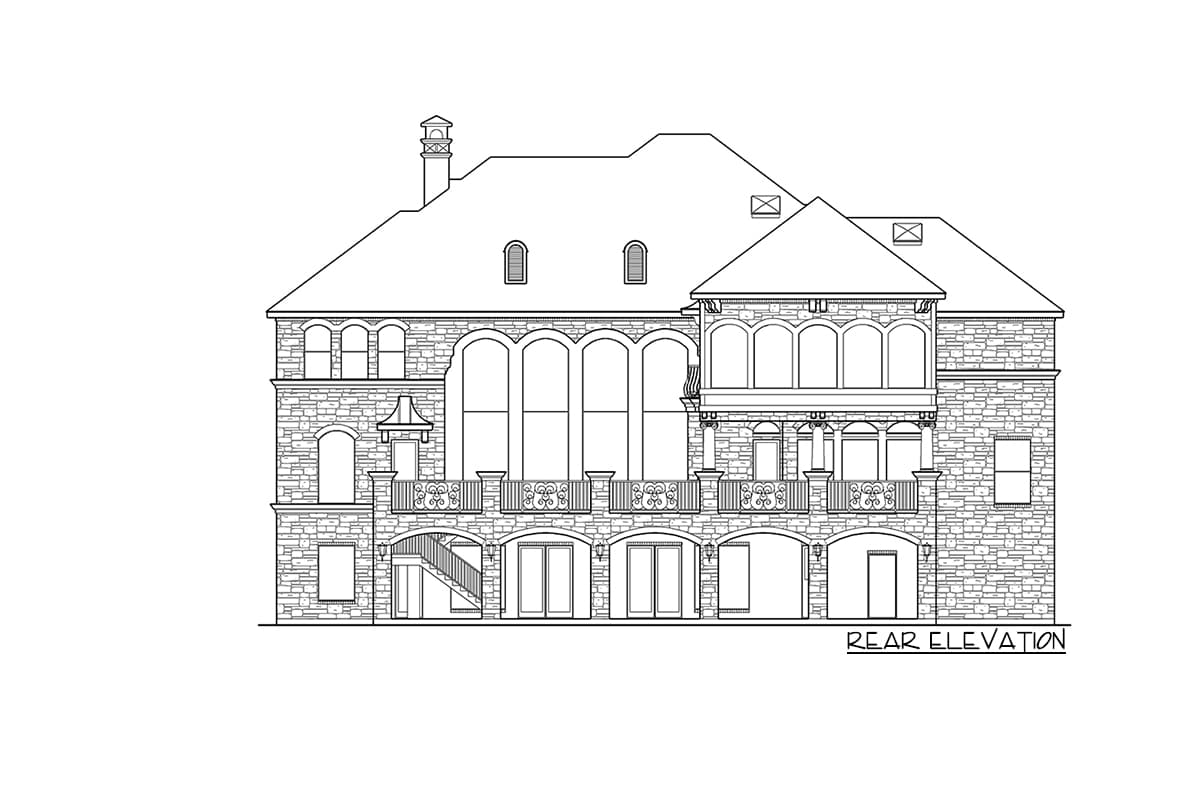

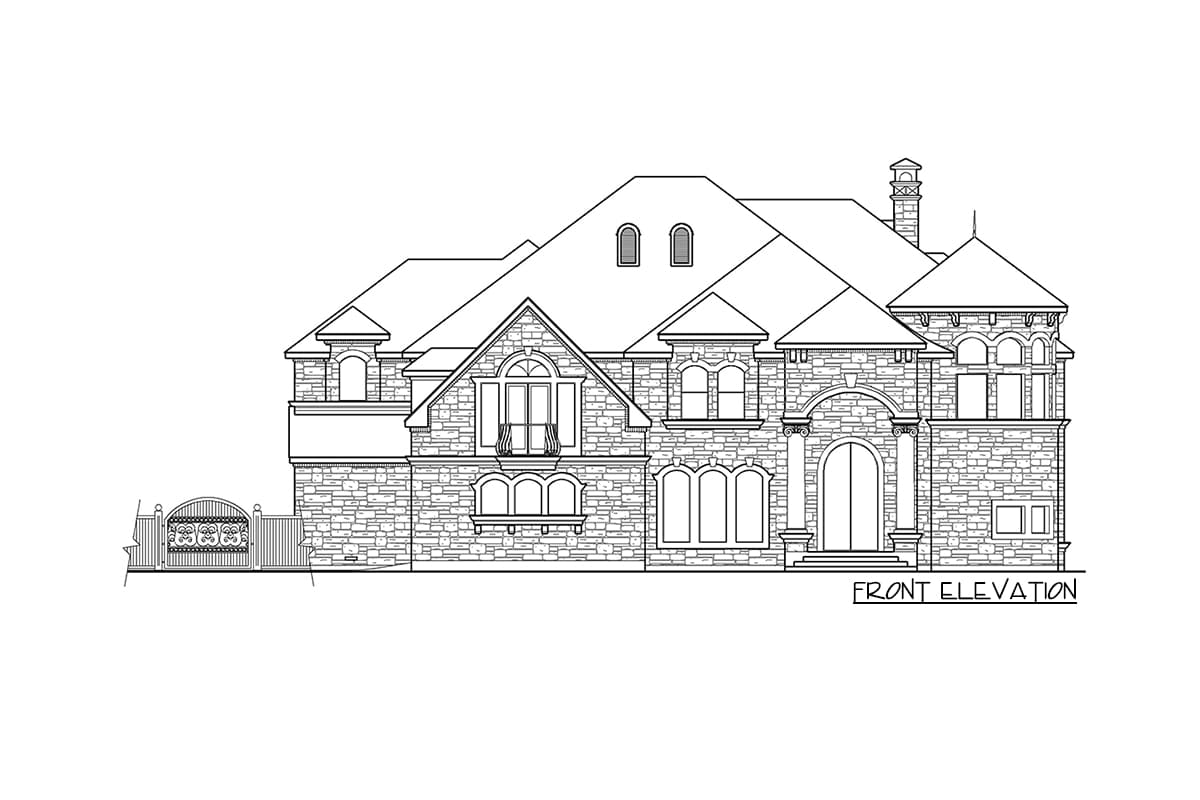

7.       Front & rear elevations with notes-detailed drawings of the left and right sides of the home along with any notes and exterior dimensions that may be required to complete construction. The elevations show the contractor's exterior materials, general architectural design intent, types of openings and other details. All of our elevations are drawn to ¼ scale.

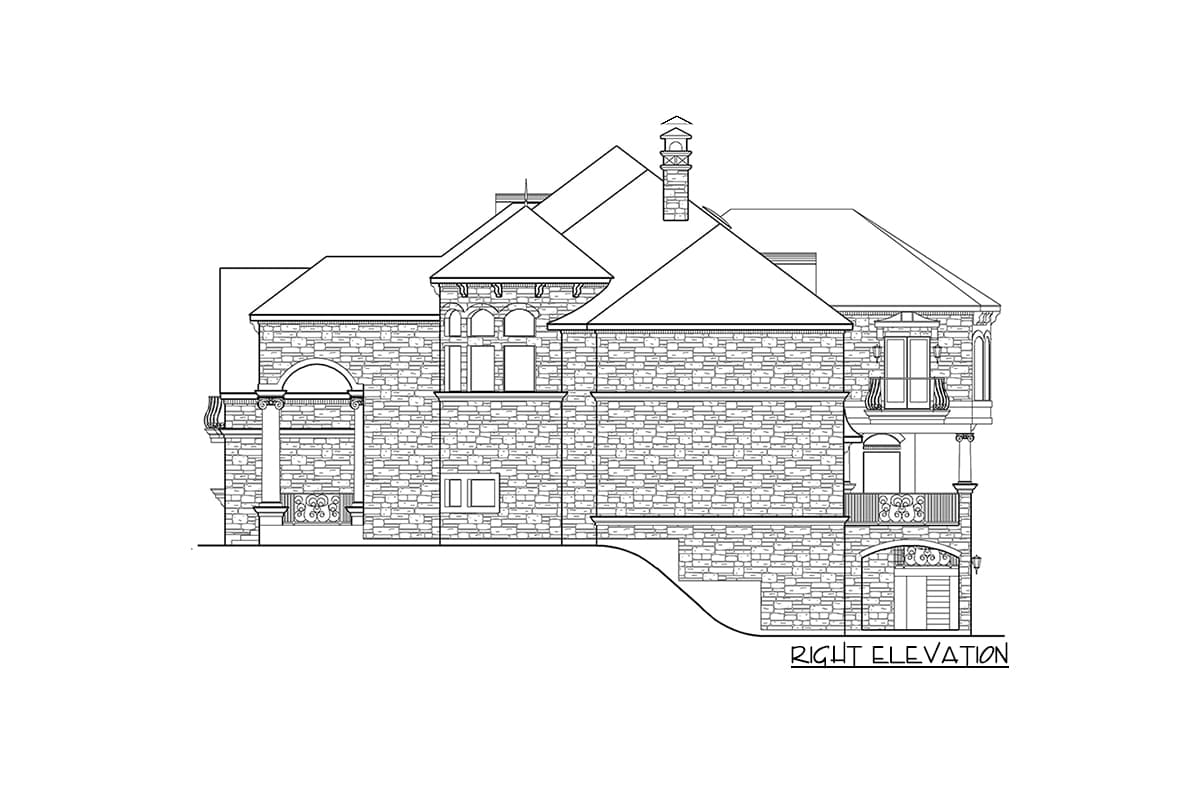

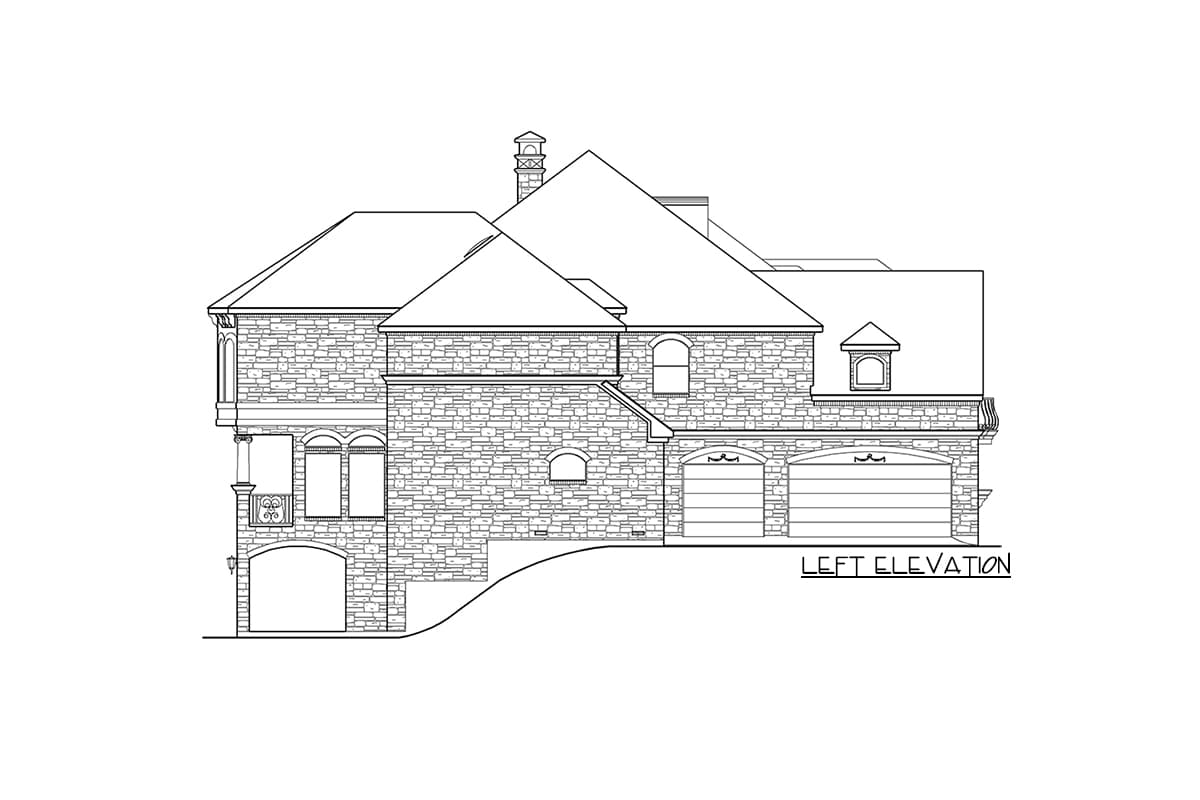

8.       Left and right elevations with notes - detailed drawings of the left and right sides of the home along with any notes and exterior dimensions that may be required to complete construction. The elevations show the contractor's exterior materials, general architectural design intent, types of openings and other details. All of our elevations are drawn to ¼ scale.

9.       Roof plan - This sheet roof plan is an integral piece of a well-designed set of elevations. Roof cuts are shown to demonstrate how the architectural design is intended to make the elevation aesthetically pleasing to the eye.

10.   Sections page

11.   Standard detail sheets on construction. These sheets are used to cover a broad range of many everyday situations that may occur on a construction site. The detail sheets are current and accurate to the area and time of which the house was originally designed.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

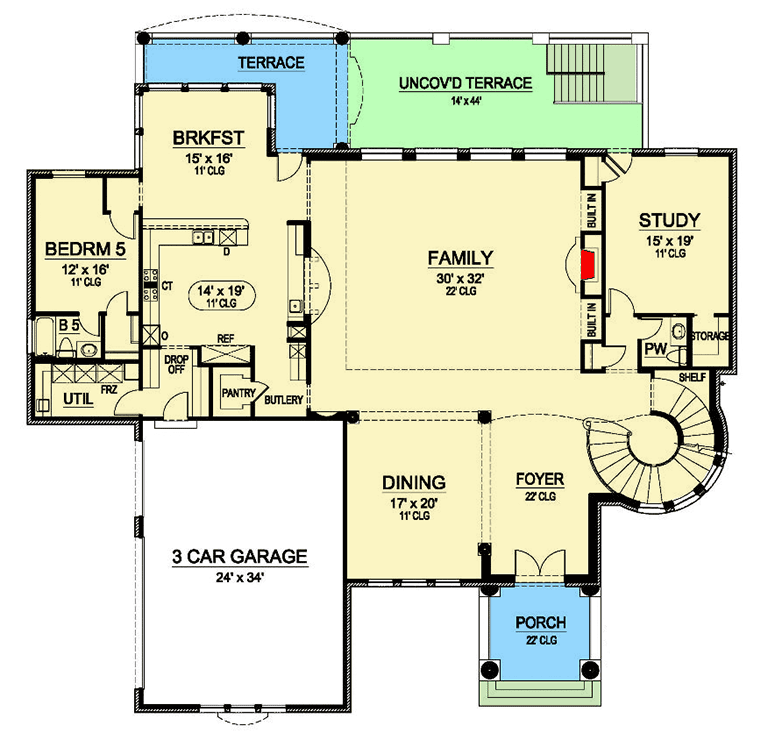

Turreted Stair Greets Guests - 36213TX floor plan - Main Level

Second Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

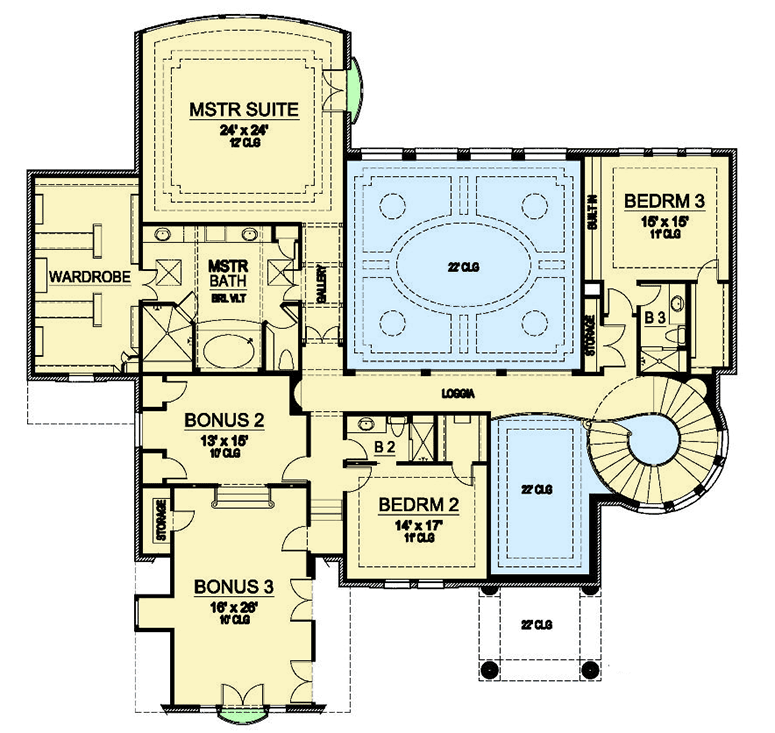

Turreted Stair Greets Guests - 36213TX floor plan - Second Level

Lower Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

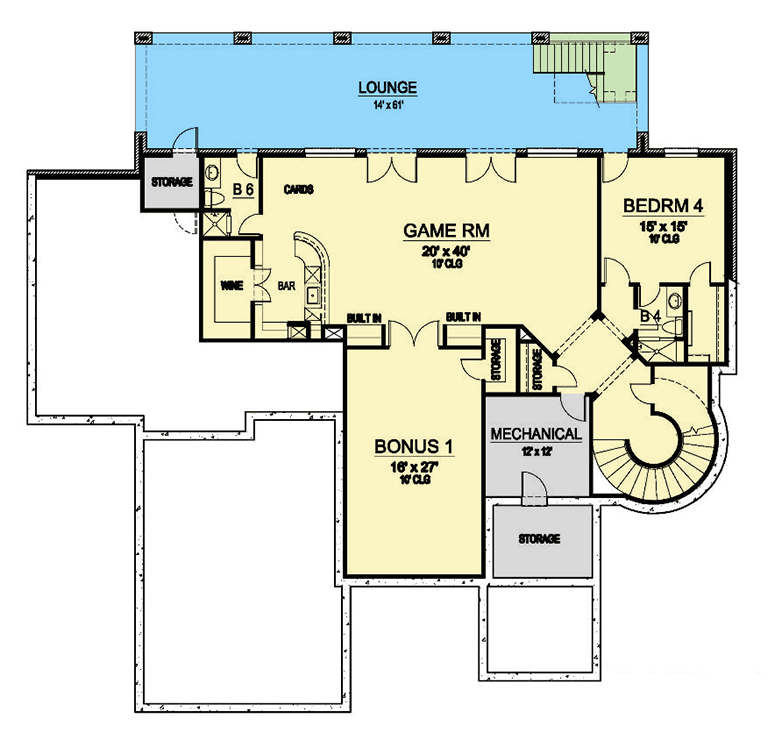

Turreted Stair Greets Guests - 36213TX floor plan - Lower Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 7,826 sq. ft.
  • Lower Level: 1,880 sq. ft.
  • 1st Floor: 3,423 sq. ft.
  • 2nd Floor: 2,523 sq. ft.
  • Bonus: 1,309 sq. ft.

Beds/Baths

  • Bedrooms: 5
  • Full bathrooms: 5
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 85' 0"
  • Depth: 84' 0"
  • Max ridge height: 44' 0"

Garage

  • Type: Attached
  • Area: 877 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: Lower Level / 11' 0" First Floor / 10' 0" Second Floor / 10' 0"

Roof Details

  • Framing Type: Truss

Architectural Style

Special features

Plan Collections



Turreted Stair Greets Guests

  • 7,826

    Heated s.f.

  • 5

    Beds

  • 6

    Baths

  • 2

    Floors

  • 3

    Car garage

Buy This Plan
  • PDF - Single-Build $3,295
  • 5 Sets $3,495
  • CAD - Single-Build $4,950
  • View all purchase option online

About This Plan

  • This luxury house plan greets guests with the turreted stair in the foyer with 22' ceilings.
  • The family room also has an elaborate 22' ceiling and is the centerpiece of this home.
  • The Kitchen has a pass through area and views of the family room. And there is seating at the counter by the breakfast room. A large pantry and butlery servicing the formal dining room are nice touches.
  • A study off to the side makes a great home office. And guests can stay in privacy in bedroom #5.
  • The master suite has a Juliet balcony and elaborate ceilings. Look at the massive wardrobe with built-ins. Two bedrooms have their own baths and bonus space can be put to many uses.
  • The lower level has outdoor access and includes a large game room and wine area.

Floor Plans

  • Main Level

  • Second Level

  • Lower Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 7,826 sq. ft.
  • Lower Level: 1,880 sq. ft.
  • 1st Floor: 3,423 sq. ft.
  • 2nd Floor: 2,523 sq. ft.
  • Bonus: 1,309 sq. ft.

Beds/Baths

  • Bedrooms: 5
  • Full bathrooms: 5
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 85' 0"
  • Depth: 84' 0"
  • Max ridge height: 44' 0"

Garage

  • Type: Attached
  • Area: 877 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: Lower Level / 11' 0" First Floor / 10' 0" Second Floor / 10' 0"

Roof

  • Framing Type: Truss

Plan 36213TX
