Plan 17509LV

Turreted Stair in Two-Story Library

Name: Plan 17509LV: Turreted Stair in Two-Story Library
Brand: Architectural Designs
SKU: 17509LV
Price: 1650.0 USD
Availability: InStock

Heated S.F.

3,979

Beds

Baths

3.5

Stories

Cars

Floor Plan

Main Level

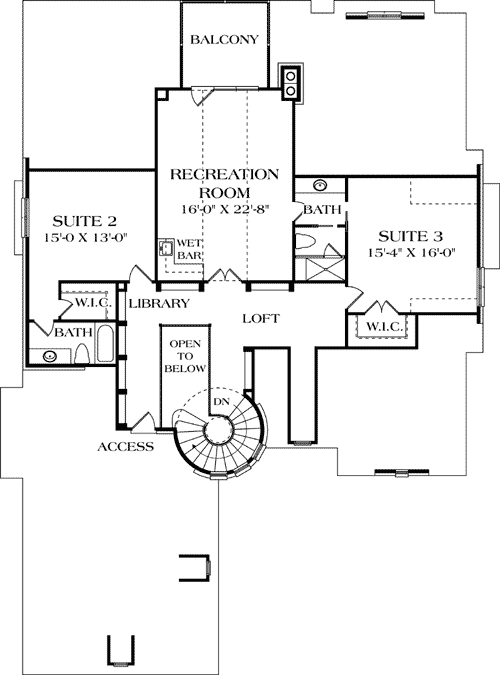

2nd Floor

Plan Details

Both from the inside and out, the turret makes a dramatic yet subtle statement. Winding from your private library with built-in bookcases (also found in the study), the stair leads to the upper library and second-story loft
In the gathering room, an angled fireplace shares the chimney with a matching fireplace on the veranda. A screened porch helps maximize use of the outdoors while keeping bugs at bay.
A small office and pantry off the kitchen with its own center island makes for a great use of space.
The master suite is private and luxurious. Two more suites and a rec room with a balcony complete the upstairs.

What's Included

Dimensioned and detailed Foundation plan (type as listed on home plan description)
Dimensioned and detailed floor plans
Framing plans
Complete front, side and rear elevations
Roof plan
Typical building sections (as deemed necessary for construction)
Typical foundation details, wall sections, and cornice details necessary for construction
Separate electrical plan (may be shown on floor plans in some cases)

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required
