Plan 36476TX

Tuscan Dream Home

Name: Plan 36476TX: Tuscan Dream Home
Brand: Architectural Designs
SKU: 36476TX
Price: 2138.60 USD
Availability: InStock

Heated S.F.

6,052

Beds

Baths

5.5

Stories

Cars

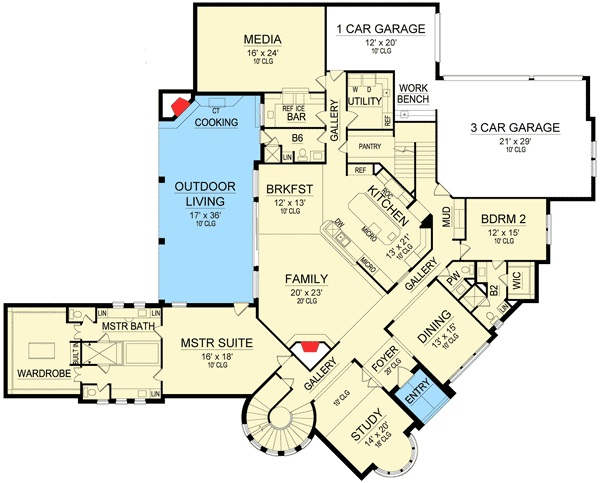

Floor Plan

Main Level

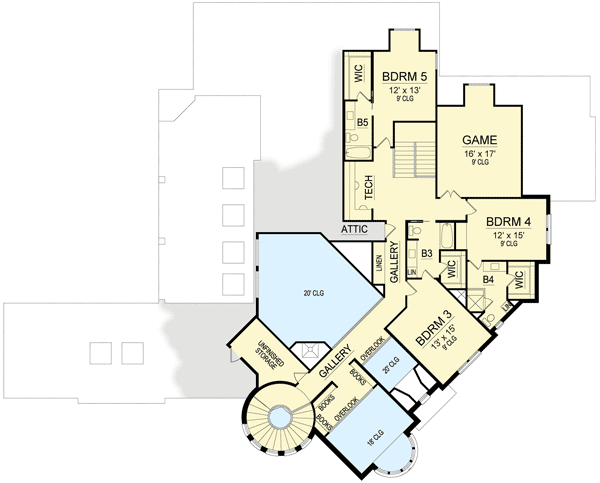

2nd Floor

Plan Details

This high-end Tuscan house plan is filled with luxuries that make it a true dream home.
Two-story ceilings, a fabulous media room with wet bar, grand curved staircase and a gallery on the second floor where you can look down into the rooms below, are just the beginning.
Entertain with ease on the outdoor living space where a corner fireplace and grilling station stand ready to serve.
The stunning master suite is a true haven of luxury with a room-size walk-in closet that has a built-in chest of drawers.
The opulent master bathroom has his and her sides with a shared two-entry shower and a huge soaking tub.
On the second floor, three large bedroom suites each have a walk-in closet and private bathroom.
Overlooking the study below, there's a second floor reading room lined with bookshelves.
Let the kids party in the huge game room or work in the tech center when it's homework time.

What's Included

Cover sheet
Foundation Plan - schematic only
First floor fully dimensioned floor plan with notes - All requisite aspects of the floor plan are precise, though the details of flooring material and non-structural aesthetics are left to the discretion of the buyer.
Second floor fully dimensioned floor plan with notes - Exact flooring materials, appliance selection and non-structural aesthetics are left to the discretion of the buyer.
First floor lighting and electrical plan - On this sheet you have a schematic of the lights, electrical plugs, phone locations, and code items such as smoke detectors.
Second floor lighting and electrical plan - On this sheet you have a schematic of the lights, electrical plugs, phone locations, and code items such as smoke detectors.

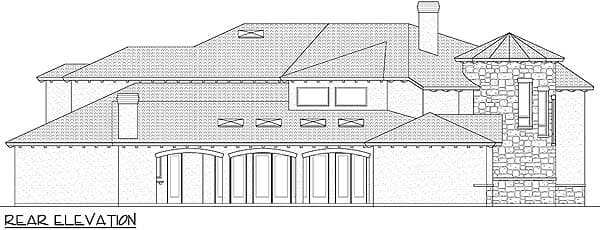

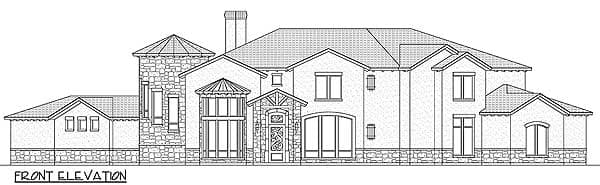

Front & rear elevations with notes-detailed drawings of the left and right sides of the home along with any notes and exterior dimensions that may be required to complete construction. The elevations show the contractor's exterior materials, general architectural design intent, types of openings and other details. All of our elevations are drawn to ¼ scale.
Left and right elevations with notes - detailed drawings of the left and right sides of the home along with any notes and exterior dimensions that may be required to complete construction. The elevations show the contractor's exterior materials, general architectural design intent, types of openings and other details. All of our elevations are drawn to ¼ scale.
Roof plan - This sheet roof plan is an integral piece of a well-designed set of elevations. Roof cuts are shown to demonstrate how the architectural design is intended to make the elevation aesthetically pleasing to the eye.
Sections page
Standard detail sheets on construction. These sheets are used to cover a broad range of many everyday situations that may occur on a construction site. The detail sheets are current and accurate to the area and time of which the house was originally designed.

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required
