Plan 59856ND

Tuscan Home Plan with Second Floor Atrium - 2609 Sq Ft

Heated S.F.
2,609
Beds
4
Baths
3
Stories
2
Cars
3

Floor Plan

Plan 59856ND

Main Level
Main Level
2nd Floor
2nd Floor

Plan 59856ND

M-F 9am-5pm EST |

1-203-761-8500

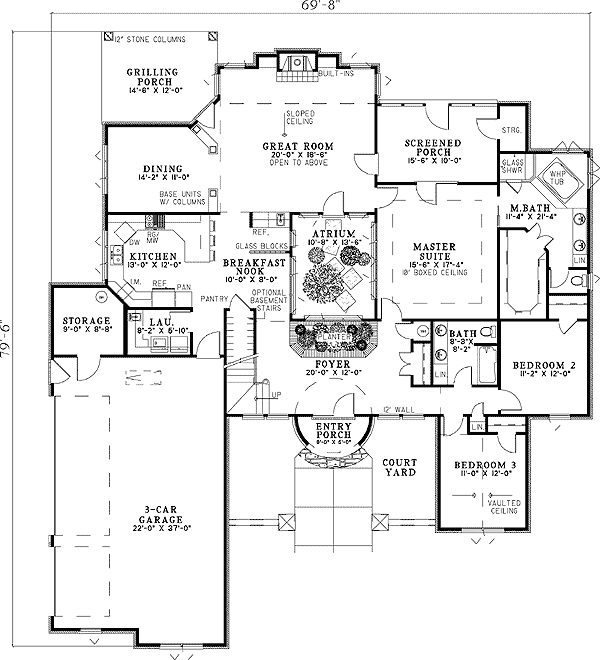

Main Level

Plan 59856ND: Tuscan Home Plan with Second Floor Atrium - 2609 Sq Ft - Floor Plan - Main Level - European, Tuscan

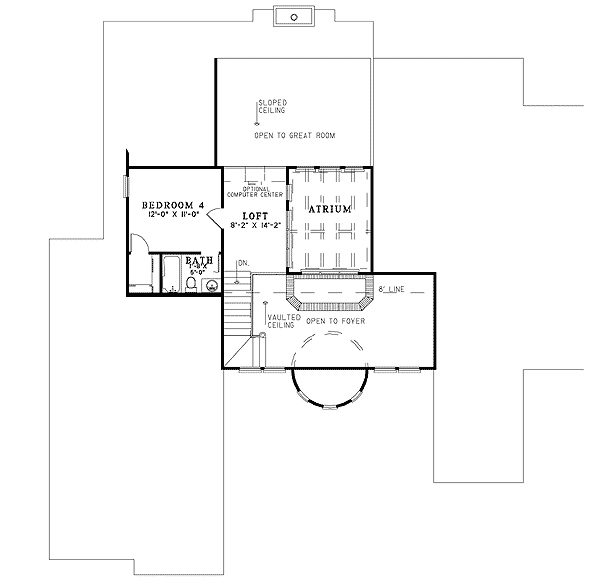

2nd Floor

Plan 59856ND: Tuscan Home Plan with Second Floor Atrium - 2609 Sq Ft - Floor Plan - 2nd Floor - European, Tuscan

Plan Details

  • A colorful stone exterior and tile roof blend together to give this Tuscan home plan a top-of-the-line look.
  • The entry turret has no glass so that the porch lights shine through at night.
  • Inside, the wonderful floor plan revolves around an atrium that is open to the sky and fresh air above.
  • All the major rooms have views of the atrium and the foyer has a large planter area to bring the outdoors in.
  • A screened porch can be accessed from either the large master suite or the spacious great room.
  • Columns set off the dining room and allow the views to flow into the great room.

What's Included

  • Foundation Plan (1/4″ or 1/2″ = 1′)
  • Floor Plans (1/4″= 1′)
  • Set of Elevations (1/4″= 1′)
  • Miscellaneous Details (3/4″ = 1′)
  • Roof plan (bird's eye view of roof showing pitches, ridges and valleys
  • An electrical diagram showing a bird's-eye view of rooms with lights, fans to switches

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

2,609 sq. ft.

1st Floor

2,280 sq. ft.

2nd Floor

329 sq. ft.

Porch, Front

201 sq. ft.

Porch, Rear

174 sq. ft.

Screened Porch

156 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

3

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

69' 8"

Depth

79' 6"

Max Ridge Height

24' 8"

Garage

Type

Attached

Area

905 sq. ft.

Count

3 Cars

Entry Location

Side

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

8 on 12

Framing Type

Stick

Architectural Style

European

Tuscan

Special Features

Bedrooms - Clustered

Breakfast Nook

Courtyard

Formal Dining

Laundry - Main Level

Loft

Master Suite - 1st Floor

Mudroom

Square Footage Breakdown

Total Heated Area

2,609 sq. ft.

1st Floor

2,280 sq. ft.

2nd Floor

329 sq. ft.

Porch, Front

201 sq. ft.

Porch, Rear

174 sq. ft.

Screened Porch

156 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

3

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

69' 8"

Depth

79' 6"

Max Ridge Height

24' 8"

Garage

Type

Attached

Area

905 sq. ft.

Count

3 Cars

Entry Location

Side

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

8 on 12

Framing Type

Stick

Architectural Style

European

Tuscan

Special Features

Bedrooms - Clustered

Breakfast Nook

Courtyard

Formal Dining

Laundry - Main Level

Loft

Master Suite - 1st Floor

Mudroom
