Plan 890110AH

Tuscan-Inspired Ranch Plan with Split Beds

Heated S.F.

2,267

Beds

3

Baths

2.5

Stories

1

Cars

4

What's Included

Floor Plan

Main Level

Reverse Floor Plan

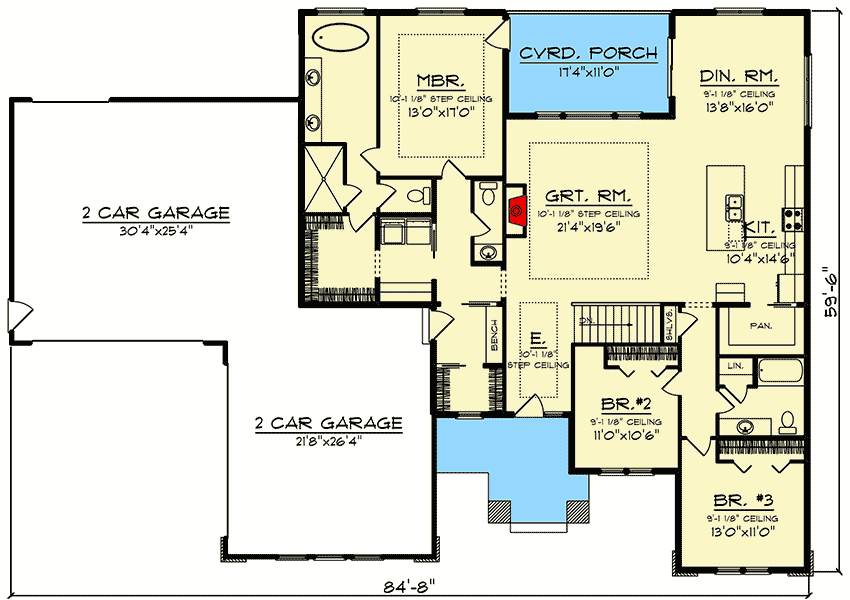

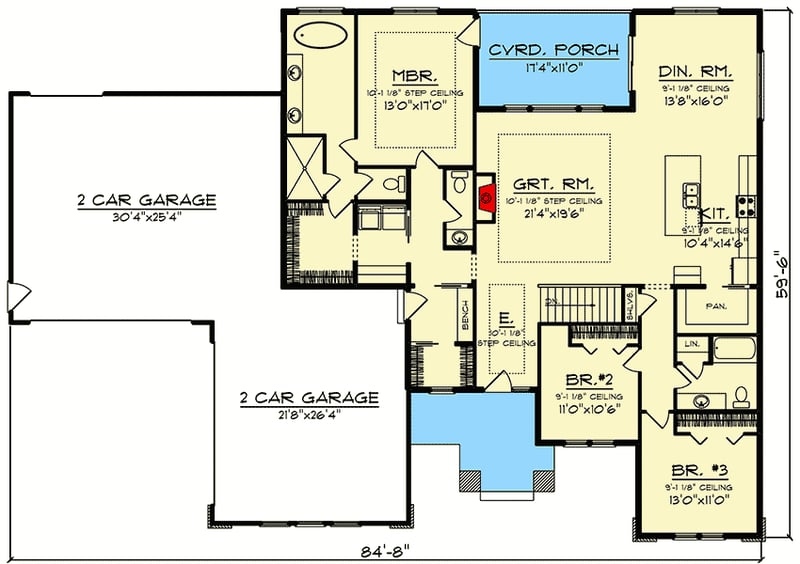

Tuscan-Inspired Ranch Plan with Split Beds - 890110AH floor plan - Main Level

Plan Details

This Tuscan-inspired, modern ranch plan features three bedrooms and open concept living at its finest.
The main living area includes a center island in the kitchen with a large walk-in pantry behind a pocket door.
A covered porch off the back is accessible from both the master and dining area.
The master suite is privately situated behind the garage with a spacious bathroom, which features a free standing tub, offering views to the backyard.
Two additional bedrooms are forward facing and share a full bath.
The four-stall, split garage has a convenient rear golf cart door completing this design.

What's Included

General Notes
Rendering
Elevations
Fully dimensioned floor plans
Foundation
Typical wall section & stair section
Cross section
Cabinet elevations
Electrical Plan
Roof plan

What's Not Included

Architectural or Engineering Stamp
Site Plan
Mechanical Drawings (location of heating and air equipment and duct work)
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations)
Framing layouts with beam sizes and locations
Energy calculations

Square Footage Breakdown

Total Heated Area:

2,267 sq. ft.

1st Floor:

2,267 sq. ft.

Porch, Combined:

333 sq. ft.

Beds/Baths

Bedrooms:

3

Full bathrooms:

2

Half bathrooms:

1

Foundation Type

Standard Foundations:

Basement

Optional Foundations:

Slab, Crawl

Need A Different Foundation?

Request A Modification Quote

Exterior Walls

Standard Type(s):

2x6

Dimensions

Width:

84' 8"

Depth:

59' 6"

Max Ridge Height:

18' 10"

Garage

Type:

Attached

Area:

1357 sq. ft.

Count:

4 Cars

Entry Location:

Side, Front

Ceiling Heights

Lower Level

8'

First Floor

9'

Roof Details

Primary Pitch:

4 on 12

Secondary Pitch:

4 on 12

Framing Type:

Truss

Architectural Style

Special Features

Bedrooms - Split

Butler Walk-in Pantry

Master Suite - 1st Floor
