Plan 66025WE

Tuscan Style House Plan

Heated S.F.
2,022
Beds
2
Baths
2
Stories
1
Cars
2

Floor Plan

Plan 66025WE

Main Level
Main Level

Plan 66025WE

M-F 9am-5pm EST |

1-203-761-8500

Main Level

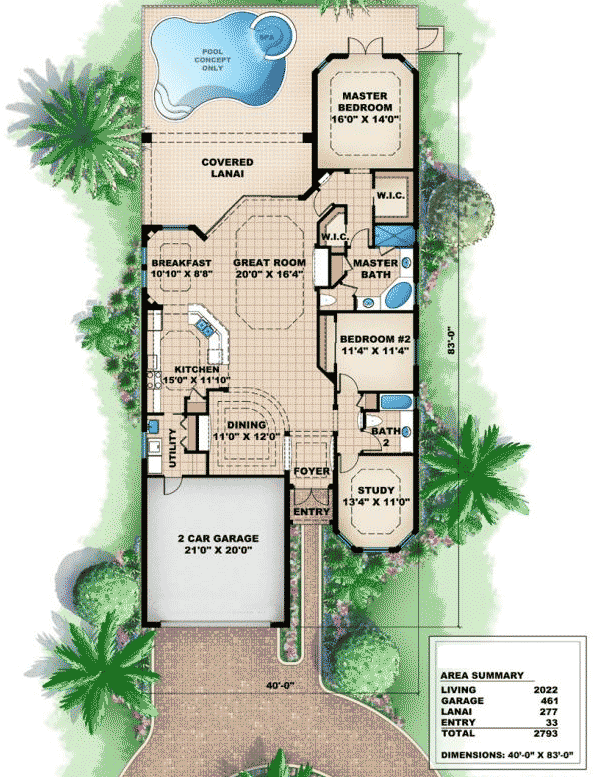

Plan 66025WE: Tuscan Style House Plan - Floor Plan - Main Level - Mediterranean, Tuscan

Plan Details

  • Tuscan style house plan for a narrow lot defines this little gem.
  • You'll find two spacious walk-in closets in the master suite and a master bath with dual sinks and corner garden tub.
  • A study with bay window and glass sliding doors leading from the living room to the covered lanai polishes off this home plan.

What's Included

Elevations - Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:
  • Material Labels
  • Floor-to-Floor Heights
  • Roof Slope Indicators
Floor Plans - Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:
  • Door and Window Sizes
  • Completely Dimensioned Floor Plan
  • Room Labels and Interior Room Sizes
Electrical Layouts
  • Building Section Markers
  • All Electrical Outlets, Fixtures, and Switching
Foundation Plan - Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:
  • Floor and Deck Joist Size and Spacing
  • Electrical Locations (if applicable)

Roof Design Plan - Drawn at 1/8″ to 1/4″ = 1′-0″scale, and Includes:
  • All Beam and Header Heights and Locations
  • All Hips, Gables, Ridges, and Valleys
  • Building Section Markers
Building Sections - Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:
  • Floor Joist Size and Spacing
  • Floor-to-Floor Heights
  • Non-Typical Plate Heights Indicated
Typical Wall Sections - Drawn at 1/8″ to 1/2″ = 1′-0″ Scale, and Includes:
  • All Labels Indicating Wall Construction
  • Foundation Wall Thickness and Reinforcing
  • Insulation Type and Thickness
Miscellaneous Notes and Details
  • Miscellaneous General Notes
  • Stairway details (if applicable)
We do provide a slab plan, however, the structural foundation plan is to be provided by the structural engineer selected by your builder or yourself. This is done because our slab plan cannot anticipate the variations in soil, footings and other conditions per your specific site. We provide the design of the roof as well, however, the truss layouts need to be provided by a truss engineer or your lumber company. Your builder can provide these contacts for you.  Please keep in mind that these are additional expenses outside of the cost of the original plan that you purchase from us.

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

2,022 sq. ft.

1st Floor

2,022 sq. ft.

Entry

33 sq. ft.

Lanai

277 sq. ft.

Beds/Baths

Bedrooms

2

Full bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

Block / CMU (main floor)

Optional Type(s)

2x6

Dimensions

Width

40' 0"

Depth

83' 0"

Max Ridge Height

22' 7"

Garage

Type

Attached

Area

461 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

10'

Room

Ceiling Type

Height

Dining Room

Coffered

10' 10''

Master Bath

Flat

10' 0''

Great Room

Flat

13' 0''

Kitchen

Coffered

10' 11''

Master Bedroom

Coffered

9' 1''

Lanai

Flat

12' 0''

Dinette

Coffered

10' 11''

Study

Coffered

9' 1''

Entry

Flat

15' 10''

Roof Details

Primary Pitch

6 on 12

Framing Type

Truss

Architectural Style

Mediterranean

Tuscan

Special Features

Laundry - Main Level

Library/Study

Master Suite - 1st Floor

Square Footage Breakdown

Total Heated Area

2,022 sq. ft.

1st Floor

2,022 sq. ft.

Entry

33 sq. ft.

Lanai

277 sq. ft.

Beds/Baths

Bedrooms

2

Full bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

Block / CMU (main floor)

Optional Type(s)

2x6

Dimensions

Width

40' 0"

Depth

83' 0"

Max Ridge Height

22' 7"

Garage

Type

Attached

Area

461 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

10'

Room

Ceiling Type

Height

Dining Room

Coffered

10' 10''

Master Bath

Flat

10' 0''

Great Room

Flat

13' 0''

Kitchen

Coffered

10' 11''

Master Bedroom

Coffered

9' 1''

Lanai

Flat

12' 0''

Dinette

Coffered

10' 11''

Study

Coffered

9' 1''

Entry

Flat

15' 10''

Roof Details

Primary Pitch

6 on 12

Framing Type

Truss

Architectural Style

Mediterranean

Tuscan

Special Features

Laundry - Main Level

Library/Study

Master Suite - 1st Floor
