Two Bed Bungalow with Vaulted Master

Plan 62551DJ

  • 1,446

    Heated s.f.

  • 2

    Beds

  • 2.5

    Baths

  • 2

    Stories

  • This bungalow house plan is a charming 2-story home with a cute facade, efficient design, and compact building footprint. This is a great design for urban neighborhoods or for a small retreat in the country.
  • The main floor is open, with a flush fireplace in the family room, efficient kitchen, and informal dinette.
  • The covered porch would be a great place to sit and enjoy views of your property.
  • The second level has a master bedroom with a cathedral ceiling and a second bedroom with its own bath. Laundry is conveniently located upstairs as well.

Each plan set includes:


  • Cover Sheet: Shows the front elevation and typical notes and requirements.
  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement
  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
  • Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
  • Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
  • Roof Plan
  • Typical wall section
  • Typical Stair section
  • Cabinets are shown on all plans.

These items are NOT included:
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

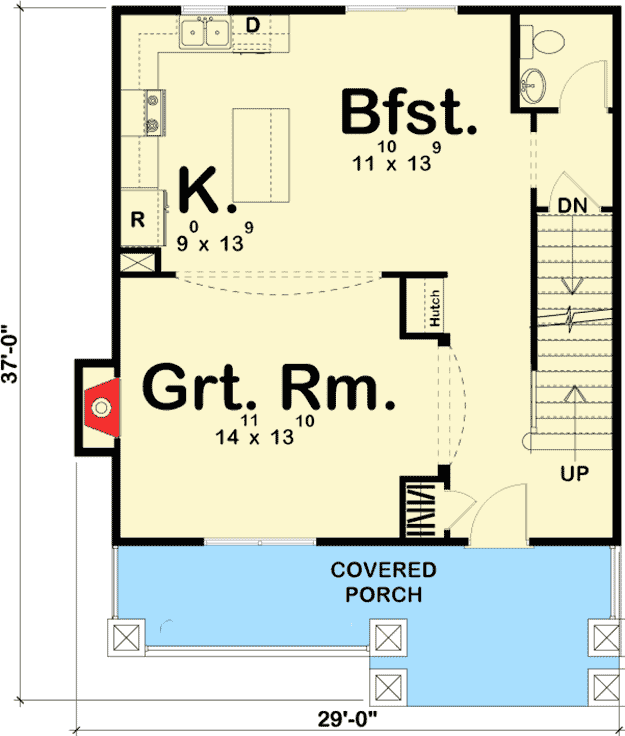

Two Bed Bungalow with Vaulted Master - 62551DJ floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

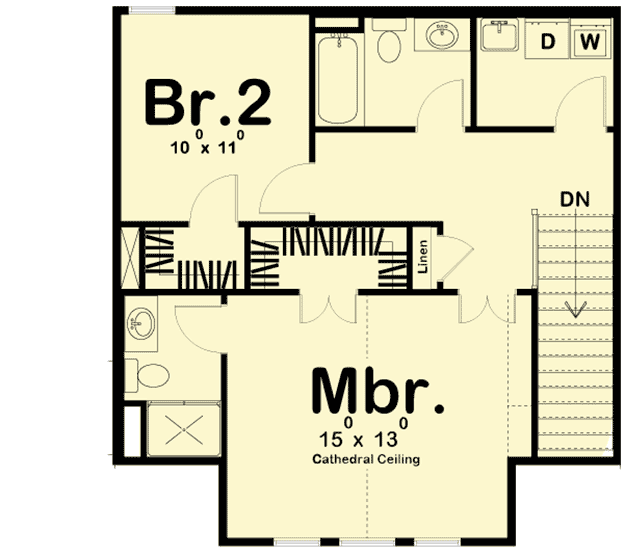

Two Bed Bungalow with Vaulted Master - 62551DJ floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 1,446 sq. ft.
  • 1st Floor: 774 sq. ft.
  • 2nd Floor: 672 sq. ft.

Beds/Baths

  • Bedrooms: 2
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Basement
  • Optional Foundations: Walkout, Slab, Crawl

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 29' 0"
  • Depth: 37' 0"
  • Max ridge height: 28' 0"

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 9' 0" Second Floor / 8' 0"

Roof Details

  • Primary Pitch: 8 on 12

Architectural Style

Special features

Two Bed Bungalow with Vaulted Master
