Two Bonus Rooms and Two Versions

Plan 36398TX

  • 5,067

    HEATED S.F.

  • 3

    BEDS

  • 5

    BATHS

  • 2

    FLOORS

  • 3

    CAR GARAGE

About this Plan

  • This heavenly European home plan is loaded with curb appeal and as an added bonus, the home fits on a narrow lot.
  • A dramatic two-story ceiling in the foyer gives you a glimpse of all the special features within.
  • An over-sized family room boasts a corner fireplace, built-ins and a large wet bar perfect for entertaining.
  • Beamed ceilings top the kitchen giving it special treatment as well.
  • The secluded master suite is set off by itself and comes fully loaded with tray ceiling, bay window, romantic fireplace and a stunning master bath, making this suite a true retreat.
  • On the second floor, the luxuries continue with both a media room and a game room complete with a second wet bar.
  • Step out onto the outdoor lounge when you want a breath of fresh air.
  • An upper and lower bonus room lie over the garage with a handy bathroom and balcony close by.
  • Related Plan: Get an alternate elevation and upper bonus room with house plan 36397TX.

See What's Included in this Plan...

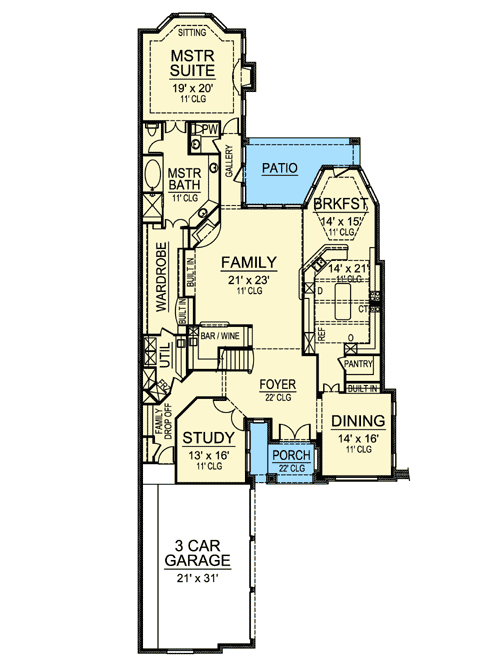

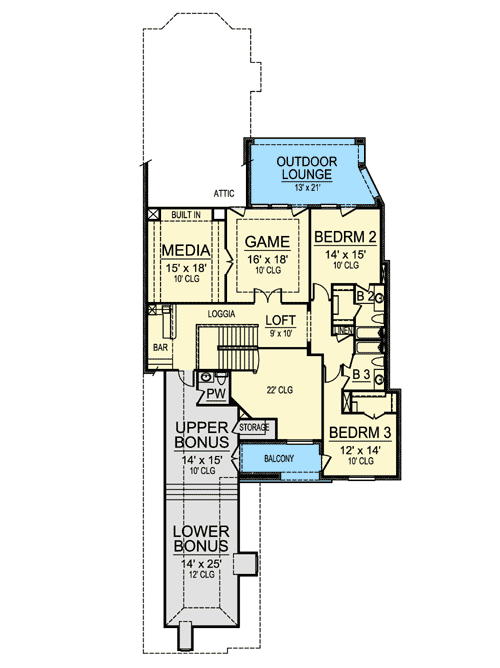

Floor Plan

Plan details

Square Footage Breakdown

  • Total Heated Area: 5,067 sq. ft.
  • 1st Floor: 3,363 sq. ft.
  • 2nd Floor: 1,704 sq. ft.
  • Bonus: 795 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 3
  • Half bathrooms: 2

Dimensions

  • Width: 50' 0"
  • Depth: 125' 0"
  • Max ridge height: 40' 0"

Garage

  • Type: Attached
  • Area: 758 sq. ft.
  • Details: 3 Cars
  • Location: Courtyard

Foundation Type

  • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x4

Ceiling Heights

  • Floor / Height: First Floor / 11' 0" Second Floor / 10' 0"

Architectural Style
