Two Car Garage with Loft Storage

Plan 2233SL

  • 0

    Heated s.f.

  • 0

    Beds

  • 1-2

    Stories

  • 2

    Cars

  • Are you shopping for a 2-car garage with loft storage? Consider this detached garage plan with loft. Enter via the covered porch. The garage area enjoys a 9' ceiling and two 9'x8' overhead garage doors.
  • This floor plan is deep enough for boat and trailer storage.
  • The second level features unfinished storage space.

  • Foundation plan
  • First floor plan
  • Second floor plan
  • Roof plan

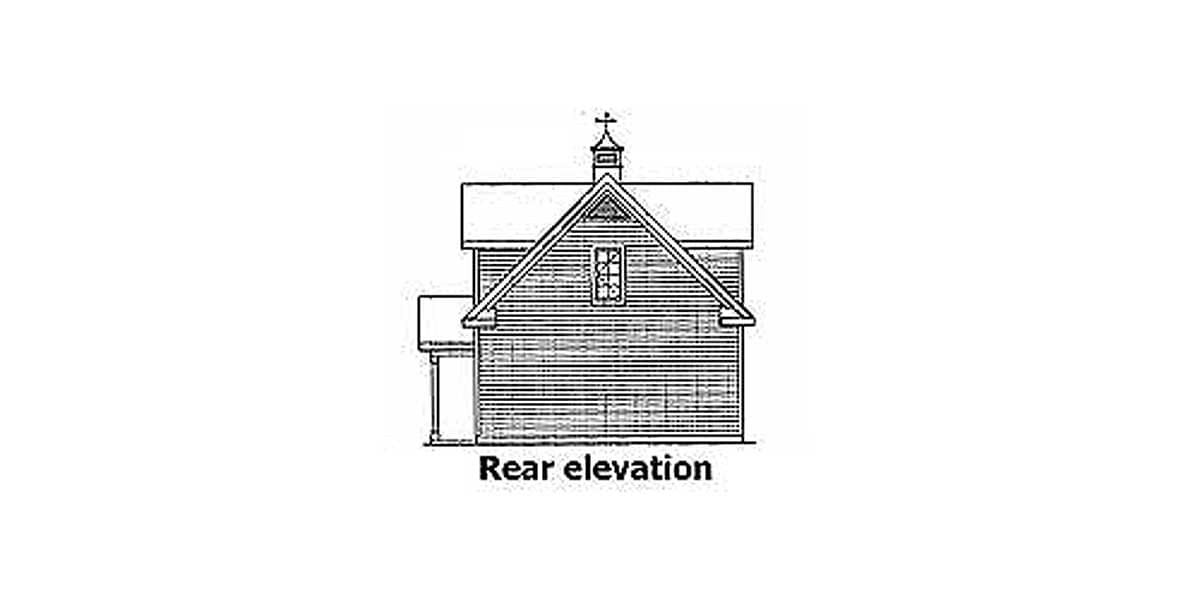

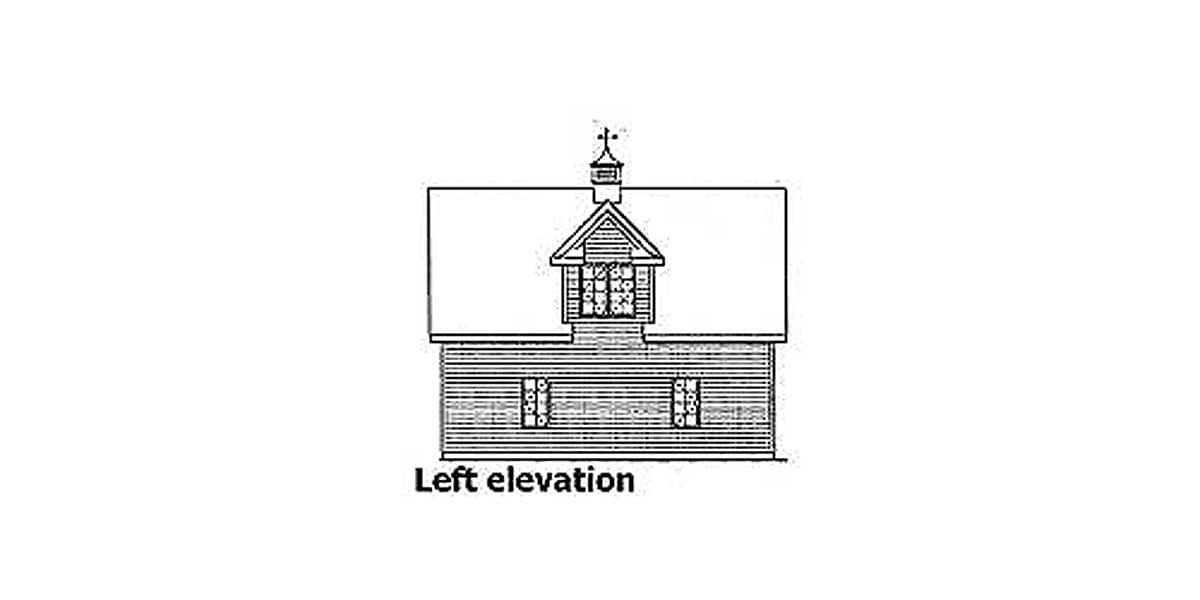

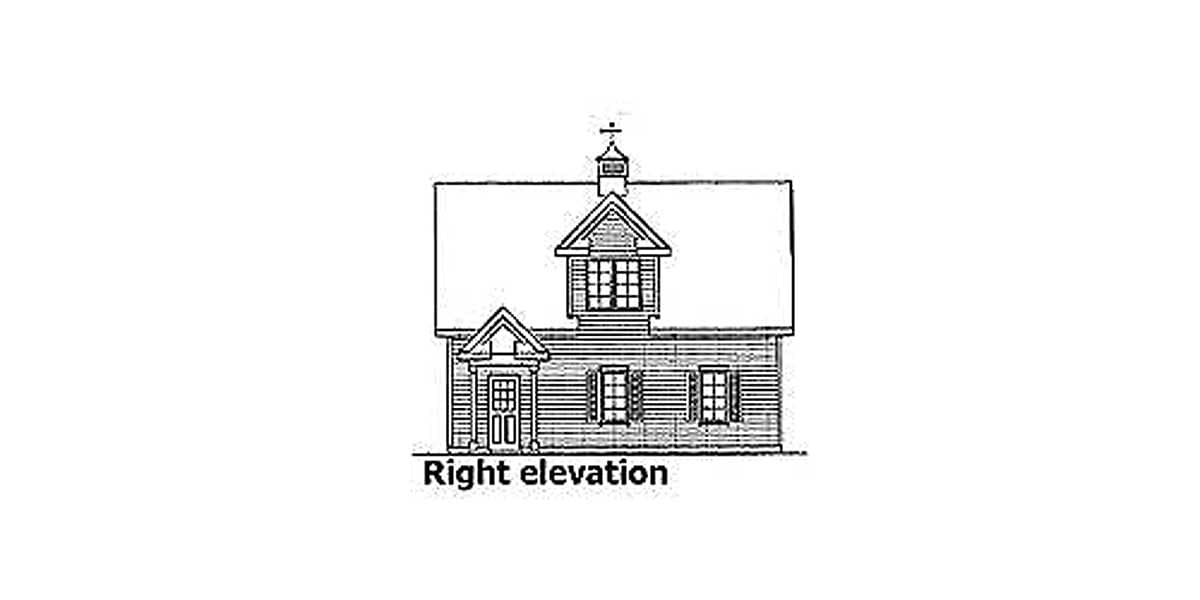

  • All four exterior elevations
  • Electrical plans
  • Typical wall section, stud and plate notching details
  • Building section
  • Stair section
  • Corner details
  • Portal frame header detail

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

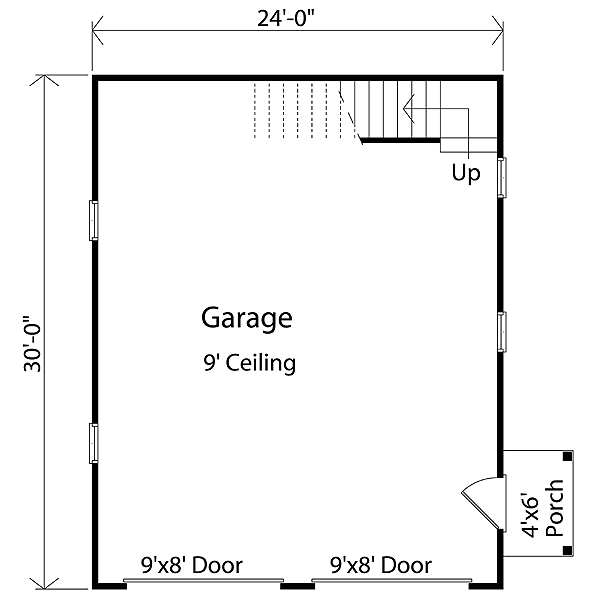

Two Car Garage with Loft Storage - 2233SL floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

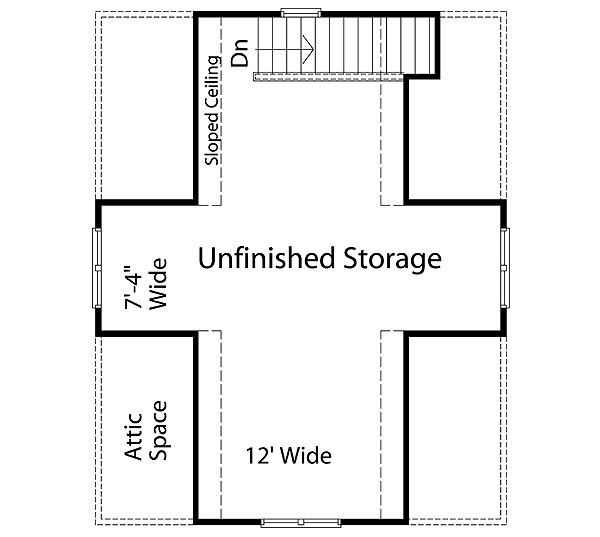

Two Car Garage with Loft Storage - 2233SL floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 0 sq. ft.
  • Storage: 468 sq. ft.

Beds/Baths

  • Bedrooms: 0

Foundation Type

  • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 28' 0"
  • Depth: 30' 0"
  • Max ridge height: 25' 0"

Garage

  • Type: Detached
  • Area: 720 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof Details

  • Primary Pitch: 12 on 12
  • Secondary Pitch: 12 on 12
  • Framing Type: Truss

Special features

Two Car Garage with Loft Storage

  • 0

    Heated s.f.

  • 0

    Beds

  • 0

    Baths

  • 1-2

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - Single-Build $350
  • CAD - Single-Build $500
  • PDF - Unlimited Build $1,100
  • CAD - Unlimited Build $1,250
  • View all purchase option online

About This Plan

  • Are you shopping for a 2-car garage with loft storage? Consider this detached garage plan with loft. Enter via the covered porch. The garage area enjoys a 9' ceiling and two 9'x8' overhead garage doors.
  • This floor plan is deep enough for boat and trailer storage.
  • The second level features unfinished storage space.
