Plan 62563DJ

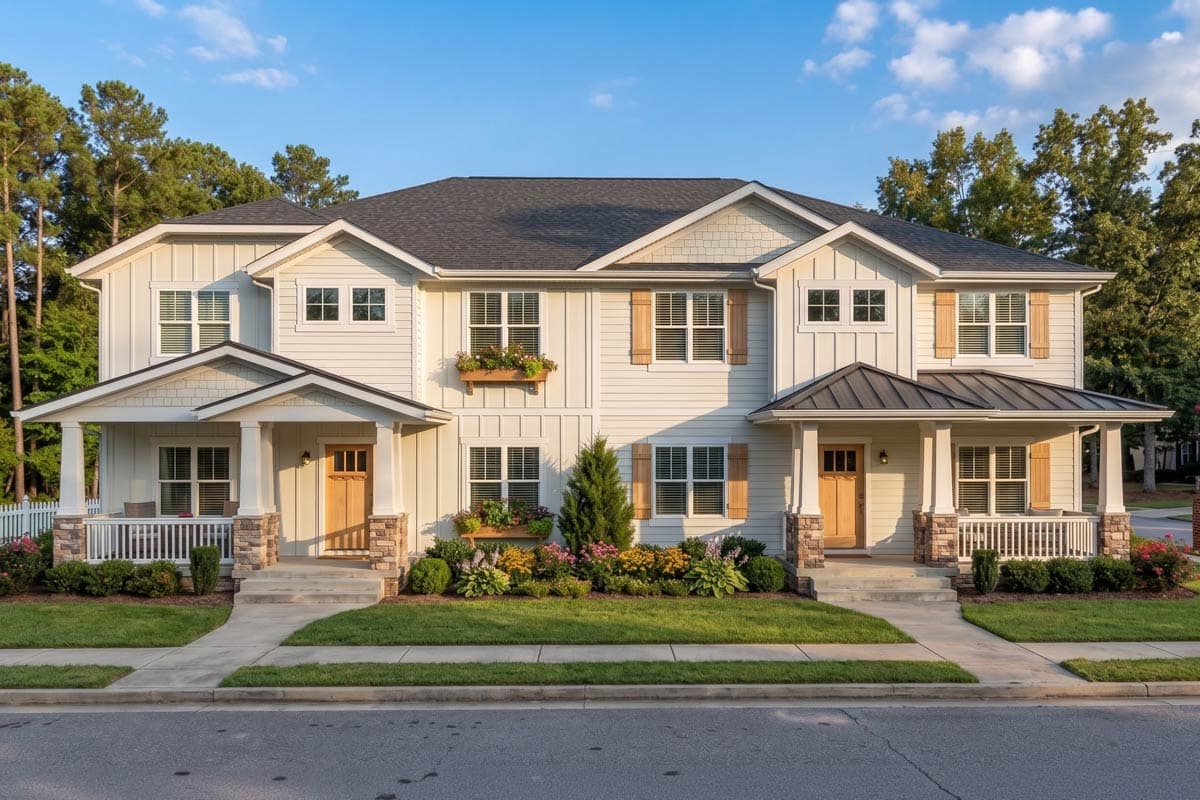

Two Family Craftsman with Alley Garage

Heated S.F.
6,004
Units
2
Width
Depth

Floor Plan

Plan 62563DJ

Main Level
Main Level
2nd Floor
2nd Floor

Plan 62563DJ

M-F 9am-5pm EST |

1-203-761-8500

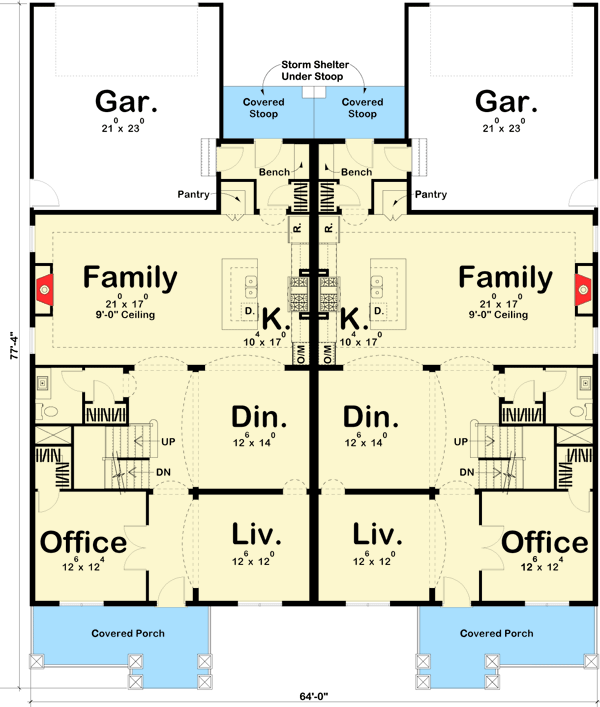

Main Level

Plan 62563DJ: Two Family Craftsman with Alley Garage - Floor Plan - Main Level - Craftsman, New American

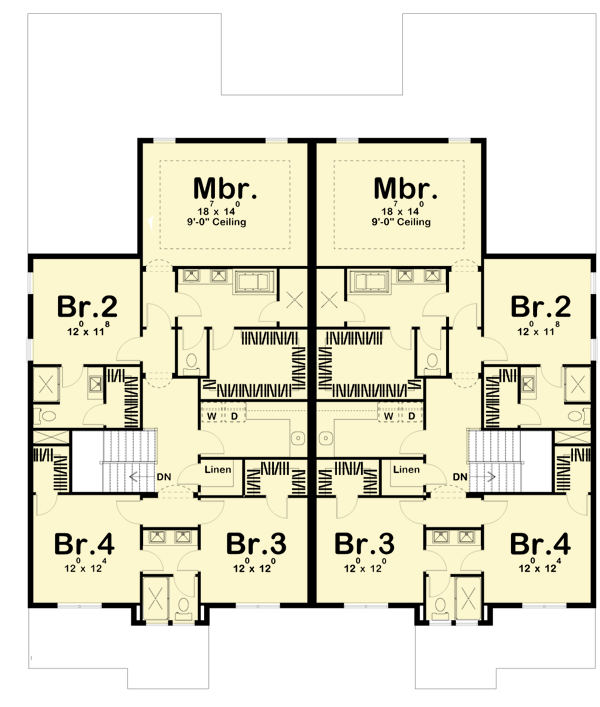

2nd Floor

Plan 62563DJ: Two Family Craftsman with Alley Garage - Floor Plan - 2nd Floor - Craftsman, New American

Plan Details

  • This 2-story craftsman two-family home plan has an attractive facade and a great floor plan. It gives each unit 1502  square feet on the main floor and 1496 square feet upstairs.
  • This house plan has been designed with a simple building footprint to minimize construction cost.
  • The plan has a rear-load garage for alley-access neighborhoods.
Unit A
Heated Area
3,002Sq. Ft.
753 Sq. Ft. 1st
747 Sq. Ft. 2nd
Beds
4Beds
Baths
3Full Baths
1Half Bath
Cars
Attached
504 Sq. Ft.
Dimensions
32'width
78'depth
30'height
Unfinished Areas
504 Sq. Ft. Garage
Unit B
Heated Area
3,002Sq. Ft.
753 Sq. Ft. 1st
747 Sq. Ft. 2nd
Beds
4Beds
Baths
3Full Baths
1Half Bath
Cars
Attached
504 Sq. Ft.
Dimensions
32'width
78'depth
30'height
Unfinished Areas
504 Sq. Ft. Garage

What's Included

  • Cover Sheet: Shows the front elevation and typical notes and requirements.
  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement
  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
  • Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
  • Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
  • Roof Plan
  • Typical Wall Section
  • Typical Stair Section (if applicable)
  • Cabinets Elevations (if applicable)
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

6,004 sq. ft.

1st Floor

3,012 sq. ft.

2nd Floor

2,992 sq. ft.

Beds/Baths

Bedrooms

8

Full bathrooms

6

Half bathrooms

2

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

64' 0"

Depth

77' 4"

Max Ridge Height

41' 0"

Garage

Type

Attached

Area

1008 sq. ft.

Count

4 Cars

Entry Location

Rear

Ceiling Heights

Lower Level

8'

First Floor

9'

Second Floor

9'

Roof Details

Primary Pitch

4 on 12

Architectural Style

Craftsman

New American

Special Features

Jack & Jill Bath

Laundry - Upstairs

Master Suite - Upstairs

Square Footage Breakdown

Total Heated Area

6,004 sq. ft.

1st Floor

3,012 sq. ft.

2nd Floor

2,992 sq. ft.

Beds/Baths

Bedrooms

8

Full bathrooms

6

Half bathrooms

2

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

64' 0"

Depth

77' 4"

Max Ridge Height

41' 0"

Garage

Type

Attached

Area

1008 sq. ft.

Count

4 Cars

Entry Location

Rear

Ceiling Heights

Lower Level

8'

First Floor

9'

Second Floor

9'

Roof Details

Primary Pitch

4 on 12

Architectural Style

Craftsman

New American

Special Features

Jack & Jill Bath

Laundry - Upstairs

Master Suite - Upstairs
