Plan 42426DB
Two Family Home Plan with Matching 1418 Square Foot Units
Heated S.F.
2,836
Units
2
Width
52'
Depth
47' 8"
Cars
4
What's Included
Floor Plan
PRINT PLANS
Main Level
Reverse Floor Plan

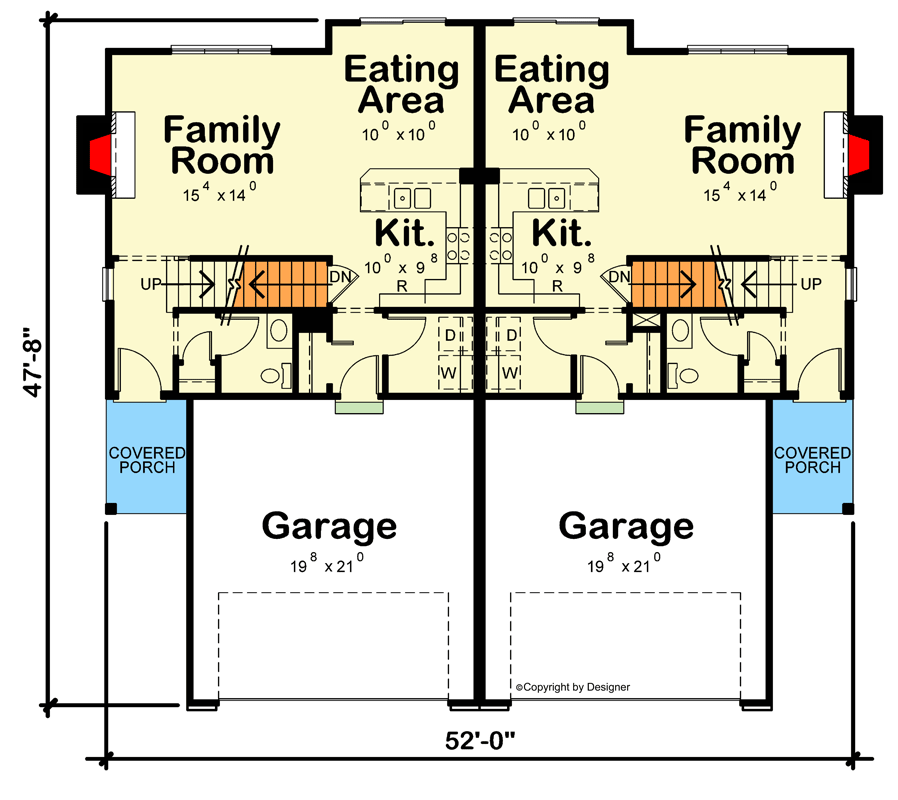

Two Family Home Plan with Matching 1418 Square Foot Units - 42426DB floor plan - Main Level
2nd Floor
Reverse Floor Plan

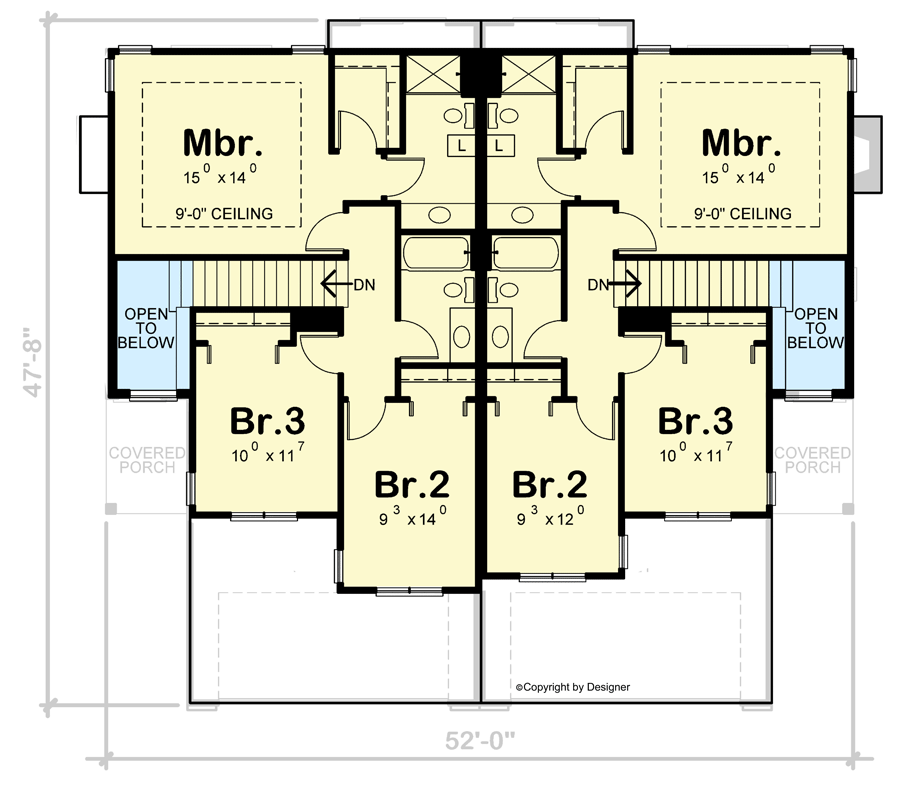

Two Family Home Plan with Matching 1418 Square Foot Units - 42426DB floor plan - 2nd Floor
Optional Second Level layout
Reverse Floor Plan

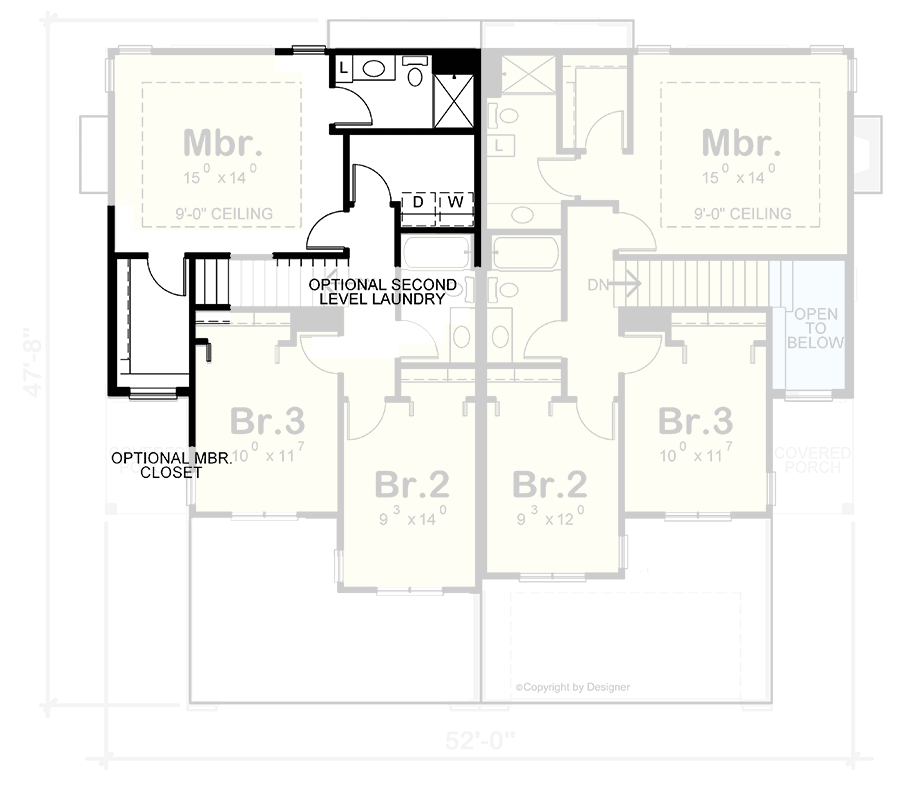

Two Family Home Plan with Matching 1418 Square Foot Units - 42426DB floor plan - Optional Second Level layout
Plan Details
  • This duplex home plan offers matching 1418 square foot 3 bed, 2.5 bath units (654 sq. ft. on the main floor and 764 sq. ft. on the second floor) and a 434 square foot 2-car garage.
  • All 3 bedrooms are located upstairs, leaving the downstairs for family and friend time.
  • An open concept layout on the first floor facilitates conversations. The eating area has sliding doors on the back wall.
Unit A
1,418 Sq. Ft.
654 Sq. Ft. 1st Floor
764 Sq. Ft. 2nd Floor
3 Beds
2 Full Baths
1 Half Bath
2 Vehicle
Attached
434 Sq. Ft.
26' w 47' d 29' h
Unit B
1,418 Sq. Ft.
1308 Sq. Ft. 1st Floor
1528 Sq. Ft. 2nd Floor
3 Beds
2 Full Baths
1 Half Bath
2 Vehicle
Attached
434 Sq. Ft.
26' w 47' d 29' h
What's Included
  • General Notes

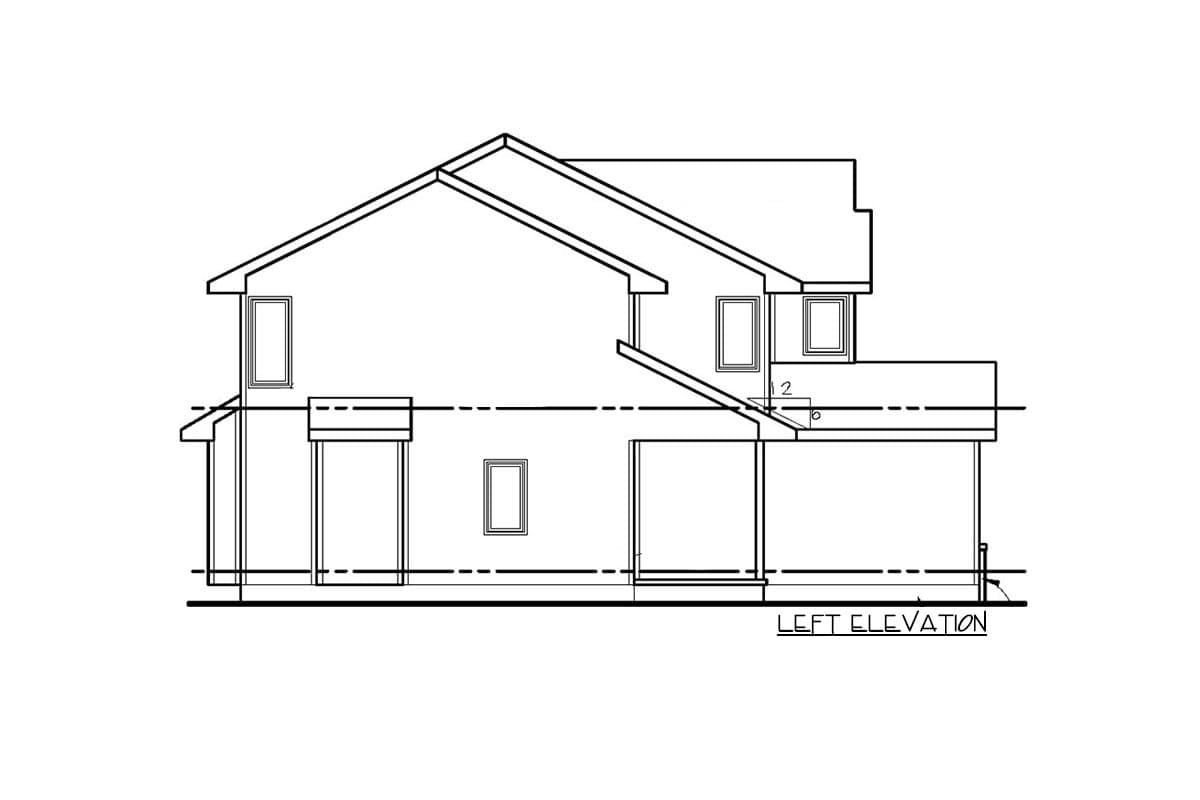

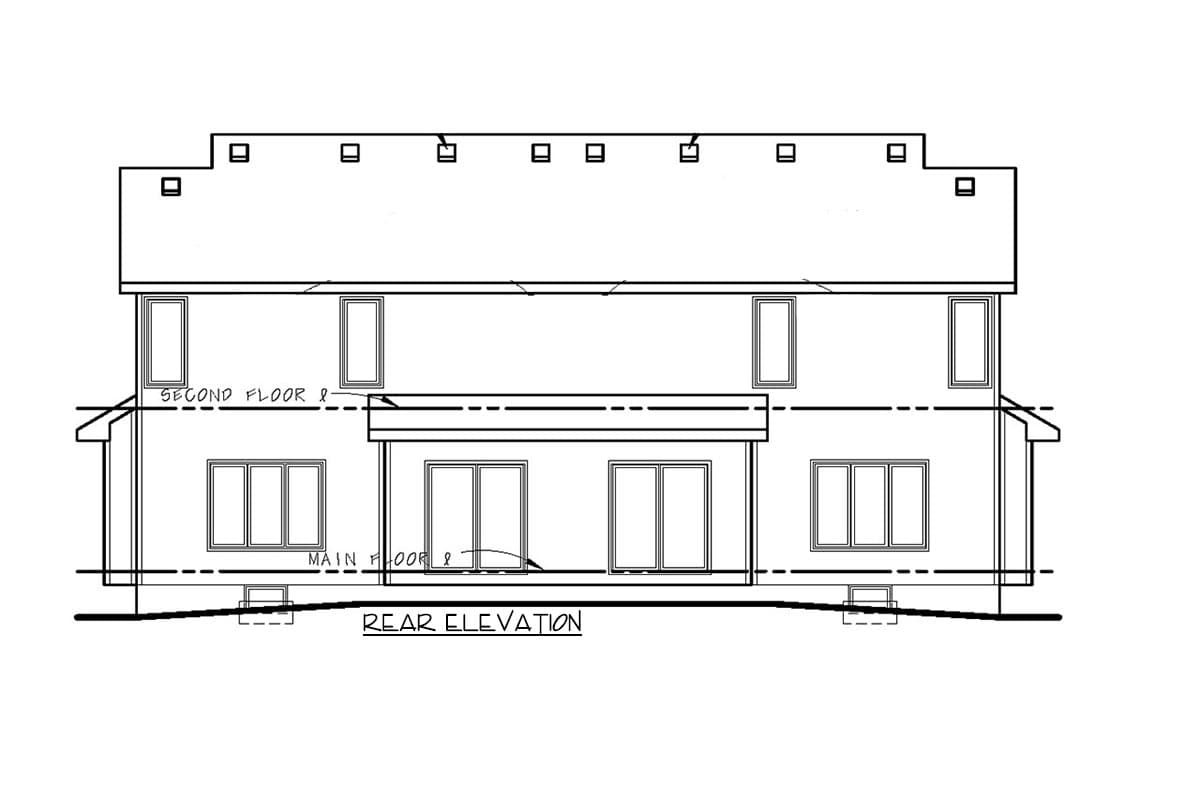

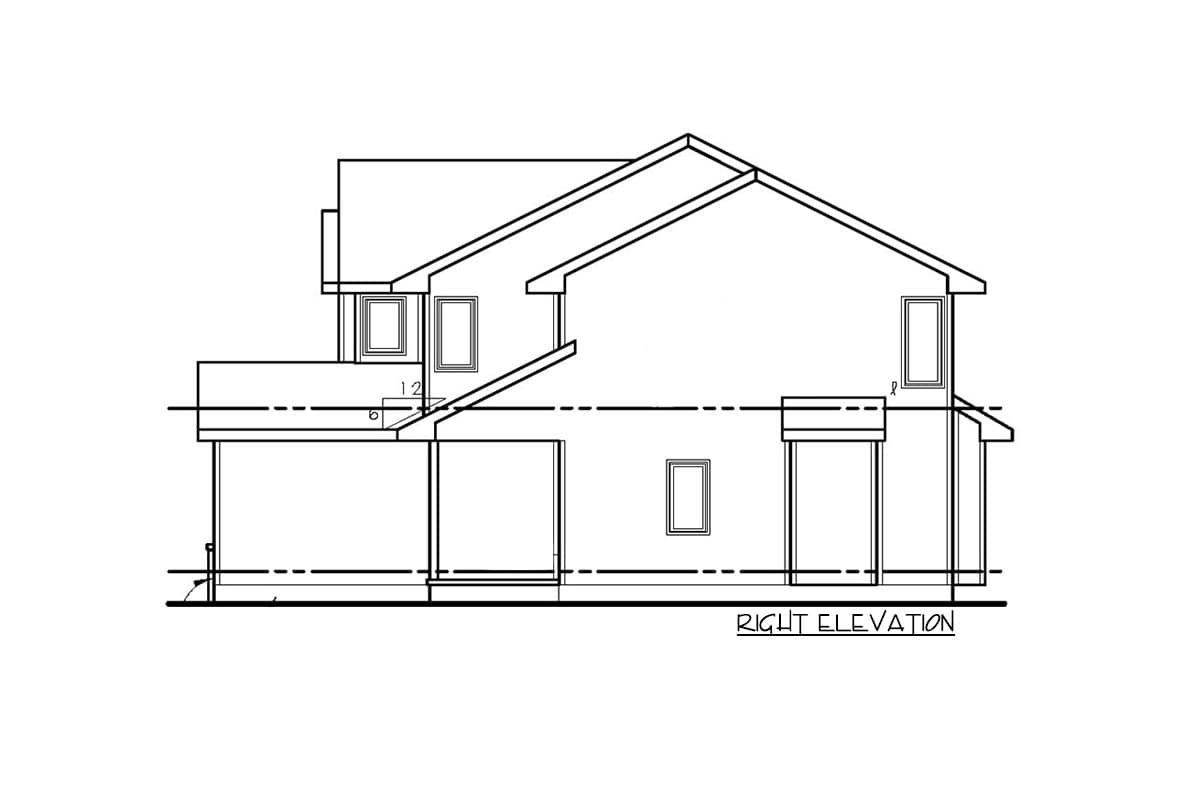

  • Front, Rear, Left, Right Elevations
  • Roof Plan - Birds Eye View
  • Foundation plan, Wall Section, Stair Section
  • Main Level Floor Plan
  • Second Level Floor Plan (if applicable)
  • Electrical Plan (showing fixtures, switches, outlets)
  • *Some plans include cabinet elevations. Please contact us for more information.
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Two Family Home Plan with Matching 1418 Square Foot Units

  • 2,836

    Heated s.f.

  • 2

    Units

  • 52'

    Width

  • 47' 8"

    Depth

Floor Plan

  • Main Level

  • 2nd Floor

  • Optional Second Level layout

Plan Details

Square Footage Breakdown

  • Total: 2,836 sq. ft.
  • 1st Floor: 1,308 sq. ft.
  • 2nd Floor: 1,528 sq. ft.

Dimensions

  • Width: 52' 0"
  • Depth: 47' 8"
  • Max ridge height: 29' 1"

Beds/Baths

  • Bedrooms: 6
  • Full bathrooms: 4
  • Half bathrooms: 2

Garage

  • Type: Attached
  • Area: 868 sq. ft.
  • Count: 4 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Basement
    • Optional Foundations: Walkout, Slab, Crawl

Exterior Walls

  • Standard Type(s): 2x4

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 6 on 12
  • Secondary Pitch: 6 on 12
