Plan 22485DR Two Family House Plan with Slightly Offset Units

Two Family House Plan with Slightly Offset Units

Plan 22485DR

  • 2,368

    Heated s.f.

  • 2

    Units

  • 52' 0"

    Width

  • 46' 0"

    Depth

  • This modern duplex house plan gives you two nearly identical units slightly offset one from the other. Each has 2 beds, a shared bath, and potential expansion in the unfnished basement.
  • The kitchen has a central island, convenient for meal preparation. It has access to the covered deck in back, a great spot for outdoor grilling.
  • The dining area and living room (TV room) are separated by a partial wall, allowing for more tranquility. Convenient!
  • The master bedroom receives natural light from a large window overlooking the backyard. A large bathroom with separate bath and shower and a double vanity as well as a linen closet complete this area of the house.
  • A secondary bedroom is located on the front of the house allowing it to be easily converted into a home office or gym, for example.
  • A laundry area is provided in the unfinished basement.
  • DELIVERY NOTE: Please allow 12 business days for delivery of your plans.

Each plan includes the following:

* 4 Elevations
* Foundation Plan
* Main Floor Plan
* Upper Floor Plans (if applicable)
* Roof Plan
* Building Section
* Construction Details
* Typical Wall Section

These items are NOT included:
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical and Electrical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required


Floor Plan

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

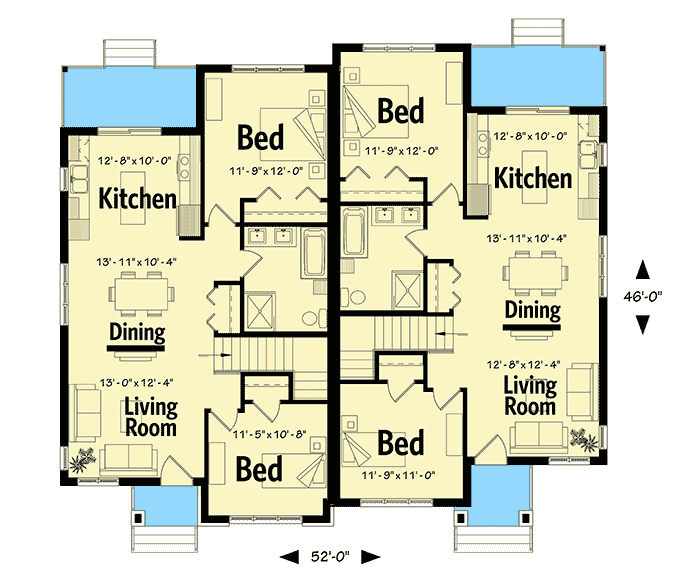

Two Family House Plan with Slightly Offset Units - 22485DR floor plan - Main Level

Optional Lower Level

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

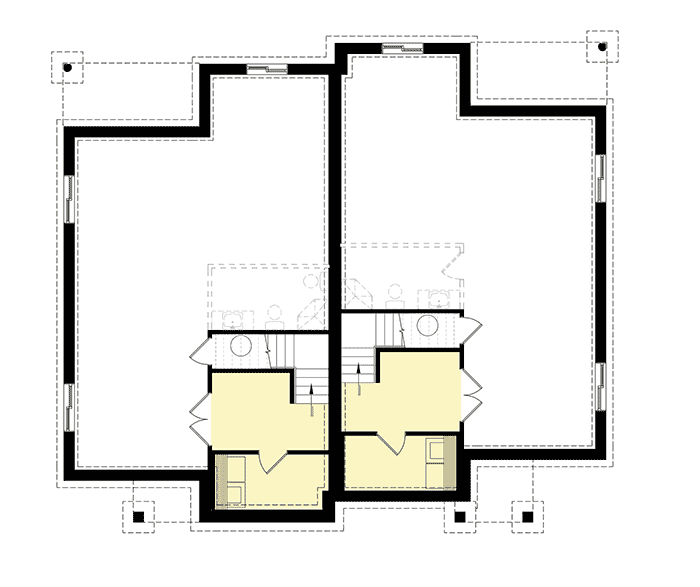

Two Family House Plan with Slightly Offset Units - 22485DR floor plan - Optional Lower Level

Plan details

Two Family House Plan with Slightly Offset Units

  • 2,368

    Heated s.f.

  • 2

    Units

  • 52' 0"

    Width

  • 46' 0"

    Depth

Buy This Plan
  • PDF - Single-Build $1,595
  • 5 Sets + PDF $1,720
  • CAD + PDF - Single-Build $2,195
  • View all purchase option online

About This Plan

  • This modern duplex house plan gives you two nearly identical units slightly offset one from the other. Each has 2 beds, a shared bath, and potential expansion in the unfnished basement.
  • The kitchen has a central island, convenient for meal preparation. It has access to the covered deck in back, a great spot for outdoor grilling.
  • The dining area and living room (TV room) are separated by a partial wall, allowing for more tranquility. Convenient!
  • The master bedroom receives natural light from a large window overlooking the backyard. A large bathroom with separate bath and shower and a double vanity as well as a linen closet complete this area of the house.
  • A secondary bedroom is located on the front of the house allowing it to be easily converted into a home office or gym, for example.
  • A laundry area is provided in the unfinished basement.
  • DELIVERY NOTE: Please allow 12 business days for delivery of your plans.

Floor Plans

  • Main Level

  • Optional Lower Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,368 sq. ft.
  • Lower Level: 340 sq. ft.
  • 1st Floor: 2,028 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 2

Foundation Type

    • Standard Foundations: Basement
    • Optional Foundations: Slab, Crawl, Walkout, Daylight

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 52' 0"
  • Depth: 46' 0"
  • Max ridge height: 18' 0"

Roof

  • Framing Type: Truss
