Plan 86228HH
Two Kitchens and Two Family Rooms
Heated S.F.
3,128
Beds
4
Baths
4.5
Stories
2
Cars
3
Floor Plan

Plan 86228HH

Lower Level
slide image 0
Main Level
slide image 1
2nd Floor
slide image 2

Plan 86228HH

1-800-854-7852

1-262-521-4596

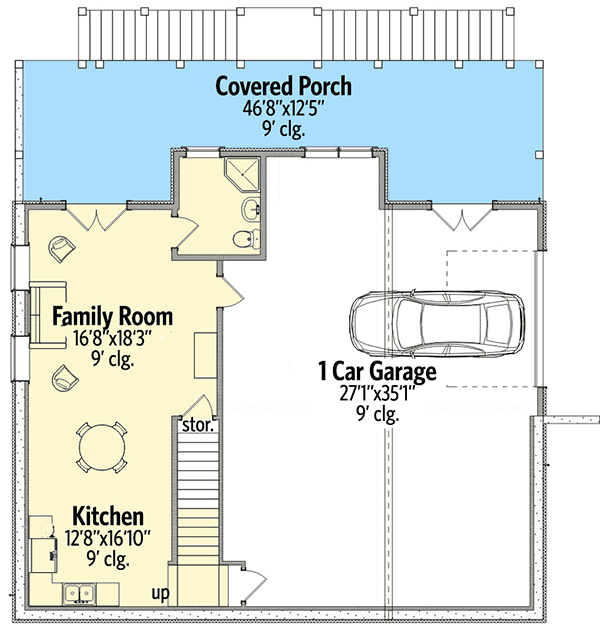

Lower Level
floor plan image Lower Level

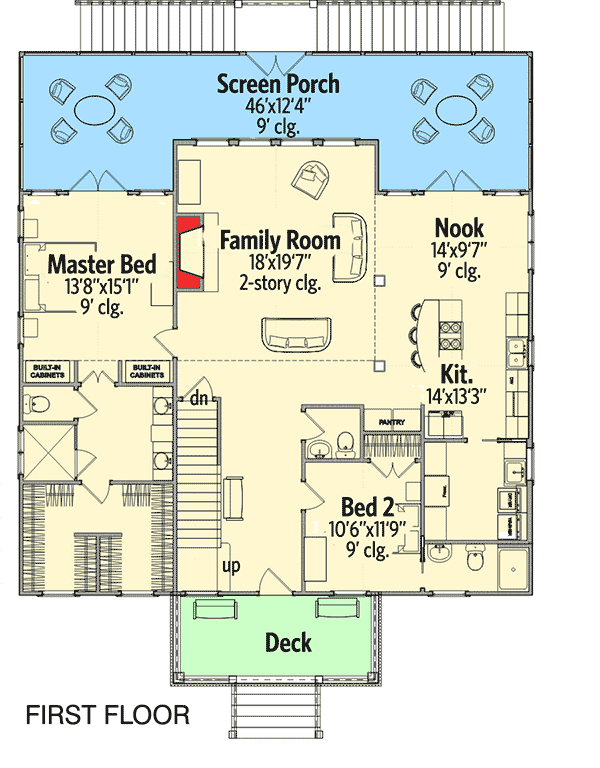

Main Level
floor plan image Main Level

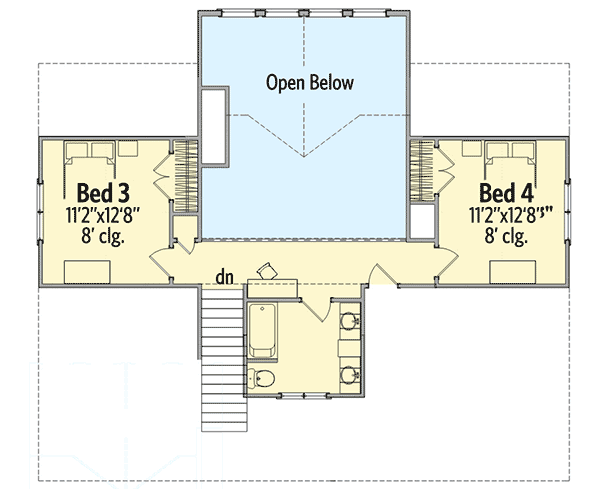

2nd Floor
floor plan image 2nd Floor
Plan Details
  • This vacation home plan doubles down on kitchens and family rooms giving you two of each - one set each on the ground floor and main floor.
  • On the main living level, a giant open living area gives you sweeping views unblocked by walls.
  • Two columns are used to separate the kitchen from the family room creating a very open feel. The family room has a 2-story ceiling with an overlook from the second floor.
  • The master bedroom has access to the screened porch and a huge walk-in closet divided into his and her sections.
  • A second bedroom on this floor is joined by two others on the upper level.
  • Related Plans: Eliminate the parking and finished areas on the lower level with house plans 86227HH and 86336HH (with full wraparound porch).
What's Included
  • Cover Sheet
  • Foundation plans
  • Elevations - complete with dimensions, ridge heights and special notes
  • Floor Plans - complete with dimensions of all elements including plumbing, appliances and cabinet sizes
  • Roof Plan - complete with dimensions, plate heights, roof pitches and notes for special conditions
  • Rafter Plan
  • Details
  • Interior Elevations - include applicable cabinetry, electrical and special construction notes
  • Floor Joist Plan - complete with spans, sizes and direction (if applicable)
  • Ceiling Joist - complete with spans, sizes and direction
  • Sections - complete with dimensions, notes and specifications
  • Electrical plan - complete wit layout, light fixtures, outlets and legend
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.

Square Footage Breakdown

Total Heated Area

3,128 sq. ft.

Lower Level

762 sq. ft.

1st Floor

1,802 sq. ft.

2nd Floor

564 sq. ft.

Porch, Combined

1,152 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

4

Half bathrooms

1

Foundation Type

Standard Foundations

Daylight

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

46' 8"

Depth

57' 5"

Max Ridge Height

25' 7"

Garage

Type

Drive Under

Area

1084 sq. ft.

Count

3 Cars

Entry Location

Side

Ceiling Heights

Lower Level

9'

First Floor

9'

Roof Details

Primary Pitch

8 on 12

Framing Type

Stick

Architectural Style

Coastal

Lake House

Mountain

Vacation

Special Features

Master Suite - 1st Floor

Two Story Great Room

Wrap Around Porch

Plan Collections

Lake House Plans
