Two Screened Porches and a Deck

Plan 86227HH

2,327
Heated s.f.
4
Beds
3.5
Baths
2
Stories

This elevated home plan is great for a beach or high water area. The ground floor gives you storage and a way to get to the main living floor in addition to the stairs leading to the decks in front and back.
A giant open living area gives you sweeping views unblocked by walls.
Two columns are used to separate the kitchen from the family room creating a very open feel. The family room has a 2-story ceiling with an overlook from the second floor.
The master bedroom has access to one of the two screened porches. Note the huge walk-in closet divided into his and her sections.
A second bedroom on this floor is joined by two others on the upper level.
There's a screened porch off the breakfast nook and another one off the master suite with a covered porch conecting them. When you want to enjoy the full-on sunshine, a huge deck extends across the entire back of the home.
Related Plans: Get parking on the ground floor and a second kitchen and family room with house plan 86228HH and get a full wraparound porch with house plan 86336HH.

Cover Sheet

Foundation plans

Elevations - complete with dimensions, ridge heights and special notes

Floor Plans - complete with dimensions of all elements including plumbing, appliances and cabinet sizes

Roof Plan - complete with dimensions, plate heights, roof pitches and notes for special conditions

Rafter Plan

Details

Interior Elevations - include applicable cabinetry, electrical and special construction notes

Floor Joist Plan - complete with spans, sizes and direction (if applicable)

Ceiling Joist - complete with spans, sizes and direction

Sections - complete with dimensions, notes and specifications

Electrical plan - complete wit layout, light fixtures, outlets and legend

Floor Plan

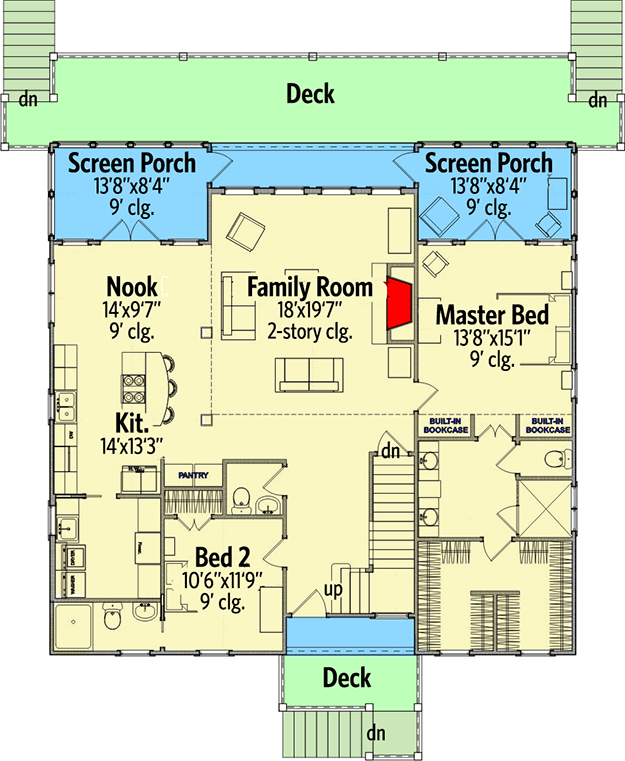

Main Level

Reverse Floor Plan

NOTE:

If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

Two Screened Porches and a Deck - 86227HH floor plan - Main Level

2nd Floor

Reverse Floor Plan

NOTE:

If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

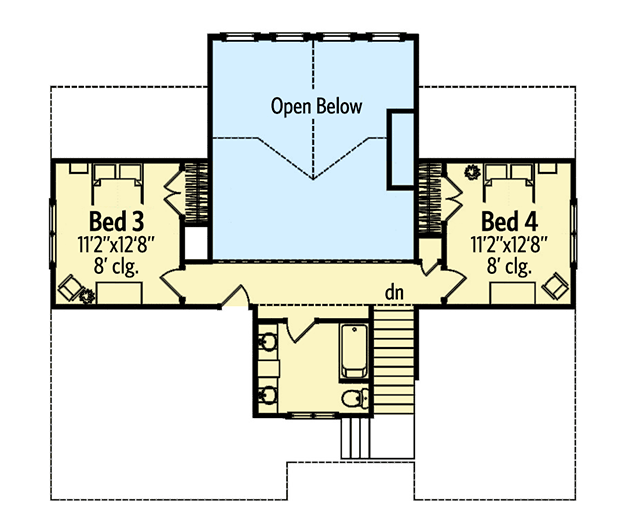

Two Screened Porches and a Deck - 86227HH floor plan - 2nd Floor

Lower Level

Reverse Floor Plan

NOTE:

If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

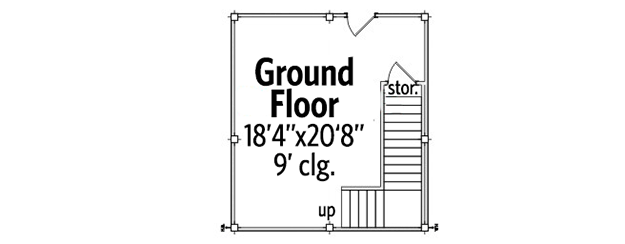

Two Screened Porches and a Deck - 86227HH floor plan - Lower Level

Plan details

Square Footage Breakdown

Total Heated Area: 2,327 sq. ft.
1st Floor: 1,764 sq. ft.
2nd Floor: 563 sq. ft.

Screened Porch: 230 sq. ft.
Porch, Combined: 125 sq. ft.
Bonus: 412 sq. ft.

Beds/Baths

Bedrooms: 4

Full bathrooms: 3
Half bathrooms: 1

Foundation Type

Standard Foundations: Crawl, Pier

Need A Different Foundation? Request A Modification Quote

Exterior Walls

Standard Type(s): 2x4

Dimensions

Width: 46' 8"
Depth: 45' 5"
Max ridge height: 25' 3"

Ceiling Heights

Floor / Height: First Floor / 9' 0"

Roof Details

Primary Pitch: 8 on 12

Framing Type: Stick

Architectural Style
