Two Living Spaces

Plan 82058KA

  • 2,296

    HEATED S.F.

  • 4

    BEDS

  • 3

    BATHS

  • 1

    FLOORS

  • 2

    CAR GARAGE

About this Plan

  • This spacious Florida home plan has two main living spaces, one formal and one informal for your family to relax in.
  • Each one has an open layout that expands each area.
  • Entertain friends in the front formal living and dining room while the kids play in back.
  • Sliding glass doors in back open to the rear covered porch where you can grill up a storm or just read a book outside in the fresh air.
  • All the bedrooms are grouped on the right side of the home with the large master suite off by itself.
  • Bedroom 2 has a private bathroom.
  • Related Plan: See house plan 82057KA for a different exterior.

See What's Included in this Plan...

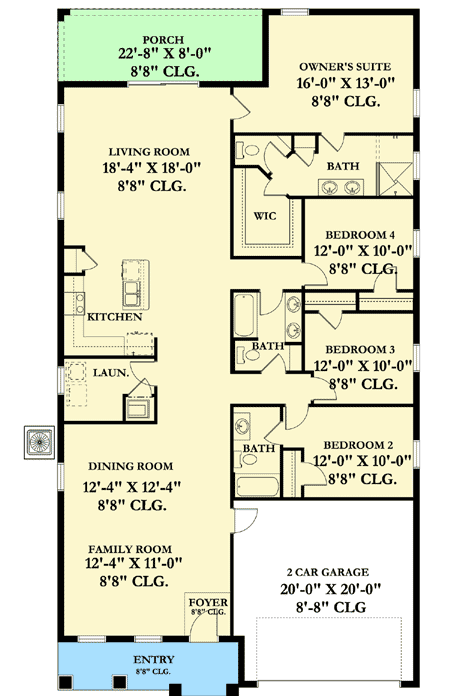

Floor Plan

Plan details

Square Footage Breakdown

  • Total Heated Area: 2,296 sq. ft.
  • 1st Floor: 2,296 sq. ft.
  • Porch, Rear: 181 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3

Dimensions

  • Width: 40' 0"
  • Depth: 76' 0"
  • Max ridge height: 17' 6"

Garage

  • Type: Attached
  • Area: 422 sq. ft.
  • Details: 2 Cars

Foundation Type

  • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): Block

Ceiling Heights

  • Floor / Height: First Floor / 8' 8"

Roof

  • Primary Pitch: 5 on 12
  • Framing Type: Truss

Architectural Style
