Plan 80687PM
Two Sided Fireplace Delight
Heated S.F.
3,786
Beds
4
Baths
2.5
Stories
1
Cars
2
What's Included
Plan Details
  • Step in from the covered entry and enjoy unobstructed views over 50 feet to the back of this one story house plan.
  • The main portion is with the exception of an eye-pleasing 2-sided fireplace separating the living room from the dining area and kitchen.
  • The cook will enjoy the company of those seated at the lunch counter as well as the easy access to the spacious screened porch in back.
  • A den is open to the dining area and gets great light from a set of three windows on the back wall.
  • Laundry is centrally located for convenience to all.
  • Note the private open deck off the master bedroom.
What's Included
Please note this plan is designed to the National Building Code of Canada.

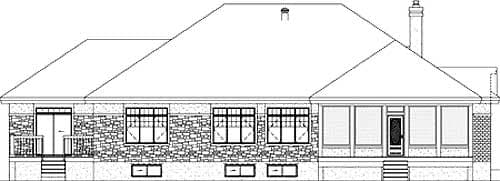

  • Exterior Elevations – Four detailed exterior elevations views showing the final appearance of each side of the house.
  • Foundation Plans – Different isometric views with dimensions as well as relevant information to build the foundation.
  • Floor Plans – A drawing of each floor of the house. They are fully dimensioned showing the size of rooms and the location and size of windows, doors and staircases.
  • Cross-Section View – Vertical section of the house showing the structure, insulation, typical wall configuration as well as other details
  • The plans include the 4 elevations views, foundation plans, floor plans, cross section, staircase section, materials specifications and various construction details which aid in the house's construction.
  • The plan views, cross sections and front elevations are drawn to the scale of 1/4" = 1'-0"; the side and rear elevations are 1/8" = 1'-0" and some details are 1/2" = 1'-0".
  • Lintel, beam, post, footing sizes, etc. are calculated (may require local architect/ engineer stamp) and the plans are available in metric.

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Two Sided Fireplace Delight

  • 3,786

    Heated s.f.

  • 4

    Beds

  • 2.5

    Baths

  • 1

    Floors

  • 2

    Car garage

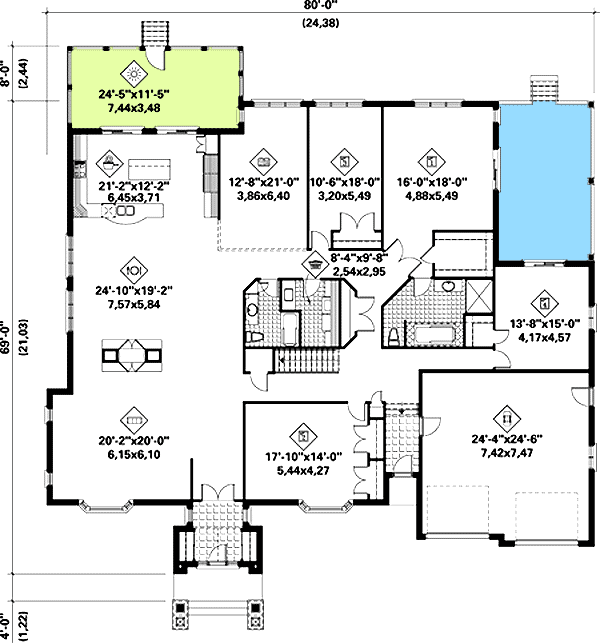

Floor Plan

  • Main Level

Plan Details

Square Footage Breakdown

  • Total: 3,786 sq. ft.
  • 1st Floor: 3,786 sq. ft.

Dimensions

  • Width: 80' 0"
  • Depth: 69' 0"
  • Max ridge height: 27' 6"

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 2
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 634 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x6
All house plans are copyright ©2024 by the architects and designers represented on our web site

Two Sided Fireplace Delight

  • 3,786

    Heated s.f.

  • 4

    Beds

  • 2.5

    Baths

  • 1

    Floors

  • 2

    Car garage

Two Sided Fireplace Delight

  • 3,786

    Heated s.f.

  • 4

    Beds

  • 2.5

    Baths

  • 1

    Floors

  • 2

    Car garage

Plan Details

Square Footage Breakdown

  • Total: 3,786 sq. ft.
  • 1st Floor: 3,786 sq. ft.

Dimensions

  • Width: 80' 0"
  • Depth: 69' 0"
  • Max ridge height: 27' 6"

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 2
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 634 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x6
