Plan 720114DA

Two-Story 2-Bed Craftsman Duplex House Plan with Each Unit Under 900 sq Ft

Heated S.F.
1,720
Units
2
Width
Depth

Floor Plan

Plan 720114DA

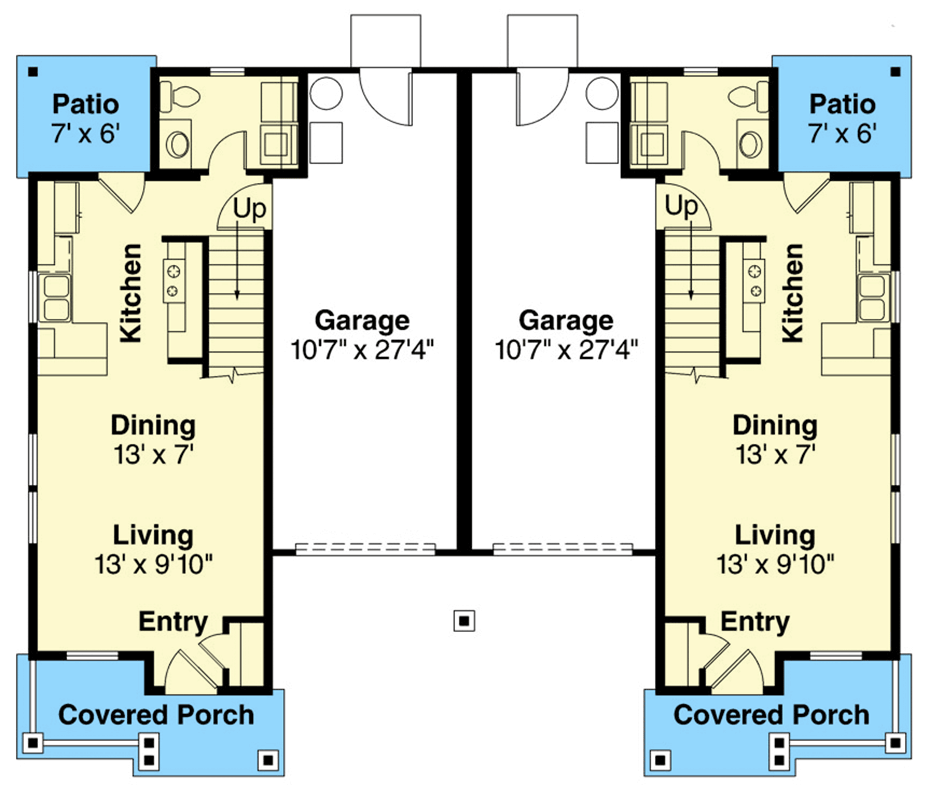

Main Level
Main Level

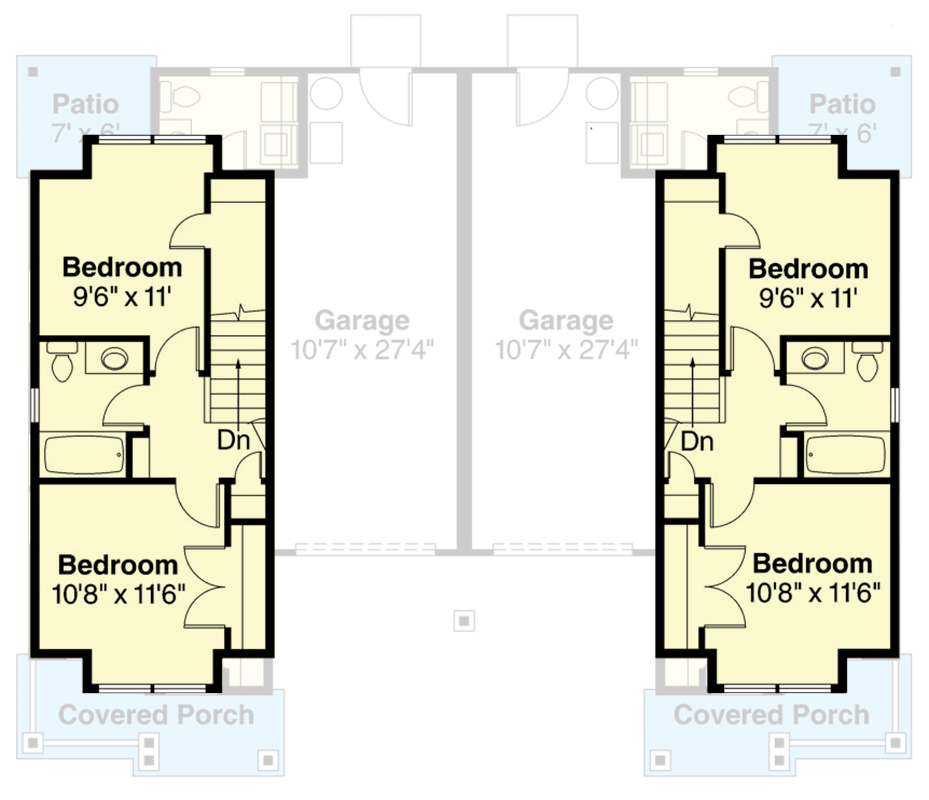

2nd Floor
2nd Floor

Plan 720114DA

M-F 9am-5pm EST |

1-203-761-8500

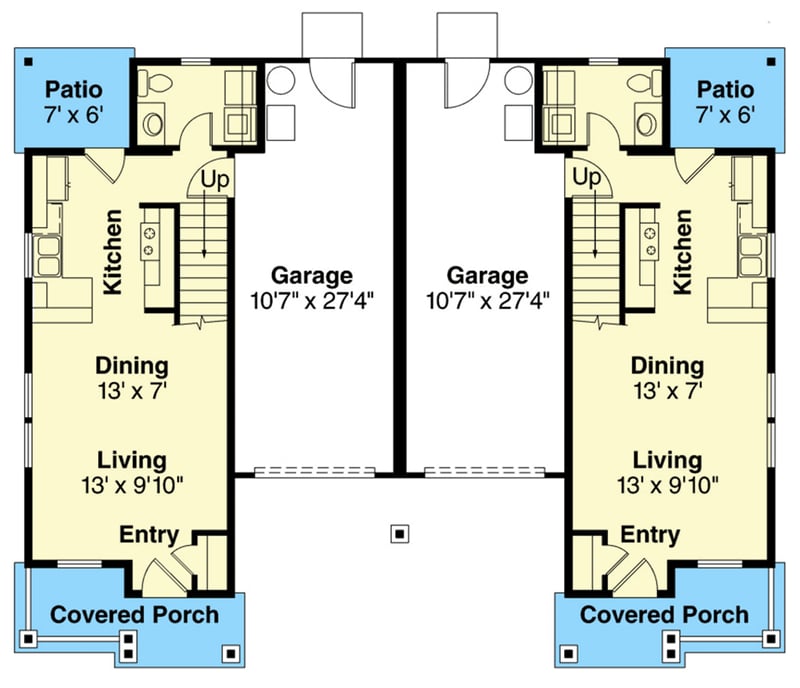

Main Level

Plan 720114DA: Two-Story 2-Bed Craftsman Duplex House Plan with Each Unit Under 900 sq Ft - Floor Plan - Main Level - Craftsman, New American, Traditional

2nd Floor

Plan 720114DA: Two-Story 2-Bed Craftsman Duplex House Plan with Each Unit Under 900 sq Ft - Floor Plan - 2nd Floor - Craftsman, New American, Traditional

Plan Details

  • This is a duplex designed to look like two separate Craftsman-style cottages, connected only at the garages for added privacy.
  • Each unit has two bedrooms and two bathrooms, laid out as mirror images. The front features two gables and a covered porch supported by tapered columns, creating a welcoming entry.
  • Inside, the main floor includes an open-concept living room, dining area, and galley kitchen with modern built-ins and a raised eating bar. A combined laundry and powder room adds convenience.
  • The rear includes a private covered patio. Upstairs, both bedrooms are well-lit with large windows, creating a bright and open feel.
  • We curate and add to our design portfolio every day as we work with hundreds of residential building designers and architects to bring you the most diverse and best house plans available.
  • We can modify any house plan you see on our site. Learn more about modifications.
  • Related Plan: Get a larger duplex version with house plan 72322DA (1,030  sq. ft. per unit) and 72897DA (1,045 sq. ft. per unit).
Unit A & B
Heated Area
860Sq. Ft.
922 Sq. Ft. 1st
399 Sq. Ft. 2nd
Beds
2Beds
Baths
1Full Bath
1Half Bath
Cars
Attached
296 Sq. Ft.
Dimensions
25'width
40'depth
Unfinished Areas
296 Sq. Ft. Garage

What's Included

Each plan set is drawn at 1/4"=1' scale and includes the following drawings:
  • Cover Sheet/Artist's Rendering: An artist's drawing of the home, usually viewed from the front, and general construction notes.
  • Elevations: Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.
  • Main Floor Plan: Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.
  • Second Floor Plan (if any): Shows the second floor in the same detail as the main floor. Includes second floor framing and details.
  • Foundation Plan: Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details. Foundation types vary; please call to confirm the foundation type of the plan you are interested in.
  • Roof Framing Plan: Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.
  • Building Section: Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.
  • Electrical Plan: A schematic layout of all lighting, switches, and electrical outlets.

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

1,720 sq. ft.

1st Floor

922 sq. ft.

2nd Floor

798 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

2

Half bathrooms

2

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

50' 0"

Depth

40' 0"

Max Ridge Height

25' 2"

Garage

Type

Attached

Area

296 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

8'

Roof Details

Primary Pitch

6 on 12

Framing Type

Truss

Architectural Style

Craftsman

New American

Traditional

Special Features

Bedrooms - Split

Master Suite - 1st Floor

Master Suite - Upstairs

Square Footage Breakdown

Total Heated Area

1,720 sq. ft.

1st Floor

922 sq. ft.

2nd Floor

798 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

2

Half bathrooms

2

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

50' 0"

Depth

40' 0"

Max Ridge Height

25' 2"

Garage

Type

Attached

Area

296 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

8'

Roof Details

Primary Pitch

6 on 12

Framing Type

Truss

Architectural Style

Craftsman

New American

Traditional

Special Features

Bedrooms - Split

Master Suite - 1st Floor

Master Suite - Upstairs
