Plan 86113BW Two-Story 4750 Square Foot Coastal Contemporary House Plan with Optional Elevator

Two-Story 4750 Square Foot Coastal Contemporary House Plan with Optional Elevator

Plan 86113BW

  • 4,750

    Heated s.f.

  • 5

    Beds

  • 5.5+

    Baths

  • 2

    Stories

  • 3

    Cars

  • This 2-story 4,750 square foot coastal contemporary house plan gives you 5 bedrooms, 5 baths, 2 half baths and a 3- car garage. It is designed with a slab foundation, concrete block exterior walls on both the first and second floors, a metal roof and stucco and 8″ lap siding exterior finish.
  • Main floor amenities include a great room, island kitchen with a walk-in pantry, dining room, study and a dedicated laundry room.
  • The master bedroom suite features two walk-in closets, dual sinks, a shower and a freestanding tub. Upstairs, you'll find a rec room, an in-law suite and 3 additional bedrooms and baths plus a balcony set over the covered entry.
  • The outdoor living space includes a summer kitchen and a ventless fireplace. The pool deck is 763 square feet and the optional sun deck is 322 square feet.

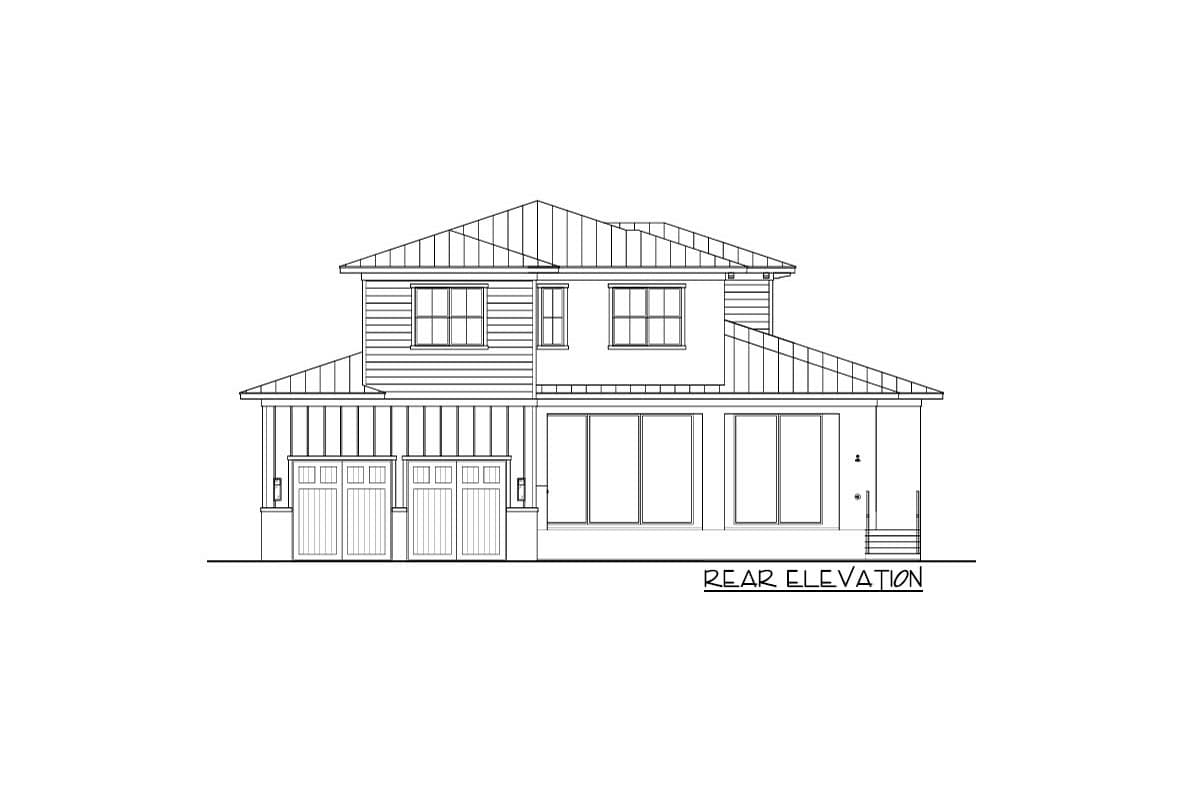

Elevations

Drawn at 1/8″ to 1/4″ = 1’0″ scale and includes:
*Material Labels
*Floor-To-Floor Heights
*Roof Slope Indicators

 Floor Plans

Drawn at 1/8″ to 1/4″ = 1’0″ scale and includes:
*Door and Window Sizes
*Completely Dimensioned Floor Plan
*Room Labels and Interior Room Size



Electrical Layouts

*Building Section Markers
*Electrical Outlets, Fixtures and Switching



Foundation Plan

Drawn at 1/8″ to 1/4″ = 1’0″ scale and includes:
*Floor and Deck Joist Sizes, Spacing and Direction
*Electrical Locations



Roof Plan

Drawn to 1/8″ to 1/4″ = 1’0″ scale and includes:
*All Beam and Header Heights and Locations
*All Hips, Gables, Ridges and Valley
*Building Section Markers



Building Sections

Drawn to 1/8″ to 1/4″ = 1’0″ scale and includes:
*Floor Joist Size and Spacing
*Floor-To-Floor Heights
*Non-Typical Plate Heights Indicated



Typical Wall Sections

Drawn at 1/8″ to 1/4″ = 1’0″ scale and includes:
*All Labels Indicating Wall Construction
*Foundation Wall Thickness and Reinforcing
*Insulation Type and Thickness



Miscellaneous Notes and Details

*Miscellaneous General Notes
*Stairway Details (if applicable)


These items are NOT included:
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

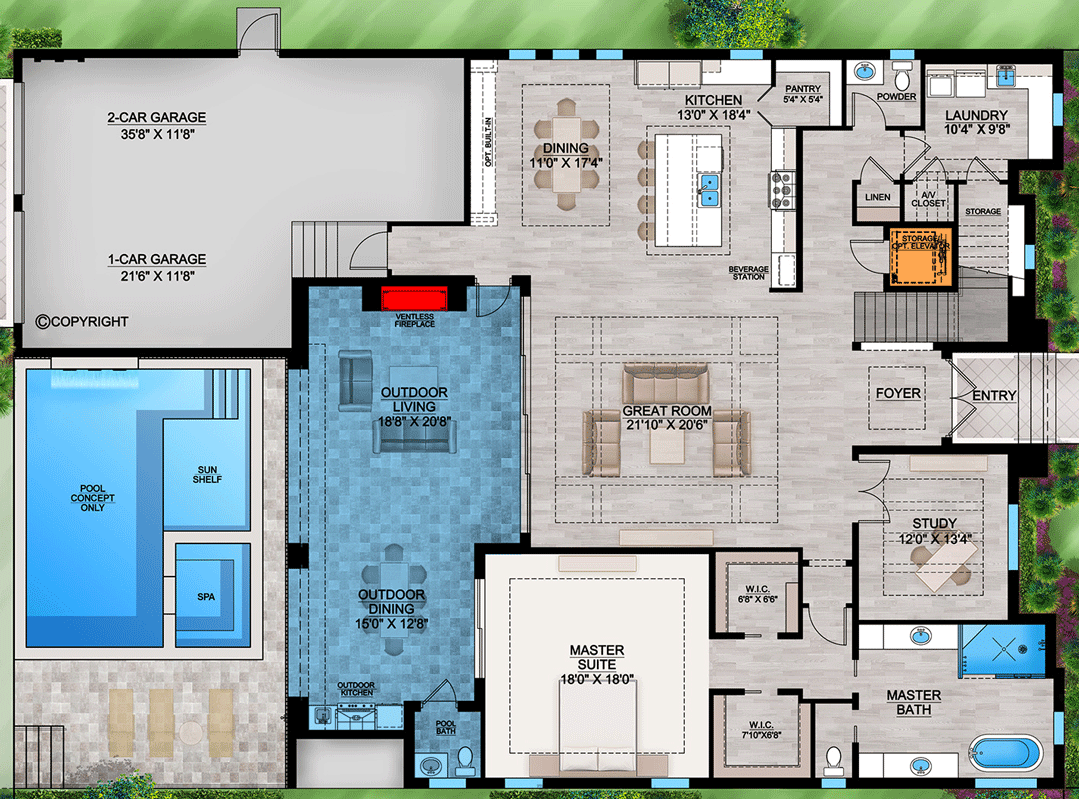

Two-Story 4750 Square Foot Coastal Contemporary House Plan with Optional Elevator - 86113BW floor plan - Main Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

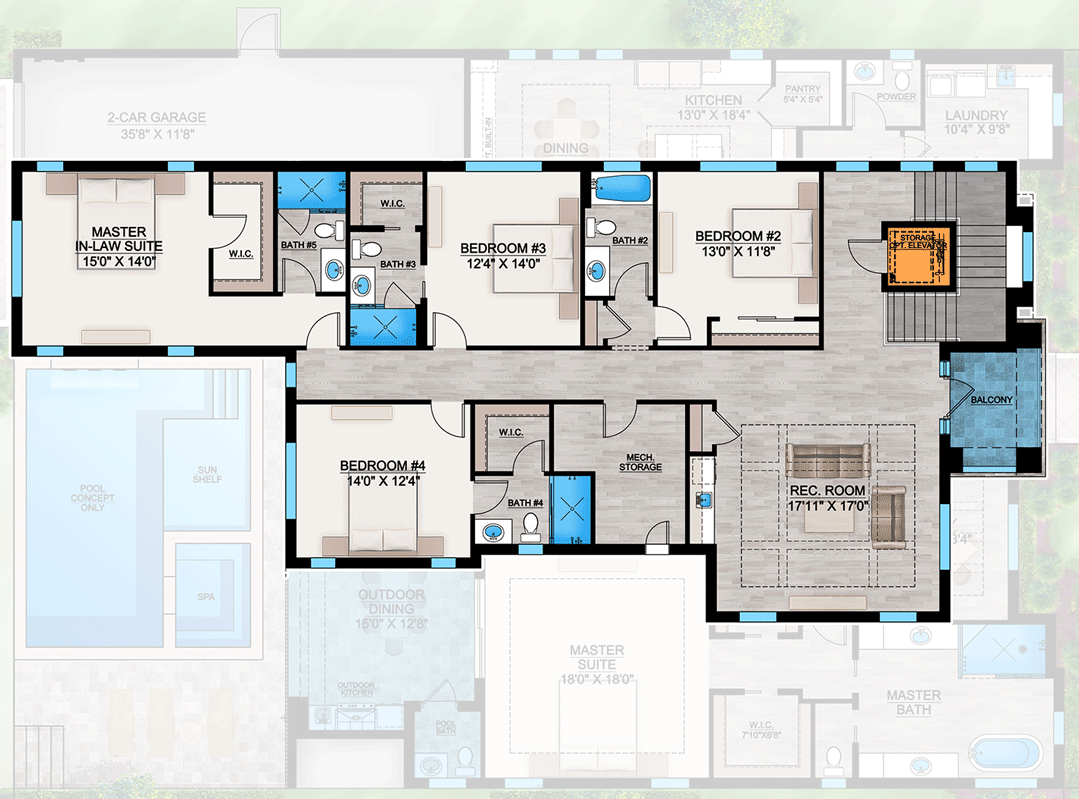

Two-Story 4750 Square Foot Coastal Contemporary House Plan with Optional Elevator - 86113BW floor plan - 2nd Floor

Plan details

Two-Story 4750 Square Foot Coastal Contemporary House Plan with Optional Elevator

  • 4,750

    Heated s.f.

  • 5

    Beds

  • 5.5+

    Baths

  • 2

    Floors

  • 3

    Car garage

Buy This Plan
  • CAD + PDF - Single-Build $4,275
  • PDF - Single-Build $4,275
  • View all purchase option online

About This Plan

  • This 2-story 4,750 square foot coastal contemporary house plan gives you 5 bedrooms, 5 baths, 2 half baths and a 3- car garage. It is designed with a slab foundation, concrete block exterior walls on both the first and second floors, a metal roof and stucco and 8″ lap siding exterior finish.
  • Main floor amenities include a great room, island kitchen with a walk-in pantry, dining room, study and a dedicated laundry room.
  • The master bedroom suite features two walk-in closets, dual sinks, a shower and a freestanding tub. Upstairs, you'll find a rec room, an in-law suite and 3 additional bedrooms and baths plus a balcony set over the covered entry.
  • The outdoor living space includes a summer kitchen and a ventless fireplace. The pool deck is 763 square feet and the optional sun deck is 322 square feet.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 4,750 sq. ft.
  • 1st Floor: 2,659 sq. ft.
  • 2nd Floor: 2,091 sq. ft.
  • Lanai: 598 sq. ft.
  • Balcony / Veranda: 83 sq. ft.
  • Entry: 70 sq. ft.

Beds/Baths

  • Bedrooms: 5
  • Full bathrooms: 5
  • Half bathrooms: 2

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): Block / CMU (main floor)
  • Optional Type(s): 2x6

Dimensions

  • Width: 59' 4"
  • Depth: 84' 4"
  • Max ridge height: 29' 3"

Garage

  • Type: Attached
  • Area: 786 sq. ft.
  • Count: 3 Cars
  • Entry Location: Rear

Ceiling Heights

Roof

  • Primary Pitch: 4 on 12
  • Framing Type: Truss
