Plan 135355GRA

Two-Story Barndominium Plan with Oversized Event Room - 9800 Sq Ft

Heated S.F.
9,800
Beds
2
Baths
2.5+
Stories
2

Floor Plan

Plan 135355GRA

Main Level
Main Level
2nd Floor
2nd Floor

Plan 135355GRA

M-F 9am-5pm EST |

1-203-761-8500

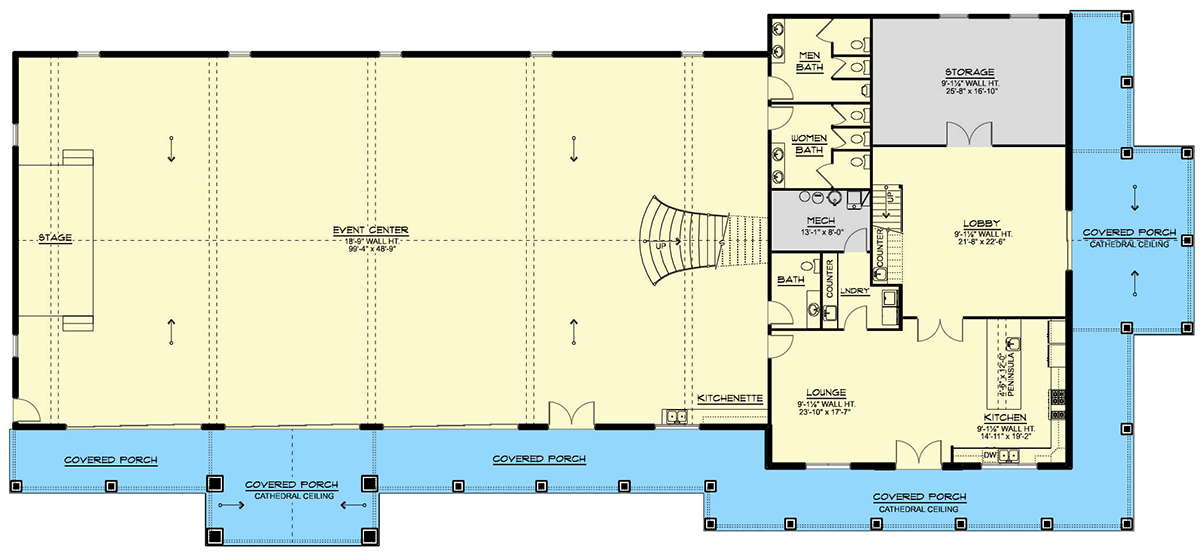

Main Level

Plan 135355GRA: Two-Story Barndominium Plan with Oversized Event Room - 9800 Sq Ft - Floor Plan - Main Level - Barndominium, Mountain

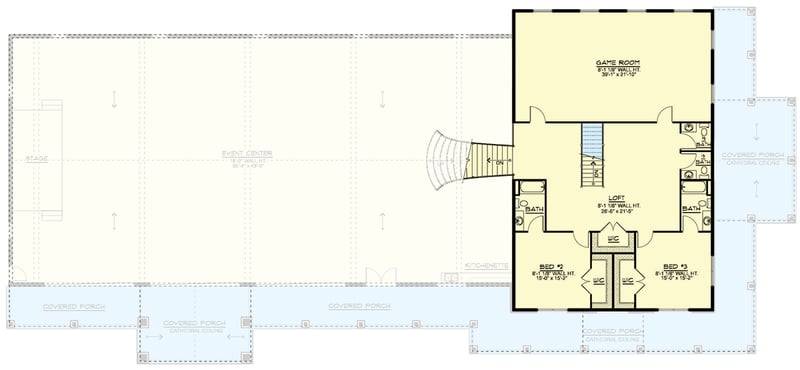

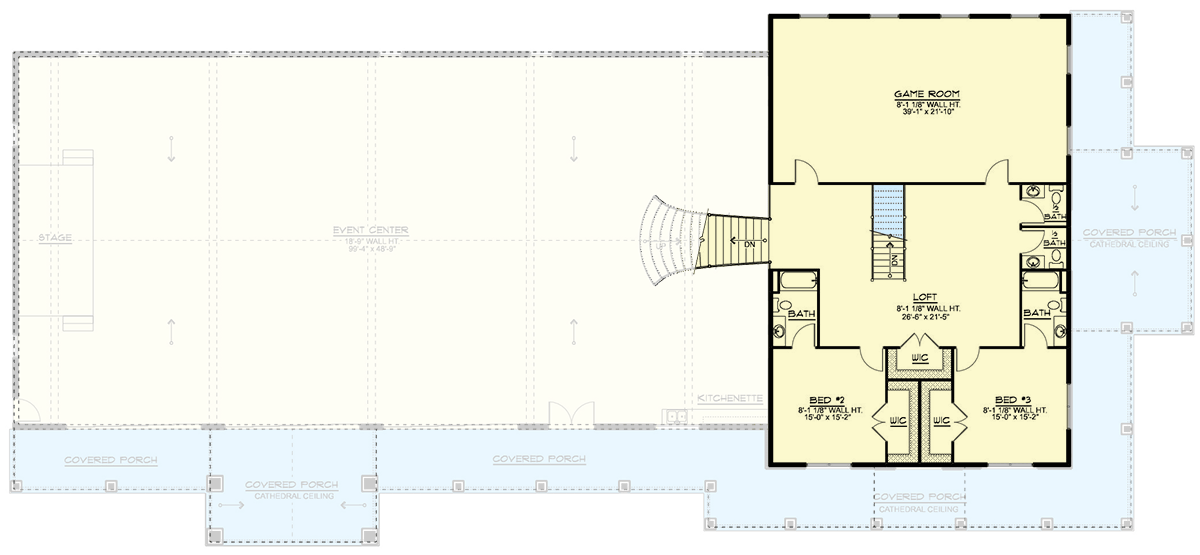

2nd Floor

Plan 135355GRA: Two-Story Barndominium Plan with Oversized Event Room - 9800 Sq Ft - Floor Plan - 2nd Floor - Barndominium, Mountain

Plan Details

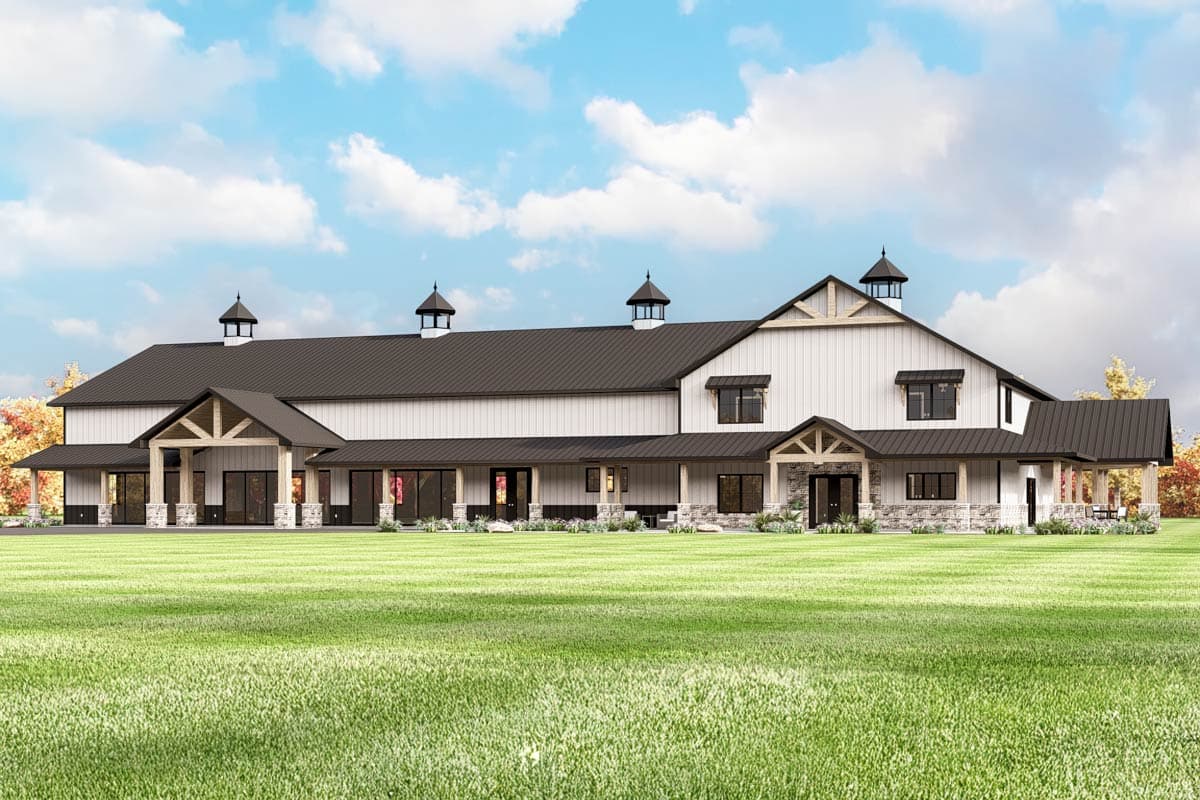

  • This expansive 9,800 sq ft Mountain Barndominium House Plan offers 2 bedrooms, 2 full bathrooms, and 5 half bathrooms, designed for grand gatherings and comfortable living.

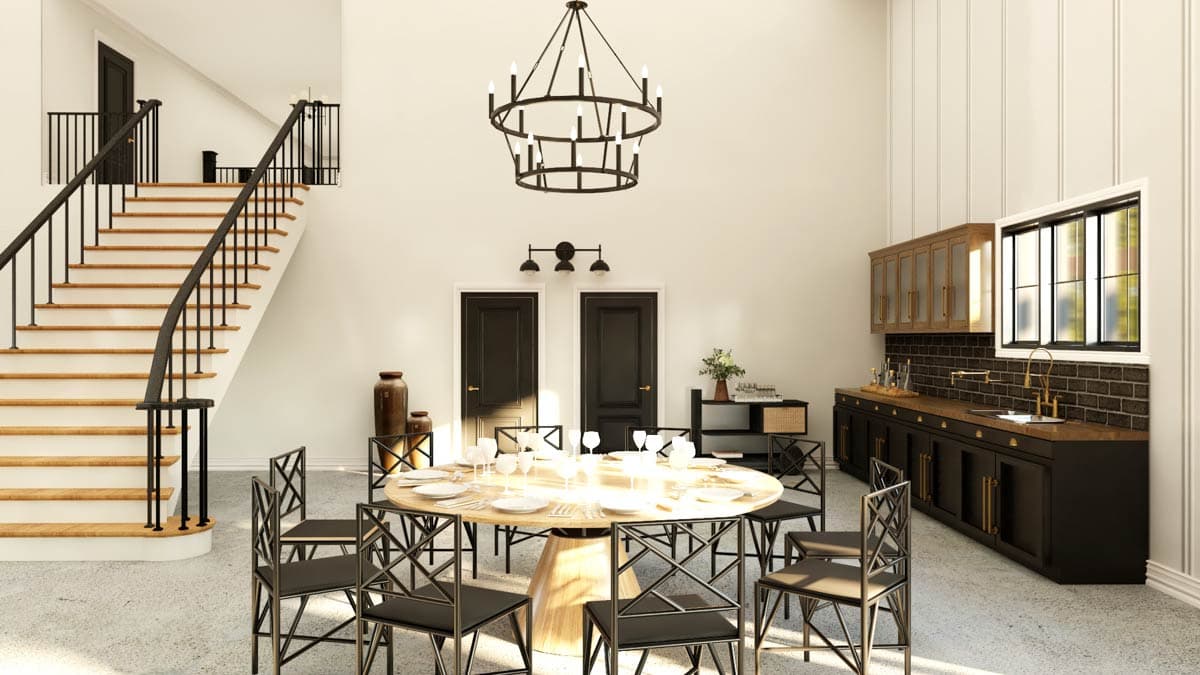

  • Step into a welcoming lobby, thoughtfully designed with a counter for guest services, leading directly into the impressive two-story Event Center, an ideal setting for celebrations and large-scale functions.

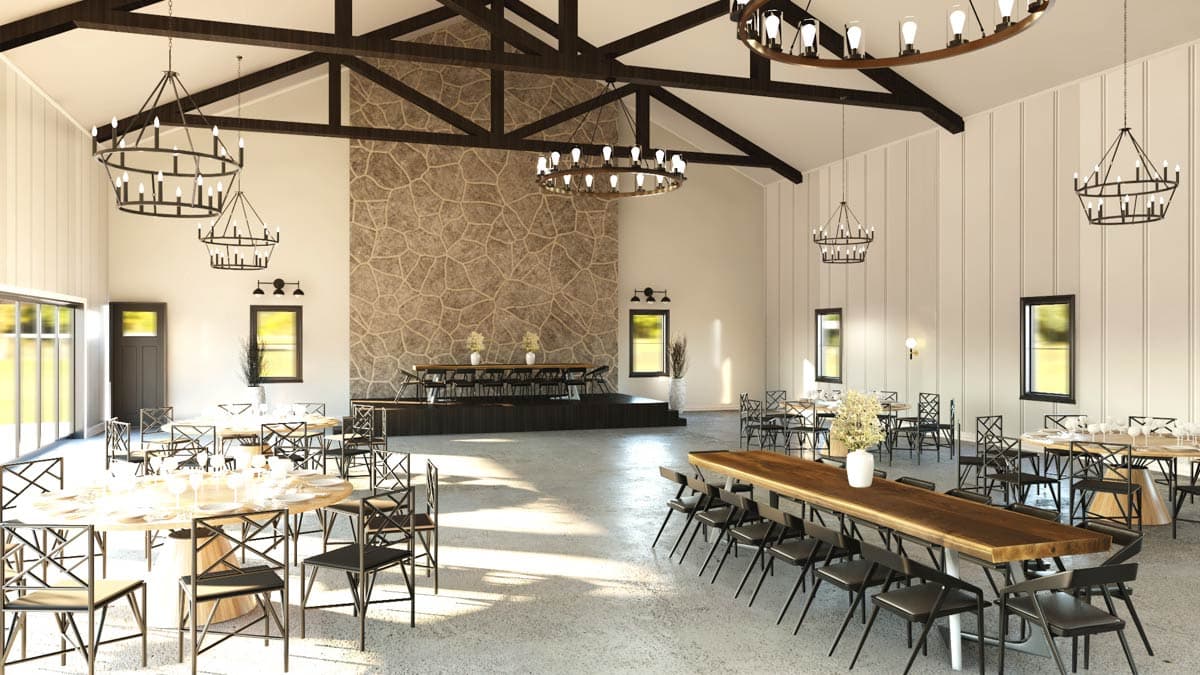

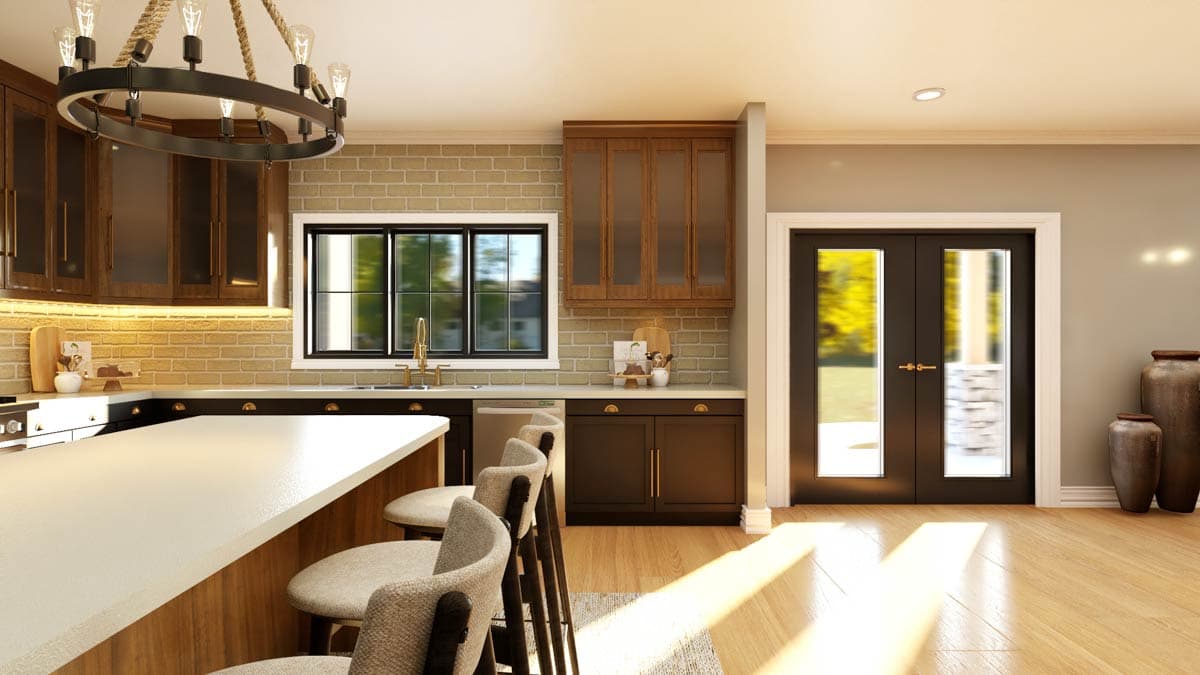

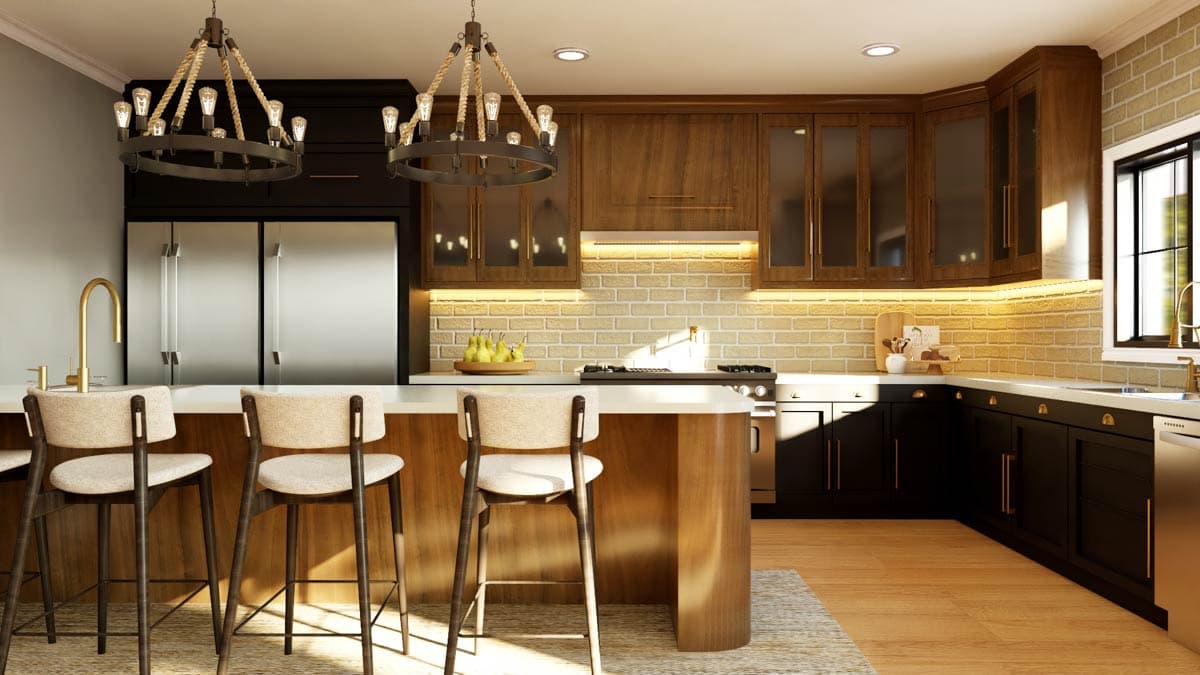

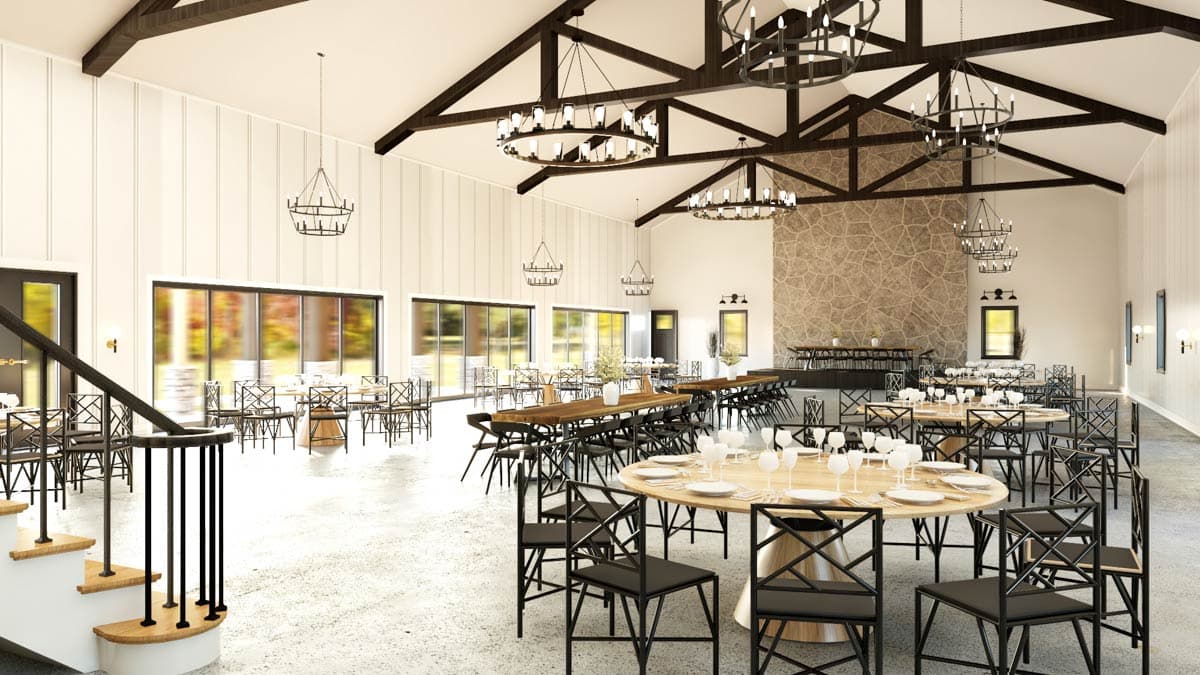

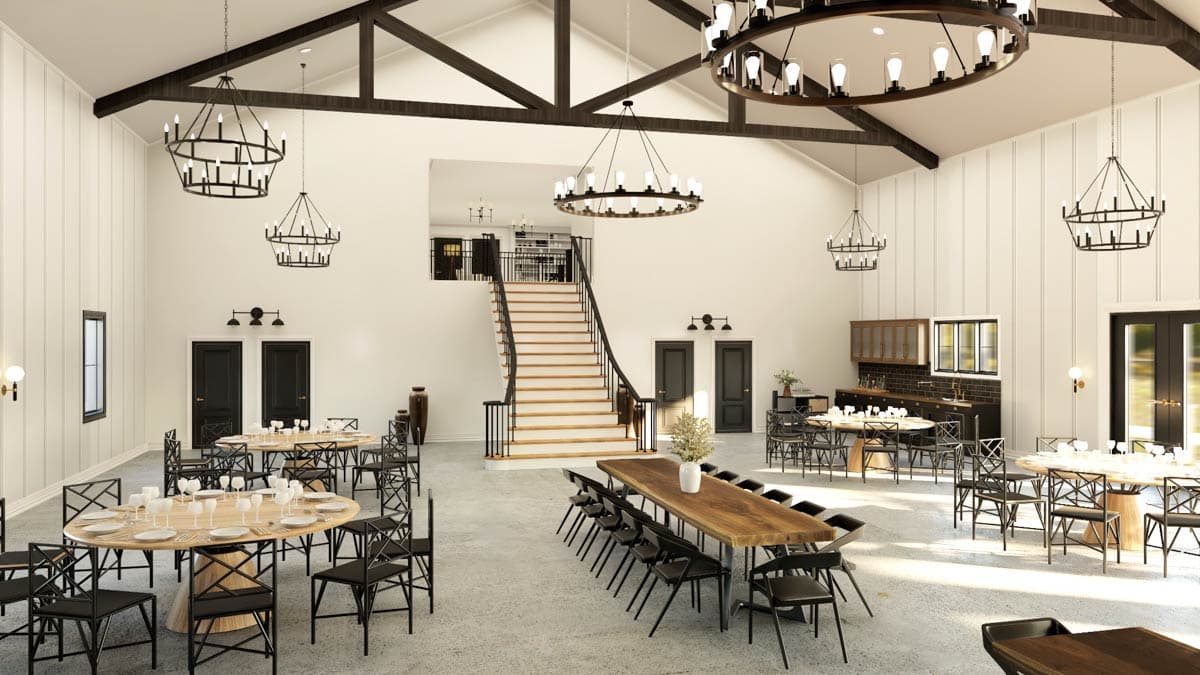

  • The main floor unfolds with a massive Event Center featuring a dedicated stage, complemented by a fully-equipped kitchen, a comfortable lounge area, and convenient public men's and women's restrooms, ensuring seamless flow for any occasion.

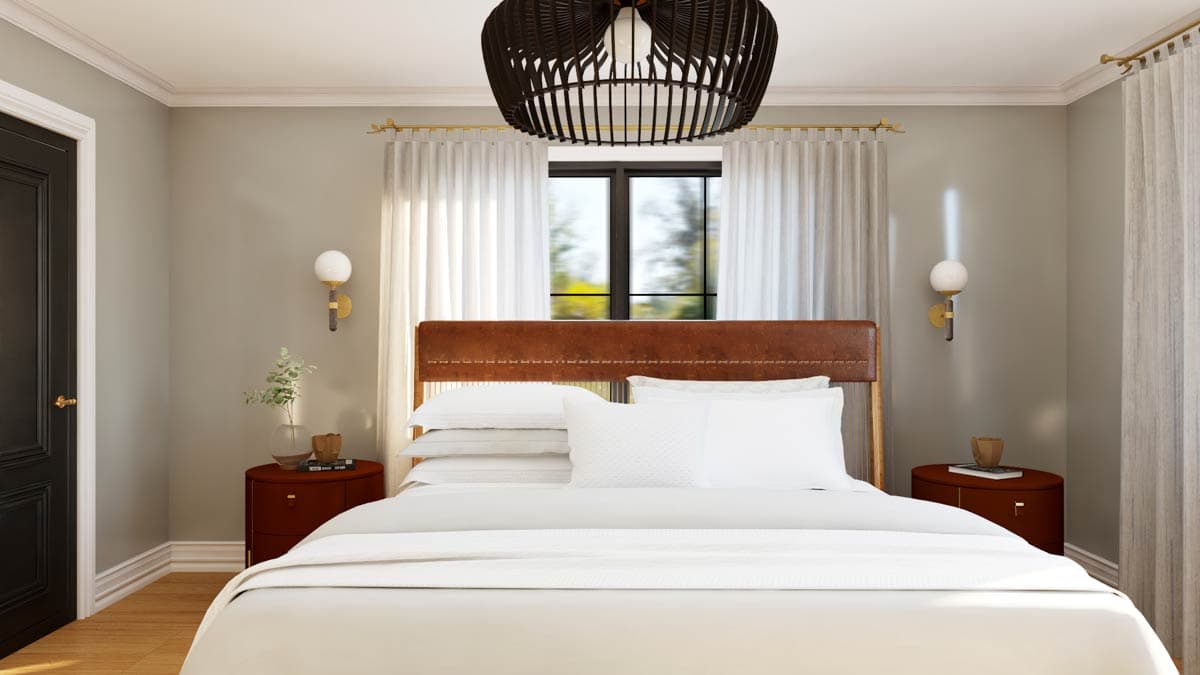

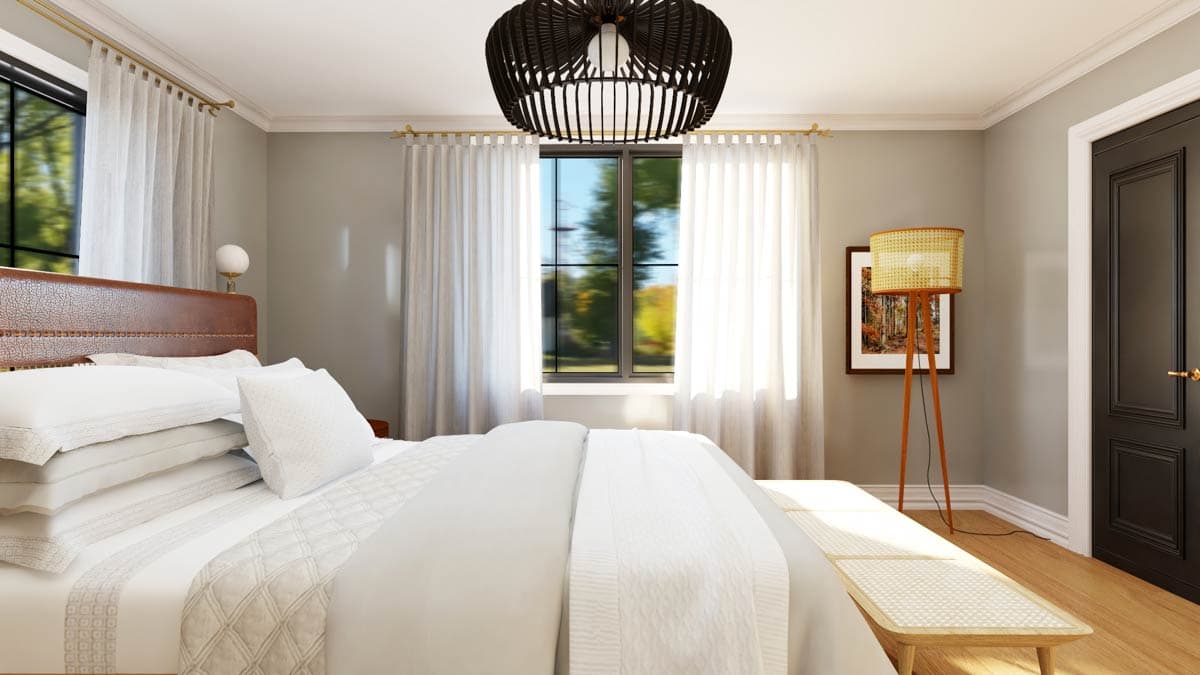

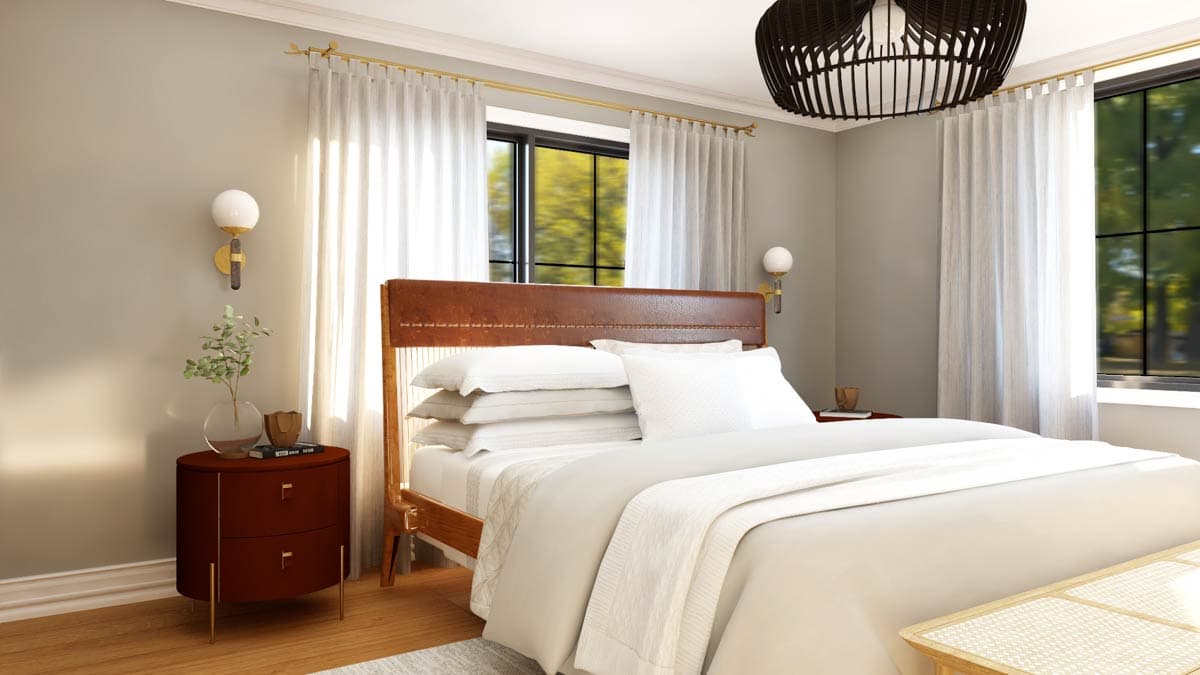

  • Ascend to the second floor where two private bedroom suites await, each boasting a spacious layout, an en-suite full bathroom, and a walk-in closet, providing luxurious comfort and privacy for residents or VIP guests.

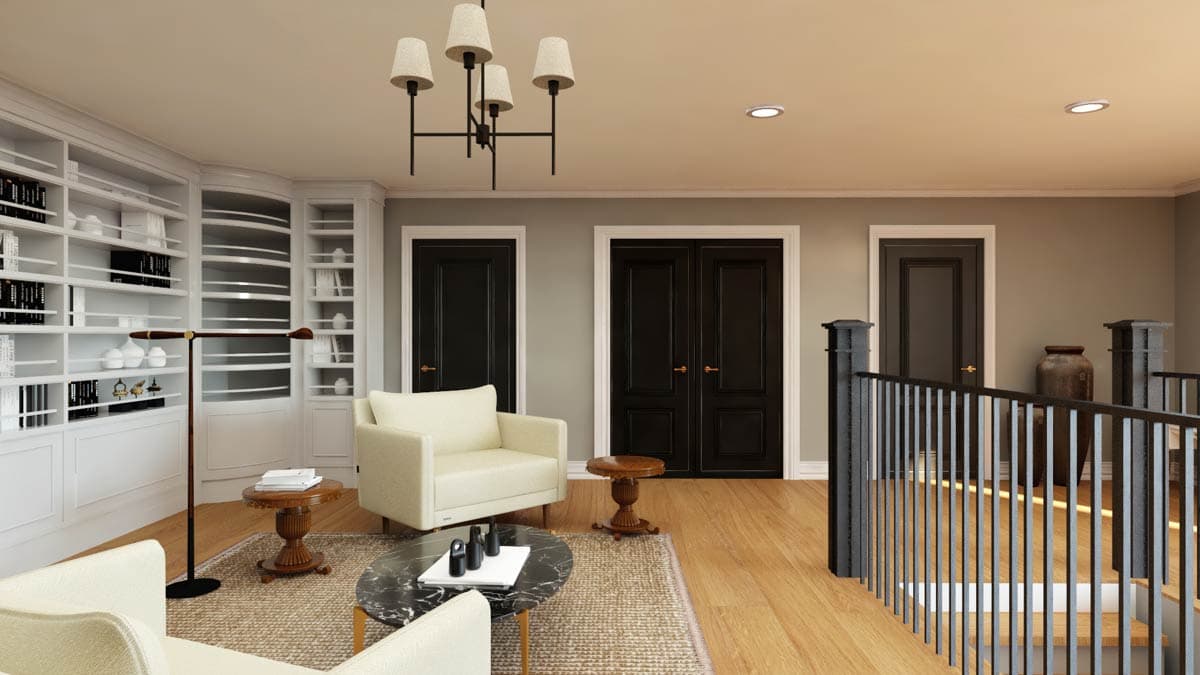

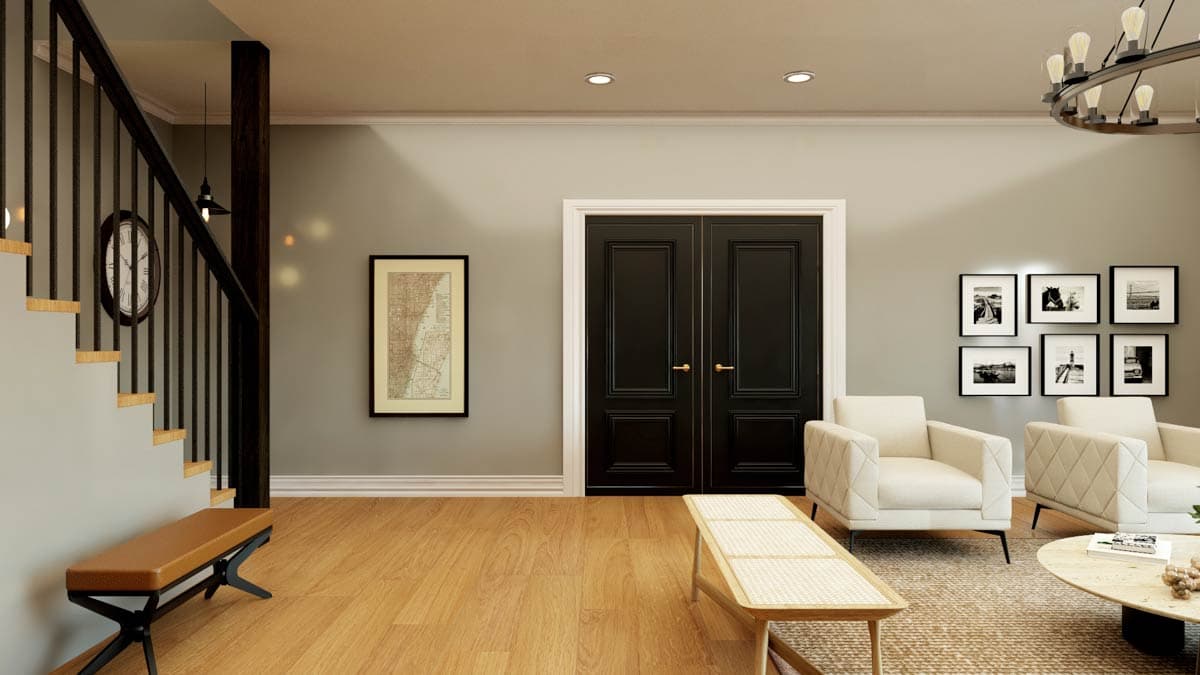

  • Beyond the private suites, the upper level hosts a dedicated Game Room, perfect for recreation and entertainment, alongside a versatile Loft space that can adapt to various needs, from a cozy reading nook to an informal gathering area.

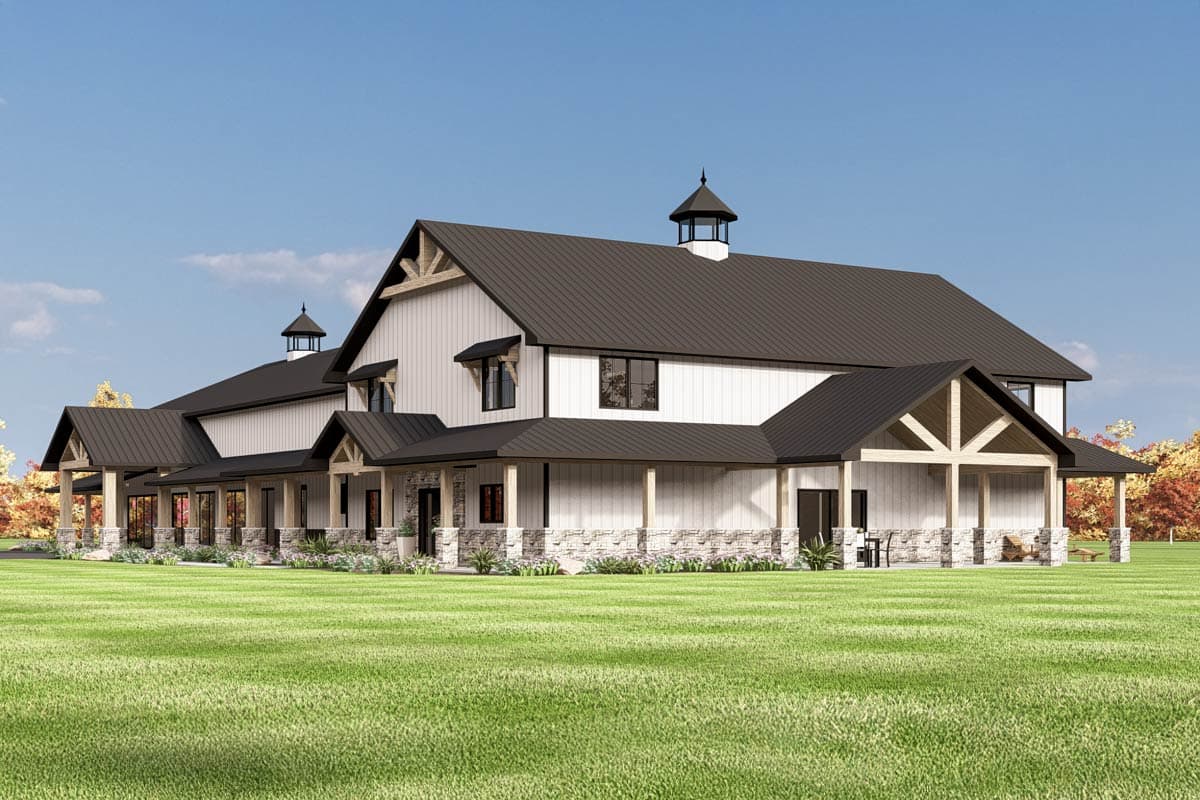

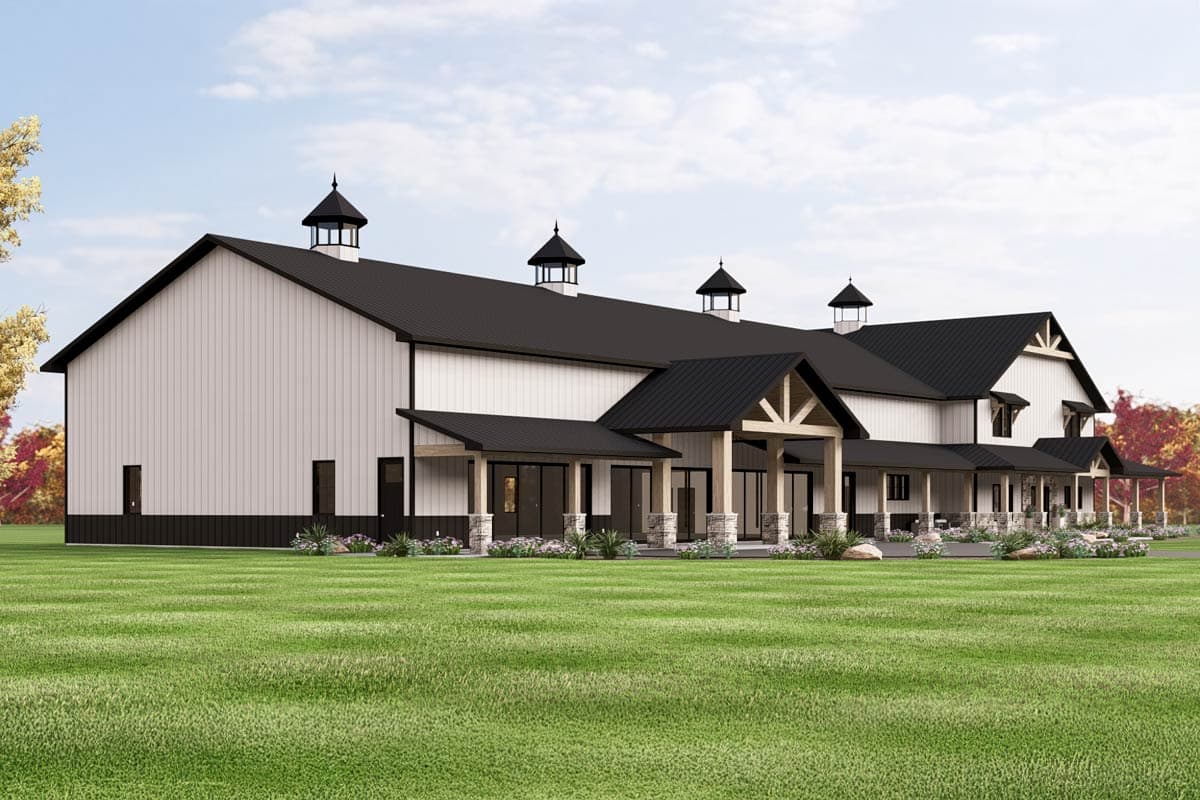

  • Embrace the outdoors with an impressive 2,050 sq ft of combined covered porch space, wrapping around the entire structure, offering abundant opportunities for al fresco dining, quiet morning coffees, or simply enjoying the expansive views.

What's Included

  • Elevations
  • Fully Dimensioned Floor Plans
  • Roof Plan & Sections
  • Foundation plan
  • General Notes
  • Suggested Electrical Layout
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

9,800 sq. ft.

1st Floor

7,400 sq. ft.

2nd Floor

2,400 sq. ft.

Porch, Combined

2,050 sq. ft.

Beds/Baths

Bedrooms

2

Full bathrooms

2

Half bathrooms

5

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

156' 0"

Depth

70' 0"

Max Ridge Height

31' 3"

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

5 on 12

Secondary Pitch

7 on 12

Framing Type

Truss

Architectural Style

Barndominium

Mountain

Special Features

Flex Room

Game/Rec Room

Master Suite - Upstairs

Wraparound Porch
