Plan 135350GRA

Two-Story Carriage House Plan with Upstairs Living - 870 Sq Ft

Heated S.F.
870
Beds
2
Baths
1
Stories
2
Cars
3

Floor Plan

Plan 135350GRA

Main Level
Main Level
2nd Floor
2nd Floor

Plan 135350GRA

M-F 9am-5pm EST |

1-203-761-8500

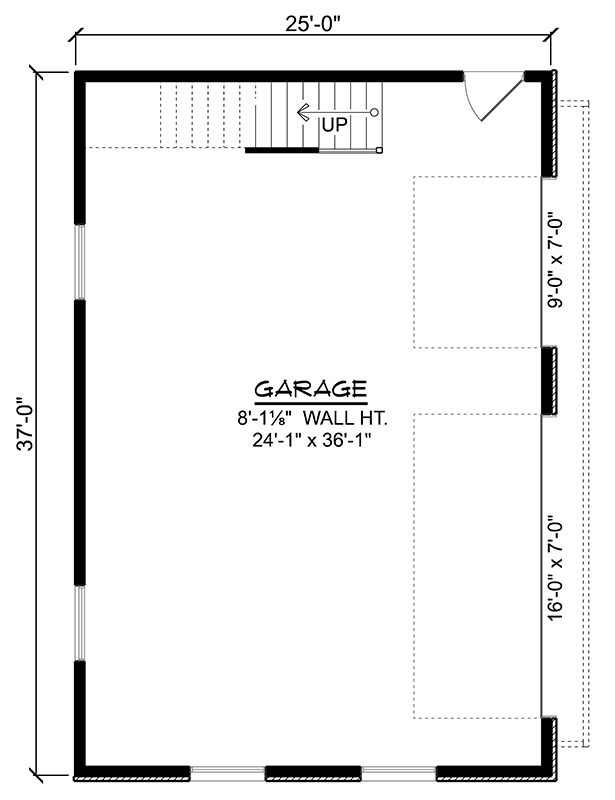

Main Level

Plan 135350GRA: Two-Story Carriage House Plan with Upstairs Living - 870 Sq Ft - Floor Plan - Main Level - Carriage, Mountain

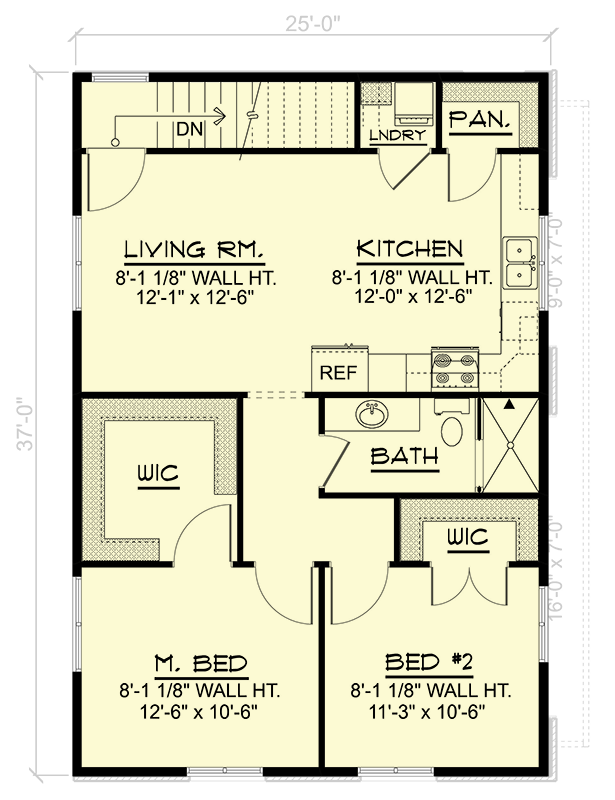

2nd Floor

Plan 135350GRA: Two-Story Carriage House Plan with Upstairs Living - 870 Sq Ft - Floor Plan - 2nd Floor - Carriage, Mountain

Plan Details

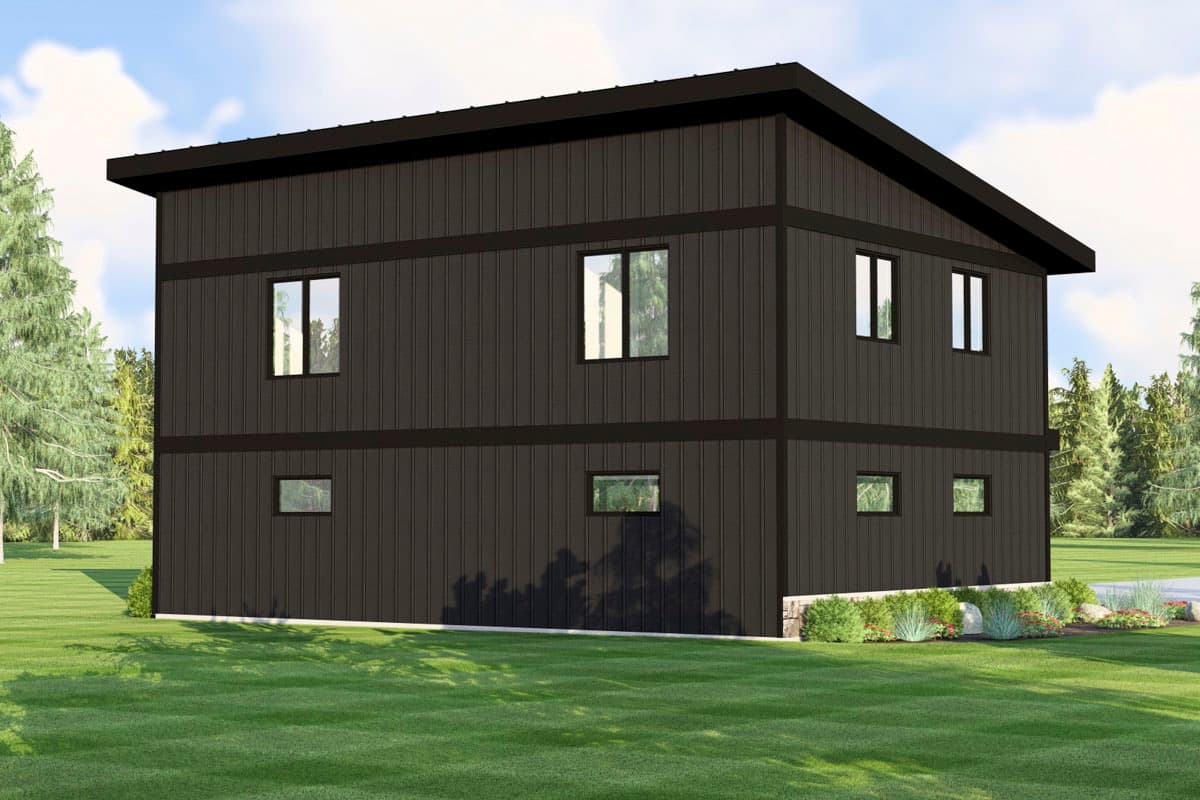

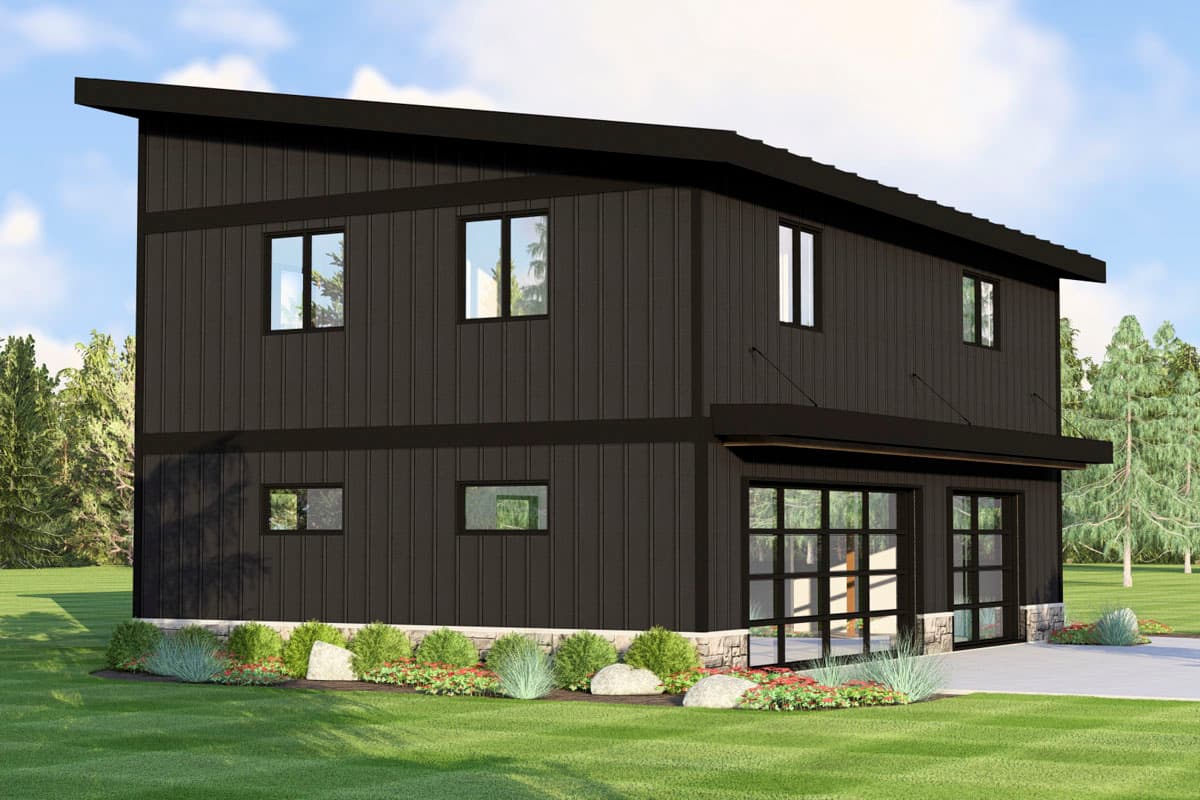

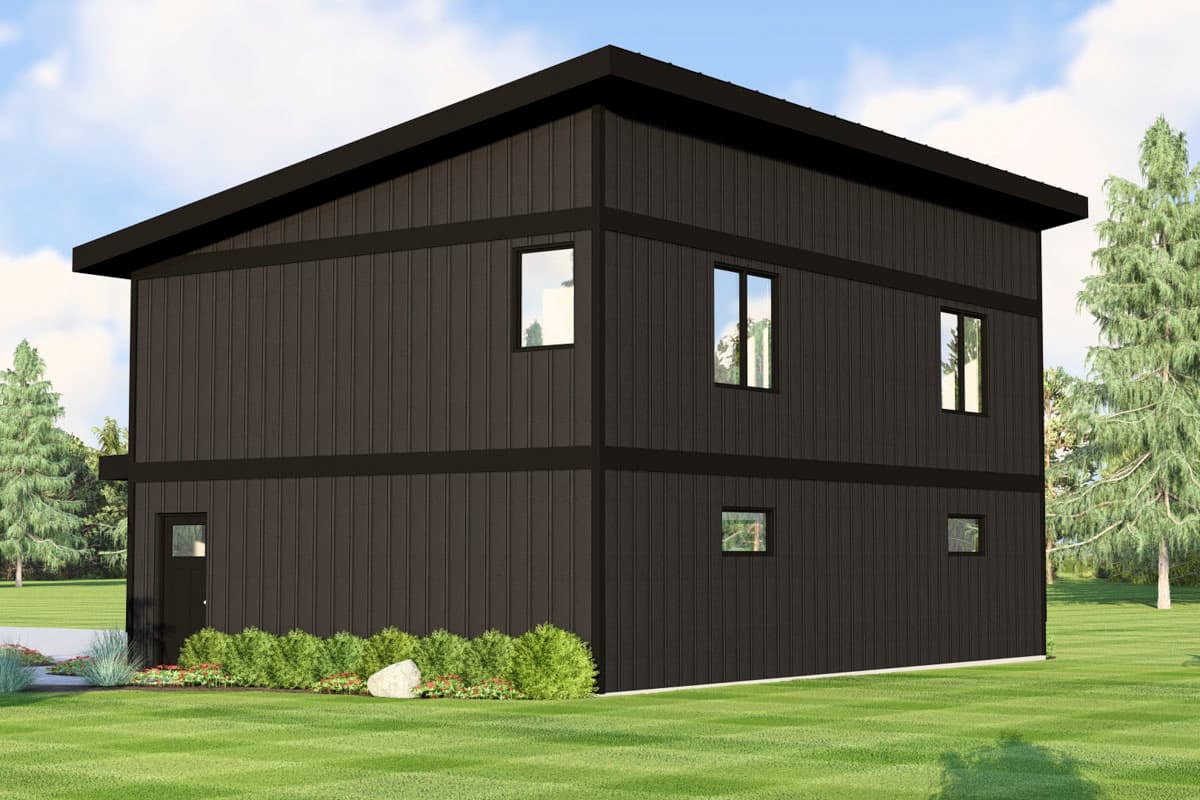

  • This efficient 870 sq. ft. Mountain Carriage House Plan features two bedrooms, one full bathroom, and a generous 925 sq. ft. detached three-car garage, presenting a contemporary take on classic mountain style.

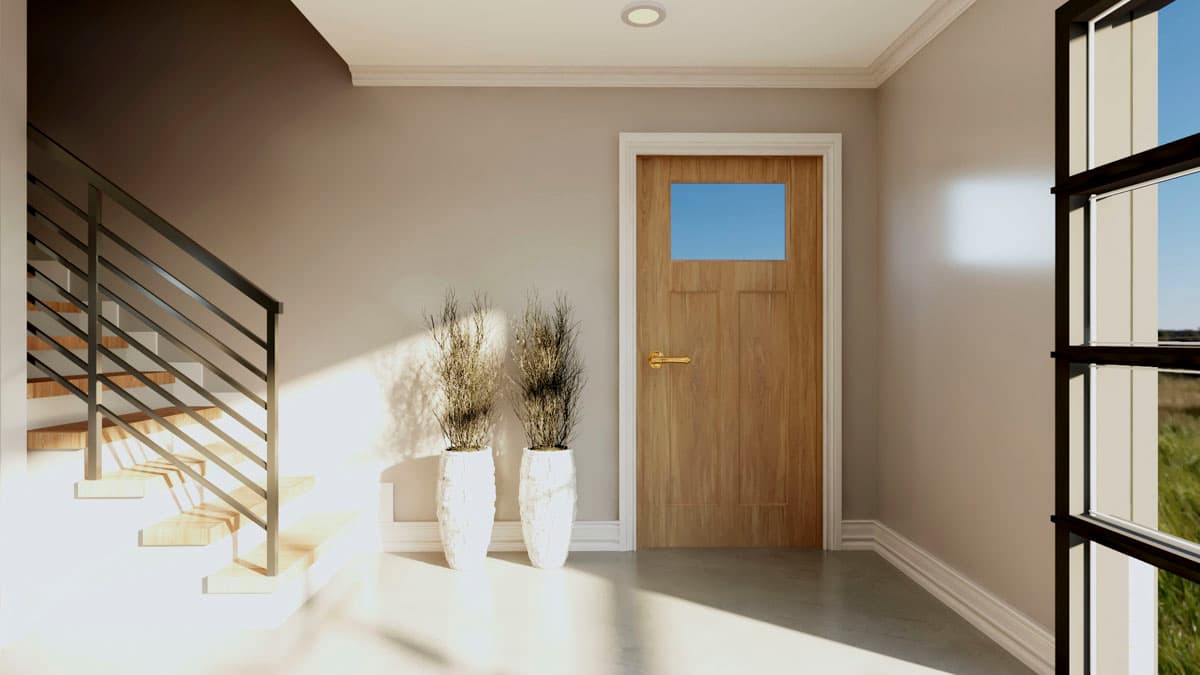

  • Accessed by an internal staircase from the ground-level garage, the main living area welcomes you to a streamlined layout that places the living room, kitchen, and all private quarters on one elevated floor for optimal flow and light.

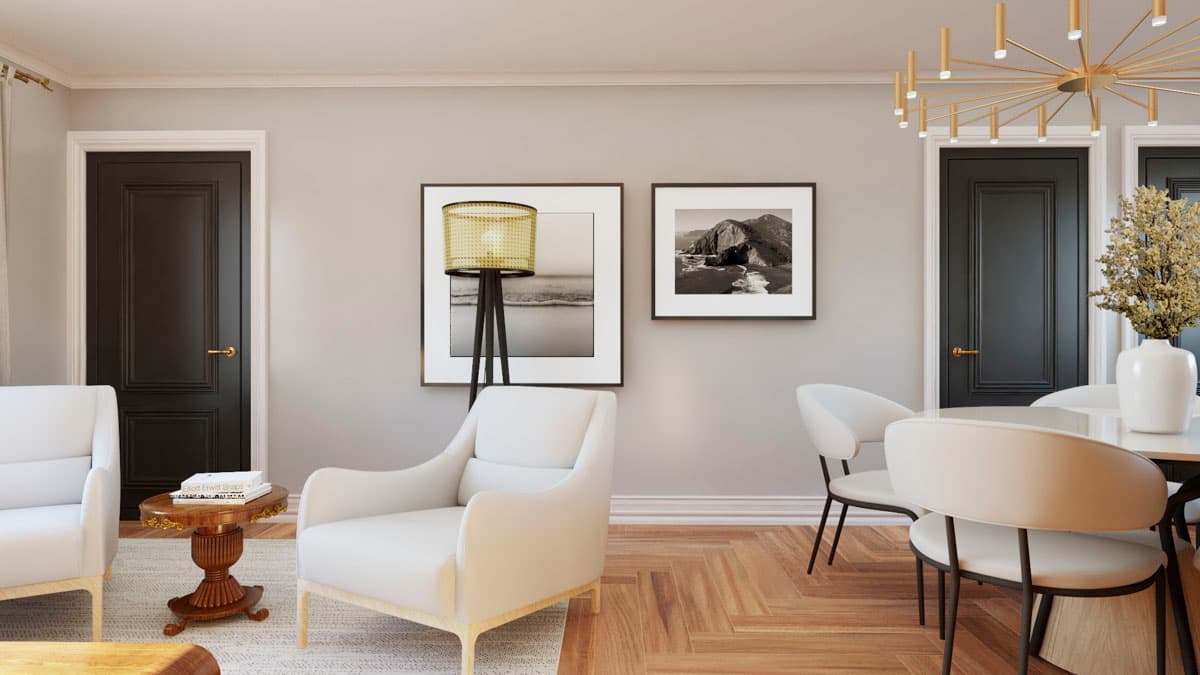

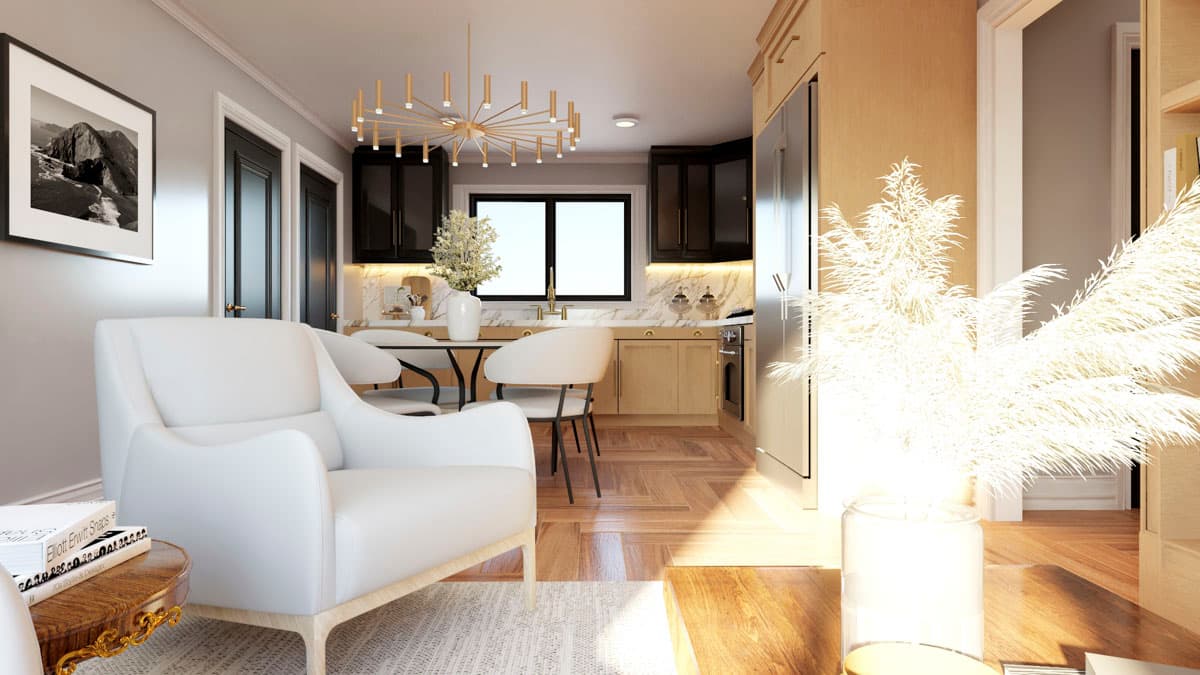

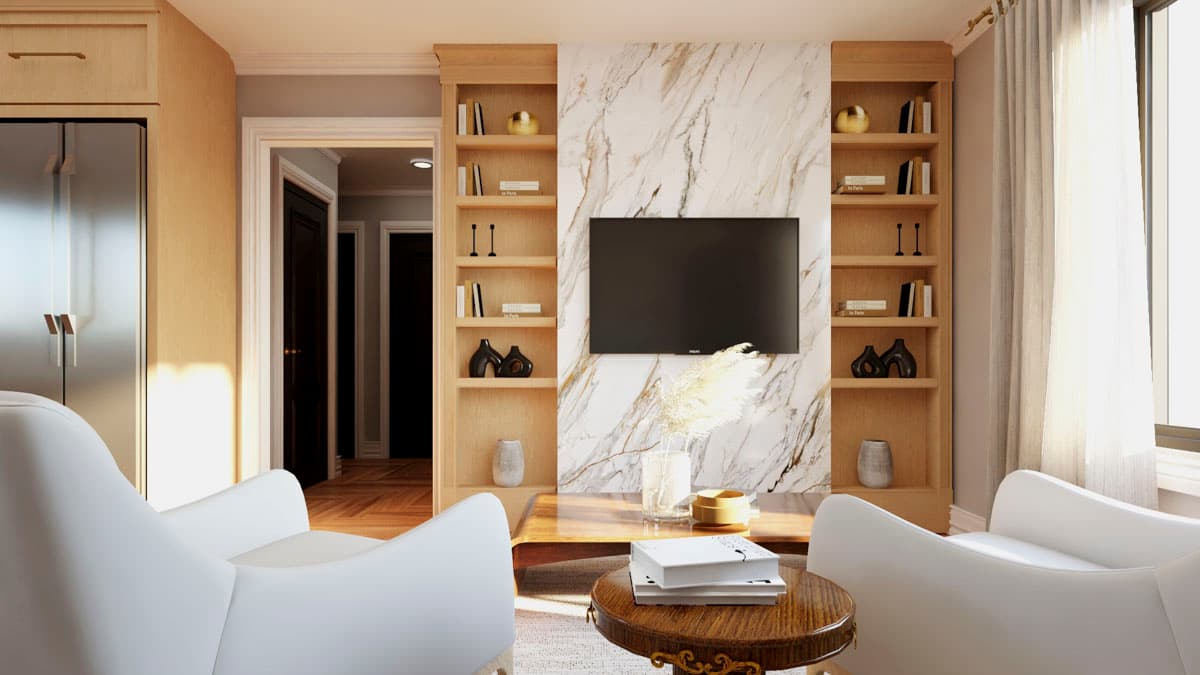

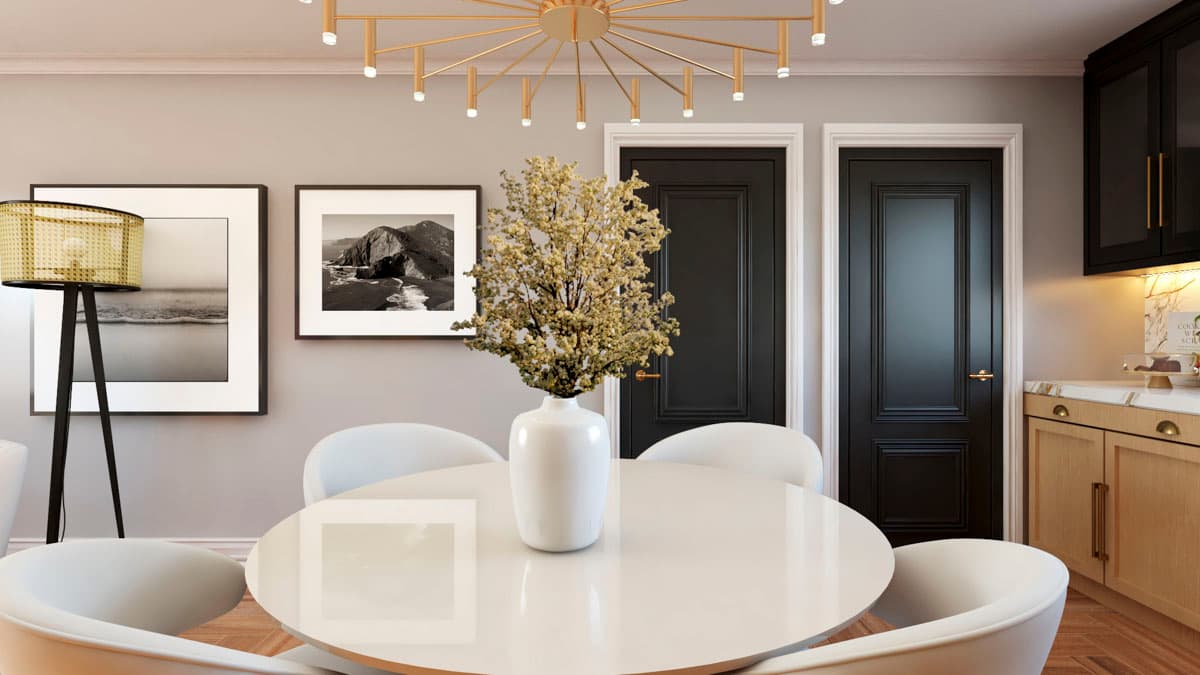

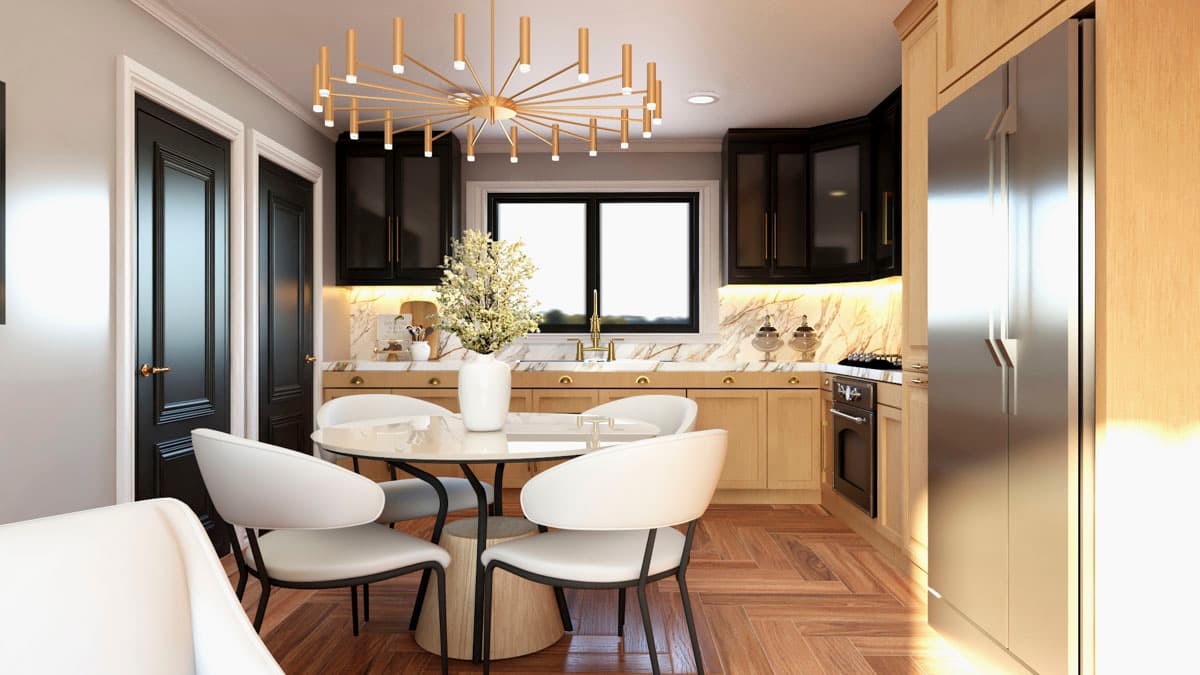

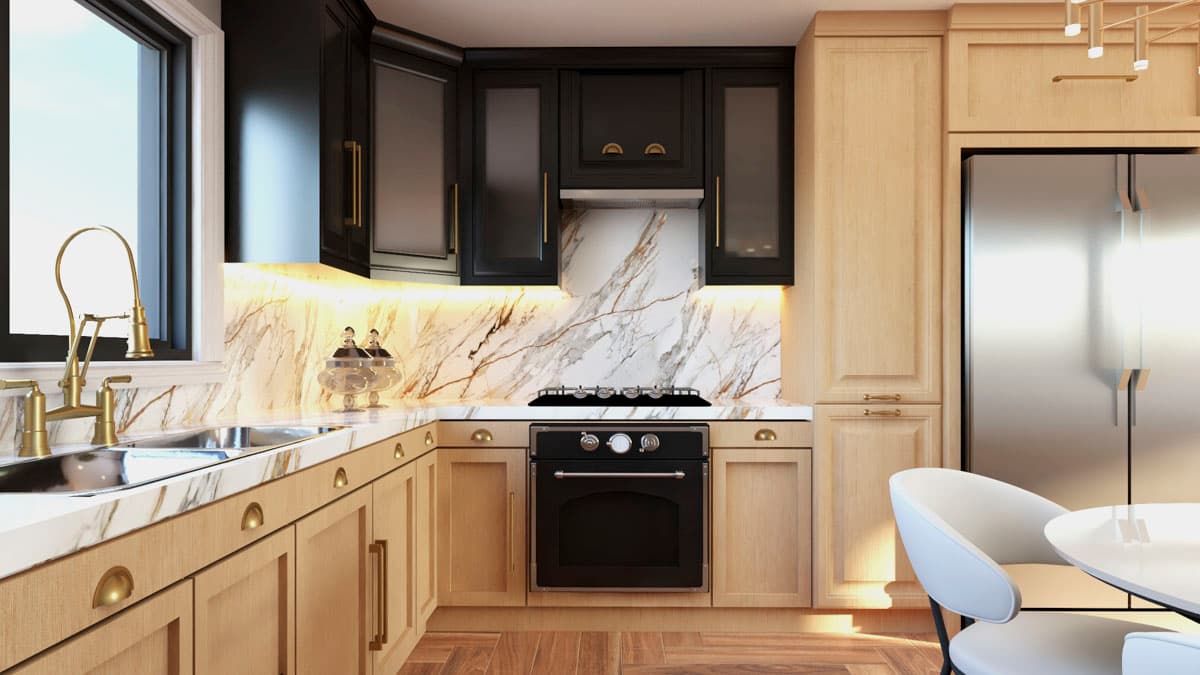

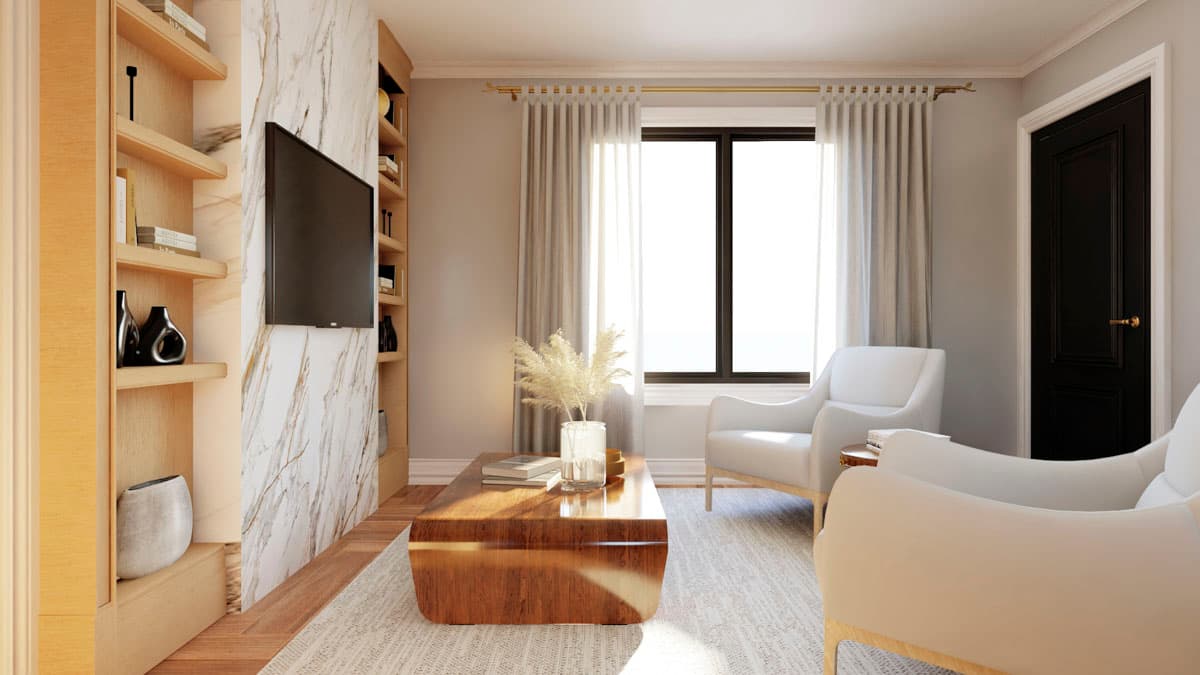

  • The bright living room seamlessly connects to the well-appointed kitchen, designed for both everyday functionality and effortless entertaining. A coveted butler walk-in pantry provides ample storage, while the adjacent laundry area ensures household tasks are conveniently managed on the same floor.

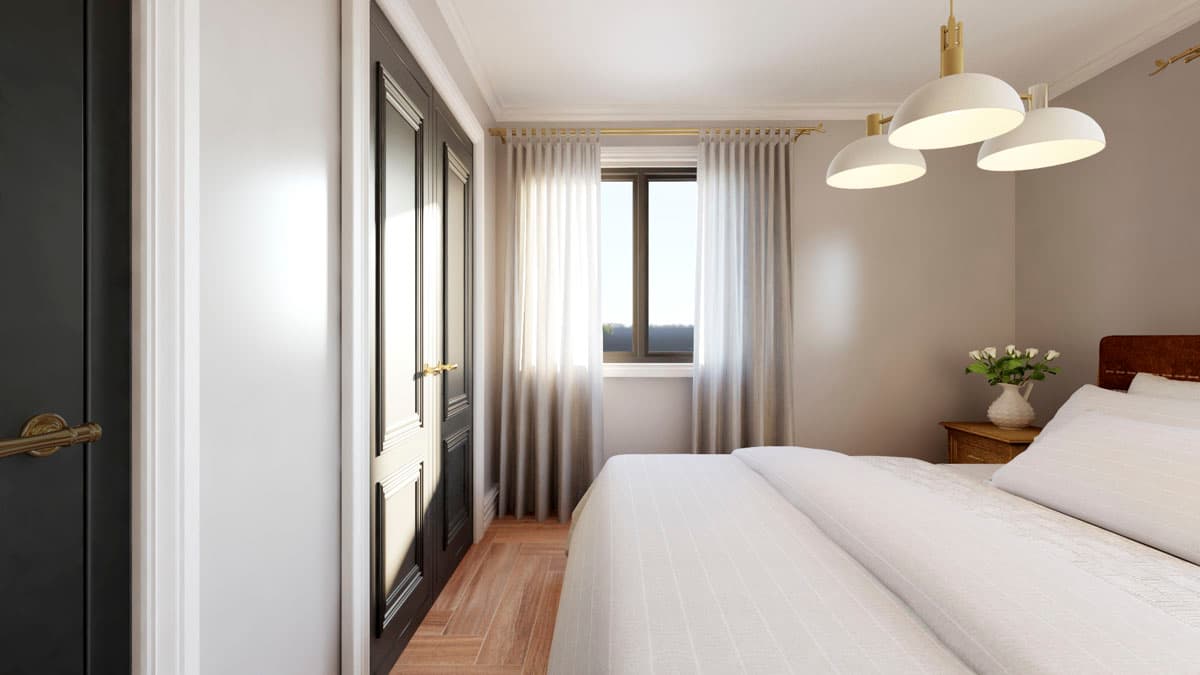

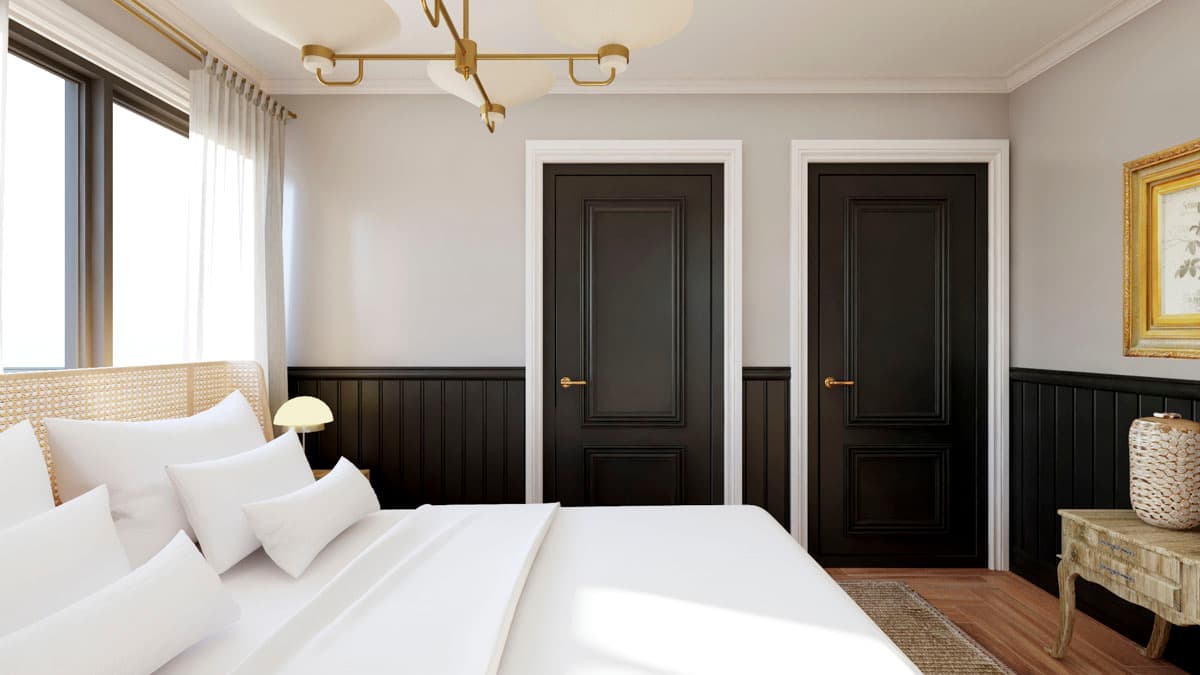

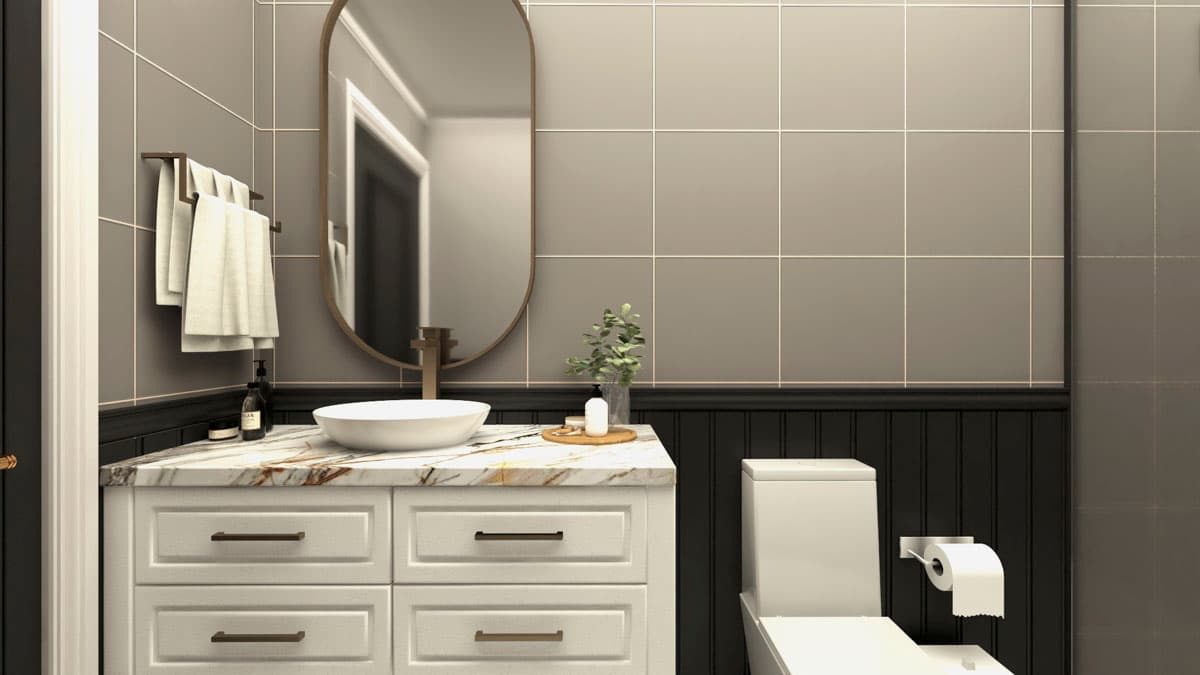

  • The plan features two comfortably sized bedrooms, including the master suite, both thoughtfully clustered on this level for privacy and ease. Each bedroom boasts its own walk-in closet, with the master suite offering a generous space for personal retreat, and both sharing access to the centrally located full bathroom.
  • The expansive 925 sq. ft. three-car detached garage provides not only secure parking but also substantial space for a workshop, hobbies, or additional storage, making it a versatile extension of the home's functionality.

What's Included

  • Elevations
  • Fully Dimensioned Floor Plans
  • Roof Plan & Sections
  • Foundation plan
  • General Notes
  • Suggested Electrical Layout
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Price Match Guarantee
What's included?

FORMAT & LICENSE

Choose an option

$0

Not sure what to choose?

Pointer link icon

FOUNDATION

Choose an option

+$0

Not sure what to choose?

Pointer link icon

OPTIONS

Choose Additional Options

+$0

Not sure what to choose?

Pointer link icon

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

870 sq. ft.

2nd Floor

870 sq. ft.

Beds/Baths

Bedrooms

2

Full bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

37' 0"

Depth

25' 0"

Max Ridge Height

23' 4"

Garage

Type

Detached

Area

925 sq. ft.

Count

3 Cars

Entry Location

Side

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

2 on 12

Framing Type

Stick

Architectural Style

Carriage

Mountain

Special Features

Bedrooms - Clustered

Laundry - Upstairs

Master Suite - Upstairs

Walk-in Pantry

Square Footage Breakdown

Total Heated Area

870 sq. ft.

2nd Floor

870 sq. ft.

Beds/Baths

Bedrooms

2

Full bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

37' 0"

Depth

25' 0"

Max Ridge Height

23' 4"

Garage

Type

Detached

Area

925 sq. ft.

Count

3 Cars

Entry Location

Side

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

2 on 12

Framing Type

Stick

Architectural Style

Carriage

Mountain

Special Features

Bedrooms - Clustered

Laundry - Upstairs

Master Suite - Upstairs

Walk-in Pantry
