Two-Story Contemporary Duplex House Plan with 2 3-Bed Units Under 1400 Sq Ft

Heated S.F.
2,692
Units
2
Width
Depth

Floor Plan

Plan 100347GHR

Main Level
Main Level
2nd Floor
2nd Floor

Plan 100347GHR

M-F 9am-5pm EST |

1-203-761-8500

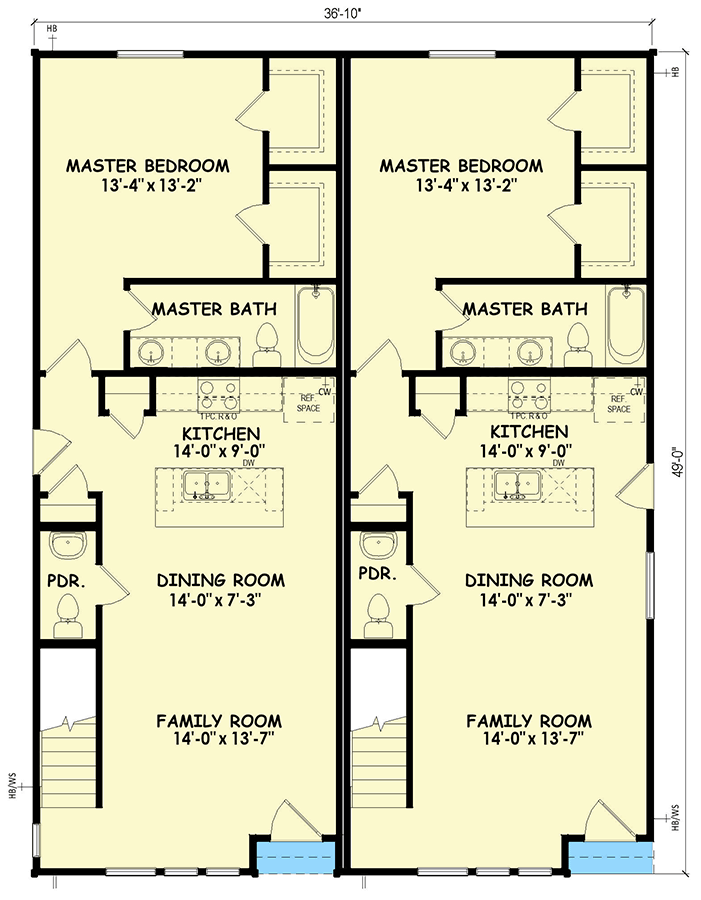

Main Level

Plan 100347GHR: Two-Story Contemporary Duplex House Plan with 2 3-Bed Units Under 1400 Sq Ft - Floor Plan - Main Level - Contemporary

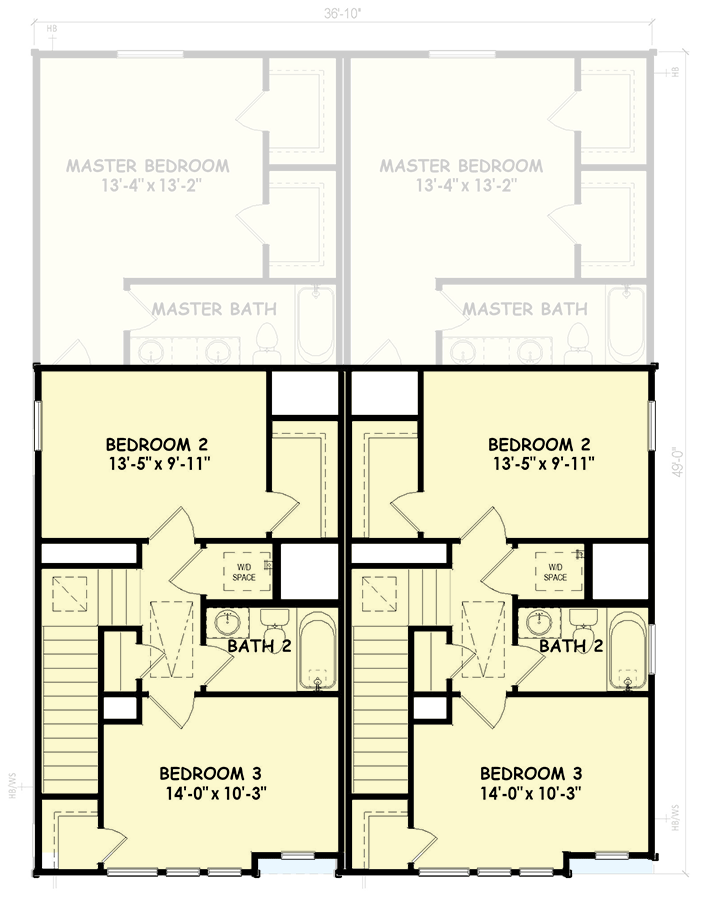

2nd Floor

Plan 100347GHR: Two-Story Contemporary Duplex House Plan with 2 3-Bed Units Under 1400 Sq Ft - Floor Plan - 2nd Floor - Contemporary

Plan Details

  • This duplex house plan gives you 2 units, each providing 1,346 square feet of heated living space (888 sq. ft. on the first floor, 458 sq. ft. on the second floor), 3 beds and 2.5 baths.
  • Architectural Designs' primary focus is to make the process of finding and buying house plans more convenient for those interested in constructing new homes - single family and multi-family ones - as well as garages, pool houses and even sheds and backyard offices.
  • Our website offers a vast collection of home designs, encompassing various architectural styles, sizes, and features, which can be customized to meet specific needs and preferences
  • We curate and add to our design portfolio every day as we work with hundreds of residential building designers and architects to bring you the most diverse and best house plans available.
  • We can modify any house plan you see on our site. Learn more about modifications.
Unit A
Heated Area
1,346Sq. Ft.
888 Sq. Ft. 1st
458 Sq. Ft. 2nd
Beds
3Beds
Baths
2Full Baths
1Half Bath
Dimensions
18' 4"width
49'depth
Unfinished Areas
10 Sq. Ft. Porch, Front
Unit B
Heated Area
1,346Sq. Ft.
888 Sq. Ft. 1st
458 Sq. Ft. 2nd
Beds
3Beds
Baths
2Full Baths
1Half Bath
Dimensions
18' 4"width
49'depth
Unfinished Areas
10 Sq. Ft. Porch, Front

What's Included

  • Cover sheet with area, door & window schedules
  • Dimensioned floorplans with general notes, window & door sizes
  • Interior cabinet elevation
  • Foundation outline (perimeter dimensions only. All other construction details to be handled locally based on site and soil conditions)
  • Roof plan (Birdseye view with pitches)
  • Cornice details
  • Exterior elevations (4 sides)
  • Building sections (if applicable)
  • Electrical plans
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • REScheck or other energy related calculations are NOT included.
  • Wind load or seismic calculations are NOT included.
  • Framing plans or beam sizes are NOT included.
  • Other specific drawings that your local permit office may require
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

2,692 sq. ft.

1st Floor

1,776 sq. ft.

2nd Floor

916 sq. ft.

Porch, Front

20 sq. ft.

Beds/Baths

Bedrooms

6

Full bathrooms

4

Half bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

36' 10"

Depth

49' 0"

Max Ridge Height

27' 1"

Ceiling Heights

First Floor

9' 1"

Second Floor

9' 1"

Roof Details

Primary Pitch

6 on 12

Secondary Pitch

12 on 12

Framing Type

Stick

Architectural Style

Contemporary

Special Features

Bedrooms - Clustered

Laundry - Upstairs

Master Suite - 1st Floor

Plan Collections

Exclusive

Photo Gallery

Square Footage Breakdown

Total Heated Area

2,692 sq. ft.

1st Floor

1,776 sq. ft.

2nd Floor

916 sq. ft.

Porch, Front

20 sq. ft.

Beds/Baths

Bedrooms

6

Full bathrooms

4

Half bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

36' 10"

Depth

49' 0"

Max Ridge Height

27' 1"

Ceiling Heights

First Floor

9' 1"

Second Floor

9' 1"

Roof Details

Primary Pitch

6 on 12

Secondary Pitch

12 on 12

Framing Type

Stick

Architectural Style

Contemporary

Special Features

Bedrooms - Clustered

Laundry - Upstairs

Master Suite - 1st Floor

Plan Collections

Exclusive

Photo Gallery
