Plan 52296WM Two-Story Cottage Plan with Split Bedrooms

Two-Story Cottage Plan with Split Bedrooms

Plan 52296WM

  • 2,075

    Heated s.f.

  • 3-4

    Beds

  • 3.5

    Baths

  • 2

    Stories

  • 2

    Cars

  • A gable roof rests atop this two-story, cottage plan, which includes an inviting front porch for you and guests to enjoy.
  • The living room and eat-in kitchen are connected, creating a conducive space for entertaining. An eating bar at the prep island offers space for casual meals, and a large walk-in pantry provides plenty of dry storage.
  • The master bedroom resides on the main level, considering your future needs, and boasts a spacious 5-fixture bathroom with access to the laundry room.
  • Upstairs, bedrooms 2 and 3 each include a full bath. A game room separates the two bedrooms, and a barn door reveals a second-level laundry closet for added convenience.
  • The 2-car garage faces the front of the home.
  • Related Plan: Get a fourth bedroom upstairs with house plan 52297WM.

  • Front elevation and construction notes

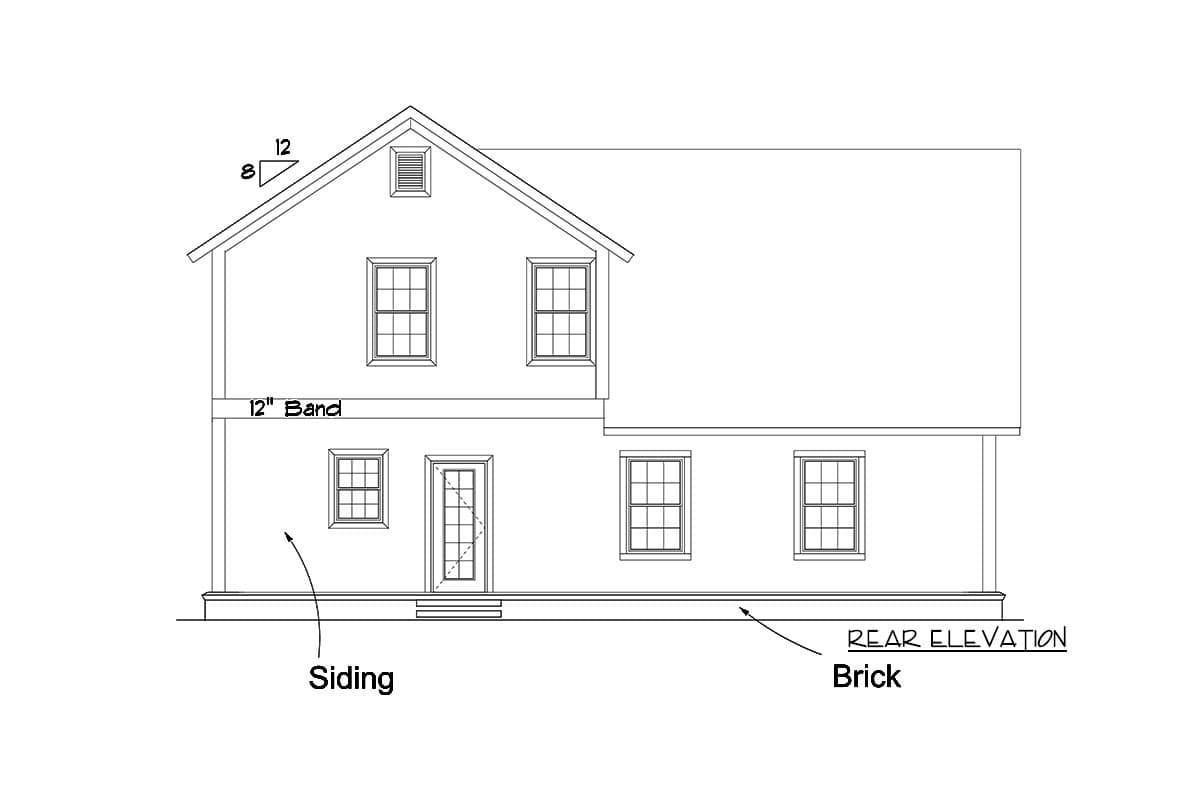

  • Rear and side elevations
  • Floor plan including electrical, window and door sizes, floor joist span direction and ceiling type notes (9' ceiling, vault, etc.)
  • Second floor plan (if applicable) with the same details as the first level floor plan
  • Typical wall section
  • Typical foundation details
  • Roof plan showing roof pitches, ridges and valleys, noted as 2" x 8" rafter or optional roof trusses
  • Foundation plan
  • Most plans have an optional full building section--only available upon request--at no extra cost.  This section is not typically required in the US but can be a requirement in Canada


These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

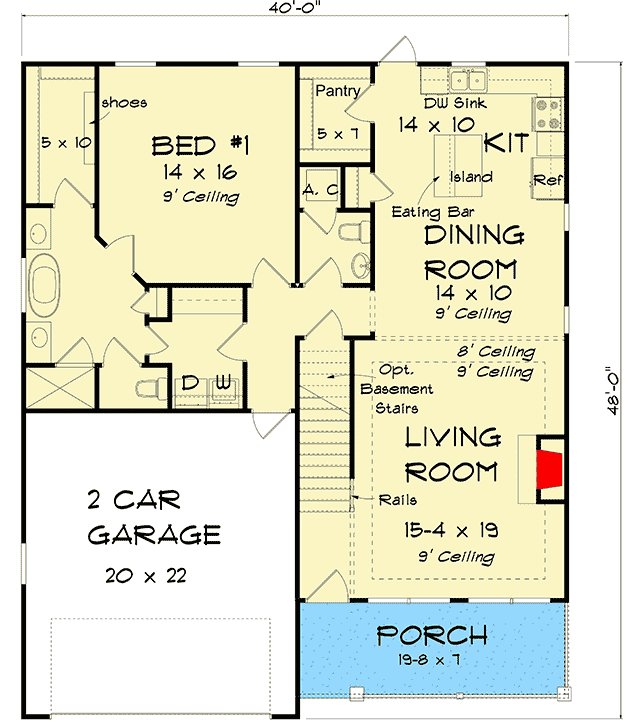

Two-Story Cottage Plan with Split Bedrooms - 52296WM floor plan - Main Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Two-Story Cottage Plan with Split Bedrooms - 52296WM floor plan - 2nd Floor

Plan details

Two-Story Cottage Plan with Split Bedrooms

  • 2,075

    Heated s.f.

  • 3 - 4

    Beds

  • 4

    Baths

  • 2

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - Unlimited Build $1,025
  • CAD - Unlimited Build $1,320
  • View all purchase option online

About This Plan

  • A gable roof rests atop this two-story, cottage plan, which includes an inviting front porch for you and guests to enjoy.
  • The living room and eat-in kitchen are connected, creating a conducive space for entertaining. An eating bar at the prep island offers space for casual meals, and a large walk-in pantry provides plenty of dry storage.
  • The master bedroom resides on the main level, considering your future needs, and boasts a spacious 5-fixture bathroom with access to the laundry room.
  • Upstairs, bedrooms 2 and 3 each include a full bath. A game room separates the two bedrooms, and a barn door reveals a second-level laundry closet for added convenience.
  • The 2-car garage faces the front of the home.
  • Related Plan: Get a fourth bedroom upstairs with house plan 52297WM.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,075 sq. ft.
  • 1st Floor: 1,293 sq. ft.
  • 2nd Floor: 782 sq. ft.
  • Porch, Front: 138 sq. ft.

Beds/Baths

  • Bedrooms: 3 or 4
  • Full bathrooms: 3
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Slab
    • Optional Foundations: Basement, Crawl

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 40' 0"
  • Depth: 48' 0"
  • Max ridge height: 25' 4"

Garage

  • Type: Attached
  • Area: 460 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Roof

  • Primary Pitch: 8 on 12
  • Secondary Pitch: 8 on 12
  • Framing Type: Truss
