Two-Story Craftsman Home Plan with Main-Floor Flex Room

Plan 710345BTZ

  • 2,858

    Heated s.f.

  • 4-5

    Beds

  • 3

    Baths

  • 2

    Stories

  • 2

    Cars

  • Adorned in craftsman details from top to bottom, this two-story home plan offers a thoughtful and flexible floor plan.
  • Once inside, a flex room sits to the right, and could be used as a guest room or home office. Straight ahead, an open floor plan unveils the eat-in kitchen and family room, where vaulted ceilings guide your eyes to a warm fireplace.
  • Sliding doors off the kitchen lead to an outdoor living area, complete with a kitchen for grilling and entertaining.
  • A friend's entrance resides next to the 2-car garage and enters into a mudroom with built-in lockers.
  • The master bedroom and three family bedrooms are located on the second level. Exposed beams in the master add character, and the attached bath boasts 5 fixtures and a walk-in closet.

The plans include the following:

  • Elevations -  at 1/4" or 3/16" and the side and rear elevations at 1/8" scale. The elevations show and note the exterior finished materials of the house.
  • Foundation - every plan is available with a walkout style basement (three masonry walls and one wood framed rear wall with windows and doors).  The basement plans are a 1/4" or 3/16" scale layout of unfinished spaces showing only the necessary 2 x 6 wood framed load bearing walls.  These plans are completed with dimensions, door/window sizes.  Crawlspace and/or slab on grade foundations are available for some plans.
  • Floor plan - each plan consists of 1/4" or 3/16" scale layouts showing the location of 2 x 4 walls, doors, windows, plumbing fixtures, cabinetry, stairs and decorative ceilings. These plans are complete with dimensions, notes, door/window sizes and a schematic electrical layout.
  • Building sections - Take vertical cuts throughout the house and the stairs showing floor, ceiling and roof height information.
  • Floor framing - if included it shows each floor joist indicating the size, spacing and length.  All beams are sized and labeled.  Each framing plan sheet includes any framing details that are needed (tray details, connections details, etc. All framing is designed using conventional 2 x 10 floor joist or wood I-joist, depending on the span conditions of each home. FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Ceiling framing - if included, it shows each ceiling joist indicating the size, spacing and length.  All beams are sized and labeled.  All of the joists are counted and coordinated with the material list.  FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Roof framing - if included, shows each rafter, valley, hip and ridge indicating size, spacing and length.  All beams are sized and labeled.  All of the joists are counted and coordinated with the material list.  FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Details sheets - shows foundation details, typical wall section and other framing details.  Also included are miscellaneous interior trim and fireplace details that can be used to customize the home.

What is not included in the plans:

          Architectural or Engineering Stamp
          Site Plan
          Mechanical Drawings (location of heating and air equipment and duct work)
          Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations)
          Energy calculations

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

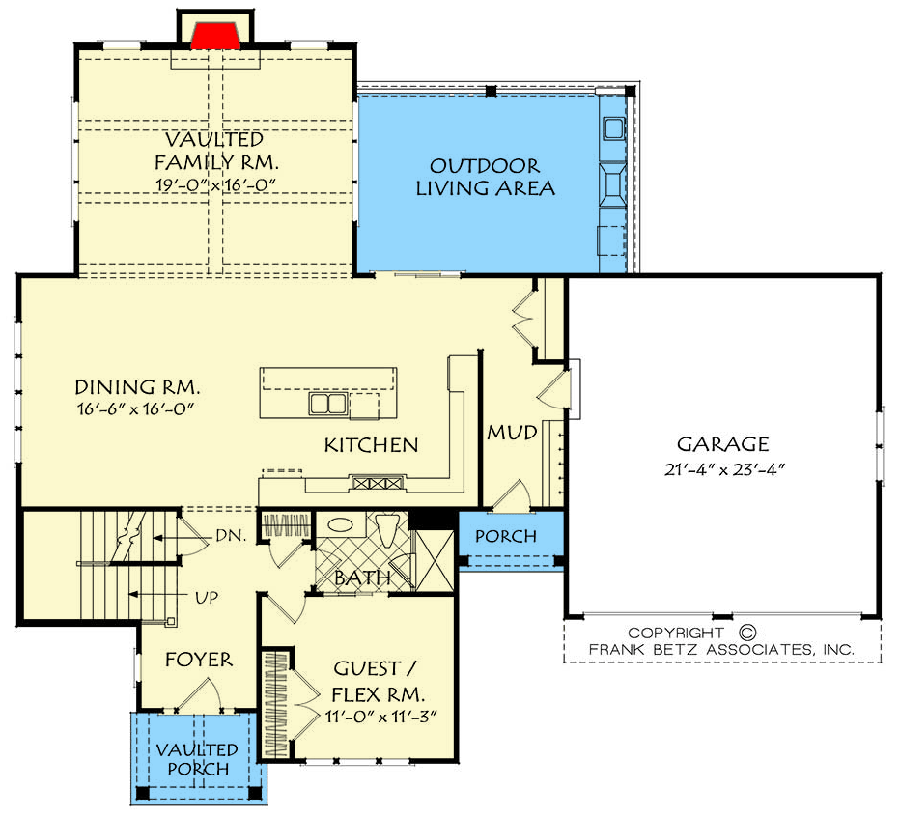

Two-Story Craftsman Home Plan with Main-Floor Flex Room - 710345BTZ floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

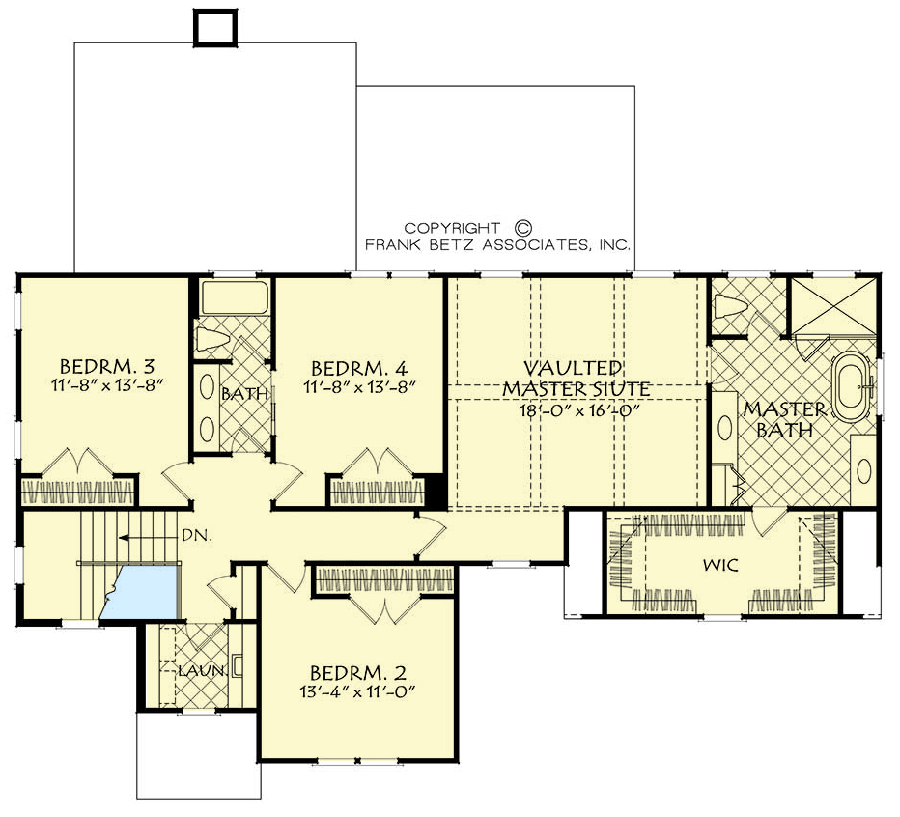

Two-Story Craftsman Home Plan with Main-Floor Flex Room - 710345BTZ floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 2,858 sq. ft.
  • 1st Floor: 1,373 sq. ft.
  • 2nd Floor: 1,485 sq. ft.
  • Basement Unfinished: 1,373 sq. ft.

Beds/Baths

  • Bedrooms: 4 or 5
  • Full bathrooms: 3

Foundation Type

  • Standard Foundations: Walkout

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 60' 0"
  • Depth: 54' 10"
  • Max ridge height: 31' 6"

Garage

  • Type: Attached
  • Area: 528 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Roof Details

  • Primary Pitch: 10 on 12
  • Framing Type: Stick

Architectural Style

Special features

Plan Collections

Two-Story Craftsman Home Plan with Main-Floor Flex Room

  • 2,858

    Heated s.f.

  • 4-5

    Beds

  • 3

    Baths

  • 2

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - Single-Build $2,095
  • PDF - Unlimited Build $2,295
  • 5 Sets + PDF $2,375
  • PDF - Unlimited Build + 5-sets $2,575
  • CAD - Unlimited Build $4,145
  • View all purchase option online

About This Plan

  • Adorned in craftsman details from top to bottom, this two-story home plan offers a thoughtful and flexible floor plan.
  • Once inside, a flex room sits to the right, and could be used as a guest room or home office. Straight ahead, an open floor plan unveils the eat-in kitchen and family room, where vaulted ceilings guide your eyes to a warm fireplace.
  • Sliding doors off the kitchen lead to an outdoor living area, complete with a kitchen for grilling and entertaining.
  • A friend's entrance resides next to the 2-car garage and enters into a mudroom with built-in lockers.
  • The master bedroom and three family bedrooms are located on the second level. Exposed beams in the master add character, and the attached bath boasts 5 fixtures and a walk-in closet.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,858 sq. ft.
  • 1st Floor: 1,373 sq. ft.
  • 2nd Floor: 1,485 sq. ft.
  • Basement Unfinished: 1,373 sq. ft.

Beds/Baths

  • Bedrooms: 4 or 5
  • Full bathrooms: 3

Foundation Type

    • Standard Foundations: Walkout

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 60' 0"
  • Depth: 54' 10"
  • Max ridge height: 31' 6"

Garage

  • Type: Attached
  • Area: 528 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Roof

  • Primary Pitch: 10 on 12
  • Framing Type: Stick
Plan 710345BTZ
View this and more for this plan by visiting www.architechtecturaldesigns.com/710345BTZ
|
Need Help? 800-854-7852
|
