Plan 42624DB Two-Story Craftsman House Plan with Optional Fourth Bedroom

Two-Story Craftsman House Plan with Optional Fourth Bedroom

Plan 42624DB

  • 2,154

    Heated s.f.

  • 3-4

    Beds

  • 2.5

    Baths

  • 2

    Stories

  • 2

    Cars

  • This two-story, Craftsman house plan boasts a versatile floor plan with 3 or 4 bedrooms on the second level, along with a flex room right off the foyer.
  • Entertaining flows naturally within the open family room/eating area and kitchen. The kitchen island anchors the living space, and a hidden walk-in pantry can be found behind cabinet doors.
  • The owner's suite is located on the main level for convenience, and boasts a step ceiling, 4-fixture bath, and a walk-in closet.
  • Three bedrooms reside on the second level, along with a full bath. Convert the fourth bedroom into a family room, if preferred.
  • Organize outdoor gear and personal items in the mudroom, which sits just inside from the double garage, across from the laundry room and powder bath.
  • Related Plan: Get an alternate exterior with house plan 42625DB.

Plans include the following:


Cover Page. Each home plan features the rendered elevation and informative reference sections including: general notes and design criteria 1; abbreviations; and symbols for your plan.

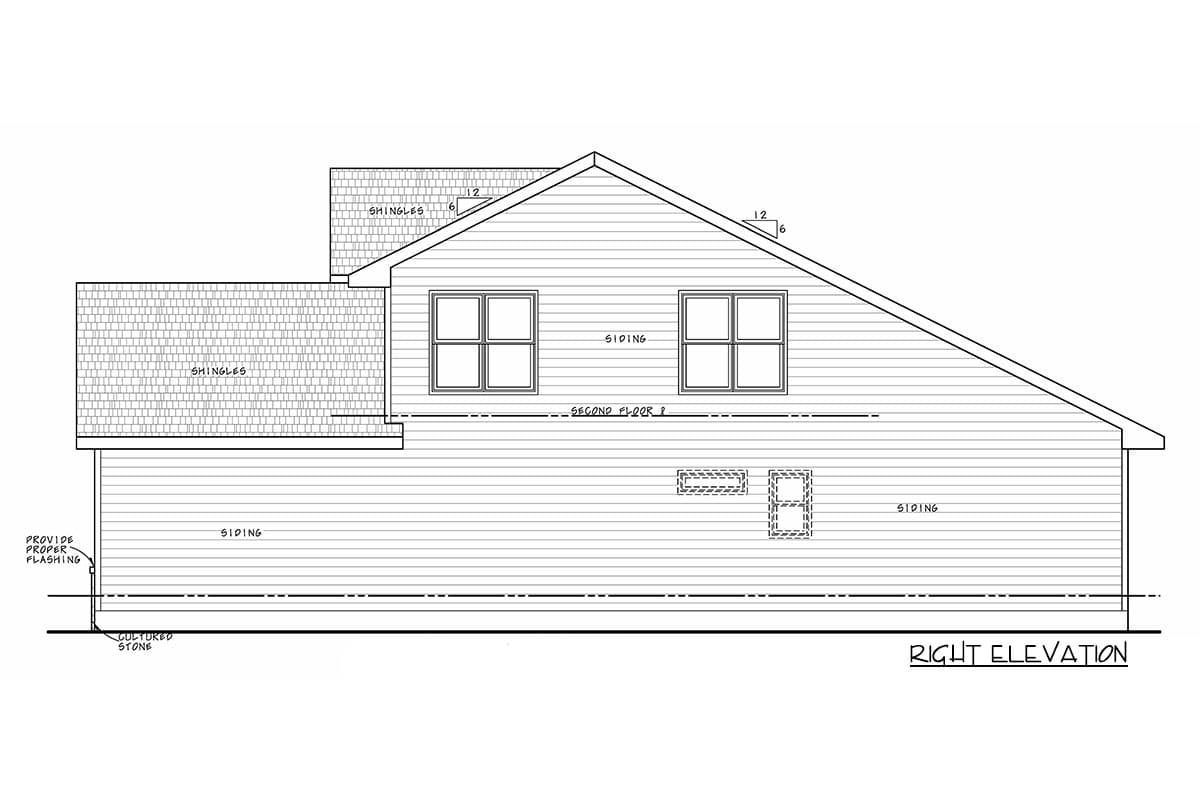

Elevations:  Drafted at 1/4" scale for the front and 1/8" scale for the rear and sides. All elevations are detailed and an aerial view of the roof is provided, showing all hips, valleys and ridges.

 Foundation: Drafted at 1/4" scale. Poured or block basement or slab foundations are standard. We also show the HVAC equipment, structural information, steel beam and pole locations and the direction and spacing of the floor system above.

Main Level Floor Plan: 1/4" scale. Fully dimensioned from stud to stud for ease of framing. The detailed drawings include such things as structural header locations, framing layout and kitchen layout.1

 Second Level Floor Plan: 1/4" scale. Dimensioned from stud to stud and drafted to the same degree of detail as the main level floor plan.1

 Interior Elevations:Useful for the cabinet and bidding process, this page shows all kitchen and bathroom cabinets as well as any other cabinet elevations.

Electrical and Sections: Illustrated on a separate page for clarity, the electrical plan shows suggested electrical layout for the foundation, main and second level floor plans. Typical wall, cantilever, stair, brick and fireplace sections are provided to further explain construction of these areas.

Roof Framing Plan: Illustrated on a separate page for clarity, the roof framing plan shows the suggested dimensional plan showing lengths, runs, ridge heights and wall plate heights.

Floor Plan

Optional Second Floor

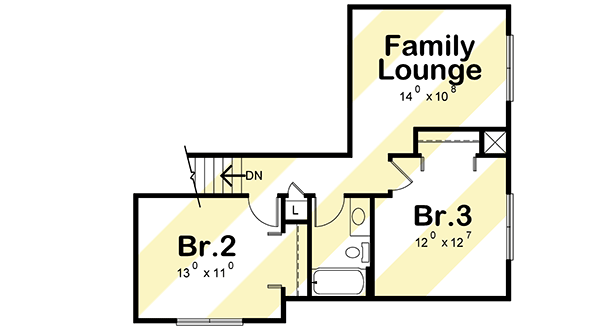

Two-Story Craftsman House Plan with Optional Fourth Bedroom - 42624DB floor plan - Optional Second Floor

Plan details



Two-Story Craftsman House Plan with Optional Fourth Bedroom

  • 2,154

    Heated s.f.

  • 3 - 4

    Beds

  • 3

    Baths

  • 2

    Floors

  • 2

    Car garage

Buy This Plan
  • Study Set – Digital $660
  • PDF - Single-Build $995
  • PDF - Unlimited Build $1,495
  • CAD - Single-Build $1,759
  • CAD - Unlimited Build $2,259
  • View all purchase option online

About This Plan

  • This two-story, Craftsman house plan boasts a versatile floor plan with 3 or 4 bedrooms on the second level, along with a flex room right off the foyer.
  • Entertaining flows naturally within the open family room/eating area and kitchen. The kitchen island anchors the living space, and a hidden walk-in pantry can be found behind cabinet doors.
  • The owner's suite is located on the main level for convenience, and boasts a step ceiling, 4-fixture bath, and a walk-in closet.
  • Three bedrooms reside on the second level, along with a full bath. Convert the fourth bedroom into a family room, if preferred.
  • Organize outdoor gear and personal items in the mudroom, which sits just inside from the double garage, across from the laundry room and powder bath.
  • Related Plan: Get an alternate exterior with house plan 42625DB.

Floor Plans

  • Main Level

  • 2nd Floor

  • Optional Second Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,154 sq. ft.
  • 1st Floor: 1,514 sq. ft.
  • 2nd Floor: 640 sq. ft.
  • Porch, Rear: 123 sq. ft.
  • Porch, Front: 128 sq. ft.

Beds/Baths

  • Bedrooms: 3 or 4
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Basement
    • Optional Foundations: Crawl, Slab

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 42' 0"
  • Depth: 57' 0"
  • Max ridge height: 26' 5"

Garage

  • Type: Attached
  • Area: 459 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 9' 0"

Roof

  • Primary Pitch: 6 on 12
  • Secondary Pitch: 9 on 12
