Plan 666070RAF

Two-Story Craftsman House Plan with Second-Level Bedrooms - 2332 Sq Ft

Heated S.F.
2,332
Beds
3 - 5
Baths
3
Stories
2
Cars
2

Floor Plan

Plan 666070RAF

Main Level
Main Level
2nd Floor
2nd Floor

Plan 666070RAF

M-F 9am-5pm EST |

1-203-761-8500

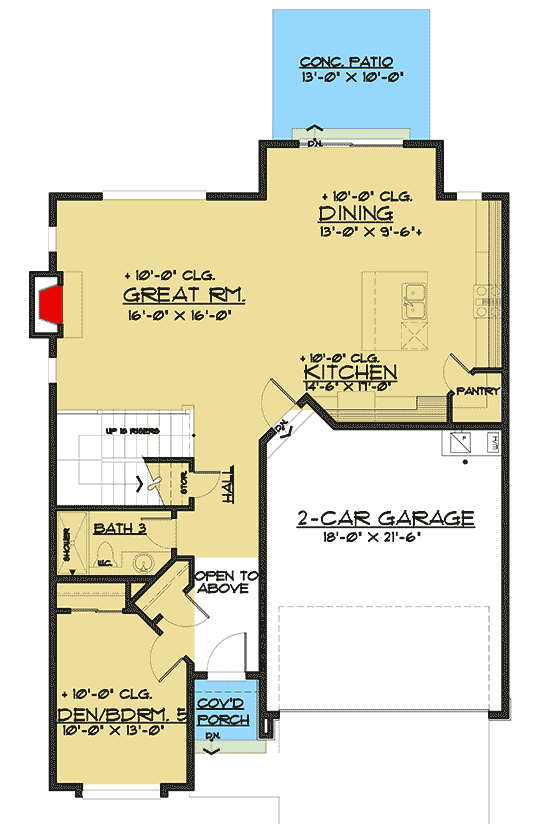

Main Level

Plan 666070RAF: Two-Story Craftsman House Plan with Second-Level Bedrooms - 2332 Sq Ft - Floor Plan - Main Level - Country, Craftsman, Northwest

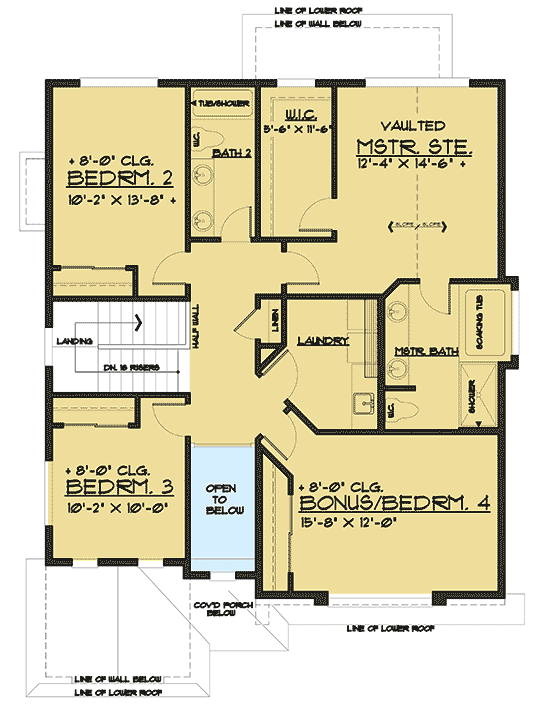

2nd Floor

Plan 666070RAF: Two-Story Craftsman House Plan with Second-Level Bedrooms - 2332 Sq Ft - Floor Plan - 2nd Floor - Country, Craftsman, Northwest

Plan Details

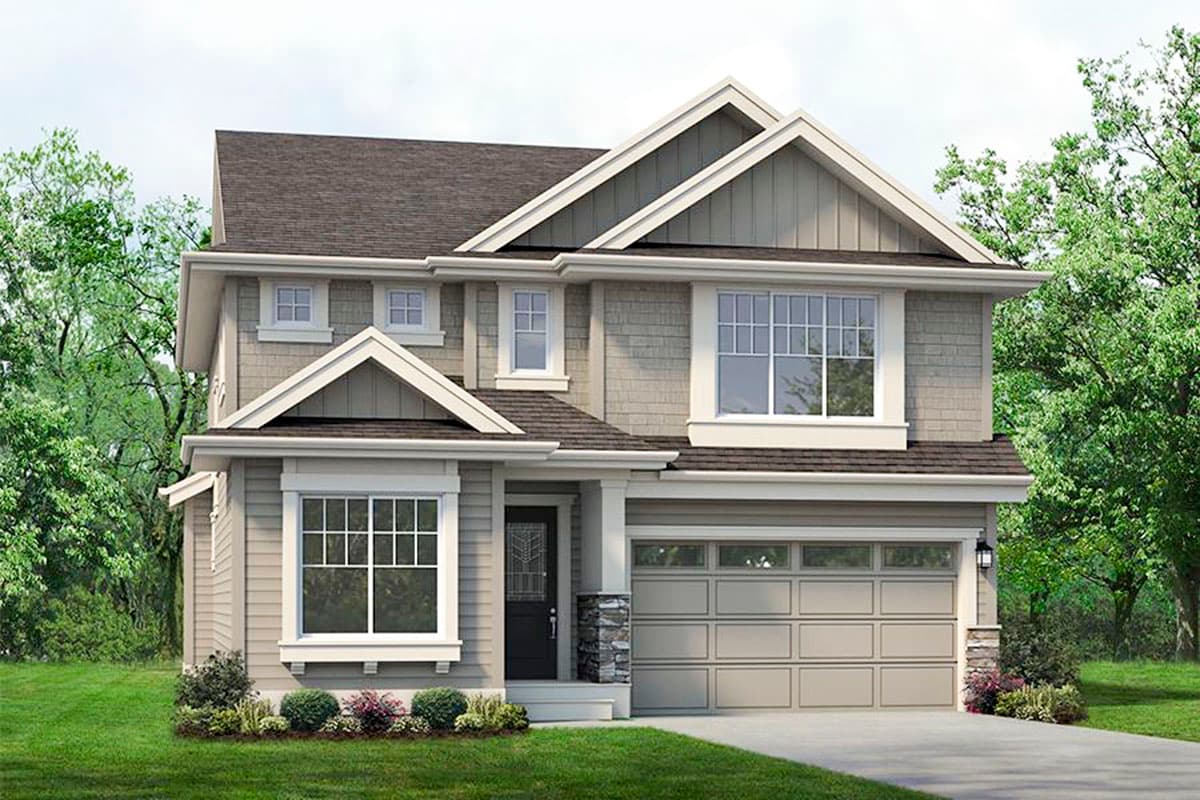

  • This two-story, craftsman house plan, clad in horizontal and shake siding, offers up to 5 bedrooms, depending on the homeowner's configuration.
  • The formal entry, with a coat closet, includes high ceilings providing a sense of grandeur immediately upon entering, and a den, or bedroom, sits to the left.
  • The shared living spaces can be found towards the back of the home, with a spacious great room that opens to the kitchen and dining area. The double-bowl sink resides in the island and a corner pantry lends plenty of storage space.
  • A vaulted ceiling in the second-level, master suite boasts an air of elegance, and the 5-fixture bathroom includes a soaking tub and two sinks.
  • Two additional bedrooms share a 4-fixture bath, and another room could provide a common space upstairs or serve as a bedroom. The laundry room is centrally located for easy access.

What's Included

  • Cover Sheet with plan info
  • General Notes - Note: codes will not include local state adopted amendments
  • Fully dimensions and detailed floor plans
  • Elevations
  • Building Cross Section
  • Roof Plan
  • Details
  • Window Schedule
  • Original Structural plan FOR REFERENCE ONLY
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp  - handled locally when required
  • Site plans - handled locally - handled locally when required
  • Mechanical Drawings - handled locally when required
  • Plumbing Drawings  - handled locally when required
  • Electrical Drawings  - handled locally when required
  • Energy Calculations  - handled locally when required
  • Foundation and Framing plans  - handled locally when required

Starting at

Price Match Guarantee
What's included?

FORMAT & LICENSE

Choose an option

$0

Not sure what to choose?

Pointer link icon

FOUNDATION

Choose an option

+$0

Not sure what to choose?

Pointer link icon

OPTIONS

Choose Additional Options

+$0

Not sure what to choose?

Pointer link icon

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

2,332 sq. ft.

1st Floor

1,089 sq. ft.

2nd Floor

1,243 sq. ft.

Porch, Front

23 sq. ft.

Covered Patio

130 sq. ft.

Beds/Baths

Bedrooms

3, 4, or 5

Full bathrooms

3

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

35' 0"

Depth

49' 6"

Max Ridge Height

30' 3"

Garage

Type

Attached

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

10'

Second Floor

8'

Garage

11' 6''

Roof Details

Primary Pitch

6 on 12

Secondary Pitch

8 on 12

Framing Type

Truss

Architectural Style

Country

Craftsman

Northwest

Special Features

Butler Walk-in Pantry

Den

Flex Room

Laundry - Upstairs

Master Suite - Upstairs

Optionally Finished Bonus Room
