Plan 48628FM

Exclusive

Two-Story Duplex Home Plan with 3 Beds and Great Room - 1397 Sq Ft Per Unit

Heated S.F.
2,794
Units
2
Width
Depth

Floor Plan

Plan 48628FM

Main Level
Main Level
2nd Floor
2nd Floor

Plan 48628FM

M-F 9am-5pm EST |

1-203-761-8500

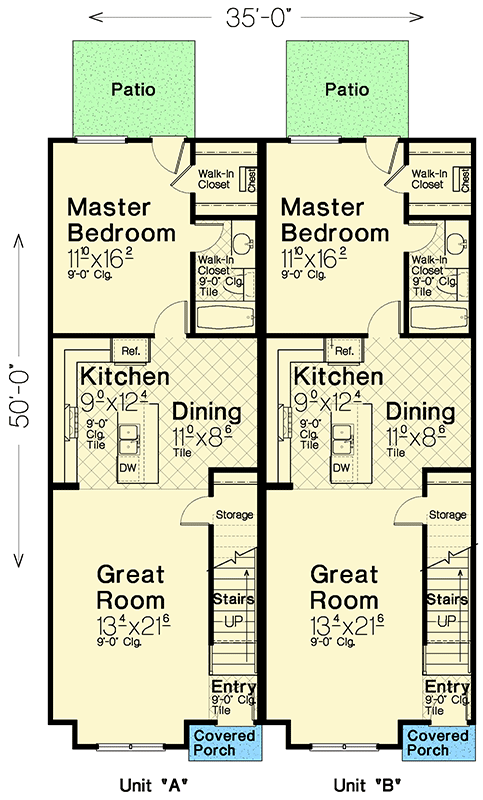

Main Level

Plan 48628FM: Two-Story Duplex Home Plan with 3 Beds and Great Room - 1397 Sq Ft Per Unit - Floor Plan - Main Level - New American

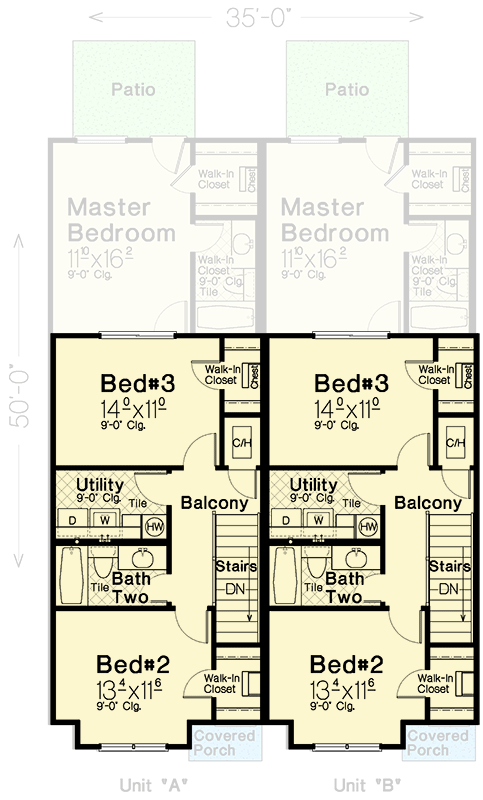

2nd Floor

Plan 48628FM: Two-Story Duplex Home Plan with 3 Beds and Great Room - 1397 Sq Ft Per Unit - Floor Plan - 2nd Floor - New American

Plan Details

  • This two-story duplex-family house plan gives you 2 units each with 1,397 square feet of heated living space (859 sq. ft. on the first floor, 538 sq. ft. on the second floor),  3 beds, 2 baths.
  • Architectural Designs' primary focus is to make the process of finding and buying house plans more convenient for those interested in constructing new homes - single family and multi-family ones - as well as garages, pool houses and even sheds and backyard offices.
  • Our website offers a vast collection of home designs, encompassing various architectural styles, sizes, and features, which can be customized to meet specific needs and preferences.
  • We curate and add to our design portfolio every day as we work with hundreds of residential building designers and architects to bring you the most diverse and best house plans available.
  • We can modify any house plan you see on our site. Learn more about modifications.
Unit A
Heated Area
1,397Sq. Ft.
859 Sq. Ft. 1st
538 Sq. Ft. 2nd
Beds
3Beds
Baths
2Full Baths
Dimensions
17' 6"width
50'depth
27'height
Unfinished Areas
36 Sq. Ft. Porch, Front
160 Sq. Ft. Covered Patio
Unit B
Heated Area
1,397Sq. Ft.
1718 Sq. Ft. 1st
1076 Sq. Ft. 2nd
Beds
3Beds
Baths
2Full Baths
Dimensions
17' 6"width
50'depth
27'height
Unfinished Areas
18 Sq. Ft. Porch, Front
80 Sq. Ft. Covered Patio

What's Included

  • Cover Sheet
  • Floor Plans
  • Electrical Plan
  • Foundation Plan

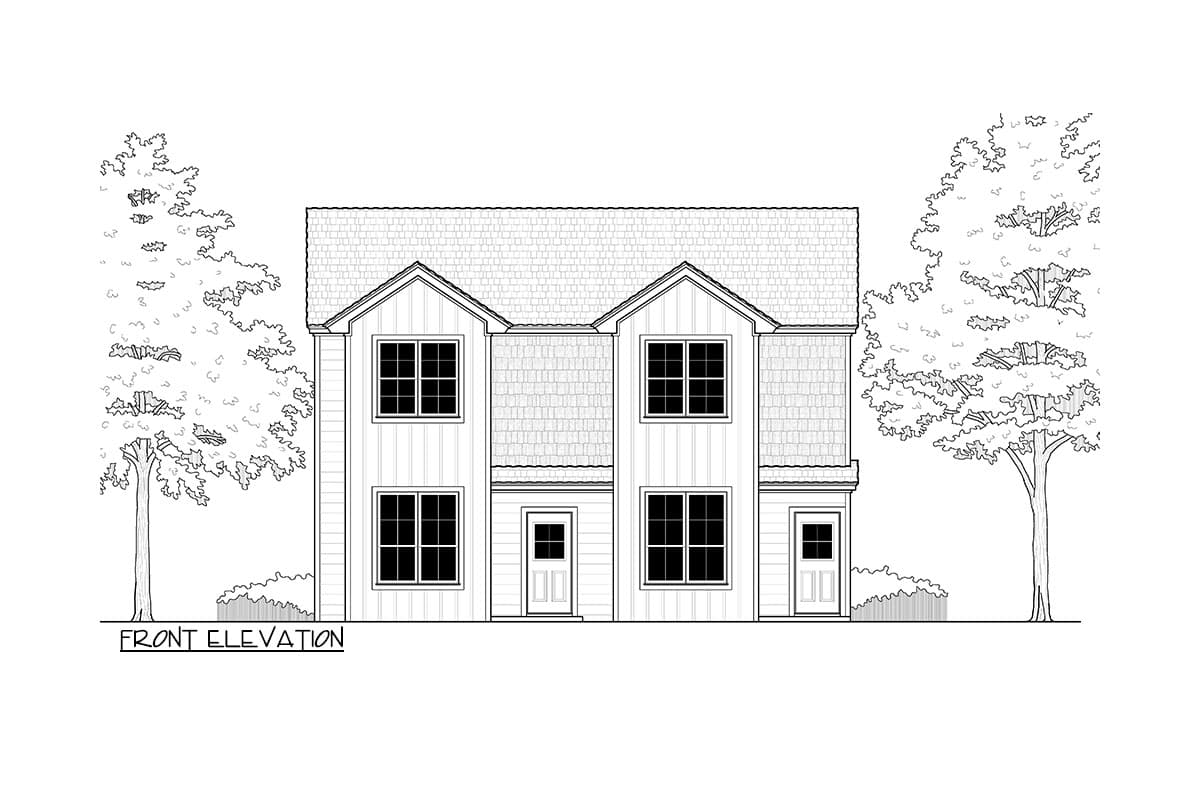

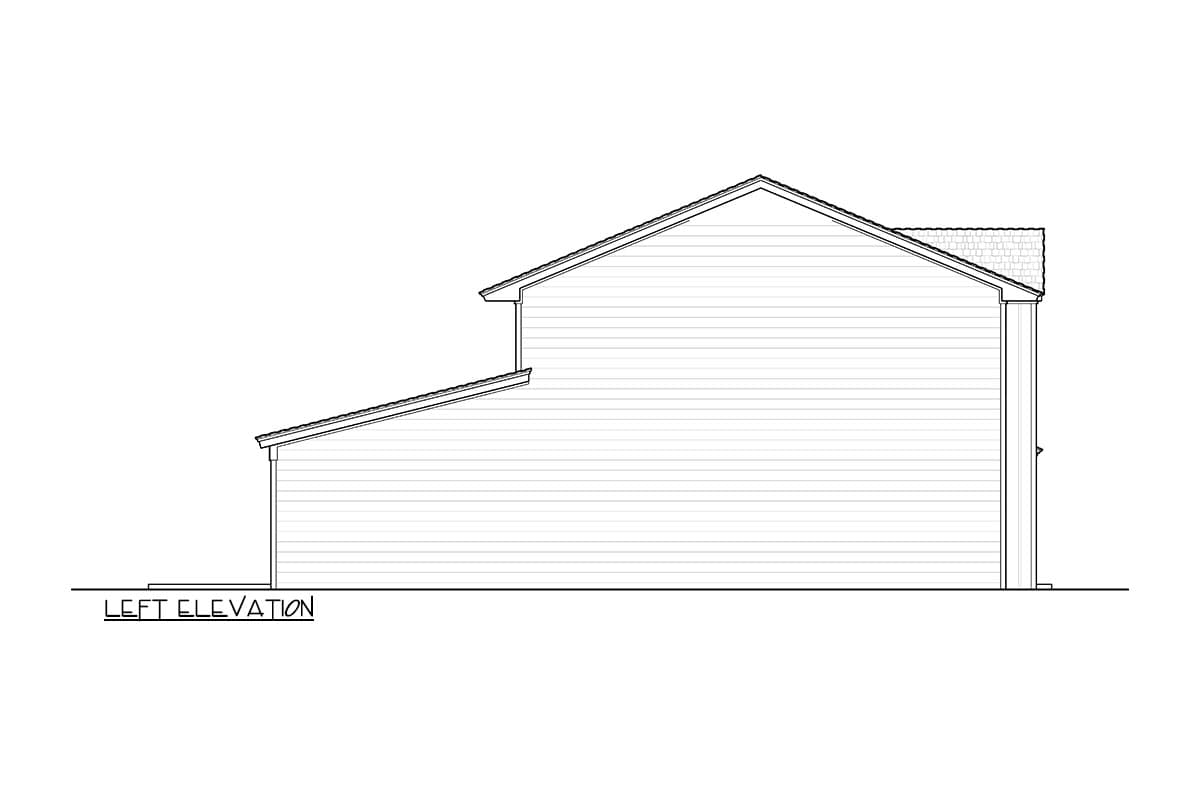

  • Front and Left Elevation

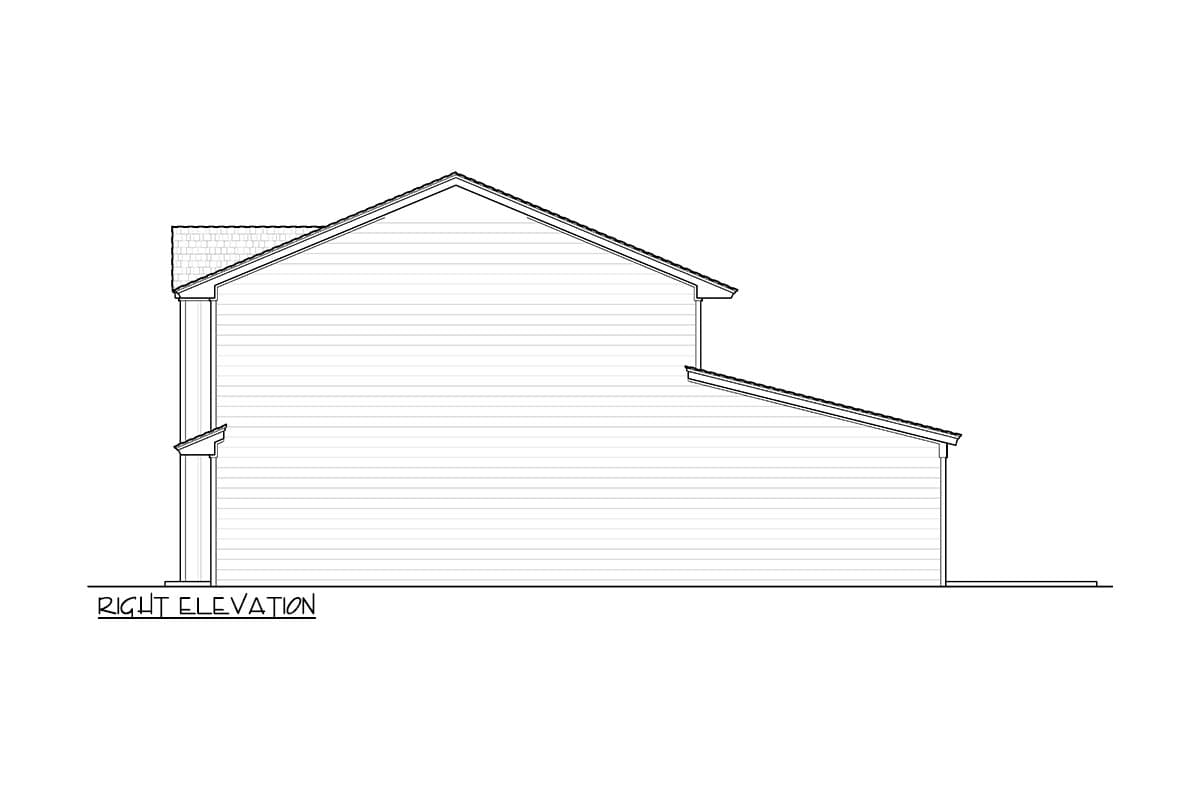

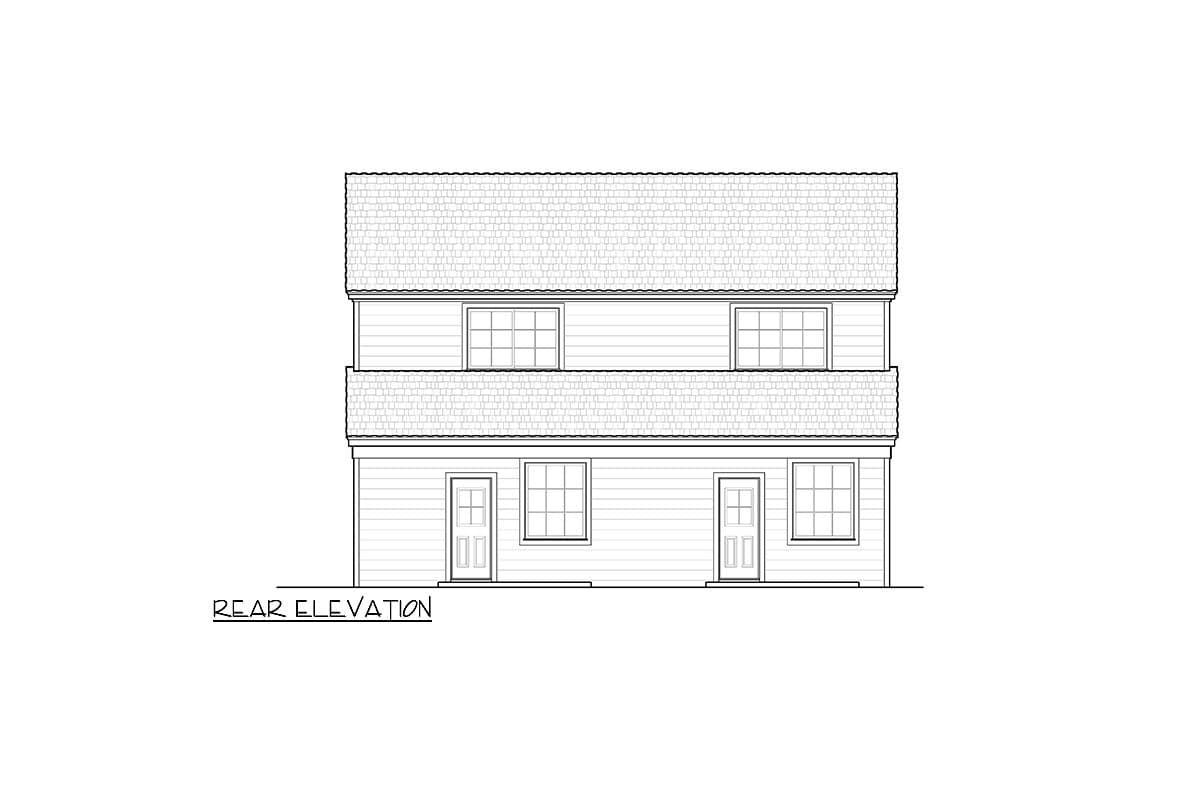

  • Rear and Right Elevation
  • Roof Plan
  • Cabinets and Section
  • Building Section

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Price Match Guarantee
What's included?

FORMAT & LICENSE

Choose an option

$0

Not sure what to choose?

Pointer link icon

FOUNDATION

Choose an option

+$0

Not sure what to choose?

Pointer link icon

OPTIONS

Choose Additional Options

+$0

Not sure what to choose?

Pointer link icon

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

2,794 sq. ft.

1st Floor

1,718 sq. ft.

2nd Floor

1,076 sq. ft.

Porch, Front

36 sq. ft.

Covered Patio

160 sq. ft.

Beds/Baths

Bedrooms

6

Full bathrooms

4

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

35' 0"

Depth

50' 0"

Max Ridge Height

27' 0"

Ceiling Heights

First Floor

9'

Second Floor

9'

Roof Details

Primary Pitch

5 on 12

Secondary Pitch

8 on 12

Architectural Style

New American

Special Features

Laundry - Upstairs

Loft

Master Suite - 1st Floor

Plan Collections

Exclusive

Square Footage Breakdown

Total Heated Area

2,794 sq. ft.

1st Floor

1,718 sq. ft.

2nd Floor

1,076 sq. ft.

Porch, Front

36 sq. ft.

Covered Patio

160 sq. ft.

Beds/Baths

Bedrooms

6

Full bathrooms

4

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

35' 0"

Depth

50' 0"

Max Ridge Height

27' 0"

Ceiling Heights

First Floor

9'

Second Floor

9'

Roof Details

Primary Pitch

5 on 12

Secondary Pitch

8 on 12

Architectural Style

New American

Special Features

Laundry - Upstairs

Loft

Master Suite - 1st Floor

Plan Collections

Exclusive
