Two-Story European Cottage with First-Floor Master

Plan 39284ST

  • 2,052

    Heated s.f.

  • 4

    Beds

  • 2.5

    Baths

  • 2

    Stories

  • 2

    Cars

  • This European cottage style home plan boasts stone and vertical siding on the exterior, while a desirable open layout combines the great room, dining room, and kitchen inside.
  • The island with seating defines the kitchen, and a walk-in pantry aids in ample kitchen storage.
  • The mud room at the garage helps maintain order and the location of the laundry room is convenient to the master suite.
  • The master suite enjoys a double-bowl vanity, shower enclosure, commode room and walk-in closet.
  • Three additional second floor bedrooms complete the finished living space, and a full unfinished basement adds storage or room for expanded living.

  • General notes and specifications

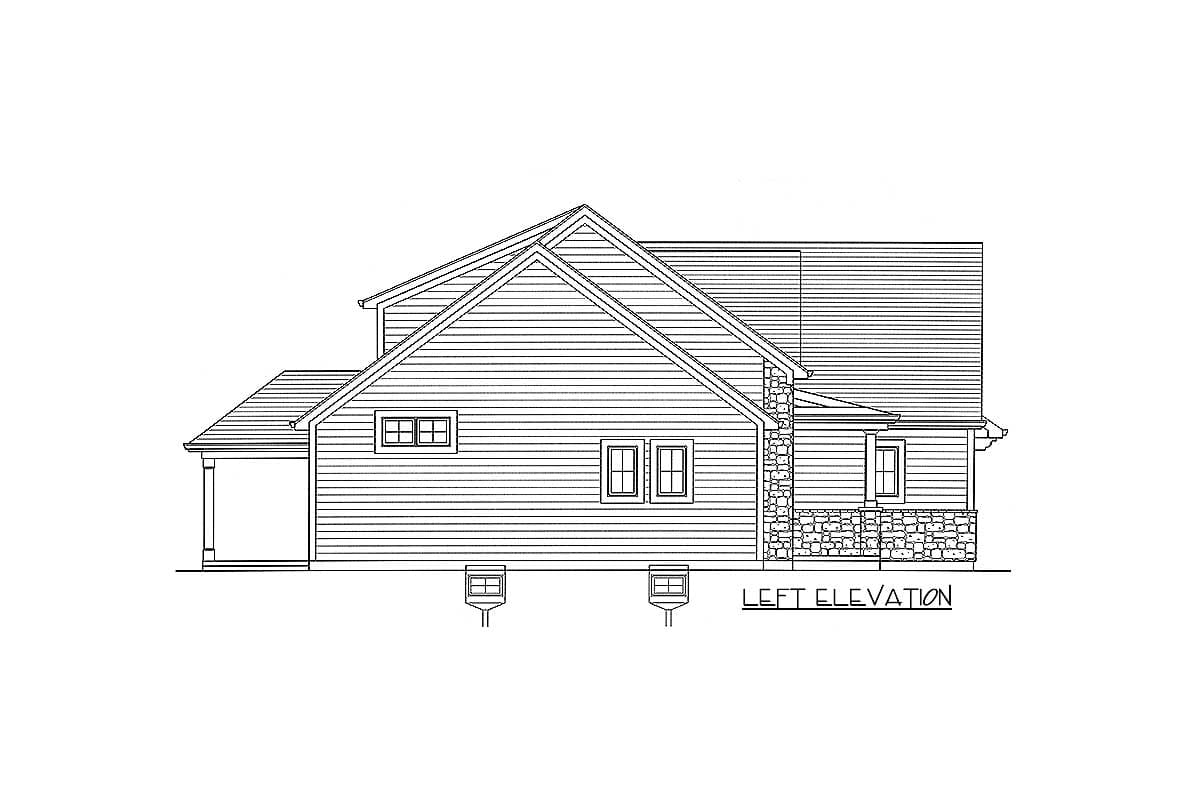

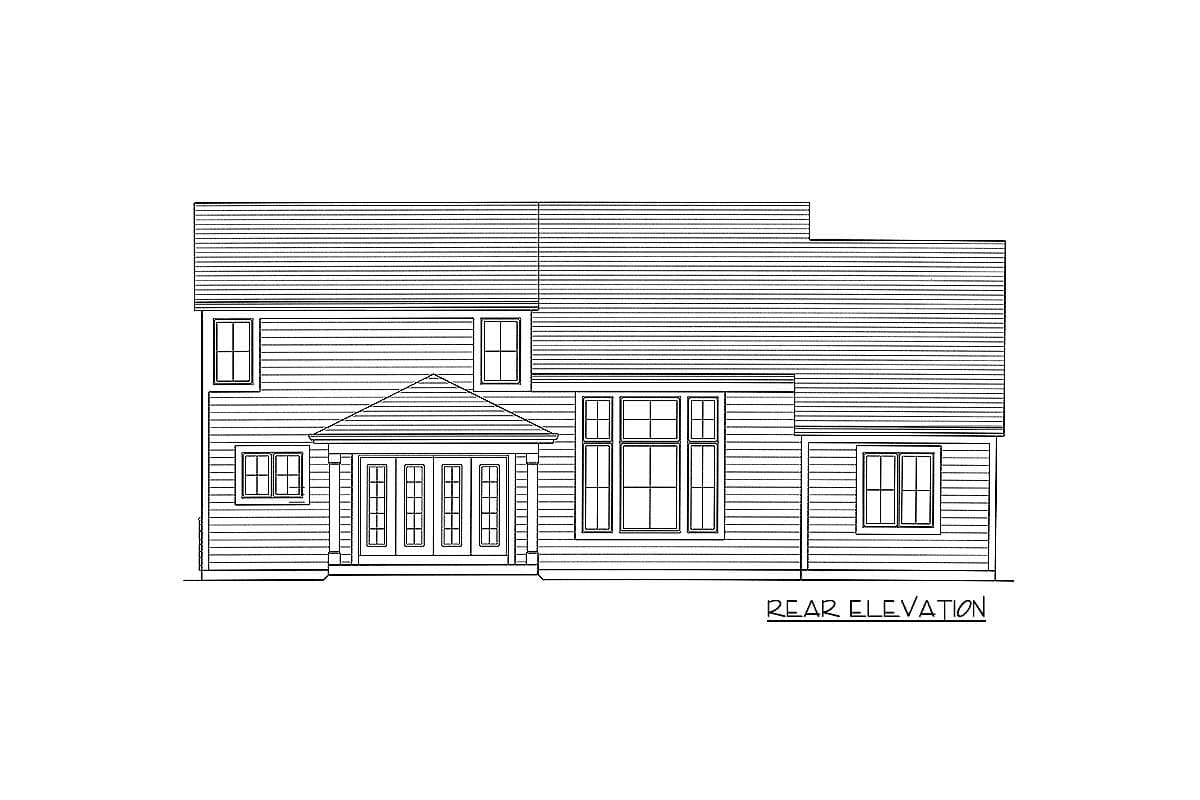

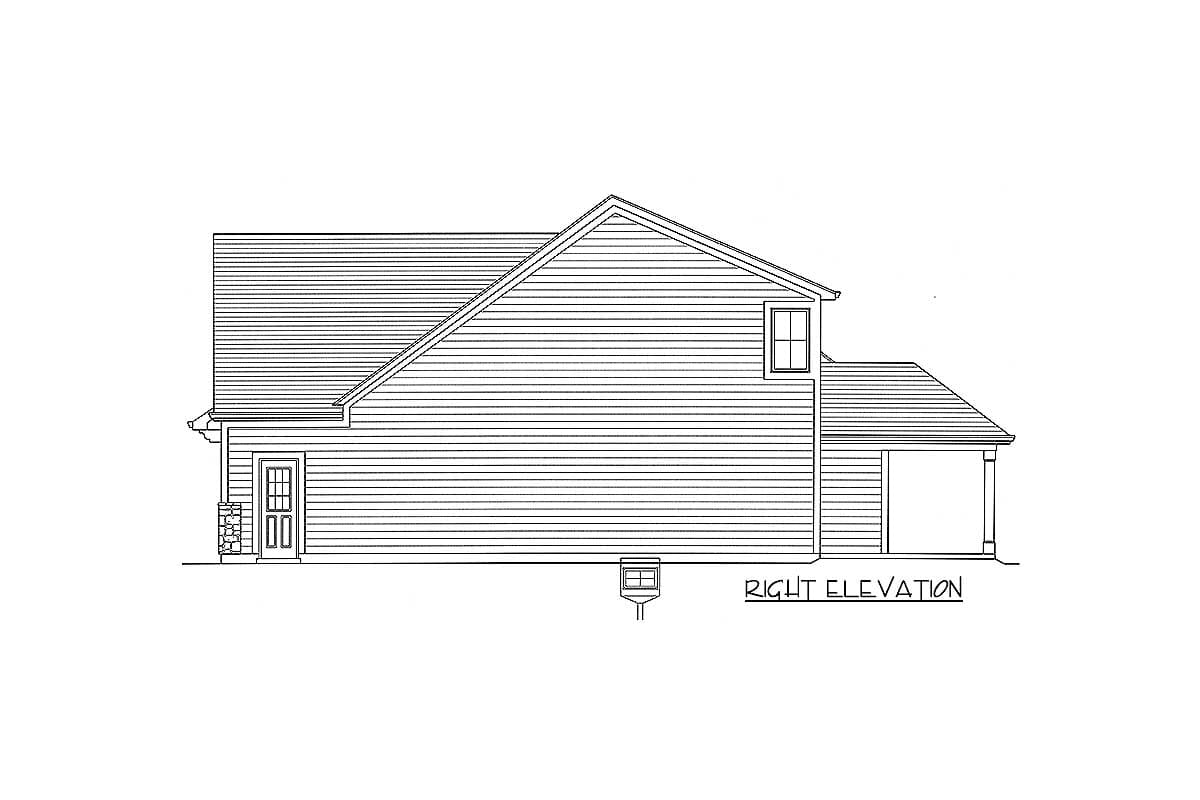

  • Front, rear and side elevations at (1/4" scale)
  • Foundation plan (1/4" scale) indicating beam and column sizes along with lower level framing
  • Reinforced foundation and footing details
  • First floor plan (1/4" scale) includes all necessary framing information, window rough openings, beam sizes and framing details for specialized areas
  • Stairs, sections, cabinet layouts, window flashing and miscellaneous details necessary for understanding of construction methods
  • Roof plan (1/8" scale) indicating pitches and wall height as well as truss profiles indicating heel heights and raised ceiling areas
  • Wall section indicating standard materials and detailing for typical wall construction
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

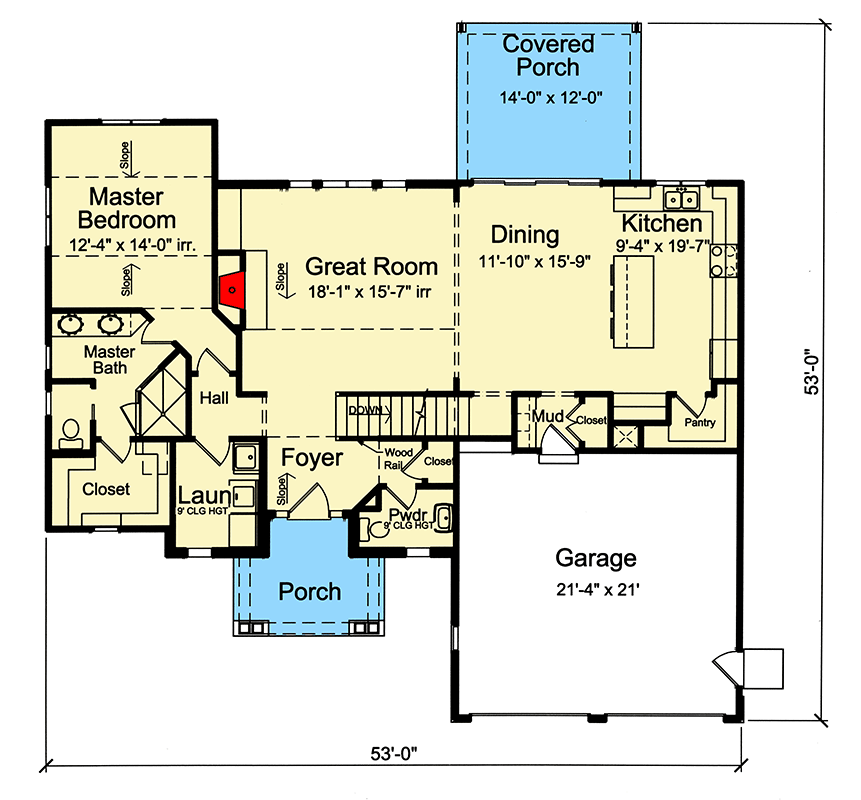

Two-Story European Cottage with First-Floor Master - 39284ST floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

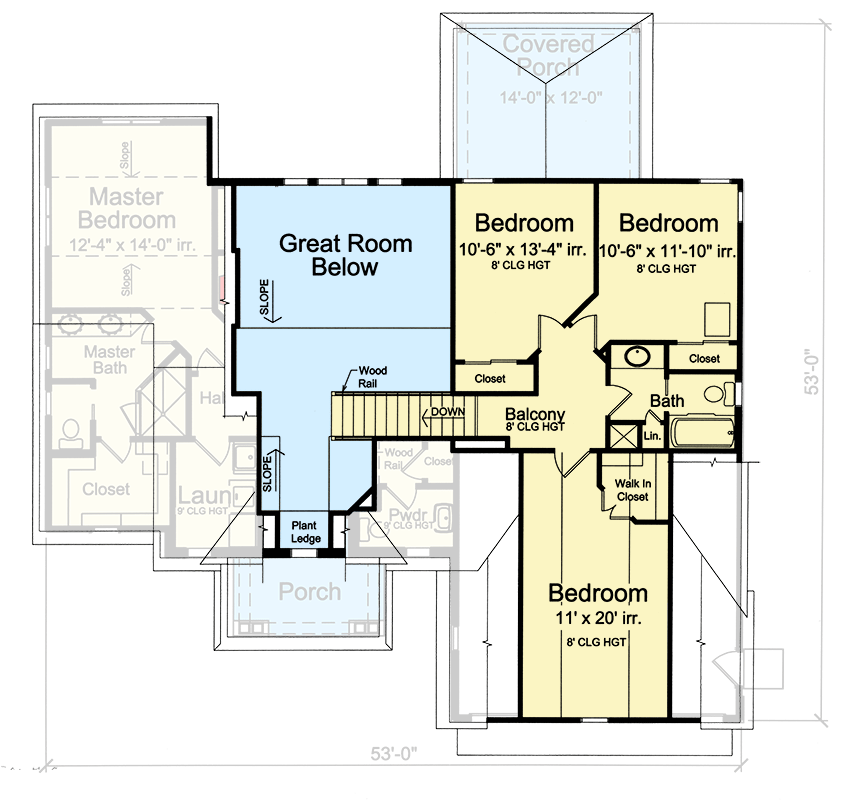

Two-Story European Cottage with First-Floor Master - 39284ST floor plan - 2nd Floor

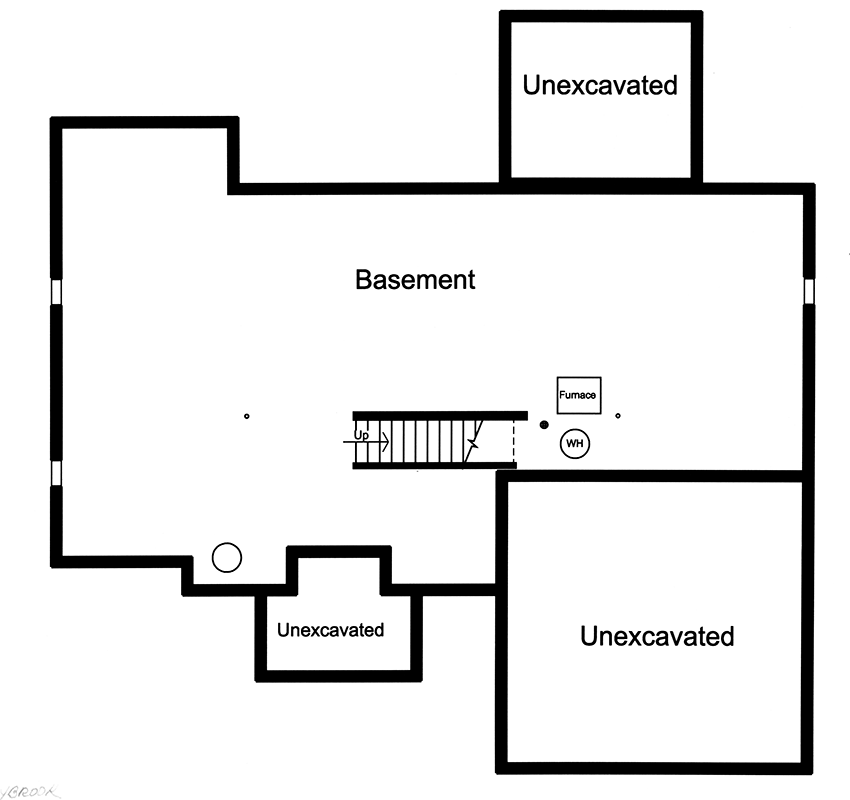

Lower Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Two-Story European Cottage with First-Floor Master - 39284ST floor plan - Lower Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 2,052 sq. ft.
  • 1st Floor: 1,366 sq. ft.
  • 2nd Floor: 686 sq. ft.
  • Porch, Rear: 169 sq. ft.
  • Porch, Front: 88 sq. ft.
  • Basement Unfinished: 1,366 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 53' 0"
  • Depth: 55' 0"
  • Max ridge height: 24' 6"

Garage

  • Type: Attached
  • Area: 430 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 8' 0" Second Floor / 8' 0"

Roof Details

  • Primary Pitch: 9 on 12
  • Secondary Pitch: 12 on 12
  • Framing Type: Truss

Architectural Style

Special features

Two-Story European Cottage with First-Floor Master

  • 2,052

    Heated s.f.

  • 4

    Beds

  • 2.5

    Baths

  • 2

    Floors

  • 2

    Car garage

Buy This Plan
  • Study Set - Digital $795
  • PDF - Single-Build $995
  • 5 Sets + PDF $1,050
  • PDF - Unlimited Build $1,305
  • CAD - Unlimited Build $1,650
  • View all purchase option online

About This Plan

  • This European cottage style home plan boasts stone and vertical siding on the exterior, while a desirable open layout combines the great room, dining room, and kitchen inside.
  • The island with seating defines the kitchen, and a walk-in pantry aids in ample kitchen storage.
  • The mud room at the garage helps maintain order and the location of the laundry room is convenient to the master suite.
  • The master suite enjoys a double-bowl vanity, shower enclosure, commode room and walk-in closet.
  • Three additional second floor bedrooms complete the finished living space, and a full unfinished basement adds storage or room for expanded living.

Floor Plans

  • Main Level

  • 2nd Floor

  • Lower Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,052 sq. ft.
  • 1st Floor: 1,366 sq. ft.
  • 2nd Floor: 686 sq. ft.
  • Porch, Rear: 169 sq. ft.
  • Porch, Front: 88 sq. ft.
  • Basement Unfinished: 1,366 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 53' 0"
  • Depth: 55' 0"
  • Max ridge height: 24' 6"

Garage

  • Type: Attached
  • Area: 430 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 8' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 9 on 12
  • Secondary Pitch: 12 on 12
  • Framing Type: Truss
Plan 39284ST
View this and more for this plan by visiting www.architechtecturaldesigns.com/39284ST
|
Need Help? 800-854-7852
|
